Caterpillar

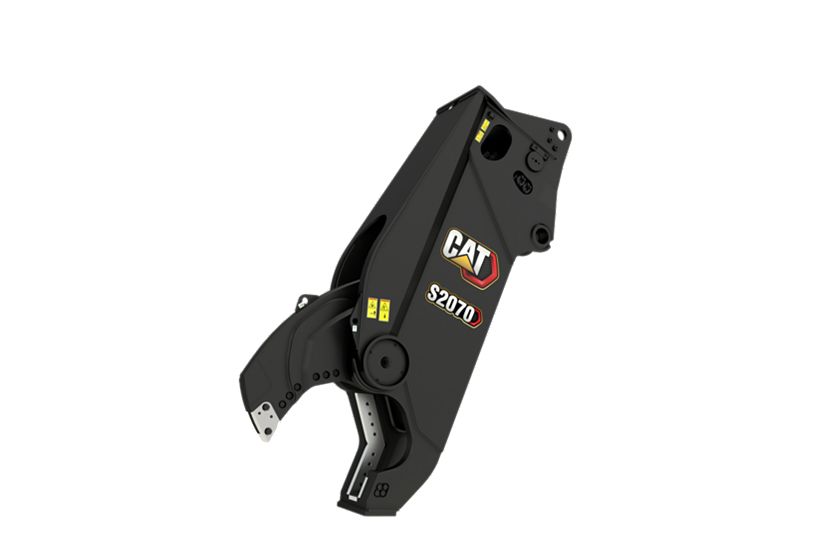

S2070 Straight Scrap & Demoltion Shear
Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.
Media
Photos
Videos
360° View
Exterior
Represents all rotating Shears except where noted.
Documents
Features
Long-Lasting Quality
Easy to Maintain
Options to Meet Your Needs
Details
Specifications
General
| Spec | Value |
|---|---|
| Weight – Boom Mount | 12822 lb 5815 kg |
| Length | 153 in 3875 mm |
| Height | 70 in 1770 mm |
| Width | 28 in 720 mm |
| Jaw Width – Fixed | 21 in 546 mm |
| Jaw Width – Moving | 6 in 158 mm |
| Jaw Opening | 32.2 in 819 mm |
| Jaw Depth | 30 in 755 mm |
| Throat Force | 1016 ton-f 9037 kN |
| Apex Force | 436 ton-f 3880 kN |
| Tip Force | 237 ton-f 2110 kN |
| Cutting Circuit – Maximum Relief Pressure | 5075 psi 35000 kPa |
| Cutting Circuit – Maximum Flow | 140 gal/min 530 l/min |
| Stick Mounted – Maximum | n/a n/a |
| Stick Mounted – Minimum | n/a n/a |
| Boom Mounted – Minimum | 24 tons 24 tons |
| Boom Mounted – Maximum | 40 tons 40 tons |
| Cycle Time – Close | 3.4 Seconds 3.4 Seconds |
