Caterpillar

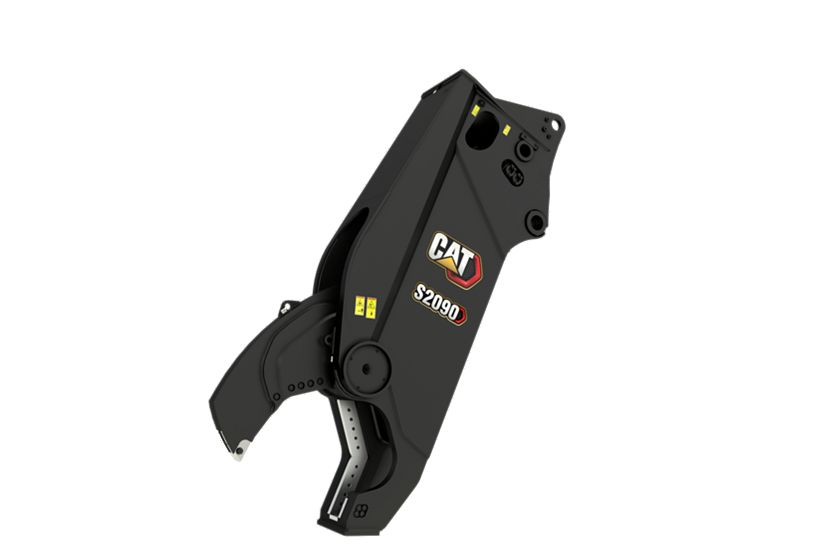

S2090 Straight Scrap & Demolition Shear
Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.
Media
Photos
Videos
360° View
Exterior
Represents all rotating Shears except where noted.
Documents
Features
Long-Lasting Quality
Easy to Maintain
Options to Meet Your Needs
Details
Specifications
General
| Spec | Value |
|---|---|
| Weight – Boom Mount | 16493 lb 7480 kg |
| Length | 170 in 4325 mm |
| Height | 74 in 1890 mm |
| Width | 30 in 760 mm |
| Jaw Width – Fixed | 24 in 602 mm |
| Jaw Width – Moving | 7 in 168 mm |
| Jaw Opening | 35.8 in 910 mm |
| Jaw Depth | 35 in 900 mm |
| Throat Force | 1320 ton-f 11746 kN |
| Apex Force | 534 ton-f 4754 kN |
| Tip Force | 282 ton-f 2513 kN |
| Cutting Circuit – Maximum Relief Pressure | 5075 psi 35000 kPa |
| Cutting Circuit – Maximum Flow | 185 gal/min 700 l/min |
| Stick Mounted – Minimum | n/a n/a |
| Stick Mounted – Maximum | n/a n/a |
| Boom Mounted – Minimum | 30 tons 30 tons |
| Boom Mounted – Maximum | 54 tons 54 tons |
| Cycle Time – Close | 3.4 Seconds 3.4 Seconds |
