Caterpillar

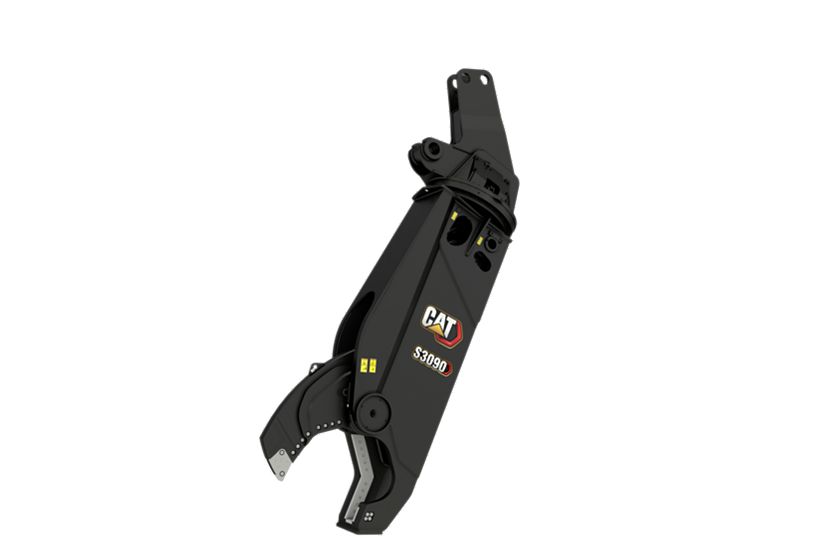

S3090 Rotating Scrap & Demolition Shear
Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.
Media
Photos
Videos
360° View
Exterior
Represents all rotating Shears except where noted.
Documents
Features
Long-Lasting Quality
Easy to Maintain
Options to Meet Your Needs
Details
Specifications
General
| Spec | Value |
|---|---|
| Weight – Boom Mount | 19889 lb 9020 kg |
| Weight – Stick Mount | 19316 lb 8760 kg |
| Length | 211 in 5370 mm |
| Height | 71 in 1810 mm |
| Width | 51 in 1300 mm |
| Jaw Width – Fixed | 24 in 602 mm |
| Jaw Width – Moving | 7 in 168 mm |
| Jaw Opening | 35.8 in 910 mm |
| Jaw Depth | 35 in 900 mm |
| Throat Force | 1320 ton-f 11746 kN |
| Apex Force | 534 ton-f 4754 kN |
| Tip Force | 282 ton-f 2513 kN |
| Cutting Circuit – Maximum Relief Pressure | 5075 psi 35000 kPa |
| Cutting Circuit – Maximum Flow | 185 gal/min 700 l/min |
| Rotation Circuit – Maximum Relief Pressure | 2030 psi 14000 kPa |
| Rotation Circuit – Maximum Flow | 21 gal/min 80 l/min |
| Stick Mounted – Minimum | 90 tons 90 tons |
| Stick Mounted – Maximum | 110 tons 110 tons |
| Boom Mounted – Maximum | 54 tons 54 tons |
| Boom Mounted – Minimum | 30 tons 30 tons |
| Cycle Time – Close | 3.4 Seconds 3.4 Seconds |
