Caterpillar

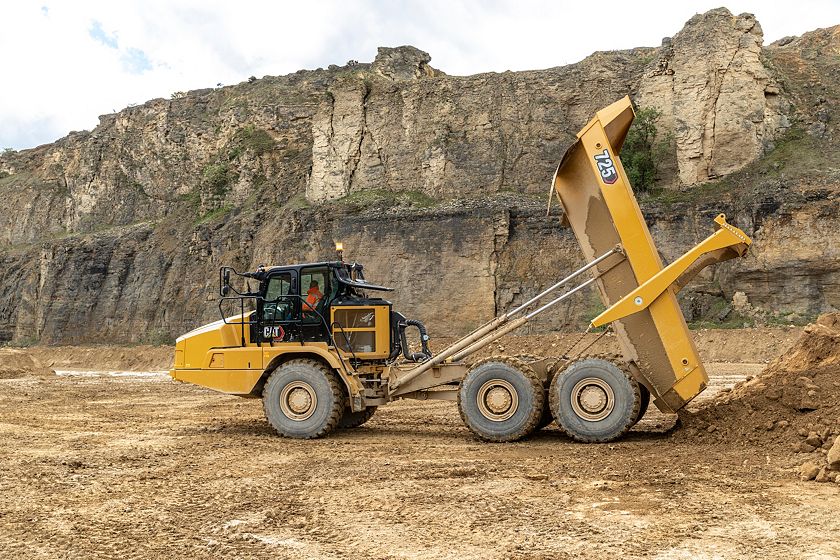

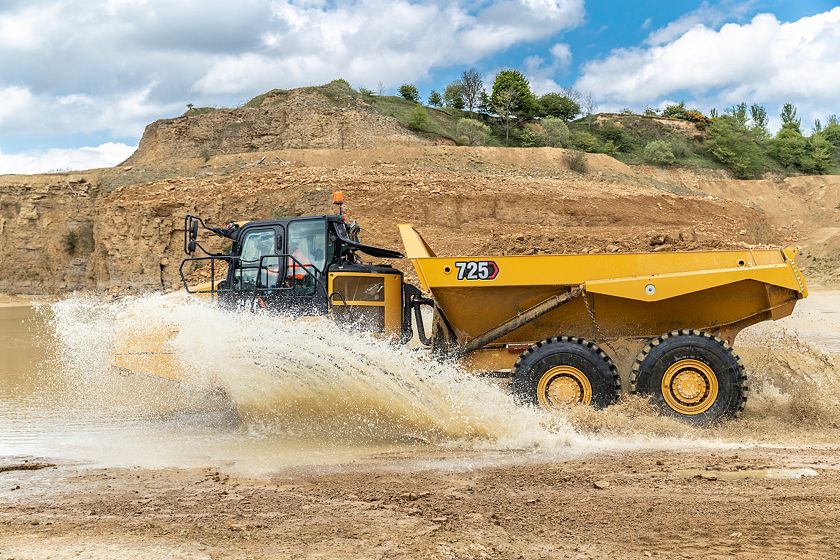

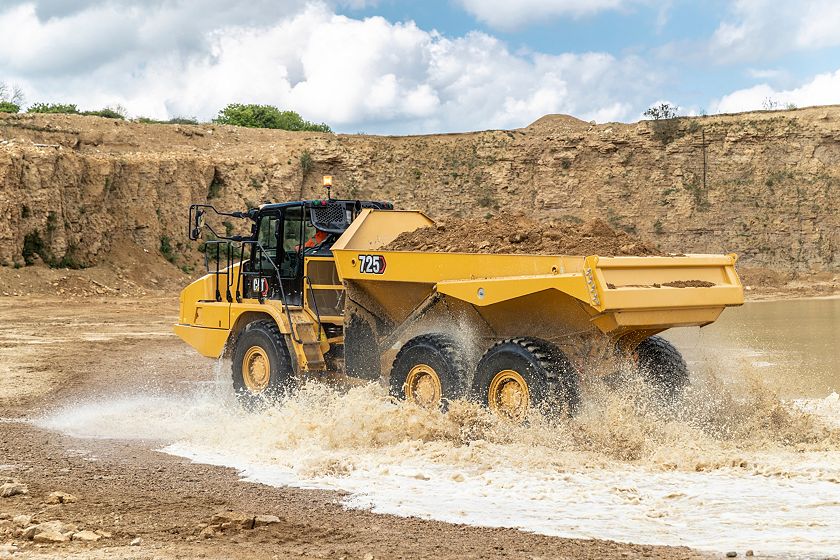

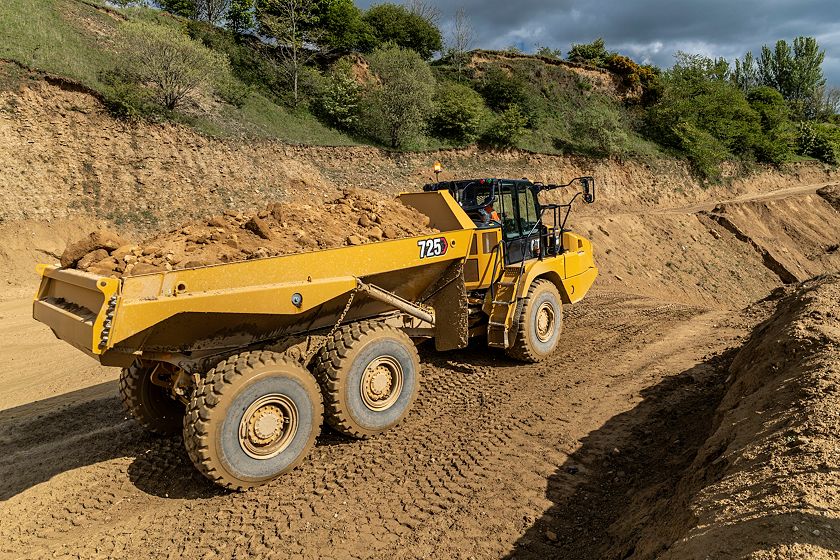

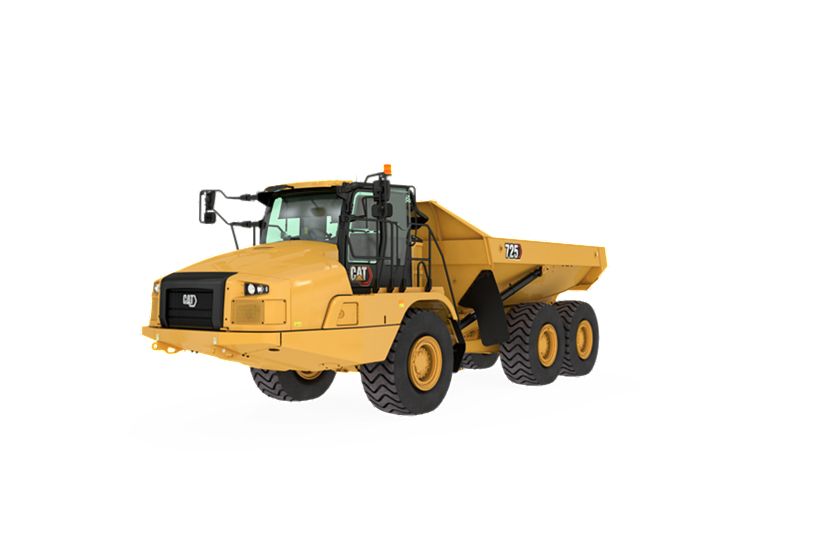

725 Articulated Truck
Engine Model
Cat C9.3
Cat C9.3
Rated Payload
26.5 ton (US)
24 t
Heaped (SAE 2:1)
19.6 yd³
15 m³
Overview
The Cat® 725 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, automatic retarder control, stability-assist machine rollover warning system, and a fuel saving ECO mode.
Media
Photos
Videos
360° View
Exterior
Standard – 360 Exterior view. Double click on the image to zoom in on any area of the product.
Interior
Standard – 360 Exterior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C9.3 Cat C9.3 |
| Bore | 4.5 in 115 mm |
| Stroke | 45.2 in 1149 mm |
| Displacement | 567.5 in³ 9.3 l |
| Peak Engine Torque Gross (SAE J1995) | 1275 ft·lbf 1729 N·m |
| Gross Power – SAE J1995:2014 | 342 hp 255 kW |
| Net Power – ISO 14396 | 338 hp 252 kW |
| Engine Model – U.S. EPA Tier 4 Final/EU Stage IV | Cat® C9.3 Cat® C9.3 |
| No Engine De-rating Below | 3000 ft 914 m |
| Peak Engine Torque Net (SAE J1349) | 1263 ft·lbf 1712 N·m |
| Net Power – SAE J1349:2011 | 334 hp 249 kW |
| Peak Engine Torque Speed | 1200 r/min 1200 r/min |
| Note (1) | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. |
| Emissions | The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards. The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards. |
| Note (3) | Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions. |
| Note (2) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
| Note (4) | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
Weights
| Spec | Value |
|---|---|
| Rated Payload | 26.5 ton (US) 24 t |
Body Capacities
| Spec | Value |
|---|---|
| Heaped (SAE 2:1) | 19.6 yd³ 15 m³ |
| Struck | 14.4 yd³ 11 m³ |
| Tailgate Heaped SAE 2:1 | 20.4 yd³ 15.6 m³ |
| Tailgate Struck | 14.5 yd³ 11.1 m³ |
Transmission
| Spec | Value |
|---|---|
| Forward – 1 | 5 mT/hr 8.1 km/h |
| Forward – 2 | 9.4 mT/hr 15.2 km/h |
| Forward – 3 | 14.4 mT/hr 23.2 km/h |
| Forward – 4 | 22.1 mT/hr 35.5 km/h |
| Forward – 5 | 30.7 mT/hr 49.4 km/h |
| Forward – 6 | 36.3 mT/hr 58.4 km/h |
| Reverse – 1 | 5.5 mT/hr 8.9 km/h |
Sound Levels
| Spec | Value |
|---|---|
| Interior Cab | 69 dB(A) 69 dB(A) |
| Note (1) | The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Operating Weights
| Spec | Value |
|---|---|
| Total – Loaded | 103886 lb 47122 kg |
| Rear Axle – Rated Load | 23699 lb 10750 kg |
| Total – Empty | 50975 lb 23122 kg |
| Total – Rated Load | 52910 lb 24000 kg |
| Center Axle – Loaded | 33944 lb 15397 kg |
| Front Axle – Rated Load | 5511 lb 2500 kg |
| Center Axle – Rated Load | 23699 lb 10750 kg |
| Center Axle – Empty | 10242 lb 4646 kg |
| Rear Axle – Loaded | 33457 lb 15176 kg |
| Front Axle – Loaded | 36484 lb 16549 kg |
| Rear Axle – Empty | 9757 lb 4426 kg |
| Front Axle – Empty | 30974 lb 14050 kg |
Body Plate Thickness
| Spec | Value |
|---|---|
| Side Plates | 0.43 in 11 mm |
| Front Plate | 0.28 in 7 mm |
| Base Plate | 0.51 in 13 mm |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 91 gal (US) 412 l |
| Cooling System | 18 gal (US) 83 l |
| Hydraulic System | 29.1 gal (US) 110 l |
| Engine Crankcase | 8 gal (US) 38 l |
| Transmission | 10 gal (US) 47 l |
| Final Drives/Differential | 33 gal (US) 125 l |
| Output Transfer Gear Box | 5 gal (US) 24 l |
| DEF Tank | 4 gal (US) 20 l |
| Steering/Hoist Hydraulic System | 24 gal (US) 110 l |
| Final Drive – Each | 1.6 gal (US) 7.5 l |
Body Hoist
| Spec | Value |
|---|---|
| Raise Time | 10 s 10 s |
| Lower Time | 8 s 8 s |
Steering
| Spec | Value |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm |
Standards
| Spec | Value |
|---|---|
| Brakes | ISO 3450 – 2011 ISO 3450 – 2011 |
| Cab – FOPS | ISO 3449 Level II – 2008 ISO 3449 Level II – 2008 |
| Cab – ROPS | ISO 3471 – 2008 ISO 3471 – 2008 |
| Steering | ISO 5010 – 2007 ISO 5010 – 2007 |
Body Plate
| Spec | Value |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel |
Turning Circle
| Spec | Value |
|---|---|
| Turning Dimensions – Inside Radius | 153 in 3879 mm |
| Turning Dimensions – Aisle Width | 210 in 5332 mm |
| Turning Dimensions – SAE Turning Radius | 294 in 7470 mm |
| Turning Dimensions – Clearance Radius | 318 in 8075 mm |
| Turning Dimensions – Steer Angle – Left/Right | 45° 45° |
| Note | Dimensions are for machines equipped with 23.5R25 tires. Dimensions are for machines equipped with 23.5R25 tires. |
Optimal Loader/Truck Pass Matching
| Spec | Value |
|---|---|
| Wheel Loader: 950M – Passes | 5 5 |
| Wheel Loader: 962M – Passes | 4-5 4-5 |
| Wheel Loaders: 966M/966M XE – Passes | 4 4 |
| Hydraulic Excavators: 336F/336F XE – Passes | 5-6 5-6 |
| Wheel Loaders: 972M/972M XE – Passes | 3-4 3-4 |
| Hydraulic Excavators: 349F/349F XE – Passes | 4-5 4-5 |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Air conditioning with R134A refrigerant
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Windows opening both sides, tinted
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Tilt and telescopic steering wheel
- Retractable belt: Operator seat and second seat
- Adjustable air vents
- Heater and defroster with four-speed fan
- Sun visor
- Touchscreen display incorporating the rearview camera video feed
- Windshield wiper and washer, two speed, intermittent (front)
- Combined gear selection and hoist control lever
- Windshield wiper and washer, two speed (rear)
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Machine Security System (MSS) ready
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Secondary steering – electro hydraulic
- Mirrors: extensive arrangement for improved visibility
CAT TECHNOLOGIES
- Product Link
- Cat Detect with Stability Assist
ELECTRICAL AND LIGHTING
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Horn
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
POWER TRAIN
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Cat C9.3 engine
- Three axle, six-wheel drive
- Retarder: engine compression brake
- Dual circuit oil immersed, enclosed brakes – all wheels
- Auto shift six-speed forward and single speed reverse transmission
SAFETY
- Reverse alarm
- Rearview camera
- ROPS/FOPS cab
GUARDS
- Front dump body spill guard, integral part of fabricated body
- Crankcase
- Axle
- Rear window
- Radiator
OTHER STANDARD EQUIPMENT
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Sound suppression (only standard in Europe)
- S·O·S sampling valves
- Tires, six 23.5R25
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPTIONAL EQUIPMENT
- Cold weather coolant –51° C (–60° F)
- Infrared glass – high ambient cab
- Auto lube installation for automatic greasing of bearings
- Cold weather start attachment
- Bare chassis (no body) standard wheel base
- Roof mounted High Intensity Discharge (HID) work lights
- Product Link Elite: PLE641 (cellular). Product Link is optional.
- Heated/cooled seat
- Exhaust heated body
- Fuel additive – anti-waxing
- Flashing LED beacon
- Body liners
- Ether start
- Four-point seat belt
- Machine Security System (MSS)
- Cat Production Measurement payload monitoring system
- Sound suppression (only standard in Europe)
- Fast fuel fill
- Wheel chocks
- Engine block heater
- Heated rearview motorized mirrors
- Window blinds
- Bluetooth radio stereo system
- Scissor tailgate
