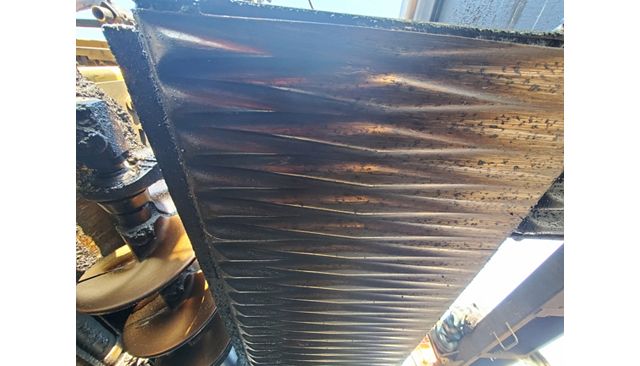

Cat® SDX Screed Plates
Main content
Caterpillar

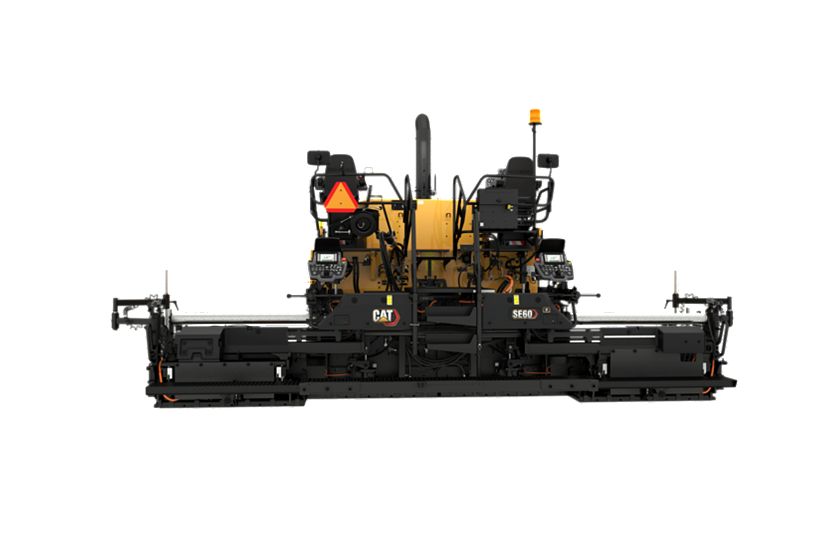

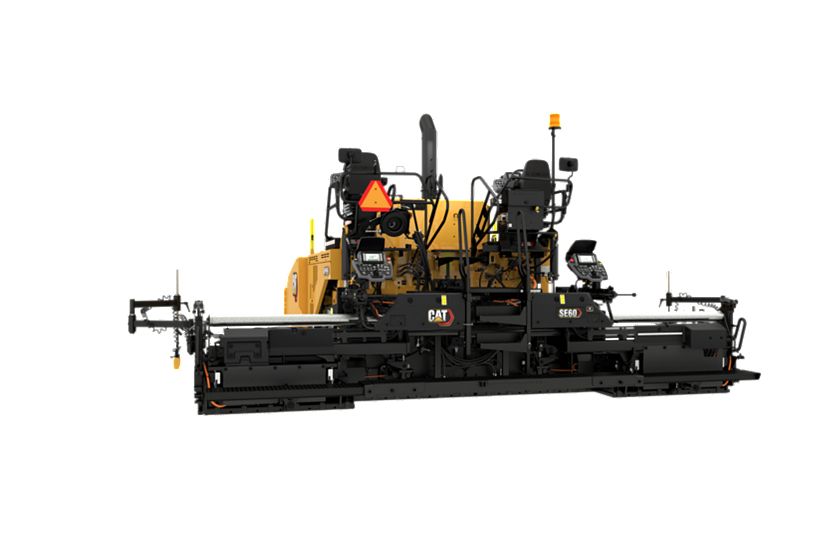

SE60 V Screed
Standard Weight
7826 lb
3550 kg
Standard Paving Range
3.0 - 6.0 m (9' 10" - 19' 6"')
3.0 - 6.0 m (9' 10" - 19' 6"')
Maximum Paving Width
24.5 ft
7.45 m
Overview

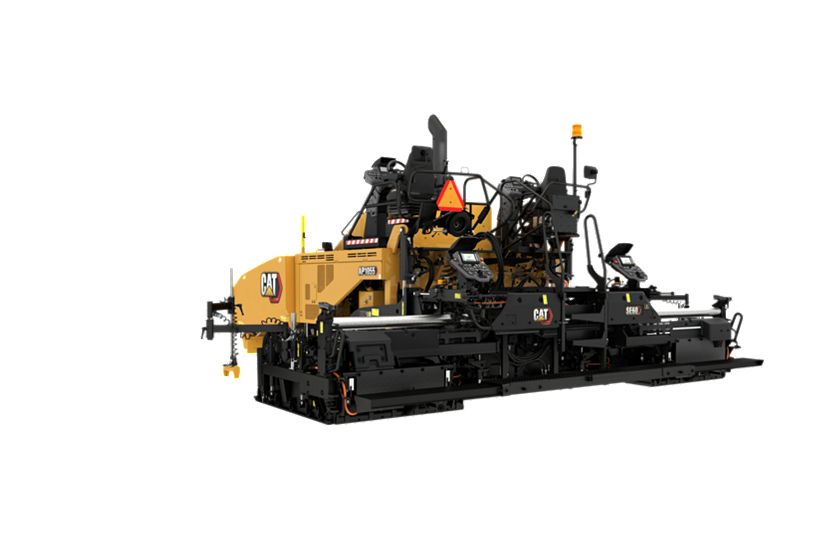

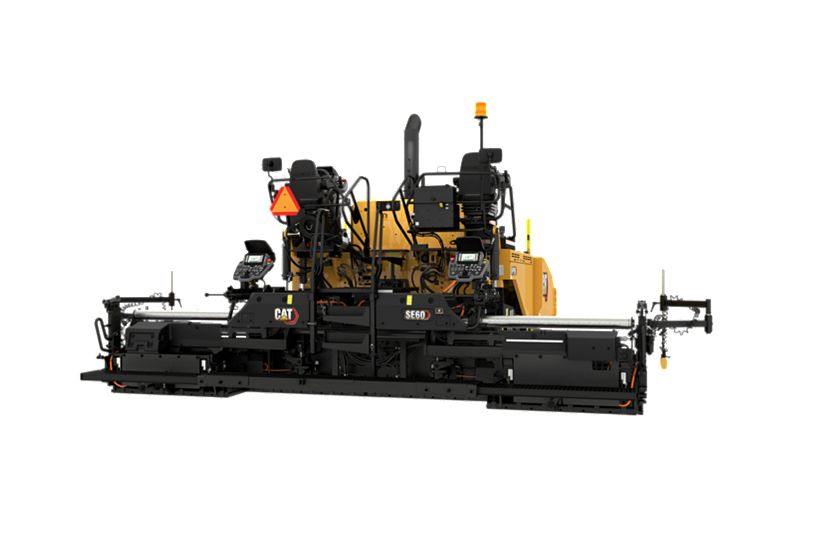

The Cat® SE60 V Asphalt Screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for highways, interstates, airports, and many other high-production paving applications.
Media
Photos
Videos
Features
Application Versatility

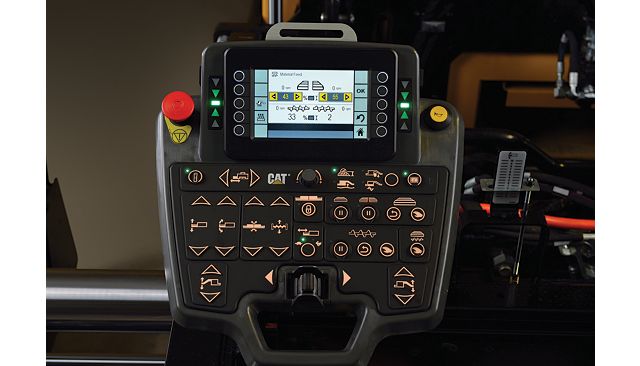

Simple Operation
Pave Start Assistant

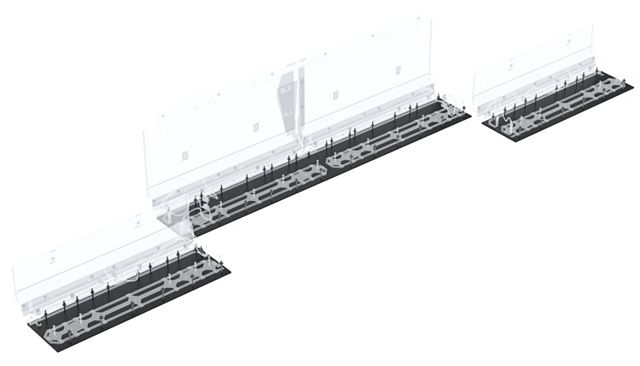

Quick Heat, Even Distribution

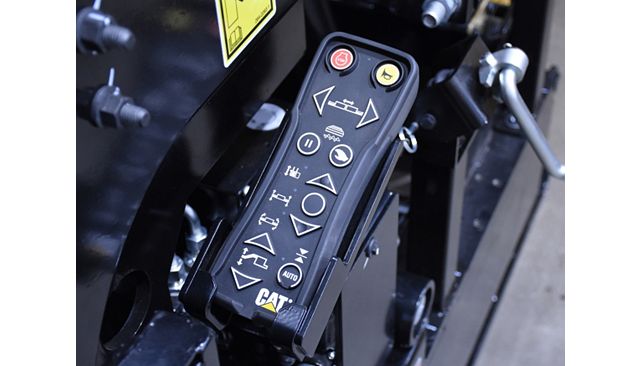

Pendent Control (Option)

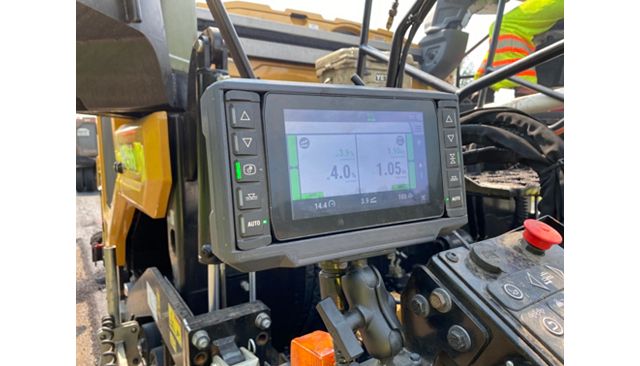

Cat® Grade Control (Option)
Service and Repair Kits
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Standard Weight | 7826 lb 3550 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Standard Paving Range | 3.0 - 6.0 m (9' 10" - 19' 6"') 3.0 - 6.0 m (9' 10" - 19' 6"') |
| Maximum Paving Width | 24.5 ft 7.45 m |
| Crown Range | -4% to +10% -4% to +10% |
| Extender Height Range | +50 mm to -20 mm +50 mm to -20 mm |
| Extender Slope Range | -3% to +10% -3% to +10% |
| Maximum Paving Depth | 12 in 305 mm |
| Vibratory Speed Range | 0 - 3000 rpm 0 - 3000 rpm |
| Heating Time – Maximum Width | 25 minutes 25 minutes |
| Heating Time – Standard Width | 15 minutes 15 minutes |
Dimensions
| Spec | Value |
|---|---|
| Screed Plate Width – Front to Back | 16 in 407 mm |
| Length – Front to Back, Endgates Attached | 94 in 2394 mm |
| Length – Front to Back, Endgates Removed | 68 in 1730 mm |
