Cat

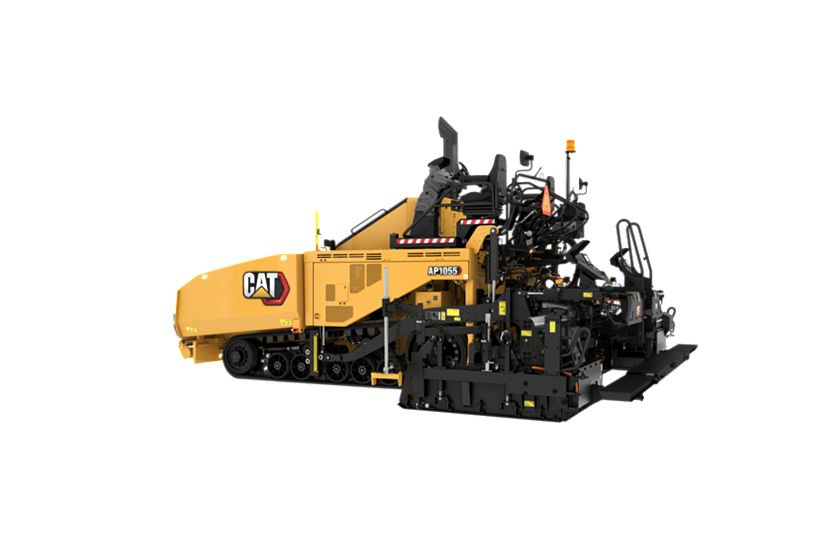

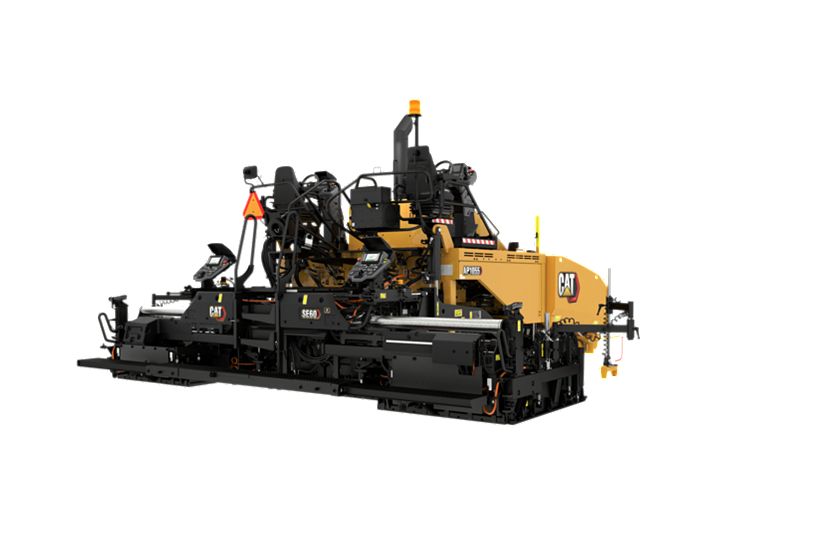

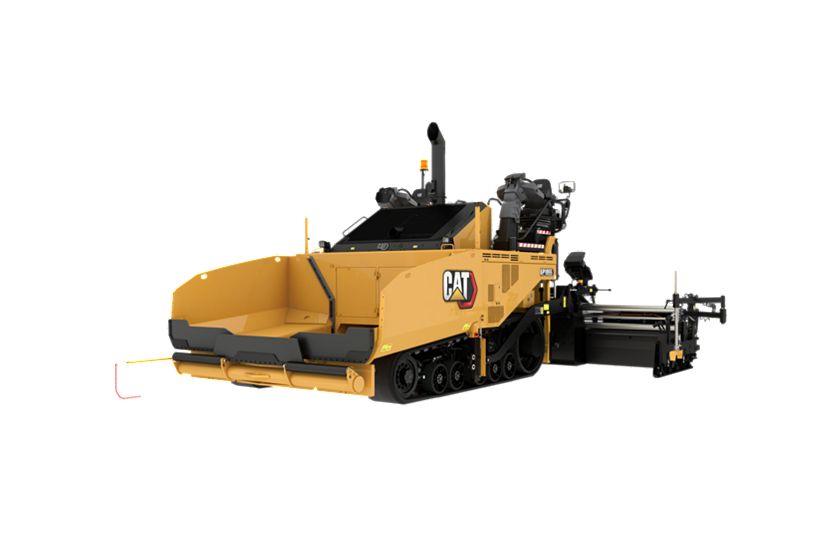

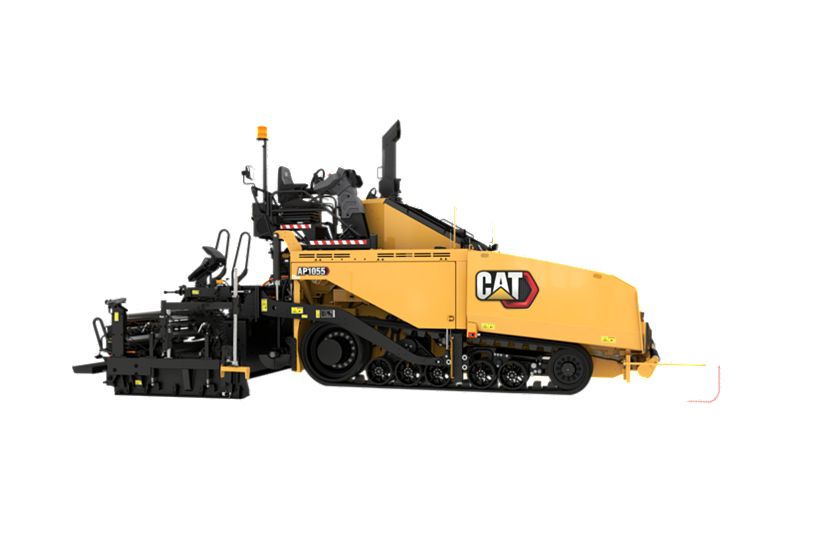

AP1055 Mobil-Trac Paver
Paving Range with SE60 V
3.0 m - 7.65 m (9' 10" - 25')
3.0 m - 7.65 m (9' 10" - 25')
Operating weight with SE60 V
45087 lb
20451 kg
Maximum Throughput Capacity
1602 ton(US)/h
1766 tonnes/hr
Overview
The AP1055 is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.

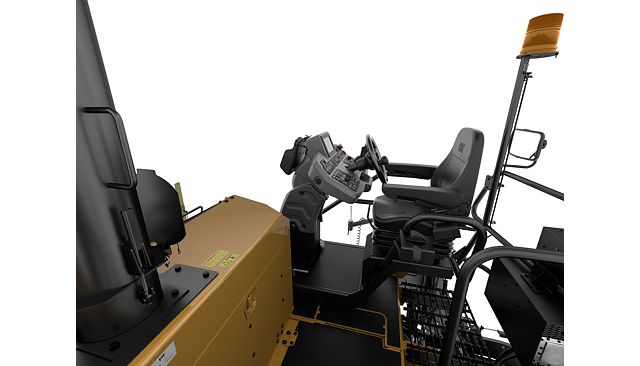

Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Features
Technology That Works For You
Quality Results, Higher Earnings
Low Owning and Operating Costs
More Comfort

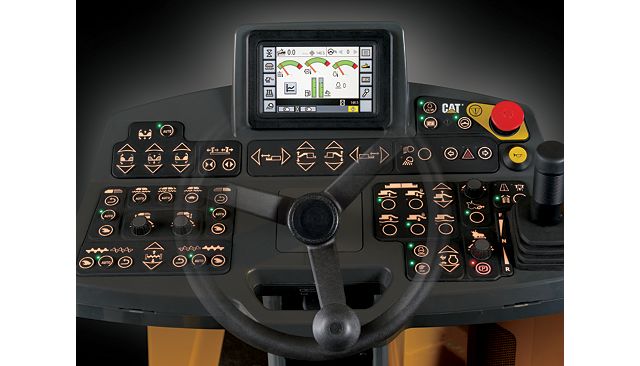

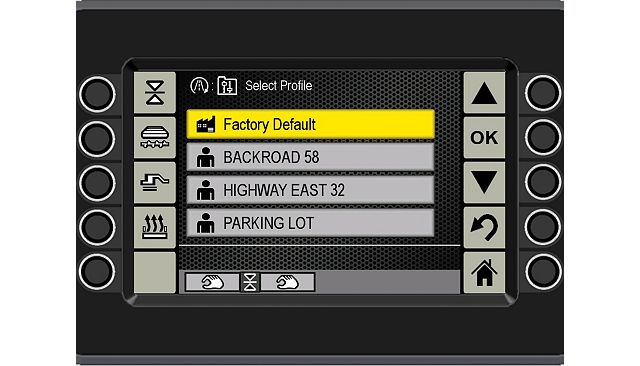

Easy Viewing Displays
Product Link™ Elite
Service and Repair Kits
Details
Specifications
Dimensions
| Spec | Value |
|---|---|
| Paving Range with SE60 V | 3.0 m - 7.65 m (9' 10" - 25') 3.0 m - 7.65 m (9' 10" - 25') |
| Paving Range with SE60 FM | 3.0 m - 7.8 m (10' - 25' 6") 3.0 m - 7.8 m (10' - 25' 6") |
| Paving Range with SE60 V XW | 3.0 m - 10 m (10' - 33') 3.0 m - 10 m (10' - 33') |
| Paving Range with SE60 VT XW | 3.0 m - 10 m (10' - 33') 3.0 m - 10 m (10' - 33') |
| Operating Length | 22.3 ft 6.8 m |
| Operating Width | 10.8 ft 3.3 m |
| Overall Height | 12.25 ft 3.7 m |
| Transport Length | 21.9 ft 6.6 m |
| Transport Width | 9.8 ft 3 m |
| Transport Height | 9.7 ft 2.9 m |
Engine
| Spec | Value |
|---|---|
| Engine Power (1) | 225 hp 168 kW |
| Engine Model (1) | Cat C7.1 Cat C7.1 |
Operating Specifications
| Spec | Value |
|---|---|
| Maximum Travel Speed | 9 mile/h 14.5 km/h |
| Maximum Paving Speed | 210 ft/min 64 m/min |
| Maximum Paving Speed – With Tamper Bar Screed | 82 ft/min 25 m/min |
| Inside Turn Radius | 1.5 ft 0.5 m |
| Maximum Throughput Capacity | 1602 ton(US)/h 1766 tonnes/hr |
Weights
| Spec | Value |
|---|---|
| Operating weight with SE60 V | 45087 lb 20451 kg |
| Operating weight with SE60 FM | 45352 lb 20571 kg |
| Operating weight with SE60 V XW | 46573 lb 21125 kg |
| Shipping Weight – Paver Only | 36800 lb 16691 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 92 gal (US) 348 l |
| DEF Tank | 5 gal (US) 19.1 l |
| Cooling System | 12 gal (US) 45 l |
| Hydraulic Oil Tank | 58 gal (US) 219 l |
| Washdown Tank | 7.9 gal (US) 30 l |
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C7.1 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1400 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers
Optional Equipment
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Friction steering
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Powertrain
- Ballast_front weights
- Mobil-trac belt – smooth
- Mobil-trac belt – tread bar
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery

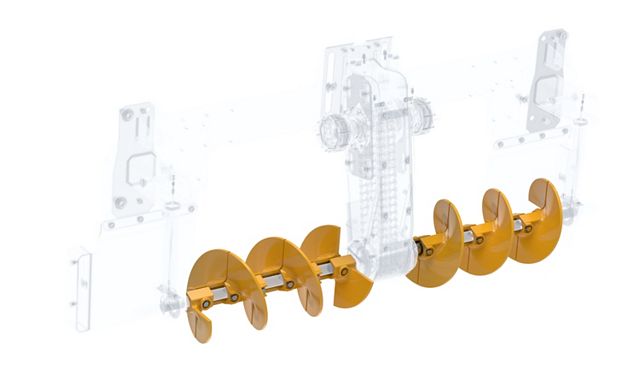

- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Screed Choices
- SE60 V Screed
- SE60 FM Screed
- SE5 VT XW Screed
- SE60 V XW Screed
Grade References
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
