Cat
AP655 Mobil-Trac Paver
Paving Range with SE47 FM
2.44 - 6.25 m (8' - 20' 6")
2.44 - 6.25 m (8' - 20' 6")
Operating weight with SE47 FM
40560 lb
18397 kg
Maximum Throughput Capacity
1433 ton(US)/h
1300 tonnes/hr
Overview
The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.
Media

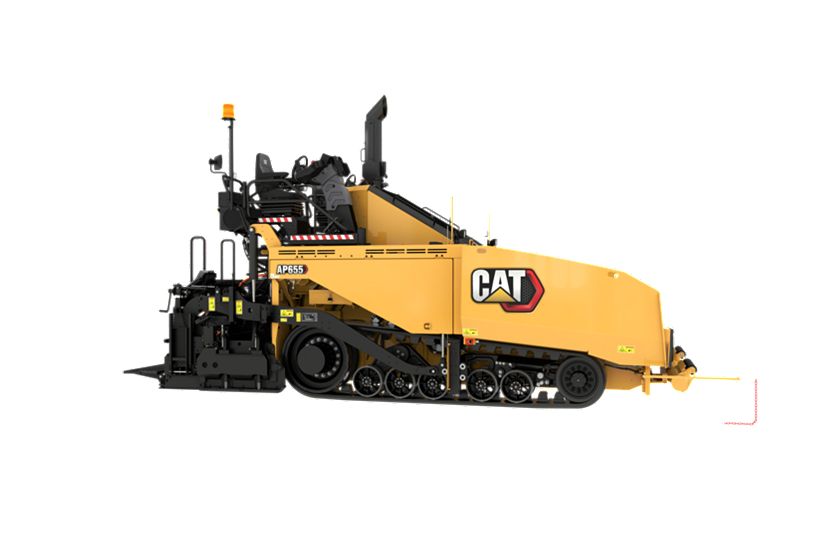

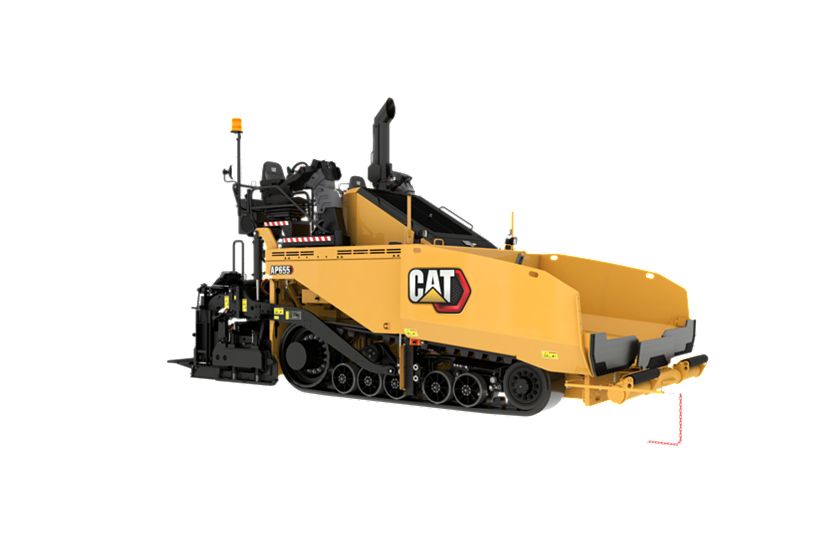

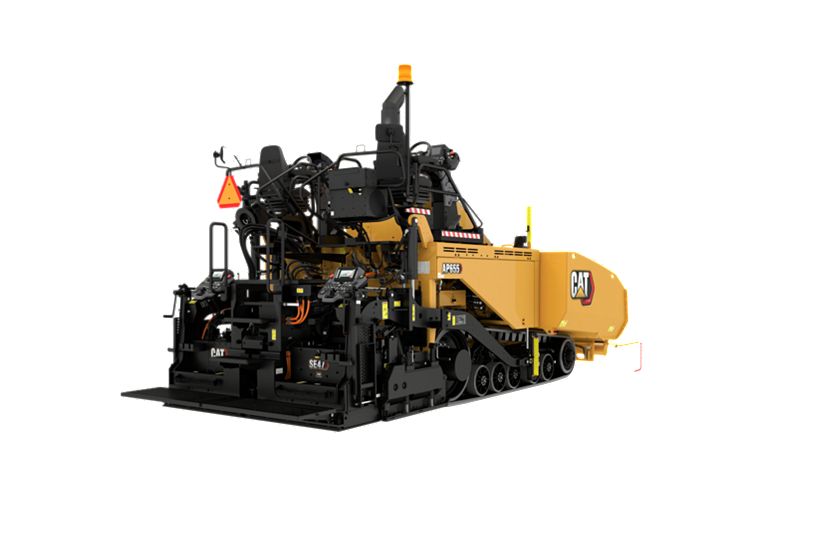

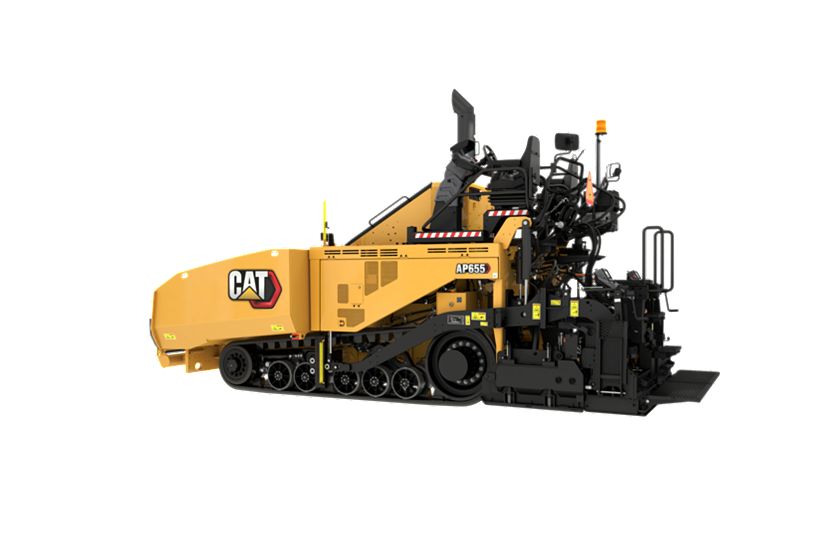

Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Features
Technology That Works For You
Quality Results, Higher Earnings
Low Owning and Operating Costs
More Comfort
Easy Viewing Displays
Product Link™ Elite
Service and Repair Kits
Details
Specifications
Dimensions
| Spec | Value |
|---|---|
| Paving Range with SE47 FM | 2.44 - 6.25 m (8' - 20' 6") 2.44 - 6.25 m (8' - 20' 6") |
| Paving Range with SE50 V | 2.55 - 6.5 m (8' 4" - 21' 4") 2.55 - 6.5 m (8' 4" - 21' 4") |
| Paving Range with SE60 V | 3.0 m - 7.65 m (9' 10" - 25') 3.0 m - 7.65 m (9' 10" - 25') |
| Paving Range with SE60 FM | 3.0 m - 7.8 m (10' - 25' 6") 3.0 m - 7.8 m (10' - 25' 6") |
| Operating Length | 21.75 ft 6.6 m |
| Operating Width | 10.8 ft 3.3 m |
| Overall Height | 12.3 ft 3.7 m |
| Transport Length | 20.9 ft 6.4 m |
| Transport Width | 9.8 ft 3 m |
| Transport Height | 9.7 ft 2.9 m |
Engine
| Spec | Value |
|---|---|
| Engine Power (1) | 173 hp 129 kW |
| Engine Model (1) | Cat C4.4 Cat C4.4 |
Operating Specifications
| Spec | Value |
|---|---|
| Maximum Travel Speed | 9 mile/h 14.5 km/h |
| Maximum Paving Speed | 210 ft/min 64 m/min |
| Inside Turn Radius | 1.5 ft 0.5 m |
| Maximum Throughput Capacity | 1433 ton(US)/h 1300 tonnes/hr |
Weights
| Spec | Value |
|---|---|
| Operating weight with SE47 FM | 40560 lb 18397 kg |
| Operating weight with SE50 V | 41597 lb 18868 kg |
| Operating weight with SE60 FM | 42150 lb 19119 kg |
| Operating weight with SE60 V | 41890 lb 19001 kg |
| Shipping Weight – Paver Only | 33730 lb 15292 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 73 gal (US) 278 l |
| DEF Tank | 5 gal (US) 19.1 l |
| Cooling System | 8 gal (US) 31 l |
| Hydraulic Oil Tank | 58 gal (US) 219 l |
| Washdown Tank | 7.9 gal (US) 30 l |
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C4.4 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1000 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
- Engine coolant heater
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers
Optional Equipment
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Friction steering
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Powertrain
- Ballast_front weights
- Mobil-trac belt – smooth
- Mobil-trac belt – tread bar
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits

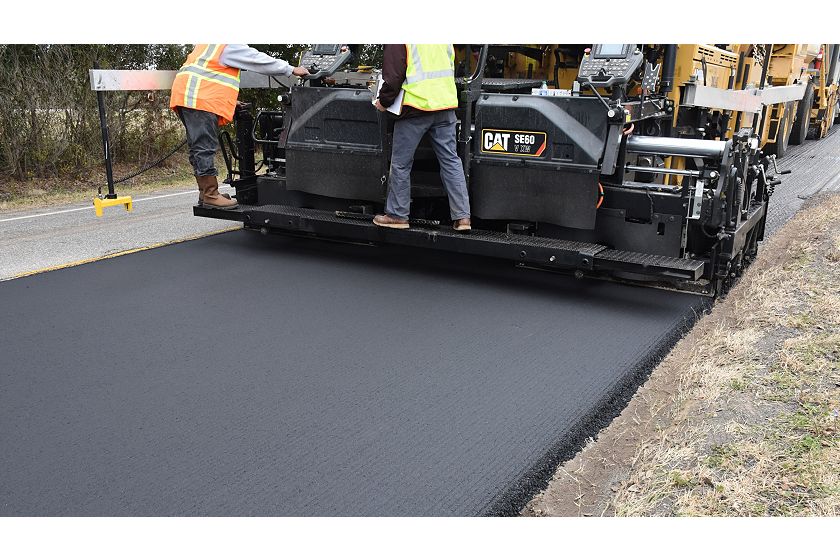

Screed Choices
- SE47 FM Screed
- SE50 V Screed
- SE60 V Screed
- SE60 FM Screed
Grade References
- Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
- Sonic Averaging Beam
