Cat
AP555
Paving Range with SE47 FM
2.4 m - 6.1 m (8' - 20')
2.4 m - 6.1 m (8' - 20')
Operating weight with SE47 FM
33689 lb
15281 kg
Maximum Throughput Capacity
1100 ton(US)/h
1000 tonnes/hr
Overview

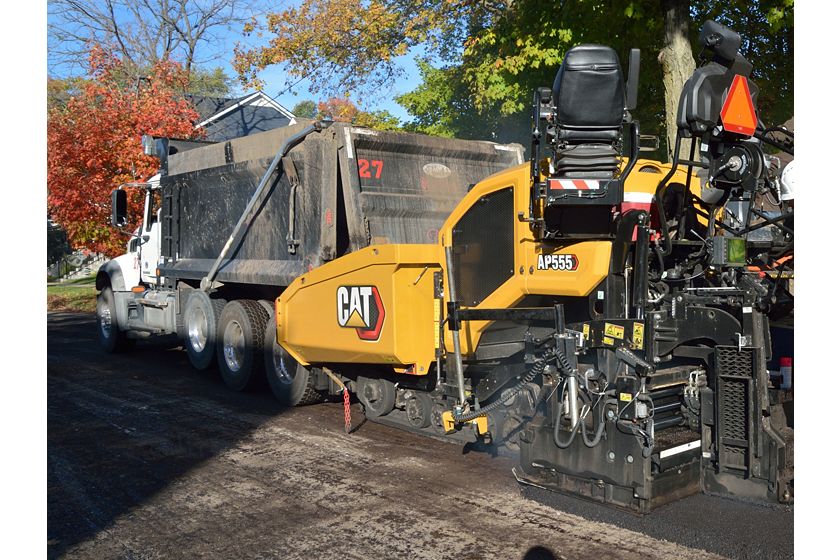

The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
Media
Photos
360° View
Exterior
360º Exterior view. Double click
Interior
360º Interior View. Double click
Documents
Features

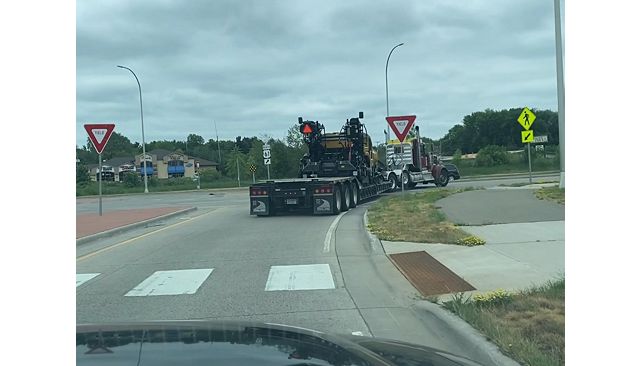

Transport Made Easy
Exceptional Mobility
Smooth Material Flow
More Comfort
Easy Viewing Displays
Screeds that Deliver Quality
Low Owning and Operating Costs
Product Link™ Elite
Service and Repair Kits
Details
Specifications
Dimensions
| Spec | Value |
|---|---|
| Paving Range with SE47 FM | 2.4 m - 6.1 m (8' - 20') 2.4 m - 6.1 m (8' - 20') |
| Paving Range with SE47 V | 2.4 m - 6.2 m (8' - 20' 6") 2.4 m - 6.2 m (8' - 20' 6") |
| Truck Entry Height | 22 in 567 mm |
| Operating Length | 19.25 ft 5.9 m |
| Operating Width | 10.75 ft 3.3 m |
| Overall Height | 10.75 ft 3.2 m |
| Transport Length | 18.5 ft 5.6 m |
| Transport Width | 8.5 ft 2.5 m |
| Transport Height | 825 ft 2.5 m |
Engine
| Spec | Value |
|---|---|
| Engine Power (1) | 148 hp 110 kW |
| Engine Model (1) | Cat C4.4 Cat C4.4 |
Operating Specifications
| Spec | Value |
|---|---|
| Maximum Paving Speed | 200 ft/min 61 m/min |
| Maximum Travel Speed | 7 mile/h 11 km/h |
| Maximum Throughput Capacity | 1100 ton(US)/h 1000 tonnes/hr |
Weights
| Spec | Value |
|---|---|
| Operating weight with SE47 FM | 33689 lb 15281 kg |
| Operating weight with SE47 V | 33448 lb 15172 kg |
| Shipping Weight – Paver Only | 26993 lb 12244 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 53 gal (US) 200 l |
| DEF Tank | 5 gal (US) 19 l |
| Cooling System – Total | 6.3 gal (US) 24 l |
| Hydraulic Oil Tank | 32 gal (US) 121 l |
| Washdown Spray Tank | 8.5 gal (US) 32 l |
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Steering, spring return
- Ventilation system
Technology
- Product Link™ Elite 643 (cellular)
Powertrain
- Cooling fan, variable speed

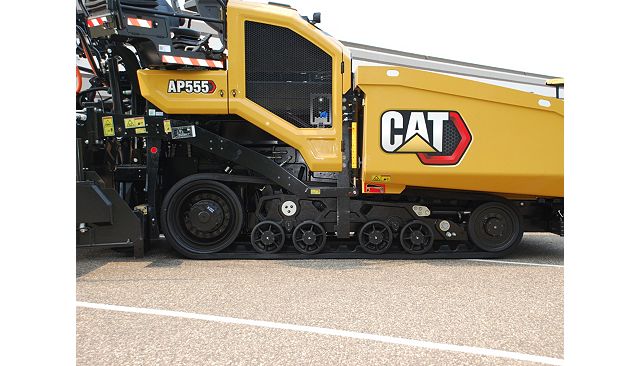

- Mobil-trac, smooth belt
Electrical System
- 1400 CCA battery
- 150-amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Auto-reset breaker for material sensors
- Battery, maintenance-free
- Cat Electronic Technician (Cat ET)
- Remote start receptacle
Material Delivery
- Auger extensions, 0.15 m (6″)
- Material feed sensors, contact
- Push-roller, adjustable
Service and Maintenance
- Hydraulic oil, Cat HYDO Advanced
- Remote access drains
- Remote flash
- Service repair kits
- Sampling ports for Scheduled Oil Sampling
- Sight Gauges, engine coolant, hydraulic oil
Safety
- Mirror package
- Alarm, back-up
- Horn, warning (front & rear)
- Lights, LED Working
Optional Equipment
Operating Environment
- Canopy
- Deceleration pedal
- Heated seat
- Friction Steering
- Umbrella
- Side shields
- Windshield
Technology
- Cat Grade Control
- Basic Grade Control
- Product Link™ Elite 683 Cellular/Satellite
Powertrain
- Ballast – front weights
Material Delivery
- Auger extensions, 0.46 m (1.5′)
- Mainframe extensions, power
- Mainframe extensions, manual
- Material feed sensors, sonic
- Truck hitch
- Wash-down pump and reel
Safety
- Lights, LED Roading
- Warning beacon, LED
- Lights, LED Roading
- Warning beacon, LED
- Mirror package
