Cat

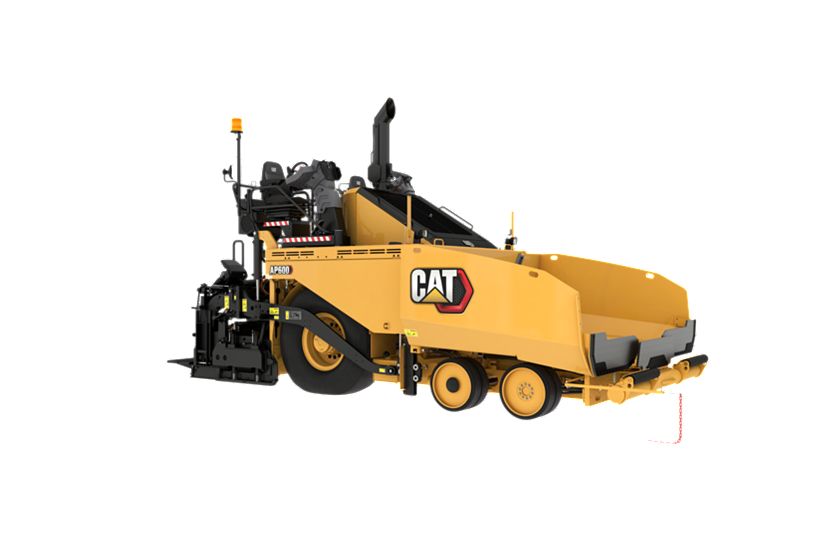

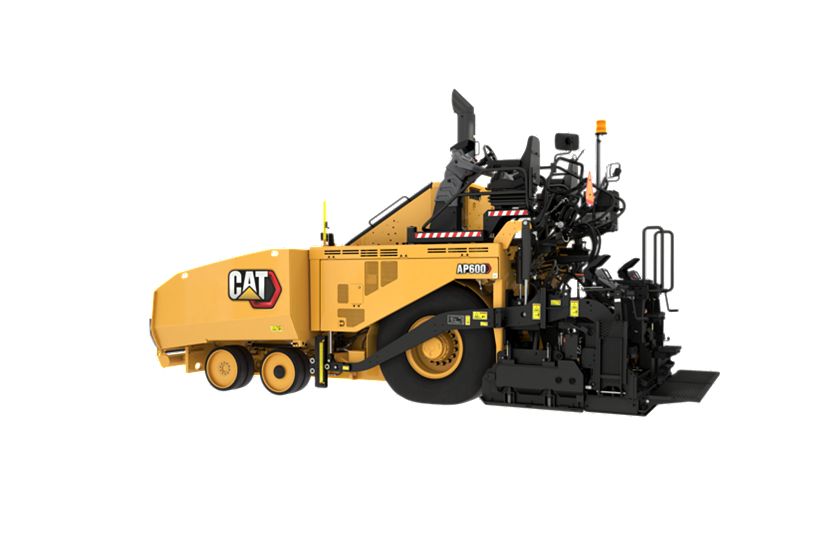

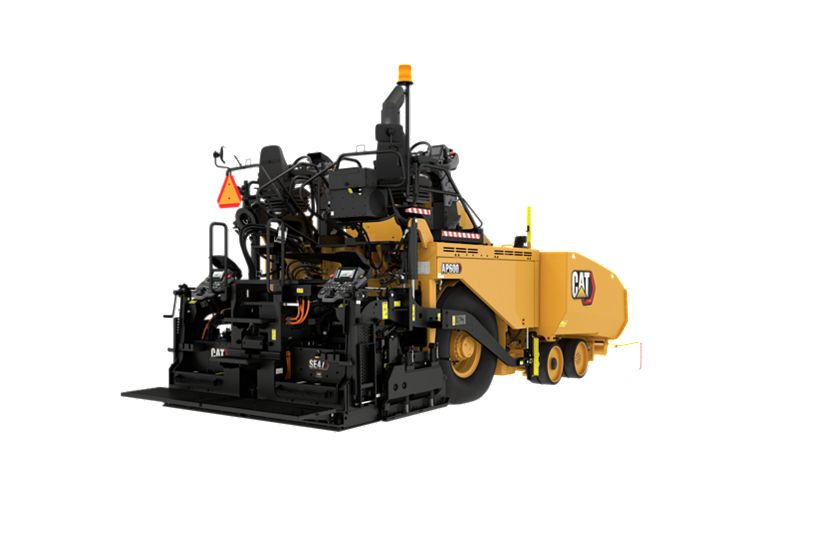

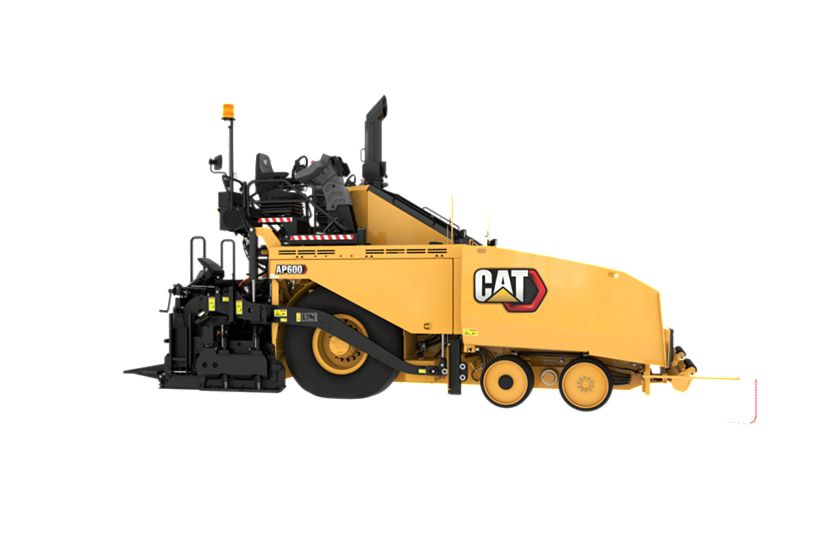

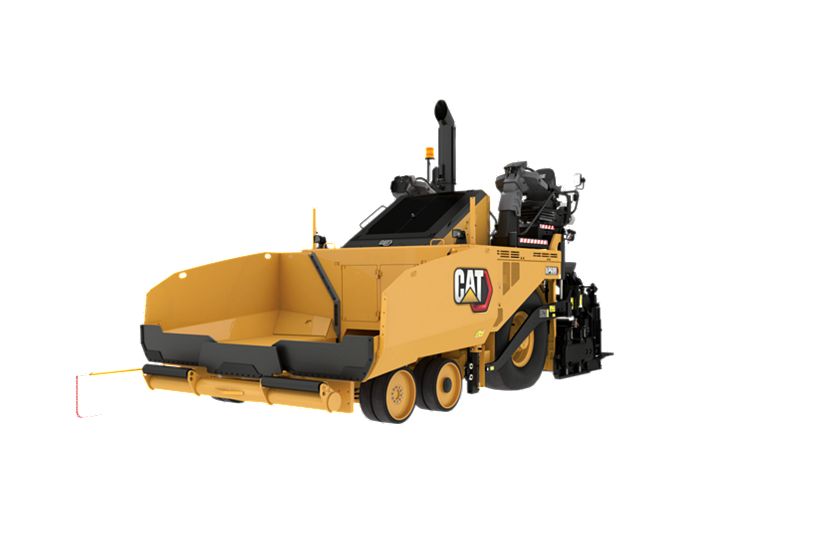

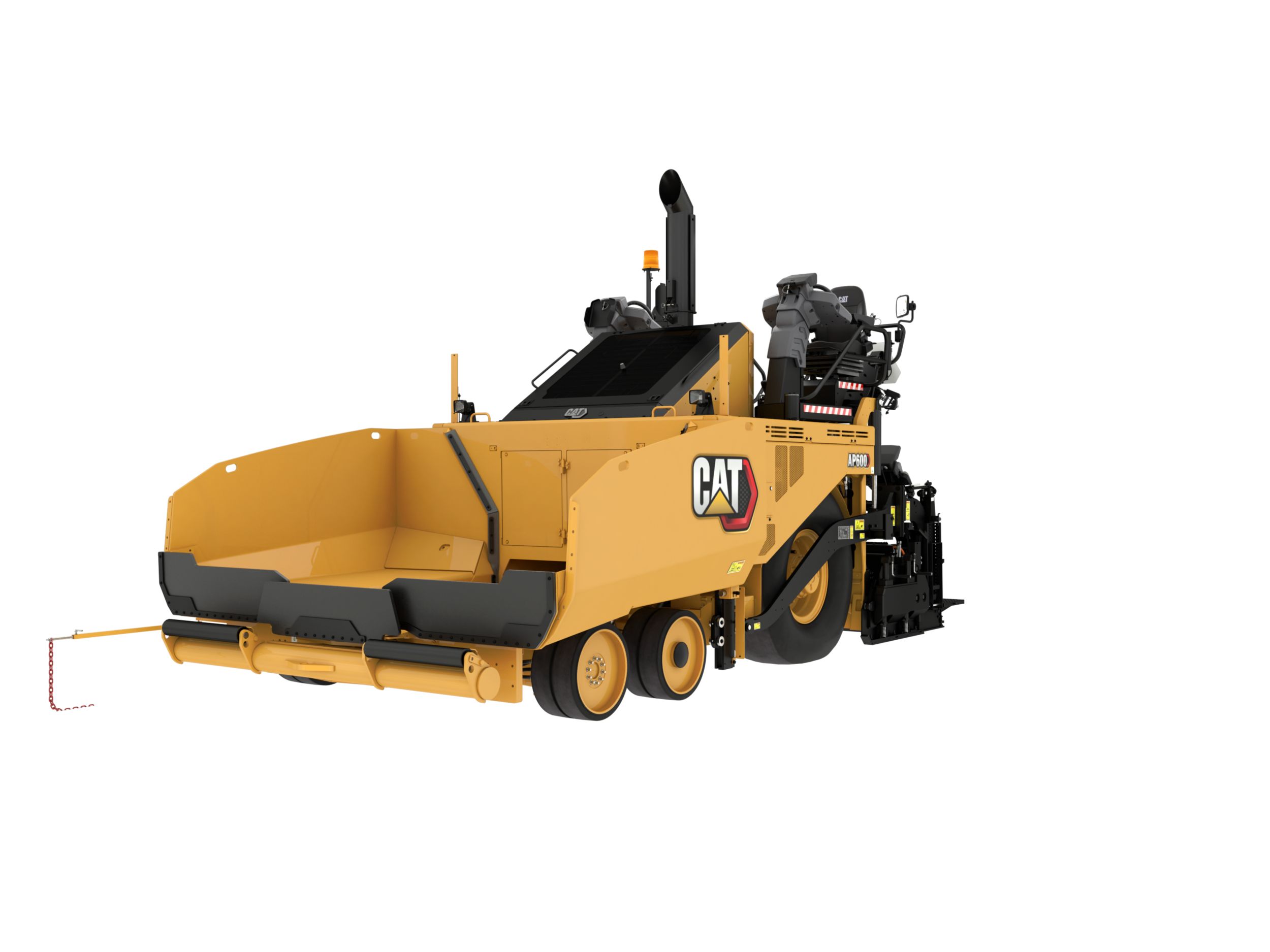

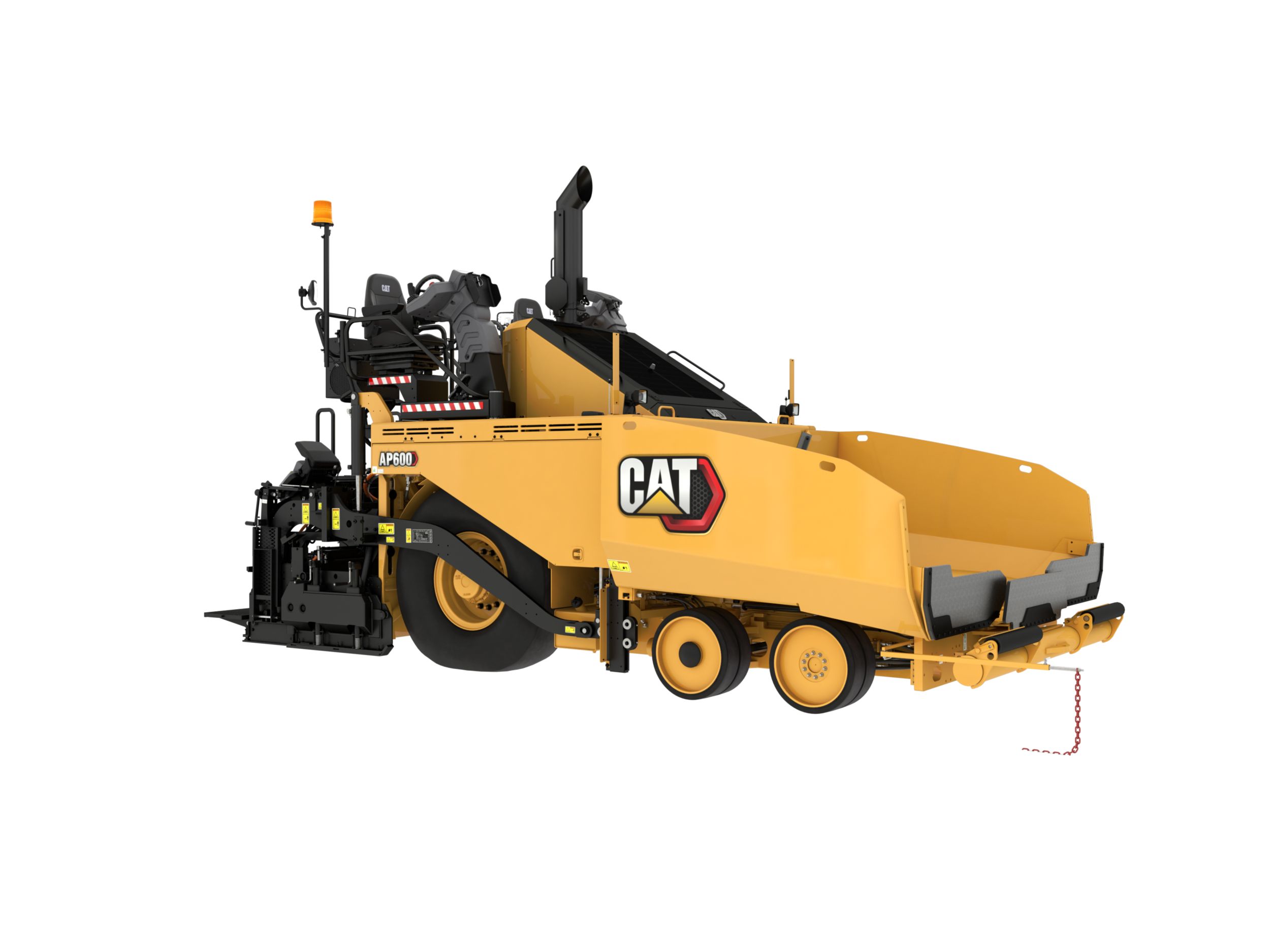

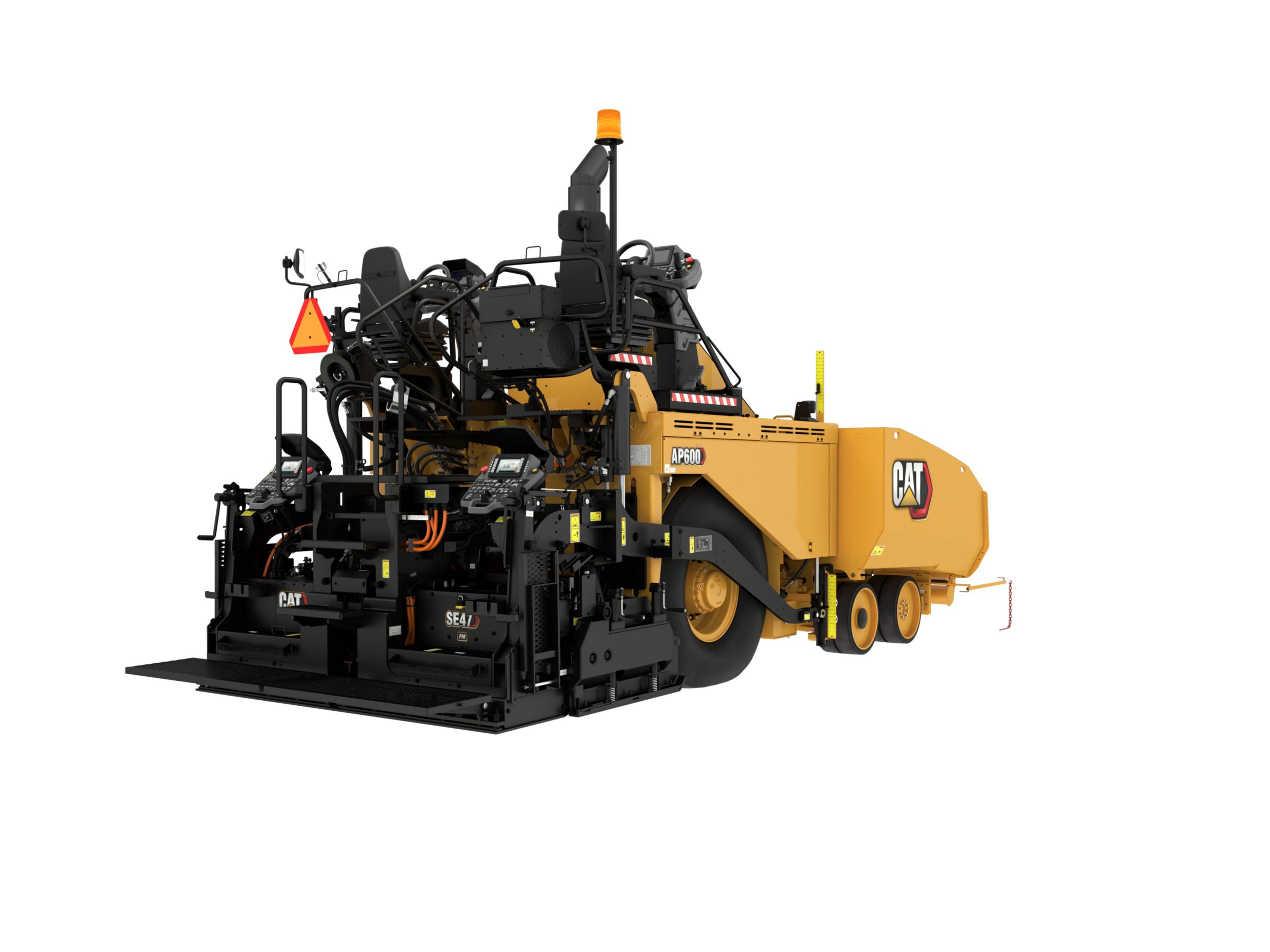

AP600 Wheel Paver
Paving Range with SE47 FM
2.44 m - 6.2 m (8' - 20' 6")
2.44 m - 6.2 m (8' - 20' 6")
Operating weight with SE47 FM
36716 lb
16659 kg
Maximum Throughput Capacity
1433 ton(US)/h
1300 tonnes/hr
Overview
The AP600 is a mid to high production wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects. It can be equipped with either a front-mount extender screed or a rear-mount extender screed.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Features
Technology That Works For You
Quality Results, Higher Earnings
Low Owning and Operating Costs
More Comfort
Easy Viewing Displays
Product Link™ Elite
Service and Repair Kits
Details
Specifications
Dimensions
| Spec | Value |
|---|---|
| Paving Range with SE47 FM | 2.44 m - 6.2 m (8' - 20' 6") 2.44 m - 6.2 m (8' - 20' 6") |
| Paving Range with SE50 V | 2.55 m - 6.5 m (8' 4" - 21' 4") 2.55 m - 6.5 m (8' 4" - 21' 4") |
| Paving Range with SE60 FM | 3.0 m - 7.8 m (10' - 25' 6") 3.0 m - 7.8 m (10' - 25' 6") |
| Paving Range with SE60 V | 3.0 m - 7.5 m (9' 10" - 24' 6") 3.0 m - 7.5 m (9' 10" - 24' 6") |
| Operating Length | 21.75 ft 6.6 m |
| Operating Width | 10.8 ft 3.3 m |
| Overall Height | 12.5 ft 3.8 m |
| Transport Length | 20.9 ft 6.4 m |
| Transport Width | 9.8 ft 2.9 m |
| Transport Height | 9.9 ft 3.3 m |
Engine
| Spec | Value |
|---|---|
| Gross Power | 173 hp 129 kW |
| Engine Model | Cat C4.4 Cat C4.4 |
Operating Specifications
| Spec | Value |
|---|---|
| Maximum Travel Speed | 10 mile/h 16 km/h |
| Maximum Paving Speed | 250 ft/min 76 m/min |
| Inside Turn Radius | 4.5 ft 1.5 m |
| Maximum Throughput Capacity | 1433 ton(US)/h 1300 tonnes/hr |
Weights
| Spec | Value |
|---|---|
| Operating weight with SE47 FM | 36716 lb 16659 kg |
| Operating weight with SE50 V | 37754 lb 17125 kg |
| Operating weight with SE60 FM | 38316 lb 17380 kg |
| Operating weight with SE60 V | 38056 lb 17262 kg |
| Shipping Weight – Paver Only | 29391 lb 13556 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 73 gal (US) 278 l |
| DEF Tank | 5 gal (US) 19.1 l |
| Cooling System – Total | 8 gal (US) 31 l |
| Hydraulic Oil Tank | 58 gal (US) 219 l |
| Washdown Spray Tank | 7.9 gal (US) 30 l |
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C4.4 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 1000 CCA batteries
- 100 amp alternator
- 12-volt power receptacle
- Cat Electronic Technician
- Automotive type fuse system
- 70 kW generator
- Machine security system
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Engine coolant heater
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers
Optional Equipment
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
- Windshield
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Powertrain
- All wheel drive
- Ballast_front weights
- Front wheel assist
- Radial drive tires
- Sand rib drive tires
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Uptime kits
- Service repair kits
Grade References
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
Screed Choices
- SE47 FM Screed
- SE50 V Screed
- SE60 V Screed
- SE60 FM Screed
