Cat
AP1000 Wheel Paver
Paving Range with SE60 FM
3.0 m - 7.8 m (10' - 25' 6")
3.0 m - 7.8 m (10' - 25' 6")
Operating weight with SE60 FM
42620 lb
19332 kg
Maximum Throughput Capacity
1766 ton(US)/h
1602 tonnes/hr
Overview
The Cat AP1000 asphalt paver is a wheel paver that delivers a high-return on investment with its fast-heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.
Media

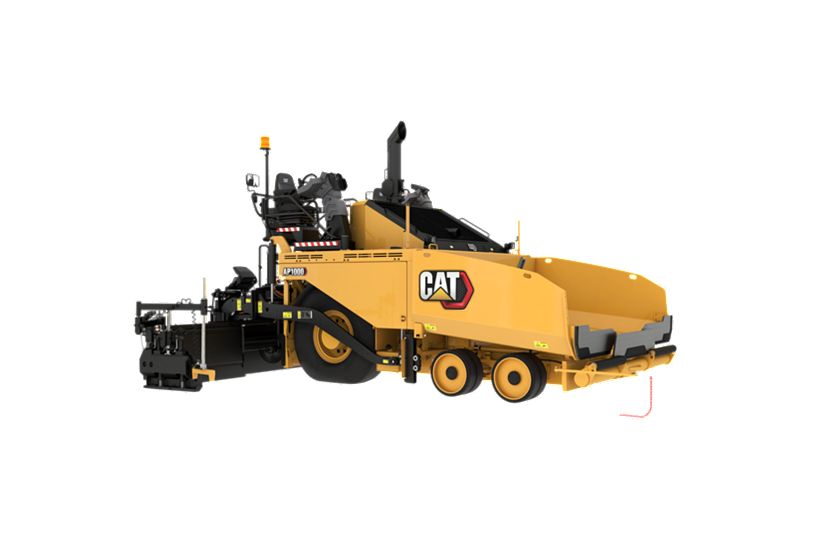

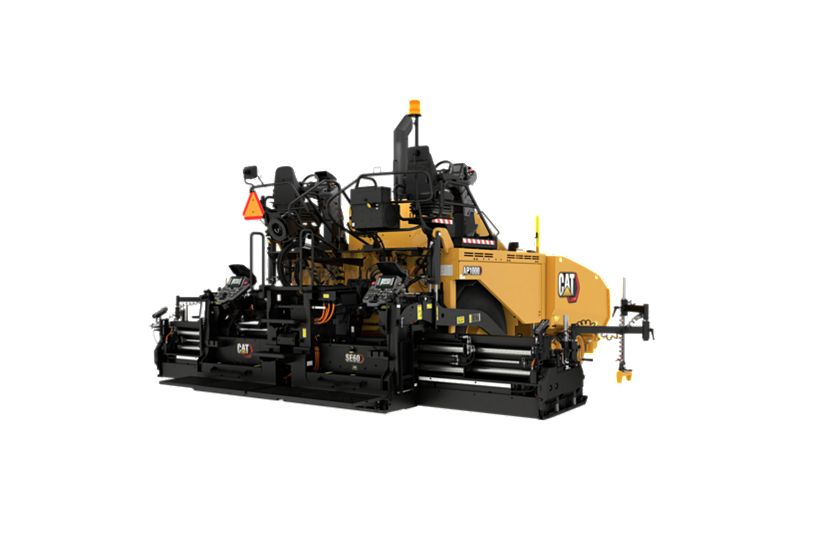

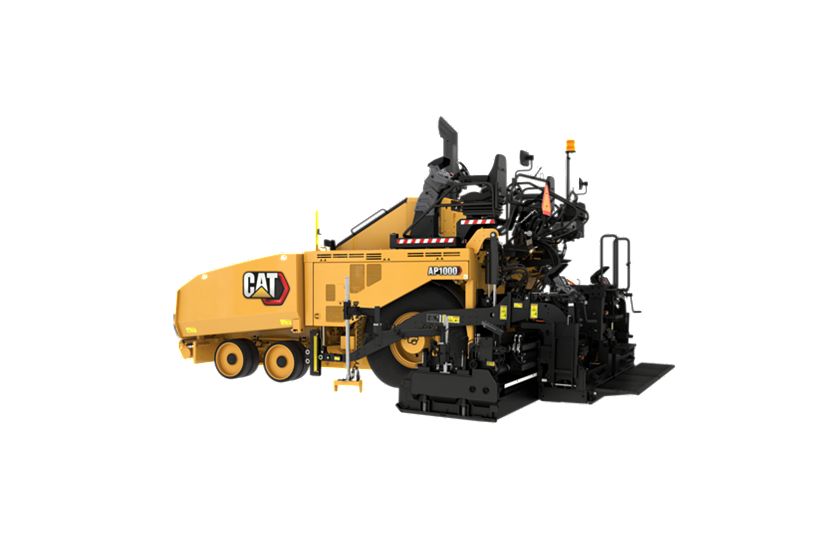

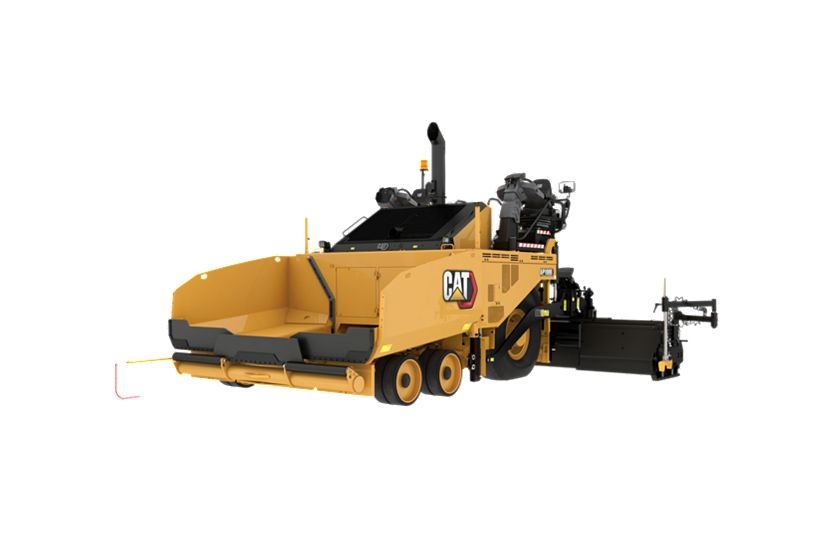

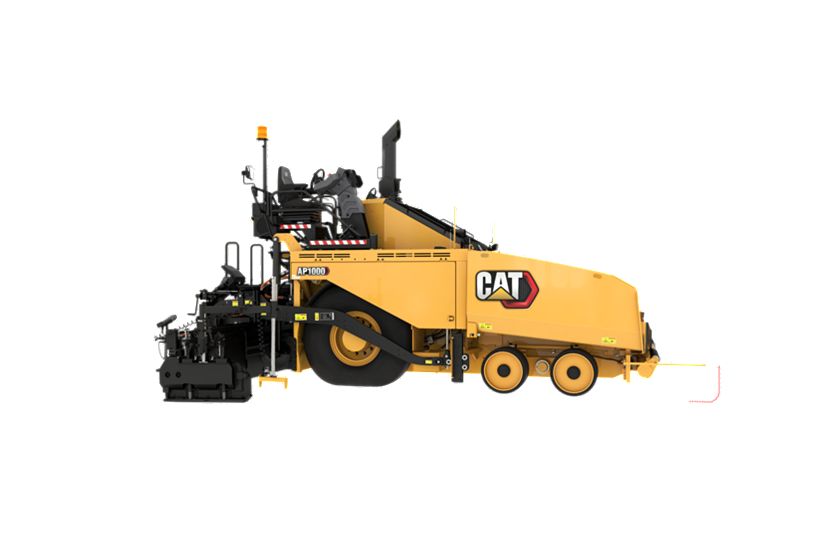

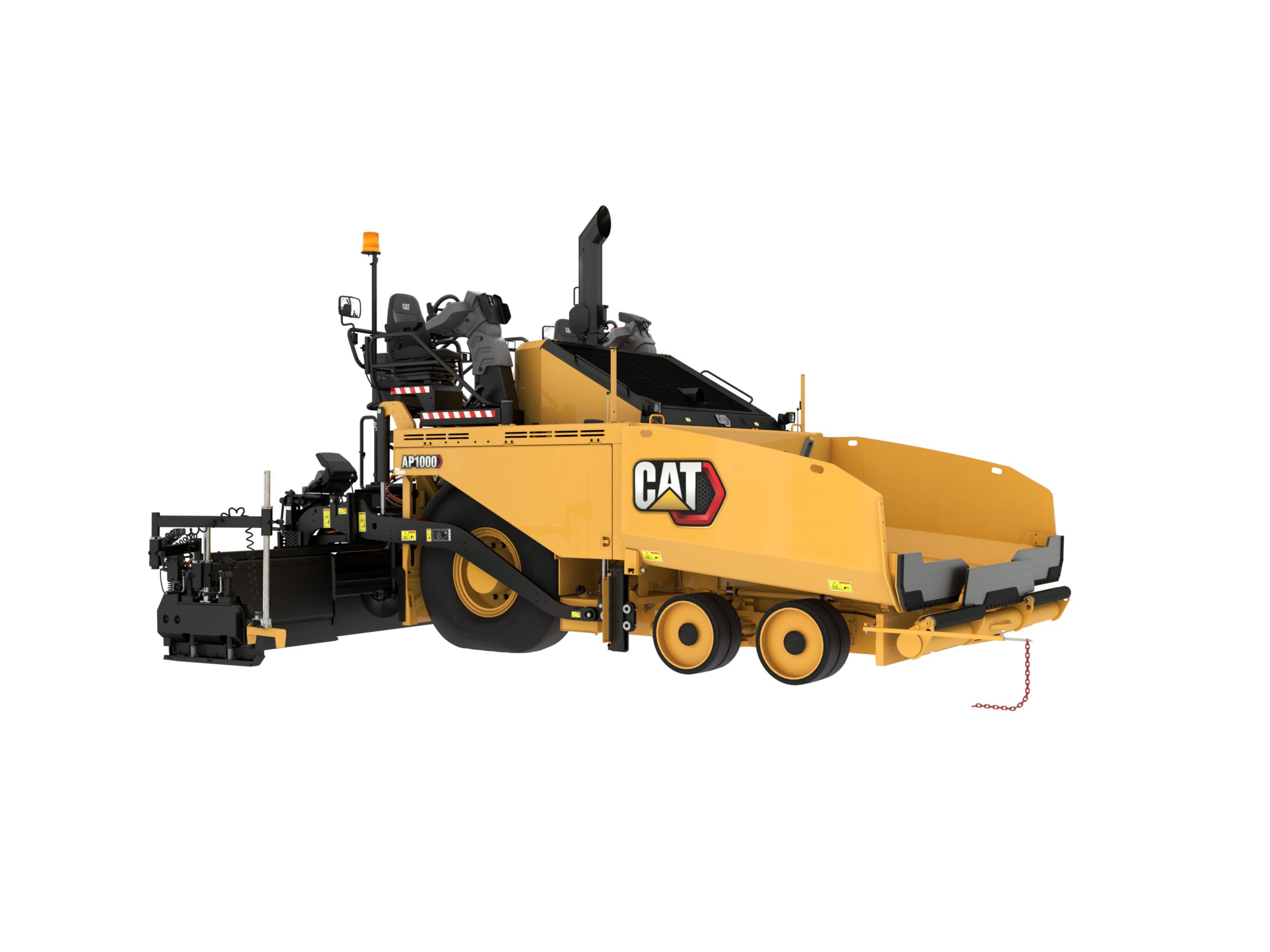

Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Features
Technology That Works For You
Quality Results, Higher Earnings
Low Owning and Operating Costs
More Comfort
Easy Viewing Displays
Product Link™ Elite
Service and Repair Kits
Details
Specifications
Dimensions
| Spec | Value |
|---|---|
| Paving Range with SE60 FM | 3.0 m - 7.8 m (10' - 25' 6") 3.0 m - 7.8 m (10' - 25' 6") |
| Paving Range with SE60 V | 3.0 m - 7.65 m (9' 10" - 25') 3.0 m - 7.65 m (9' 10" - 25') |
| Paving Range with SE60 V XW | 3.0 m - 7.5 m (10' - 24' 6") 3.0 m - 7.5 m (10' - 24' 6") |
| Paving Range with SE60 VT XW | 3.0 m - 6 m (10' - 19' 6") 3.0 m - 6 m (10' - 19' 6") |
| Operating Length | 22.3 ft 6.8 m |
| Operating Width | 10.8 ft 3.3 m |
| Overall Height | 12.3 ft 3.8 m |
| Transport Length | 20.9 ft 6.4 m |
| Transport Width | 11.9 ft 3.6 m |
| Transport Height | 9.8 ft 3 m |
Engine
| Spec | Value |
|---|---|
| Gross Power | 225 hp 168 kW |
| Engine Model | Cat C7.1 Cat C7.1 |
Operating Specifications
| Spec | Value |
|---|---|
| Maximum Travel Speed | 12 mile/h 19.9 km/h |
| Maximum Paving Speed | 250 ft/min 76 m/min |
| Maximum Paving Speed – With Tamper Bar Screed | 82 ft/min 25 m/min |
| Inside Turn Radius | 4.5 ft 1.5 m |
| Maximum Throughput Capacity | 1766 ton(US)/h 1602 tonnes/hr |
Weights
| Spec | Value |
|---|---|
| Operating weight with SE60 FM | 42620 lb 19332 kg |
| Operating weight with SE60 V | 42360 lb 19214 kg |
| Operating weight with SE60 V XW | 43848 lb 19889 kg |
| Shipping Weight – Paver Only | 34228 lb 15526 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 92 gal (US) 348 l |
| DEF Tank | 5 gal (US) 19.1 l |
| Cooling System – Total | 12 gal (US) 45 l |
| Hydraulic Oil Tank | 58 gal (US) 219 l |
| Washdown Spray Tank | 7.9 gal (US) 30 l |
Standard Equipment
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1000 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C7.1 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Optional Equipment
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Powertrain
- All wheel drive
- Ballast_front weights
- Front wheel assist
- Radial drive tires
- Sand rib drive tires
Electrical System
- Auxiliary power panel_6.6 kW
Operating Environment
- Air-ride seat
- Windshield
- Hard top canopy
- Deceleration pedal
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Ventilation system
- Screen visor
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Grade References
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
Screed Choices
- SE60 V XW Screed
- SE5 VT XW Screed
- SE60 V Screed
- SE60 FM Screed
- SE60 FM Screed
