Cat

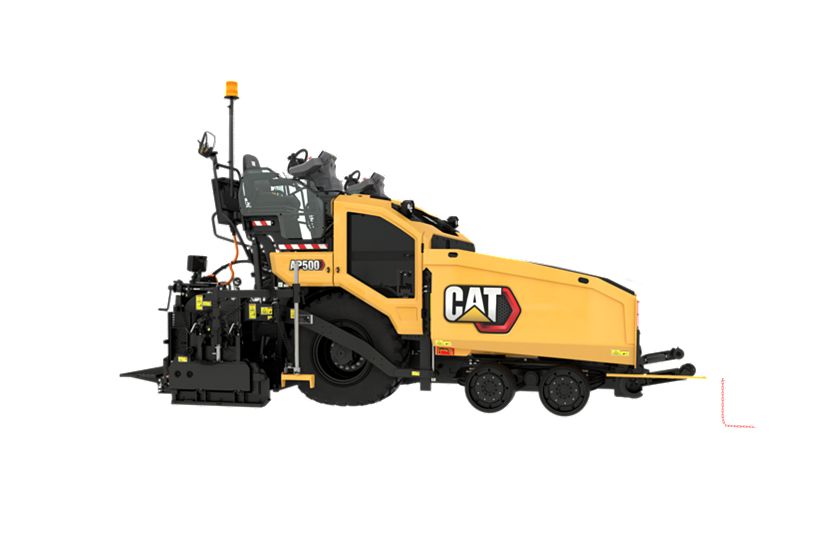

AP500
Paving Range with SE47 FM
2.4 m - 5.9 m (8' - 19' 6")
2.4 m - 5.9 m (8' - 19' 6")
Operating weight with SE47 FM
32012 lb
14518 kg
Maximum Throughput Capacity
1100 ton(US)/h
1000 tonnes/hr
Overview

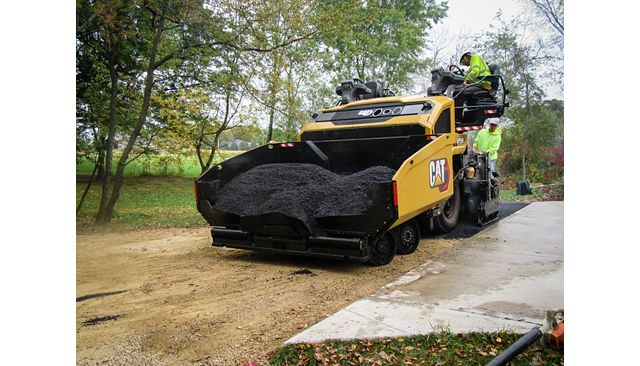

The AP500 asphalt paver and SE47 Series screeds are designed for urban streets, parking lots, rural roads and many other small to intermediate-type applications. This paver and screed combination provides high throughput capability as-well-as application versatility, easy set-up, and a wide paving range.
Media
Photos
360° View
Exterior
360º Exterior view. Double click
Interior
360º Interior View. Double click
Documents
Features

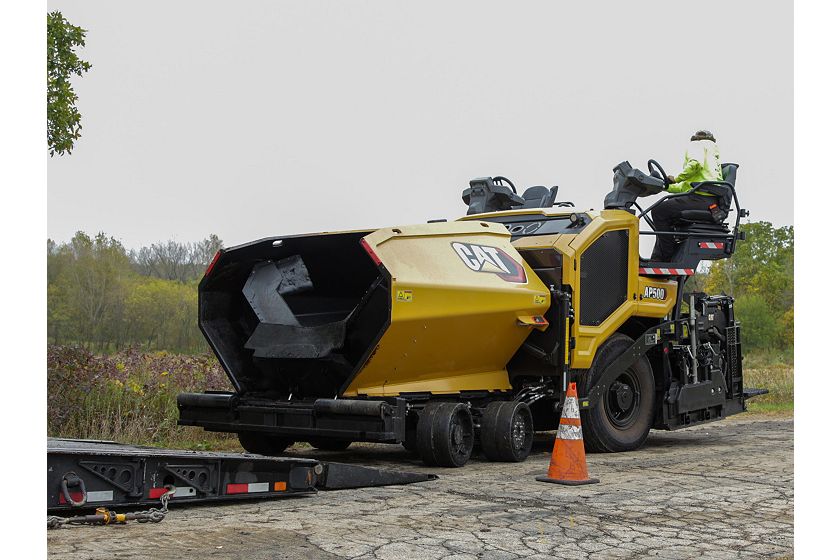

Transport Made Easy
Exceptional Mobility

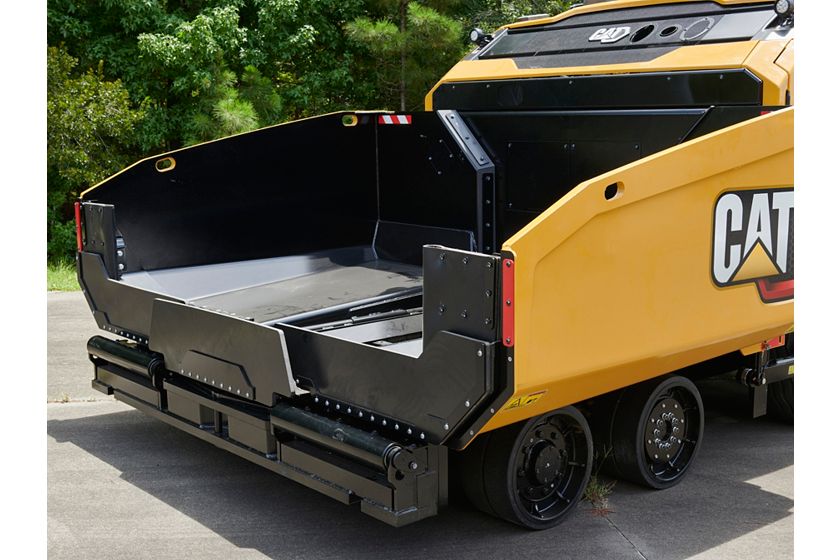

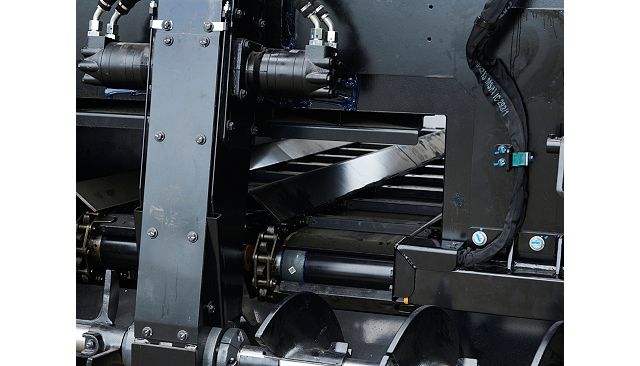

Smooth Material Flow

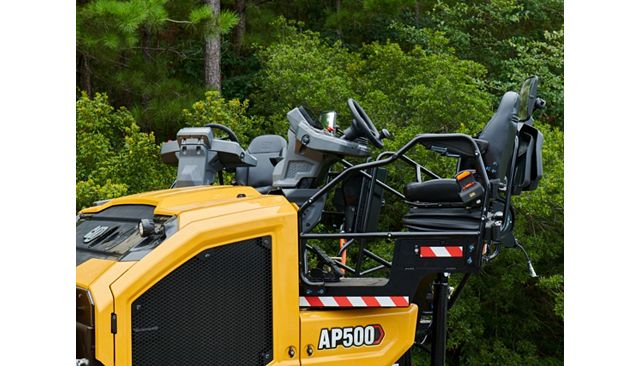

More Comfort

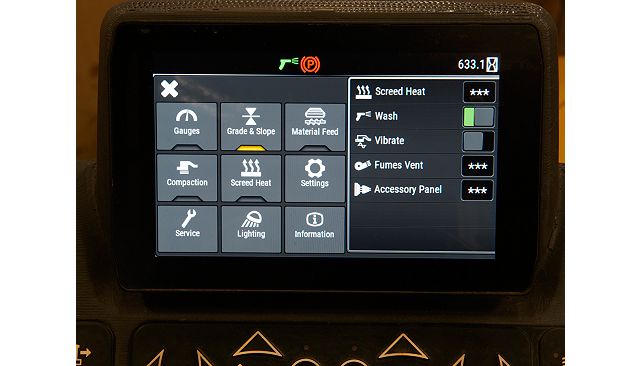

Easy Viewing Displays

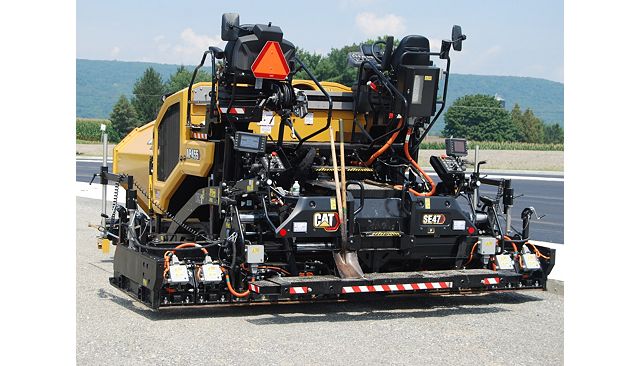

Screeds that Deliver Quality
Low Owning and Operating Costs
Product Link™ Elite

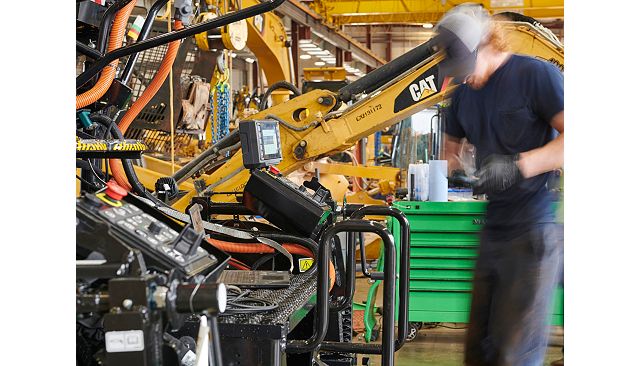

Service and Repair Kits
Details
Specifications
Dimensions
| Spec | Value |
|---|---|
| Paving Range with SE47 FM | 2.4 m - 5.9 m (8' - 19' 6") 2.4 m - 5.9 m (8' - 19' 6") |
| Paving Range with SE47 V | 2.4 m - 6.1 m (8' - 20') 2.4 m - 6.1 m (8' - 20') |
| Truck Entry Height | 21 in 537 mm |
| Operating Length | 19.25 ft 5.8 m |
| Operating Width | 10.75 ft 3.3 m |
| Overall Height | 11 ft 3.2 m |
| Transport Length | 18.5 ft 5.6 m |
| Transport Width | 8.5 ft 2.5 m |
| Transport Height | 8.6 ft 2.5 m |
Engine
| Spec | Value |
|---|---|
| Gross Power | 148 hp 110 kW |
| Engine Power (1) | 148 hp 110 kW |
| Engine Model | Cat C4.4 Cat C4.4 |
| Engine Model (1) | Cat C4.4 Cat C4.4 |
Operating Specifications
| Spec | Value |
|---|---|
| Maximum Paving Speed | 200 ft/min 61 m/min |
| Maximum Travel Speed | 10 mile/h 16 km/h |
| Maximum Throughput Capacity | 1100 ton(US)/h 1000 tonnes/hr |
Weights
| Spec | Value |
|---|---|
| Operating weight with SE47 FM | 32012 lb 14518 kg |
| Operating weight with SE47 V | 31772 lb 14409 kg |
| Shipping Weight – Paver Only | 25311 lb 11481 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 53 gal (US) 200 l |
| DEF Tank | 5 gal (US) 19 l |
| Cooling System – Total | 6.3 gal (US) 24 l |
| Hydraulic Oil Tank | 32 gal (US) 121 l |
| Washdown Spray Tank | 8.5 gal (US) 32 l |
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation system
Technology
- Product Link™ Elite 643 (cellular)
Powertrain
- Cat C4.4, four-cylinder
- Cooling fan, variable speed
Electrical System
- 1400 CCA battery
- 150-amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Auto-reset breaker for material sensors
- Battery, maintenance-free
- Cat Electronic Technician (Cat ET)
Material Delivery
- Auger extensions, 0.15 m (6″)
- Material feed sensors, contact
- Push-roller, adjustable
Service and Maintenance
- Hydraulic oil, Cat HYDO Advanced
- Remote access drains
- Remote flash
- Service repair kits
- Sampling ports for Scheduled Oil Sampling
- Sight Gauges, engine coolant, hydraulic oil
Safety
- Alarm, back-up
- Horn, warning (front & rear)
- Lights, LED Working
- Mirror package
Optional Equipment
Operating Environment
- Canopy
- Deceleration pedal
- Heated seat
- Umbrella
- Side shields
- Windshield
Technology
- Cat Grade Control
- Basic Grade Control
- Product Link™ Elite 683 Cellular/Satellite
Powertrain
- All-wheel drive
- Ballast – front weights
- Radial drive Tires
- Sand-rib drive tires
- Front-wheel assist
Material Delivery
- Auger extensions, 0.46 m (1.5′)
- Mainframe extensions, power
- Mainframe extensions, manual
- Material feed sensors, sonic
- Truck hitch
- Wash-down pump and reel
Safety
- Lights, LED Roading
- Warning beacon, LED
