Caterpillar

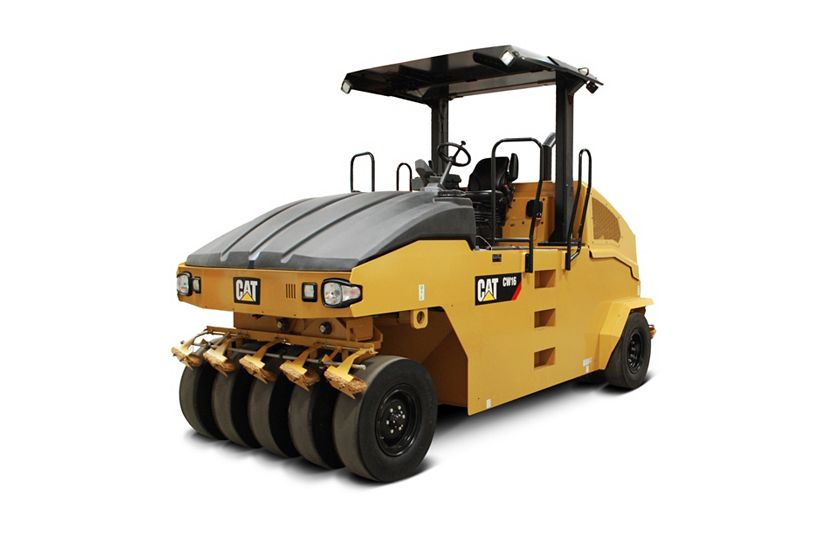

CW16 Pneumatic Roller
Operating Weight – 11 Wheel Base Machine
11685 lb
5300 kg
Operating Weight – 11 Wheel with Maximum Ballast
32849 lb
14900 kg
11 Wheel Compaction Width with Bias Tire
84 in
2132 mm
Overview
The Cat® CW16 with 11 wheels offers an operating weight range of 5300 kg to 14 900 kg (11,685 lb – 32,849 lb) for excellent versatility and performance. Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.
Media
Photos
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Operating Weight – 11 Wheel Base Machine | 11685 lb 5300 kg |
| Operating Weight – 11 Wheel with Maximum Ballast | 32849 lb 14900 kg |
| Load per Wheel – 11 Wheel Base Machine | 1058 lb 480 kg |
| Load per Wheel – 11 Wheel with Maximum Ballast | 2976 lb 1350 kg |
Operating Specifications
| Spec | Value |
|---|---|
| 11 Wheel Compaction Width with Bias Tire | 84 in 2132 mm |
| Travel Speed – Maximum | 12 mile/h 19 km/h |
| Ground Clearance | 10.5 in 267 mm |
| Turning Radius – Outside | 255 in 6455 mm |
| 11 Wheel Compaction Width with Radial Tire | 83 in 2103 mm |
| Inside Turn Radius – 11 Wheel | 133 in 3378 mm |
Engine
| Spec | Value |
|---|---|
| Gross Power | 100.5 hp 75 kW |
| Engine Model | C3.4B or C4.4 C3.4B or C4.4 |
Dimensions
| Spec | Value |
|---|---|
| Height – ROPS | 9.8 ft 3000 mm |
| Overall Length | 14.1 ft 4290 mm |
| Height – Steering Wheel | 91 in 2320 mm |
Service Refill Capacities
| Spec | Value |
|---|---|
| Water Spray Tank Capacity | 92 gal (US) 348 l |
| Fuel Tank Capacity | 38 gal (US) 146 l |
