Caterpillar

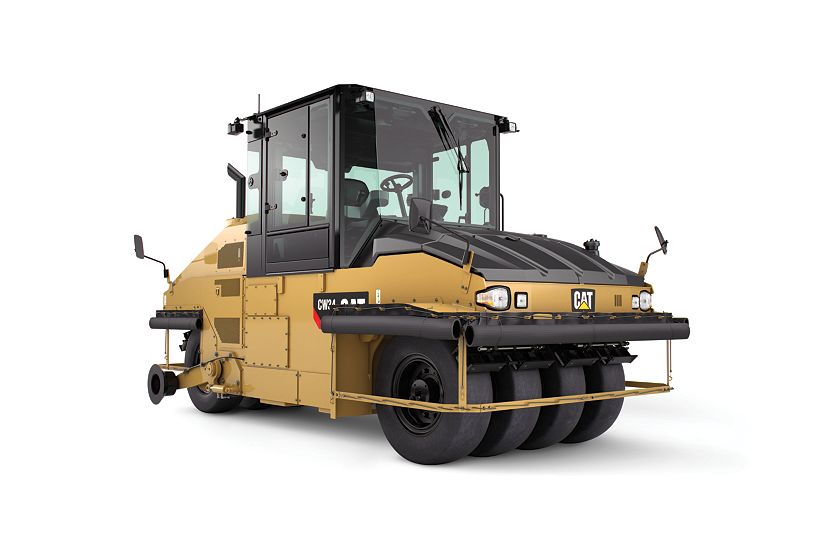

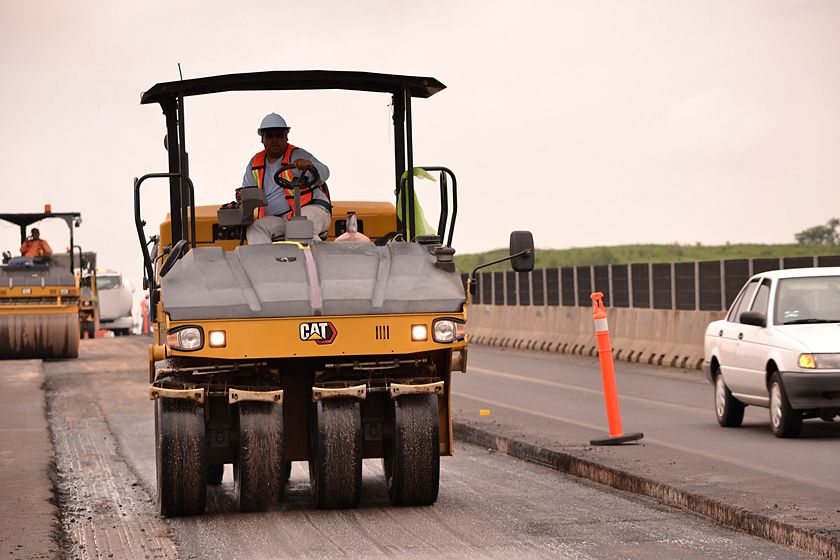

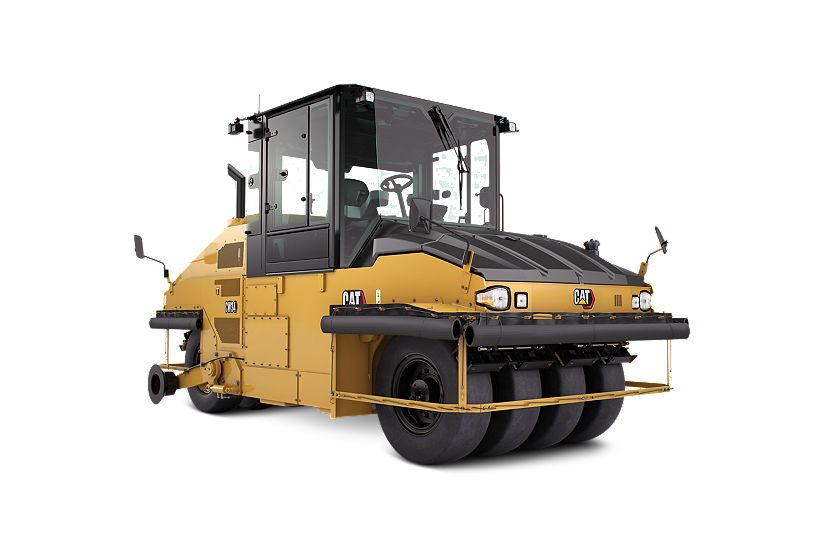

CW34 Pneumatic Roller
Operating Weight – Standard Machine Empty
22050 lb
10000 kg
Operating Weight – Maximum Ballast
59525 lb
27000 kg
Compaction Width
82 in
2090 mm
Overview

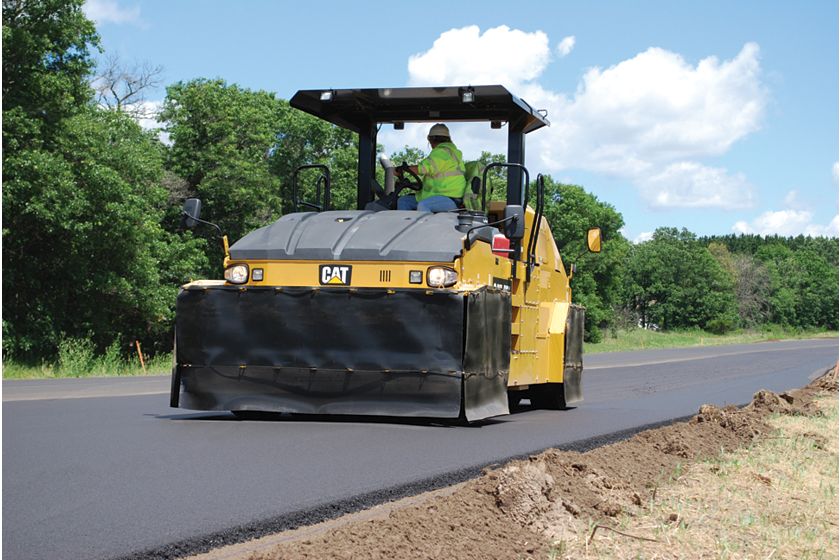

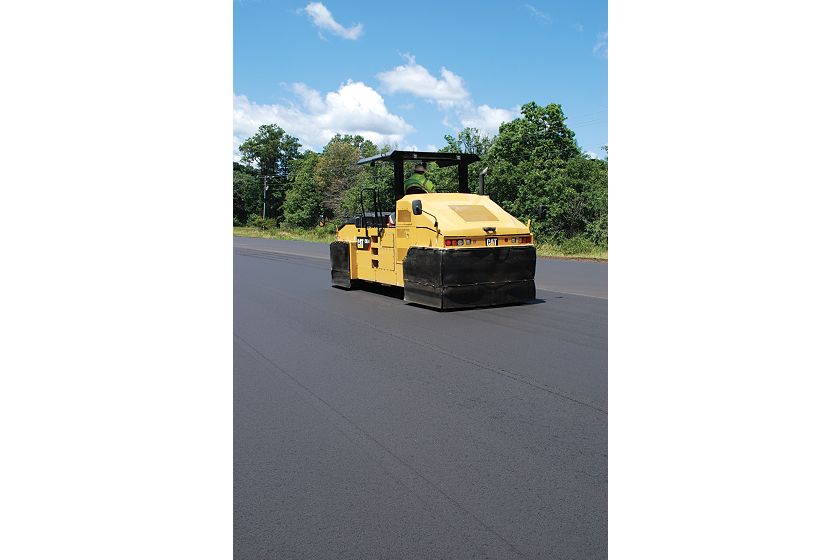

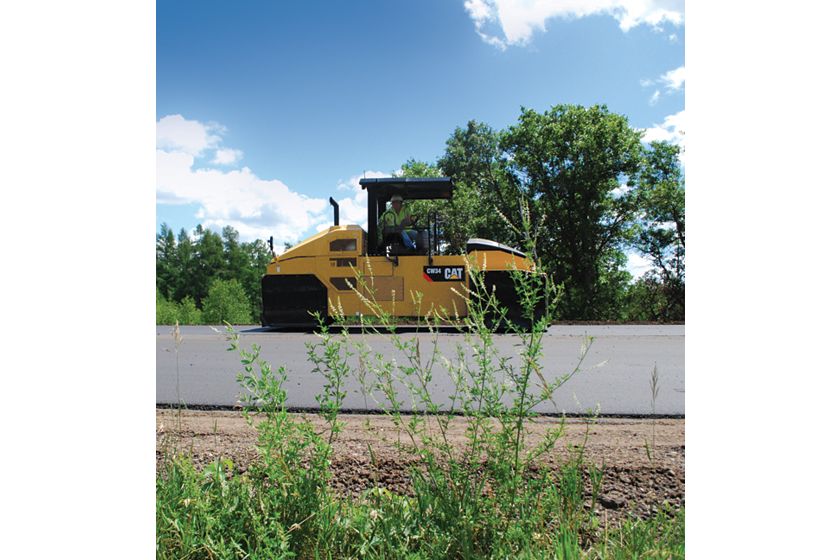

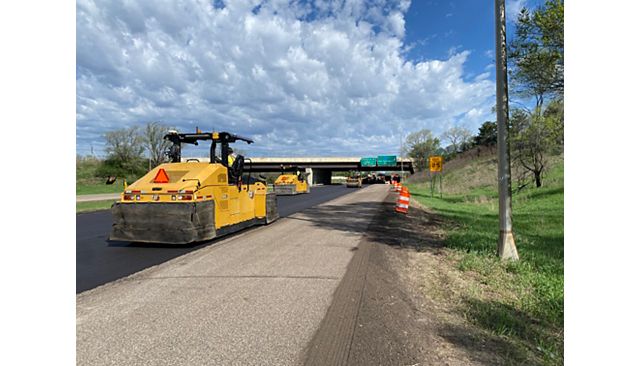

The Cat® CW34 is an eight wheel pneumatic tire roller that features a modular ballast system and flexible operating weights. It offers consistent compaction, good visibility, Eco-mode operation and excels on a variety of materials including asphalt and aggregates.
Media
Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Pickup Prevention

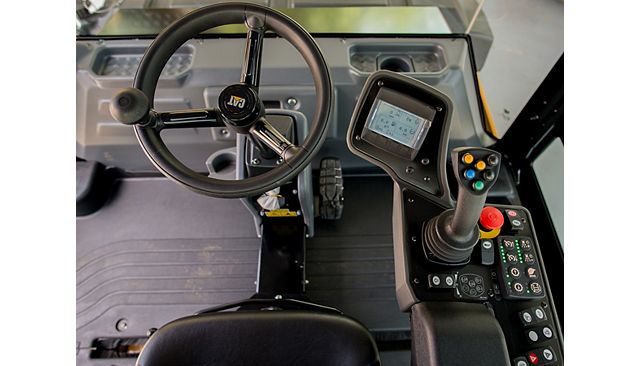

Comfort, Visibility, and Control
Smooth Operating Powertrain
Safer Operation
VisionLink™
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Operating Weight – Standard Machine Empty | 22050 lb 10000 kg |
| Operating Weight – Maximum Ballast | 59525 lb 27000 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Compaction Width | 82 in 2090 mm |
| Number of Wheels | 8 8 |
| Travel Speed – Maximum | 12 mile/h 19 km/h |
| Turning Radius – Inside | 240 in 6100 mm |
| Turning Radius – Outside | 342 in 8700 mm |
| Ground Clearance | 10 in 260 mm |
Engine
| Spec | Value |
|---|---|
| Engine Model | C4.4 C4.4 |
| Gross Power | 133 hp 98 kW |
Dimensions
| Spec | Value |
|---|---|
| Overall Length | 210 in 5350 mm |
| Overall Width | 85 in 2160 mm |
| Height – ROPS | 118 in 3000 mm |

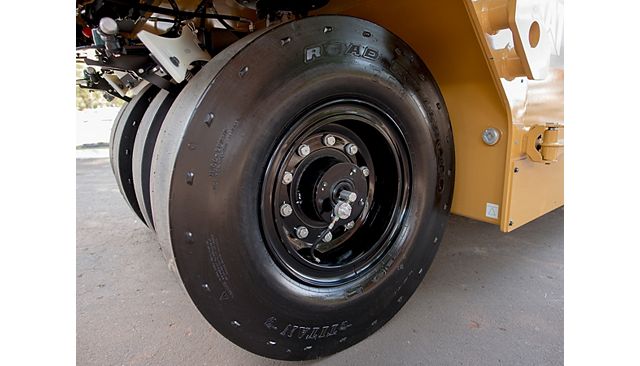

Tires
| Spec | Value |
|---|---|
| Tires | 13/80 R20 13/80 R20 |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 71 gal (US) 270 l |
| Water Spray Tank Capacity | 100 gal (US) 380 l |
Standard Equipment
Operating Environment
- Adjustable armrests
- Platform, ROPS/FOPS
- Power steering
- Rotating operator station
- Suspension seat, vinyl
- Vandalism protection
Technology
- VisionLink™
- Remote flash
- Remote troubleshoot
Powertrain
- Cat® C4.4, 4-cylinder
- Automatic idle shutdown
- Automatic speed control
- Variable-3 speed transmission
Electrical System
- 100 amp alternator
- 24-volt charging system
- Automotive-type fuse system
- Battery (2), maintenance-free
- Cat Electronic Technician, (Cat ET)
- Remote start/charge system
Wheels and Spray System
- All-wheel oscillation
- Front-wheel vertical suspension
- Pressurized water spray system
- Grouped filters with ground level access
Service and Maintenance
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (SOS)
- Sight gauges
Safety
- Alarm, backup
- Horn, warning (front and rear)
- Rear backup light with stop indication
Optional Equipment
Operating Environment
- Air-conditioner, requires cab
- Cab, ROPS with heat and defrost
- Propel lever with 4-button control
- ROPS
- ROPS, sun canopy
- Seat belt, high visibility, 76 mm (3″)
- Suspension seat, cloth
- Suspension seat, cloth, heated
- Suspension seat, vinyl heated
Technology
- Infra-red asphalt temperature sensors
- GNSS Mapping, Temperature and Pass-count
Powertrain
- Variable-3 speed transmission
Wheels and Spray System
- Ballast, factory installed steel blocks
- Cocoa mats, with scraper
- Edge management, cutoff, bevel
- Spare tire
- Steps, water spray refill
- Thermal tire aprons
- Tire inflation system, manual
- Tire inflation system, automatic
- Tires, 13/80 R20 MX C-1 Radial
- Tires, 11.00-20 TI 18 PR C-1 Bias
Service and Maintenance
- Hydraulic oil, bio-degradeable
Safety
- Lights, halogen
- Lights, LED
- Mirrors, external
- Roading lights with turn signals
- Working lights
