Caterpillar

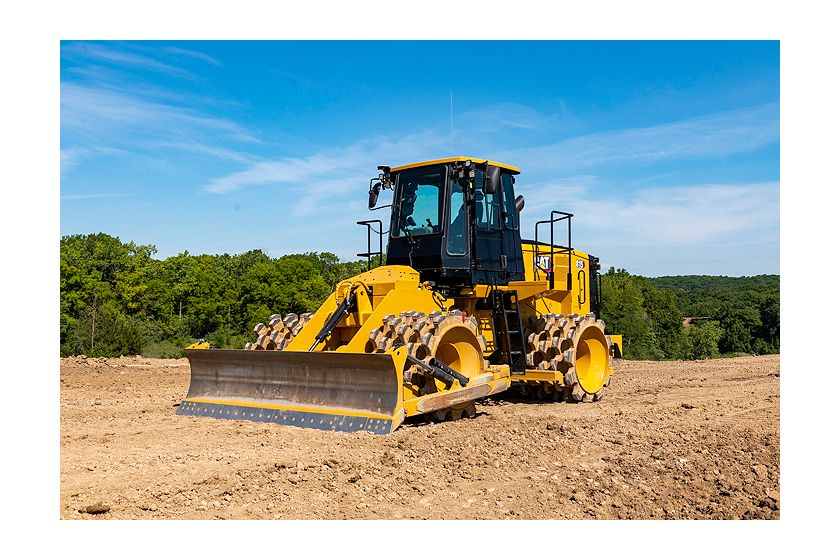

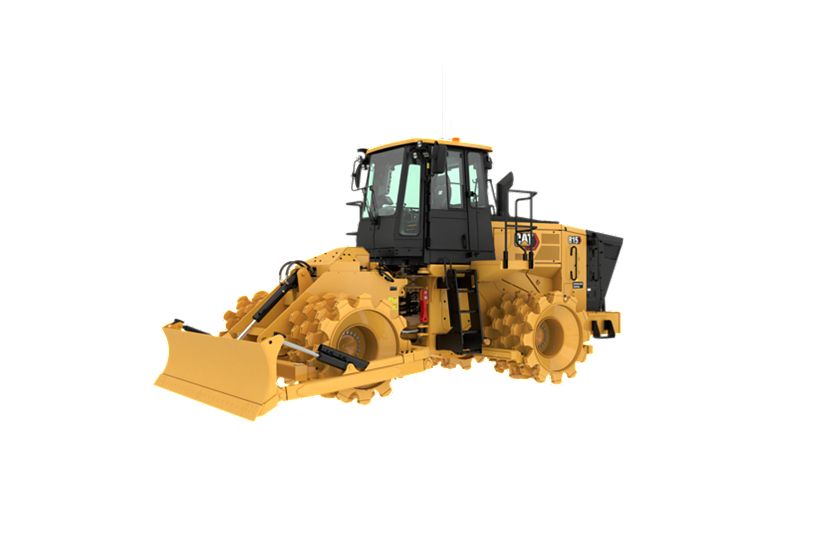

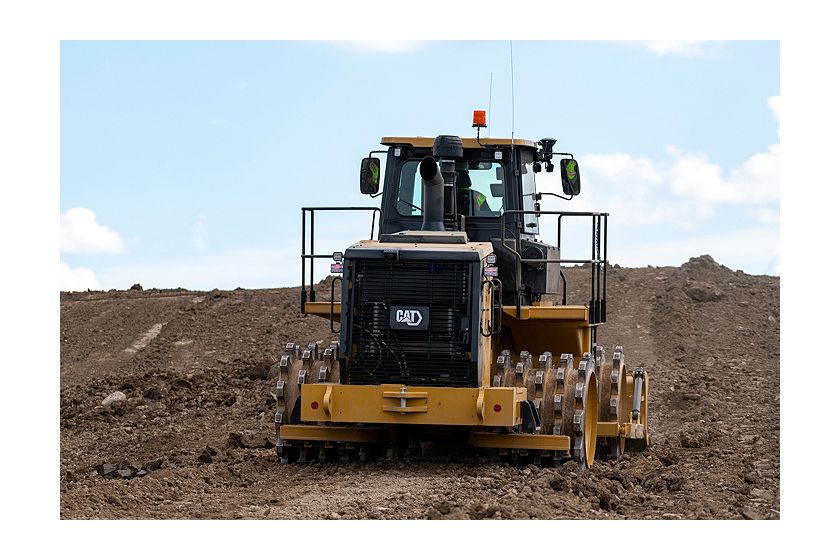

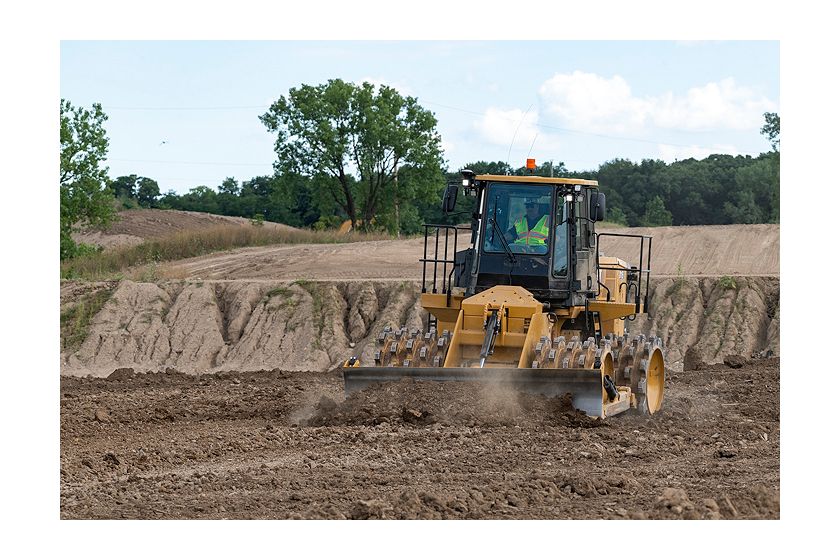

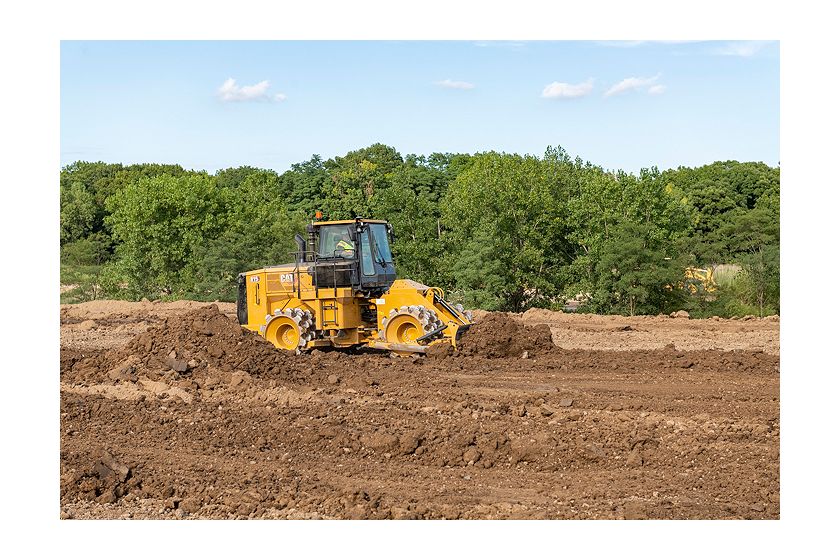

815 Soil Compactor
Engine Model
Cat® C7.1: configured for two emissions options
Cat® C7.1: configured for two emissions options
Net Power (SAE J1349:2011)
249 HP
186 kW
Net Power (ISO 9249:2007)
249 HP
186 kW
Overview
Designed with durability built in, the Cat 815 ensures maximum availability through multiple life cycles. Designed and manufactured for optimum performance and serviceability, this rugged, powerful machine delivers heavy-duty compaction and dozing.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Engine - Tier 4 Final/EU Stage V
Spec | Value |
---|---|
Engine Model | Cat® C7.1: configured for two emissions options Cat® C7.1: configured for two emissions options |
Net Power (SAE J1349:2011) | 249 HP 186 kW |
Net Power (ISO 9249:2007) | 249 HP 186 kW |
Emissions | Meets U.S. EPA Tier 4 Final/EU Stage V emission standards Meets U.S. EPA Tier 4 Final/EU Stage V emission standards |
Rated Speed | 2200 r/min 2200 r/min |
Gross Power (SAE J1995:2014) | 284 HP 212 kW |
Engine Power (ISO 14396:2002) | 275 HP 205 kW |
Peak Torque – 1,400 rpm | 902 lb-ft @ 1400 rpm 1223 N·m |
Torque Rise | 52% 52% |
Bore | 4.1 in 105 mm |
Stroke | 5.3 in 135 mm |
Displacement | 427.8 in³ 7.01 l |
High Idle Speed | 2270 r/min 2270 r/min |
Low Idle Speed | 800 r/min 800 r/min |
Maximum Altitude without Derating | 9842.5 ft 3000 m |
Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA
Spec | Value |
---|---|
Engine Model | Cat® C7.1: configured for two emissions options Cat® C7.1: configured for two emissions options |
Net Power (SAE J1349:2011) | 249 HP 186 kW |
Emissions | Brazil MAR-1 and China Nonroad Stage III, equivalent to U.S. EPA Tier 3/EU Stage IIIA Brazil MAR-1 and China Nonroad Stage III, equivalent to U.S. EPA Tier 3/EU Stage IIIA |
Rated Speed | 2200 r/min 2200 r/min |
Gross Power (SAE J1995:2014) | 286 HP 213 kW |
Engine Power (ISO 14396:2002) | 275 HP 205 kW |
Peak Torque – 1,400 rpm | 749 lb-ft @ 1400 rpm 1016 N·m |
Torque Rise | 26% 26% |
Bore | 4.1 in³ 105 mm |
Stroke | 5.3 in 135 mm |
Displacement | 5.3 in 135 mm |
High Idle Speed | 2270 r/min 2270 r/min |
Low Idle Speed | 800 r/min 800 r/min |
Maximum Altitude without Derating | 9842.5 ft 3000 m |
Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
Operating Specifications - Tier 4 Final/EU Stage V
Spec | Value |
---|---|
Operating Weight | 49652 lb 22522 kg |
Transmission
Spec | Value |
---|---|
Transmission Type | Cat Planetary Power Shift Cat Planetary Power Shift |
Travel Speeds – Forward – First | 3.9 mile/h 6.3 km/h |
Travel Speeds – Forward – Second | 7.7 mile/h 10.8 km/h |
Travel Speeds – Forward – Third | 11.3 mile/h 18.2 km/h |
Travel Speeds – Reverse – First | 4.5 mile/h 7.2 km/h |
Travel Speeds – Reverse – Second | 8.5 mile/h 12.4 km/h |
Travel Speeds – Reverse – Third | 11.4 mile/h 18.4 km/h |
Hydraulic System - Lift/Tilt
Spec | Value |
---|---|
Lift/Tilt System – Circuit | Pilot operated LS valve with EH Pilot operated LS valve with EH |
Lift/Tilt System | Variable displacement piston Variable displacement piston |
Maximum Flow at 2,200 rpm | 23.5 gal/min 89 l/min |
Relief Valve Setting – Lift/Tilt | 3190 psi 22000 kPa |
Pilot System | Open center, fixed displacement gear Open center, fixed displacement gear |
Pilot Relief Valve Setting | 3046 psi 21000 kPa |
Hydraulic System - Steering
Spec | Value |
---|---|
Steering System – Circuit | Pilot, Load Sensing Pilot, Load Sensing |
Steering System – Pump | Piston – Variable Displacement Piston – Variable Displacement |
Maximum Flow at 2,200 rpm | 38.8 gal/min 147 l/min |
Relief Valve Setting – Steering | 4003 psi 27600 kPa |
Total Steering Angle | 84 84 |
Steering Cycle Times – High Idle | 3 s 3 s |
Steering Cycle Times – Low Idle | 8.2 s 8.2 s |
Service Refill Capacities
Spec | Value |
---|---|
Fuel Tank | 132.1 gal (US) 500 l |
Diesel Exhaust Fluid Tank* | 4.2 gal (US) 16 l |
Cooling Systems – Tier 4 Final/EU Stage V | 21.4 gal (US) 81 l |
Cooling System – Tier 3/Stage IIIA Equivalent | 19.3 gal (US) 73 l |
Engine Crankcase | 5.3 gal (US) 20 l |
Transmission | 14.8 gal (US) 56 l |
Differential – Final Drives – Front | 17.2 gal (US) 65 l |
Differential – Final Drives – Rear | 17.2 gal (US) 65 l |
Hydraulic Tank Only | 19.8 gal (US) 75 l |
Note | All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1. All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1. |
Dimensions (Approximate)
Spec | Value |
---|---|
Height – Top of Beacon | 12.9 ft 3933 mm |
Height – Top of Cab Roof | 12 ft 3650 mm |
Height – Top of Exhaust Pipe | 11.1 ft 3344 mm |
Height – Top of Hood | 8.6 ft 2616 mm |
Height to Top of Radiator Guard | 7.9 ft 2405 mm |
Ground Clearance to Hitch | 1.2 ft 365 mm |
Ground Clearance to Transmission Guard | 1.2 ft 375 mm |
Ground Clearance to Bottom of Bumper | 2.2 ft 665 mm |
Centerline of Rear Axle to Bumper | 6.5 ft 1990 mm |
Hitch to Centerline of Front Axle | 5.5 ft 1675 mm |
Wheel Base | 11 ft 3350 mm |
Width over Platform | 10.3 ft 3140 mm |
Height to Top of GPS Antenna | 12.1 ft 3701 mm |
Overall Machine Length with Straight Blade | 23.5 ft 7157 mm |
Overall Machine Length with EU Suppression | 24.9 ft 7598 mm |
Axles
Spec | Value |
---|---|
Front | Planetary – Fixed Planetary – Fixed |
Rear | Planetary – Oscillating Planetary – Oscillating |
Oscillation Angle | ±10 ±10 |
Braking System
Spec | Value |
---|---|
Service Brakes | Single Disc Wet (Enclosed) 2 WHL Single Disc Wet (Enclosed) 2 WHL |
Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released Drum and Shoe, Spring Applied, Hydraulic Released |
Sound Performance - Tier 4 Final/EU Stage V - Standard
Spec | Value |
---|---|
Operator Sound Level (ISO 6396) | 70 dB(A) 70 dB(A) |
Machine Sound Level (ISO 6395) | 111 dB(A) 111 dB(A) |
Note (1) | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Note (2) | The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A) |
Note (3) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Note (4) | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Sound Performance - Tier 4 Final/EU Stage V - Suppression
Spec | Value |
---|---|
Operator Sound Level (ISO 6396) | 70 dB(A) 70 dB(A) |
Machine Sound Level (ISO 6395) | 109 dB(A) 109 dB(A) |
Note (1) | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Note (2) | The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A) |
Note (3) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Note (4) | The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Standard
Spec | Value |
---|---|
Operator Sound Level (ISO 6396) | 70 dB(A) 70 dB(A) |
Machine Sound Level (ISO 6395) | 112 dB(A) 112 dB(A) |
Note (1) | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Note (2) | The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A) |
Note (3) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Note (4) | The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Suppression
Spec | Value |
---|---|
Operator Sound Level (ISO 6396) | 70 dB(A) 70 dB(A) |
Machine Sound Level (ISO 6395) | 110 dB(A) 110 dB(A) |
Note (1) | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Note (2) | The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A) |
Note (3) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Note (4) | The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. |
Sound Performance - Tier 4 Final/EU Stage V - Suppression EU
Spec | Value |
---|---|
Machine Sound Level (ISO 6393) | 107 dB(A) 107 dB(A) |
Note (1) | The machine sound power level was measured according to the test procedures and conditions specified in ISO 6393:2008. The measurement was conducted at the rated engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6393:2008. The measurement was conducted at the rated engine cooling fan speed. |
Wheels
Spec | Value |
---|---|
Weight | 9720 lb 4409 kg |
Outside Diameter | 55.6 in 1412 mm |
Drum Diameter | 40.5 in 1029 mm |
Drum Width | 39 in 991 mm |
Tips per Row | 12 12 |
Tips per Wheel | 60 60 |
Replaceable | Weld On Weld On |
Width – Over Drums | 127.7 in 3243 mm |
Width Between Drums | 49.6 in 1261 mm |
Tip Height | 7.5 in 192 mm |
Blades
Spec | Value |
---|---|
Capacity | 2.69 yd³ 2.06 m³ |
Overall Width | 12.3 ft 3761 mm |
Height | 2.8 ft 860 mm |
Digging Depth | 0.7 ft 222 mm |
Ground Clearance | 2.6 ft 802 mm |
Maximum Tilt | 1.1 ft 346 mm |
Turning Radius – Outside Corner of Blade | 21.1 ft 6437 mm |
Turning Radius – Inside Face of Pusharm | 8.3 ft 2520 mm |
Weight | 1764 lb 800 kg |
Total Operating Weight | 49652 lb 22522 kg |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Advanced Productivity Electronic Control System (APECS)
- Air to air aftercooler
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat clean emission module (Tier 4 Final/Stage IV only)
- Electro-hydraulic parking brake
- Electronic Clutch Pressure Control (ECPC)
- Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V – Tier 3/Stage IIIA equivalent
- Engine driven cooling fan – suction
- Fuel priming pump (electric)
- Fuel to air cooler
- Ground level engine shutoff
- Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
- Radiator, unit core
- Starting aid (ether)
- Throttle lock
- Torque converter
- Transmission, planetary, with 3F/3R speed range control
ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free
- Electrical system, 24V
- Ground level lockable master disconnect switch
- Lights, directional (rear)
- Light, warning switched (LED strobe)
- Lighting system, (front and rear)
- Starter, electric
- Starting receptacle for emergency start
OPERATOR ENVIRONMENT
- 12V power port for mobile phone or laptop connection
- AccuGrade™ mapping (ready)
- Air conditioner
- Cab, sound-suppressed pressurized
- Cab door, sliding window (LH)
- Cat Compaction Control (ready)
- Cat Detect: Object Detection (ready)
- Coat and hard hat hooks
- Finger tip shifting controls
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Hydraulic controls – seat mounted
- Implement hydraulic lockout
- Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
- Light, (dome) cab
- Lunch box and beverage holders
- Mirror, internal (panoramic)
- Mirrors, rearview (externally mounted)
- Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
- Seat, Cat Premium Plus (leather)
- Seat belt with minder, retractable, 76 mm (3 in) wide
- STIC control system with lockout
- Sun visor, front
- Tinted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles – Event indicator light on rear grill
- Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
TIRES, RIMS AND WHEELS
- Wheels, tamping foot
GUARDS
- Cleaner bars with teeth
- Guards, crankcase and power train
- Guard, driveshaft
FLUIDS
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
OTHER STANDARD EQUIPMENT
- DEF tank fill gauge
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Emergency platform egress
- Fire suppression ready
- Fuel tank, 500 L (132.1 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Oil change system, high speed
- Oil sampling valves
- Steering, load sensing
- Total hydraulic filtration system
- Vandalism protection caplocks
- Venturi stack
STANDARD ATTACHMENTS – HYDRAULICS
- Hydraulics: – Standard or EU and Canada
STANDARD ATTACHMENTS – OPERATOR ENVIRONMENT
- Glass (window): – rubber-mounted glass
- Precleaner (cab): – powered
- Seat (cab): – heated and ventilated
- Mirrors – cab: – Standard or heated
STANDARD ATTACHMENTS – POWER TRAIN
- Axles: – Standard or non-spin rear
STANDARD ATTACHMENTS – SPECIAL ARRANGEMENTS
- Engine Precleaners: – Turbine or dual stage
STANDARD ATTACHMENTS – ELECTRICAL
- Lights: – Standard or LED
STANDARD ATTACHMENTS – FUEL SYSTEMS
- Fuel tank: – Non-fast or fast fill
STANDARD ATTACHMENTS – TECHNOLOGY PRODUCTS
- Product Link: – GSM, satellite
STANDARD ATTACHMENTS – CLEANER BARS
- Cleaner bars: – Standard or abrasive
STANDARD ATTACHMENTS – BLADES
- Blades: – Straight or tilt-straight
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Camera, rear vision
- Radio, AM/FM/AUX/USB/BLUETOOTH
- Radio, CB (ready)
TECHNOLOGY PRODUCTS
- Compaction control, basic
OTHER ATTACHMENTS
- Sound suppression (required for Brazil)
FLUIDS
- Antifreeze, –50° C (–58° F)
STARTING AIDS
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
MISCELLANEOUS
- Film (ANSI) (Tier 4 Final/Stage V only)
- EU certification (Tier 4 Final/Stage V only)
- Plate – year of manufacture (Tier 3/Stage IIIA equivalent only)
