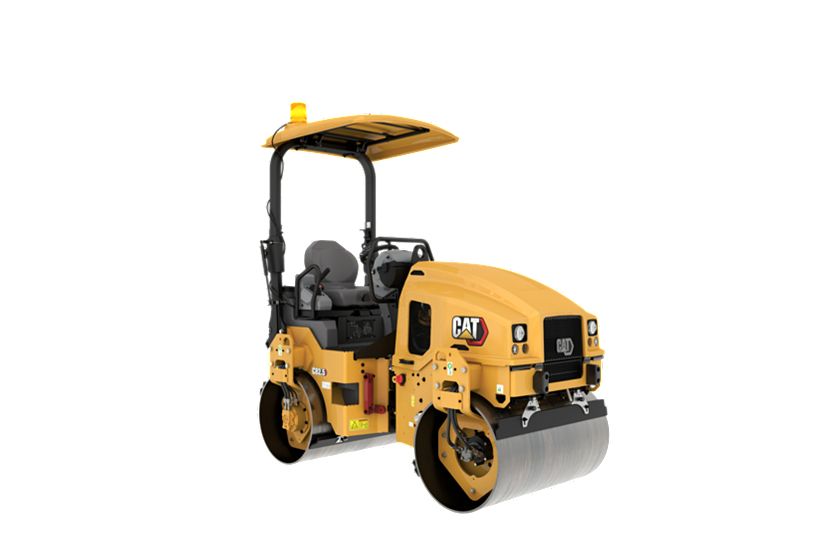

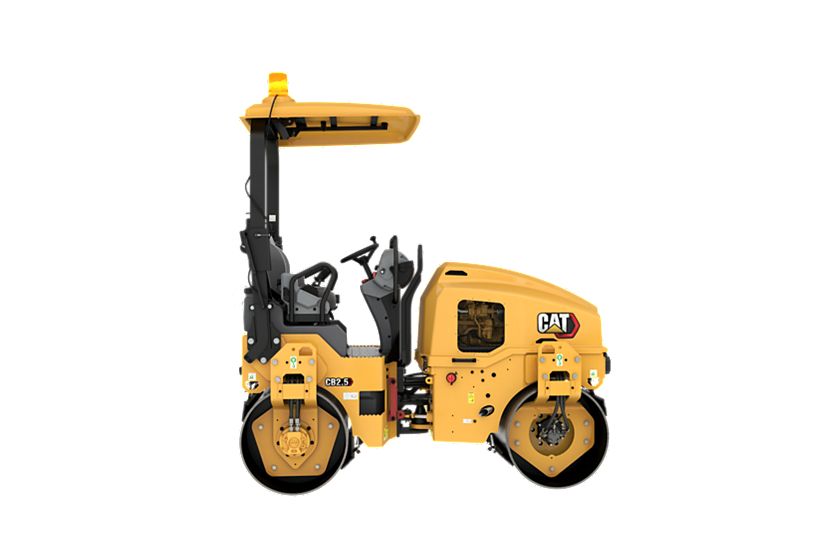

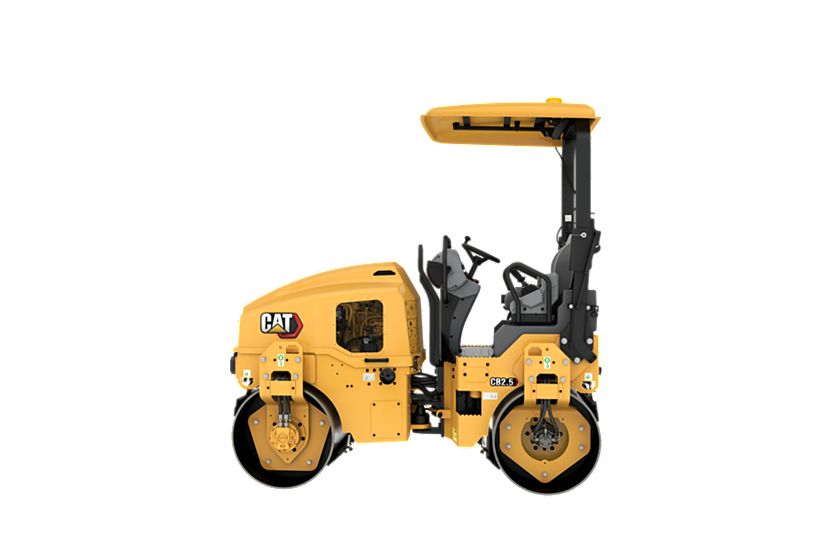

Cat
CB2.5 Utility Compactor
Standard Operating Weight with ROPS
5546 lb
2521 kg
Compaction Width
39.4 in
1000 mm
Gross Power
48.2 HP
36 kW
Overview

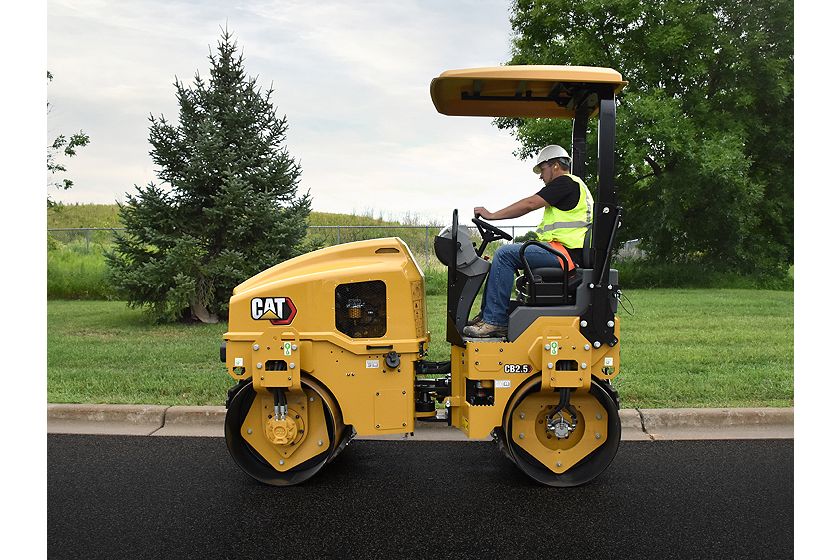

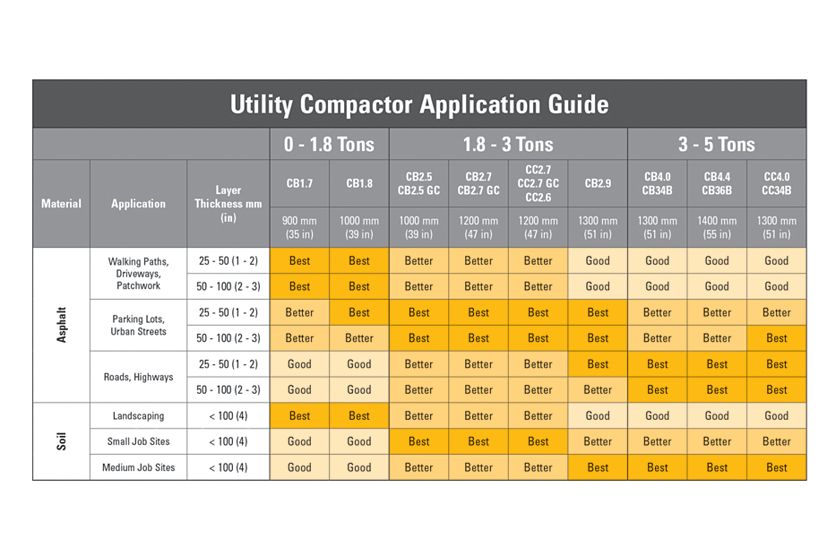

The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It’s a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Media
Photos
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Standard Operating Weight with ROPS | 5546 lb 2521 kg |
| Maximum Operating Weight with Cab | 5546 lb 2521 kg |
| Static Linear Load | 66.2 lb/in 11.85 kg/cm |
| Maximum Operating Weight with ROPS | 6646 lb 3021 kg |
| Maximum Weight at Front Drum | 2607 lb 1185 kg |
| Maximum Weight at Rear Drum | 2939 lb 1336 kg |
Dimensions
| Spec | Value |
|---|---|
| Compaction Width | 39.4 in 1000 mm |
| Overall Width | 43.8 in 1112 mm |
| Drum Diameter | 28.3 in 720 mm |
| Overall Length | 99.2 in 2520 mm |
| Drum Width | 39.4 in 1000 mm |
| Wheel Base | 70.9 in 1800 mm |
| Height – ROPS | 106 in 2700 mm |
Operating Specifications
| Spec | Value |
|---|---|
| Travel Speed – Maximum | 7.5 mile/h 12 km/h |
| Turning Radius – Inside Drum Edge | 103.9 in 2640 mm |
| Ground Clearance | 11.2 in 285 mm |
| Static Linear Load | 66.2 lb/in 11.85 kg/cm |
| Static Linear Load – With Cab | 74.7 lb/in 13.36 kg/cm |
| Turning Radius – Outside Drum Edge | 143.3 in 3640 mm |
| Curb Clearance | 17.8 in 453 mm |
| Drum Offset | 2 in 50 mm |
Engine
| Spec | Value |
|---|---|
| Gross Power | 48.2 HP 36 kW |
| Engine Model | C1.7T C1.7T |
| Net Power – ISO 9249 | 47.6 HP 35.5 kW |
Vibratory System
| Spec | Value |
|---|---|
| Nominal Amplitude – High | 0.02 in 0.51 mm |
| Centrifugal Force – Maximum | 6697 lb 30 kN |
| Frequency | 64 Hz 3840 V/mm |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 14.37 gal (US) 55 l |
| Water Spray Tank Capacity | 52.8 gal (US) 200 l |
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt – 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection – front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection – lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat – Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit – 200 kg (440 lb)
- Ballast Kit – 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV – Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
