Cat

CB2.7 Utility Compactor

Standard Operating Weight with ROPS

5936 lb

2698 kg

Compaction Width

47.2 in

1200 mm

Gross Power

48.2 hp

36 kW

Overview

The CB2.7 is a 2.7 to 3 metric ton compactor with 1200 mm (47 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Media

Photos

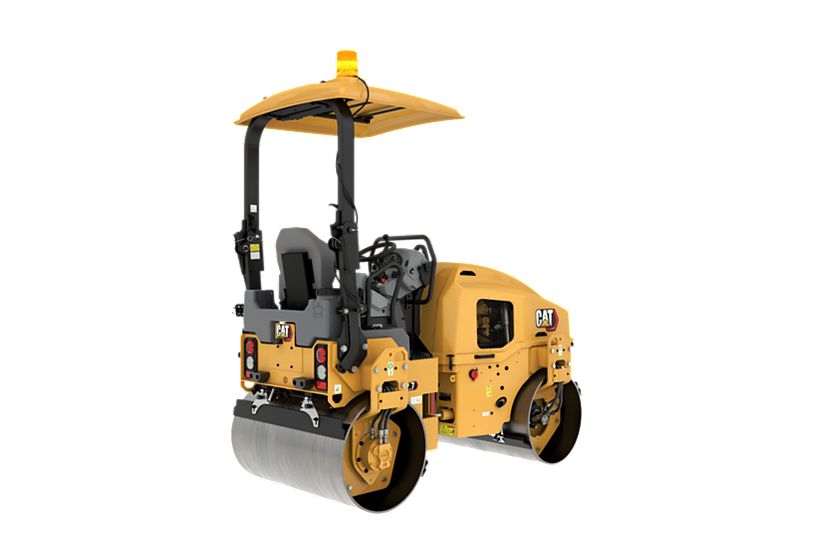

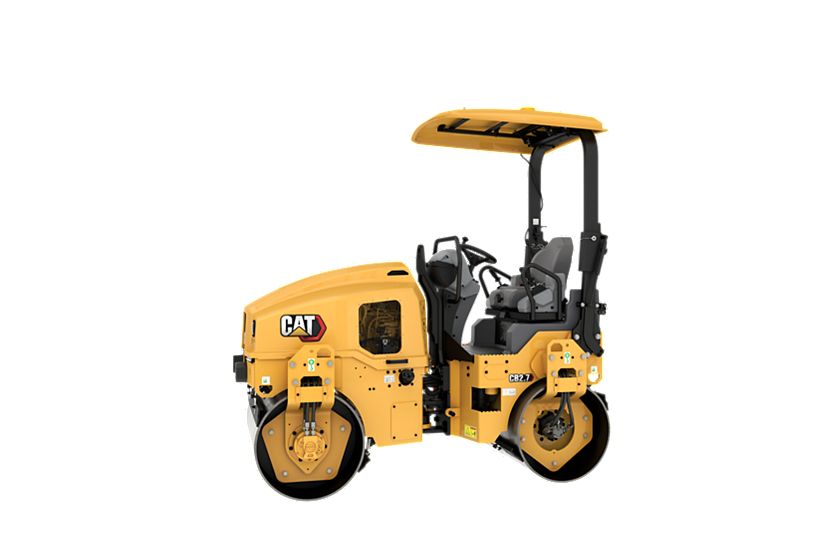

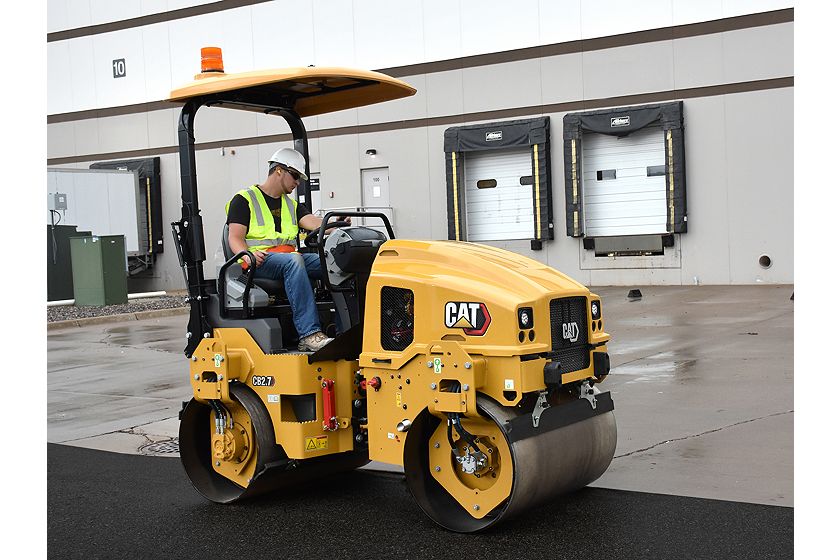

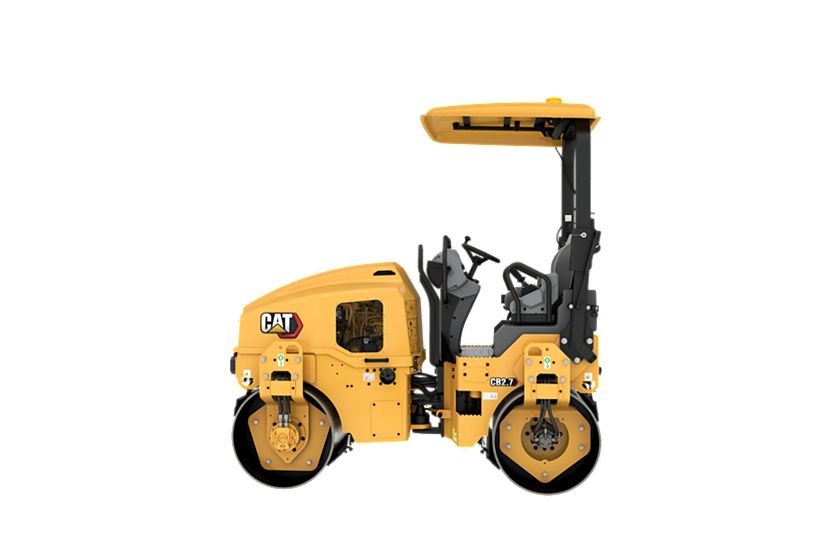

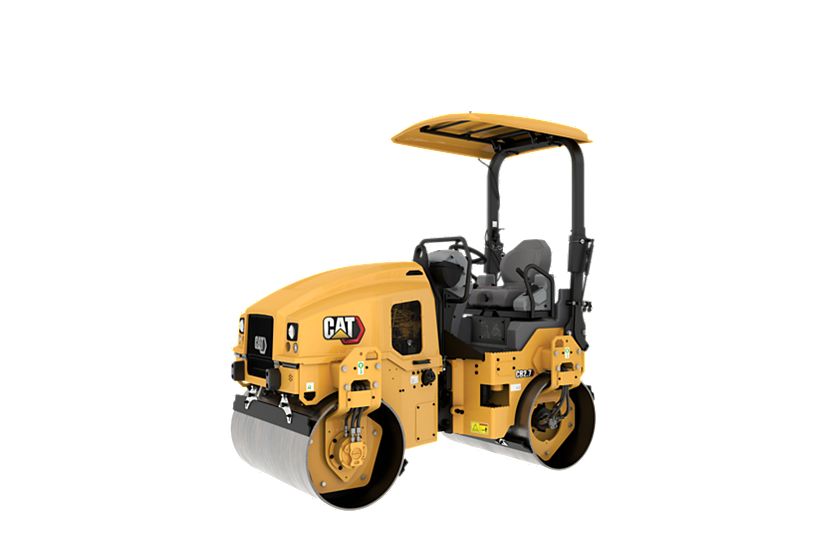

CB2.7 Utility Compactor
CB2.7 Utility Compactor

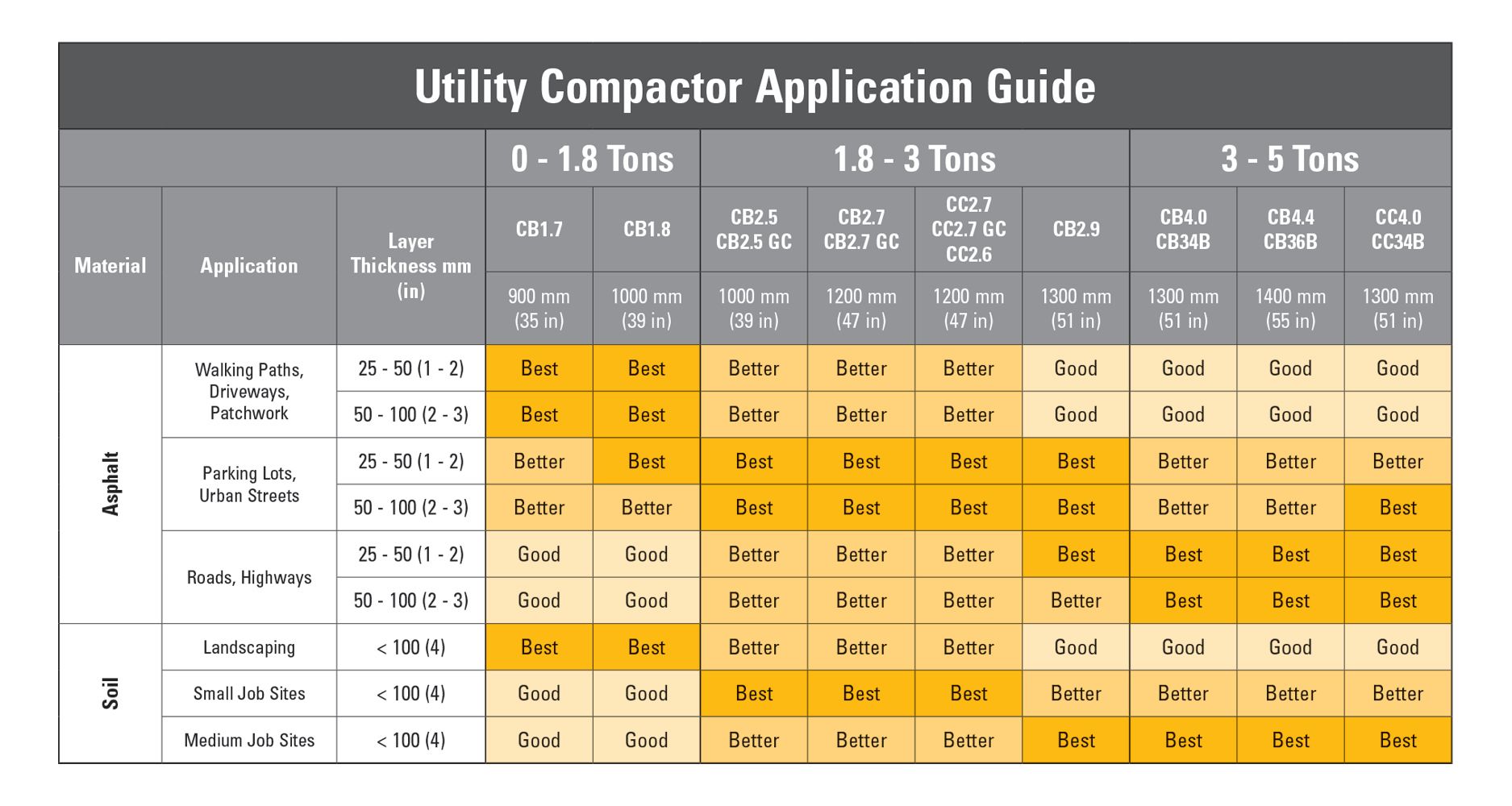

Utility Compactor Application Guide
Utility Compactor Application Guide

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any of the products.

Documents

Details

Specifications

Spec Value
Standard Operating Weight with ROPS 5936 lb 2698 kg
Maximum Weight at Front Drum 2861 lb 1301 kg
Maximum Operating Weight with ROPS 5936 lb 2698 kg
Maximum Weight at Rear Drum 1398 lb 3075 kg
Static Linear Load 60.6 lb/in 13 kg/cm
Spec Value
Compaction Width 47.2 in 1200 mm
Drum Diameter 28.3 in 720 mm
Overall Width 51.7 in 1312 mm
Height – ROPS 70.8 in 1799 mm
Overall Length 99.2 in 2520 mm
Drum Width 47.2 in 1200 mm
Wheel Base 70.9 in 1800 mm
Spec Value
Turning Radius – Outside Drum Edge 3740 mm 147.2 in
Drum Offset 2 in 50 mm
Travel Speed – Maximum 7.5 mile/h 12 km/h
Static Linear Load 70.6 lb/in 12.6 kg/cm
Turning Radius – Inside Drum Edge 100 in 2540 mm
Curb Clearance 17.8 in 453 mm
Ground Clearance 11.2 in 285 mm
Spec Value
Gross Power 48.2 hp 36 kW
Net Power – ISO 9249 47.6 hp 35.5 kW
Engine Model C1.7T C1.7T
Spec Value
Frequency 64/53 Hz (3840/3180 vpm) 64/53 Hz (3840/3180 vpm)
Frequency 3840 V/mm 64 Hz
Centrifugal Force – Maximum 7929 lb 35 kN
Nominal Amplitude – High 0.02 in 0.52 mm
Spec Value
Fuel Tank Capacity 14.37 gal (US) 55 l
Water Spray Tank Capacity 52.8 gal (US) 200 l

Standard Equipment

OPERATOR ENVIRONMENT

  • Adjustable Suspension Seat with Operator Presense Switch
  • ROPS Folding
  • Seat Belt – 75 mm (3 in) high visibility orange
  • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
  • 12-volt Power Outlet
  • Horn, Backup Alarm

COMPACTON SYSTEM

  • Folding Scrapers
  • Vibe Selection – front, rear, or both
  • Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

  • Auto Engine Off and Auto Warmup
  • Air Cleaner, Dual Element
  • Engine Belt Guard

TECHNOLOGY

  • Telematics

ELECTRICAL

  • LED Working Lights

OTHER

  • Vandal Protection – lockable hood, fuel fill, and controls cover
  • Machine Life and Tiedowns
  • Offsets Hitch

Optional Equipment

OPERATOR ENVIRONMENT

  • ROPS Fixed
  • Sun Canopy
  • Seat – Side Shift
  • Dual Propel Levers

COMPACTON SYSTEM

  • Fixed Scrapers
  • Cocoa Mats
  • Edge Cutter Ready
  • Water Sprayer Antifreeze Kit
  • Ballast Kit – 200 kg (440 lb)
  • Ballast Kit – 400 kg (880 lb)

POWERTRAIN

  • Traction Control

TECHNOLOGY

  • Remote Flash / Troubleshoot
  • CMV – Compaction Measurement Value

ELECTRICAL

  • Battery Disconnect
  • LED Roading Lights
  • Rotating Amber Beacon

OTHER

  • Biodegradeable Hydraulic Oil
  • Bumpers
  • Single Point Lift
  • Custom Paint
