Cat

CC2.7 Utility Compactor

Standard Operating Weight with ROPS

5718 lb

2599 kg

Compaction Width

47.2 in

1200 mm

Gross Power

48.2 hp

36 kW

Overview

The CC2.7 is a 3 metric ton machine with a 1200 mm (47 in) front drum and 4 rear wheels. The combination compactor offers versatility with its 4 rubber tires that provide a kneading action for a smooth mat surface.

Media

Photos

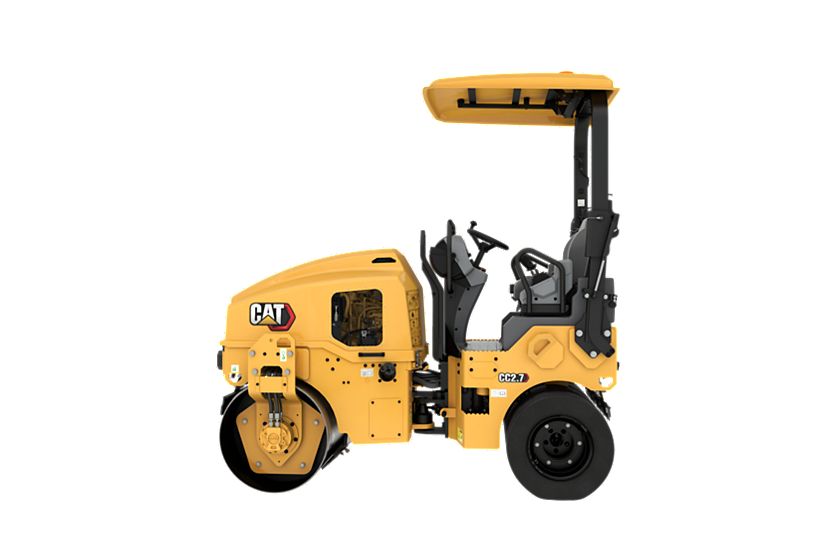

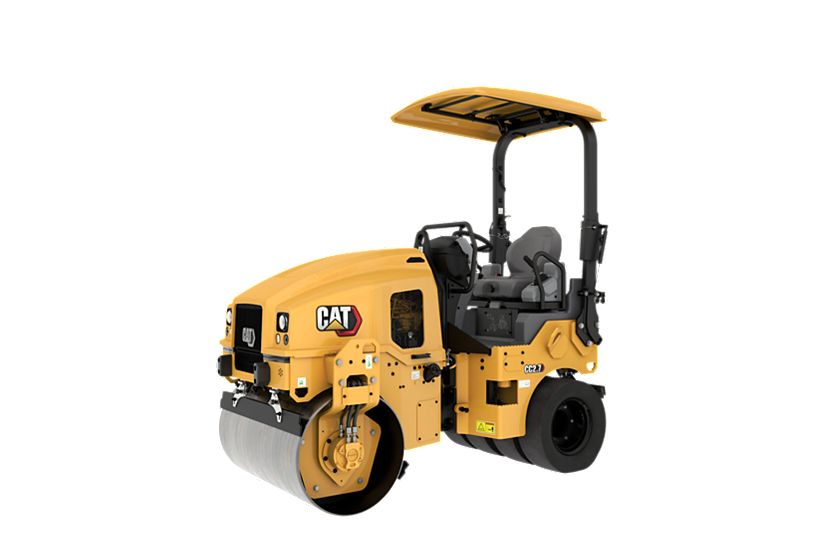

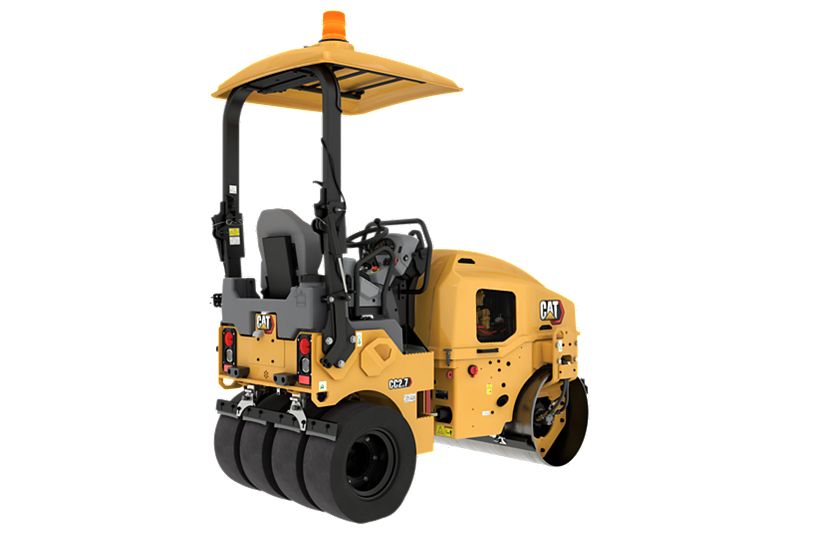

CC2.7 Utility Compactor

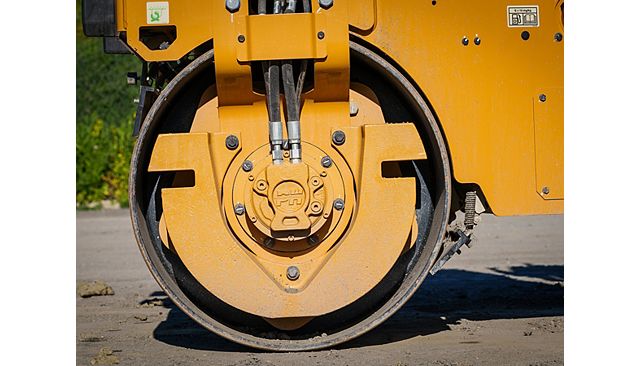

CC2.7 Utility Compactor
Utility Compactor Selection Chart
Utility Compactor Selection Chart

Documents

Details

Specifications

Spec Value
Standard Operating Weight with ROPS 5718 lb 2599 kg
Static Linear Load 61 lb/in 13.1 kg/cm
Maximum Operating Weight 6114 lb 2779 kg
Spec Value
Compaction Width 47.2 in 1200 mm
Overall Width 51.7 in 1312 mm
Drum Width 47.2 in 1200 mm
Height – ROPS 109.7 in 2786 mm
Wheel Base 70.9 in 1800 mm
Overall Length 99.2 in 2520 mm
Drum Diameter 28.3 in 720 mm
Spec Value
Turning Radius – Inside Drum Edge 100 in 2540 mm
Ground Clearance 11.2 in 285 mm
Curb Clearance 17.8 in 453 mm
Travel Speed – Maximum 6.8 mile/h 11 km/h
Static Linear Load 66.2 lb/in 11.85 kg/cm
Drum Offset 2 in 50 mm
Number of Wheels 4 4
Turning Radius – Outside Drum Edge 147.2 in 3740 mm
Spec Value
Gross Power 48.2 hp 36 kW
Net Power – ISO 9249 48.2 hp 36 kW
Engine Model C1.7T C1.7T
Spec Value
Nominal Amplitude – High 0.02 in 0.52 mm
Minimum Frequency 3180 VPM 53 Hz
Maximum Frequency 3840 VPM 64 Hz
Centrifugal Force per Drum – Maximum 7929 lb/ft 35 kN
Spec Value
Water Spray Tank Capacity 42.24 gal (US) 160 l
Fuel Tank Capacity 14.37 Gal 55 l

Standard Equipment

OPERATOR ENVIRONMENT

  • Adjustable Suspension Seat with Operator Presense Switch
  • ROPS Folding
  • Seat Belt – 75 mm (3 in) high visibility orange
  • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
  • 12-volt Power Outlet
  • Horn, Backup Alarm

COMPACTON SYSTEM

  • Folding Scrapers
  • Vibe Selection – front, rear, or both
  • Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

  • Auto Engine Off and Auto Warmup
  • Air Cleaner, Dual Element
  • Engine Belt Guard

TECHNOLOGY

  • Telematics

ELECTRICAL

  • LED Working Lights

OTHER

  • Vandal Protection – lockable hood, fuel fill, and controls cover
  • Machine Life and Tiedowns
  • Offsets Hitch

Optional Equipment

OPERATOR ENVIRONMENT

  • ROPS Fixed
  • Sun Canopy
  • Seat – Side Shift
  • Dual Propel Levers

COMPACTON SYSTEM

  • Fixed Scrapers
  • Cocoa Mats
  • Edge Cutter Ready
  • Water Sprayer Antifreeze Kit
  • Ballast Kit – 100 kg (220 lb)

TECHNOLOGY

  • Remote Flash / Troubleshoot
  • CMV – Compaction Measurement Value

ELECTRICAL

  • Battery Disconnect
  • LED Roading Lights
  • Rotating Amber Beacon

OTHER

  • Biodegradeable Hydraulic Oil
  • Bumpers
  • Single Point Lift
  • Custom Paint
