Cat
CC2.7 GC Utility Compactor
Standard Operating Weight with ROPS
5718 lb
2599 kg
Compaction Width
51.7 in
1312 mm
Gross Power
24.6 hp
18.4 kW
Overview
The CC2.7 GC is a 2.7 metric ton machine with 1000 mm (39 in) drums. It’s a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Media

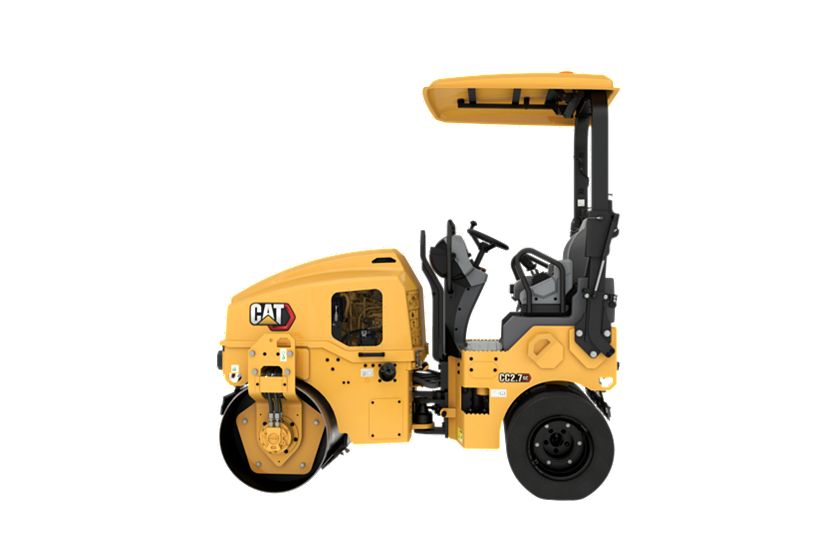

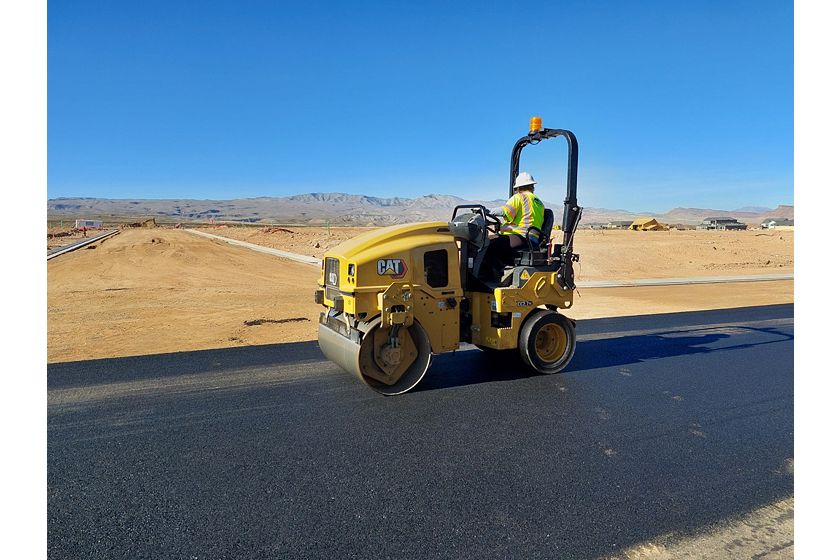

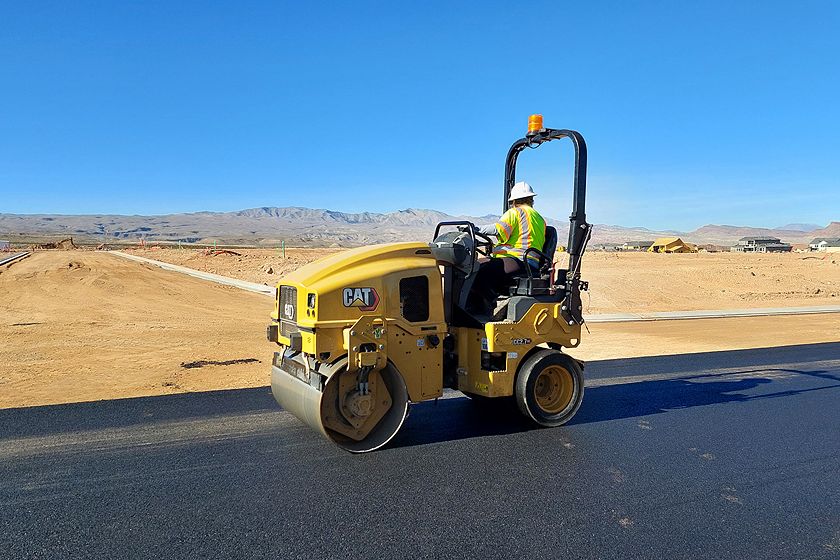

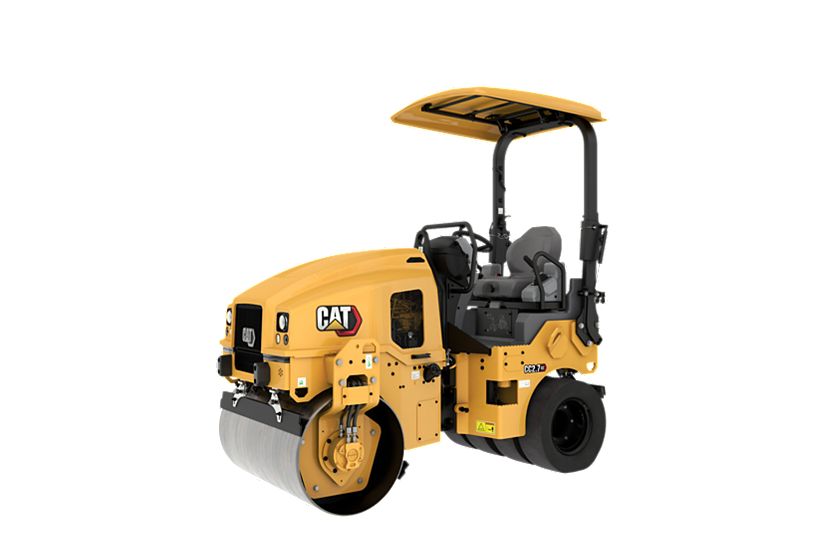

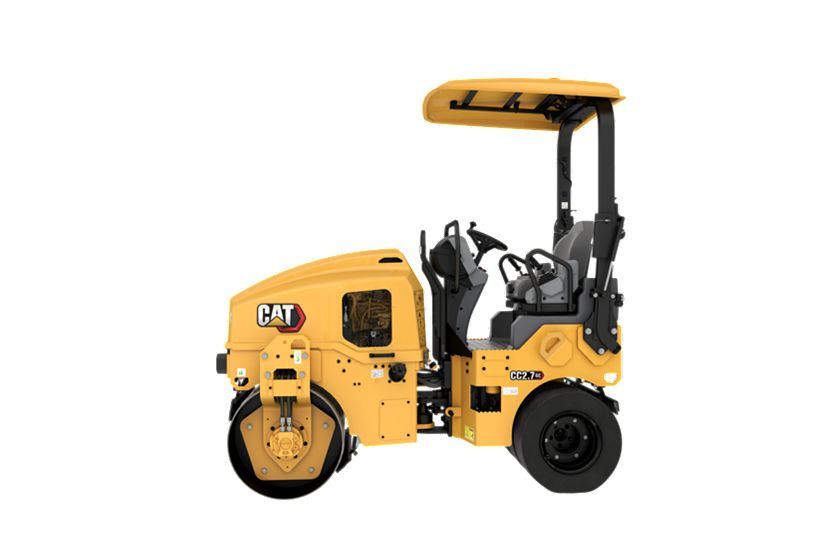

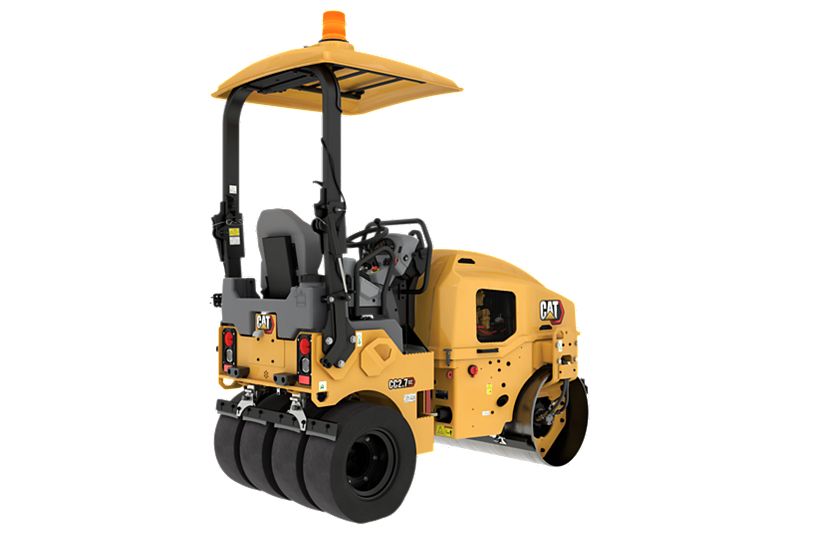

Photos
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Standard Operating Weight with ROPS | 5718 lb 2599 kg |
| Maximum Weight at Front Drum | 2882 lb 1310 kg |
| Maximum Weight at Rear Wheels | 2836 lb 1289 kg |
| Maximum Operating Weight | 3114 lb 2779 kg |
Dimensions
| Spec | Value |
|---|---|
| Compaction Width | 51.7 in 1312 mm |
| Height – ROPS | 102.2 in 2595 mm |
| Wheel Base | 70.9 in 1800 mm |
| Drum Diameter | 28.3 in 720 mm |
| Overall Length | 100.2 in 2596 mm |
| Overall Width | 51.7 in 1312 mm |
| Drum Width | 47.2 in 1200 mm |
Engine
| Spec | Value |
|---|---|
| Gross Power | 24.6 hp 18.4 kW |
| Net Power – ISO 9249 | 24.4 hp 18.2 kW |
| Engine Model | C1.7T C1.7T |
Vibratory System
| Spec | Value |
|---|---|
| Centrifugal Force – Maximum | 6968.8 lb 31 kN |
| Nominal Amplitude – High | 0.02 in 0.52 mm |
| Frequency | 62 Hz 3720 VPM |
Operating Specifications
| Spec | Value |
|---|---|
| Turning Radius – Inside Drum Edge | 100 in 2540 mm |
| Travel Speed – Maximum | 5.3 mile/h 8.6 km/h |
| Drum Offset | 2 in 50 mm |
| Static Linear Load | 61 lb/in 13.1 kg/cm |
| Curb Clearance | 17.8 in 453 mm |
| Turning Radius – Outside Drum Edge | 147.2 in 3740 mm |
| Ground Clearance | 11.2 in 285 mm |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 14.37 gal (US) 55 l |
| Water Spray Tank Capacity | 42.24 gal (US) 160 l |
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt – 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection – front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection – lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat – Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit – 200 kg (440 lb)
- Ballast Kit – 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV – Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
