Cat

CB4.4 Utility Compactor

Standard Operating Weight with ROPS

8362 lb

3801 kg

Compaction Width

55.1 in

1400 mm

Gross Power

48.2 hp

36 kW

Overview

The CB4.4 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Media

Photos

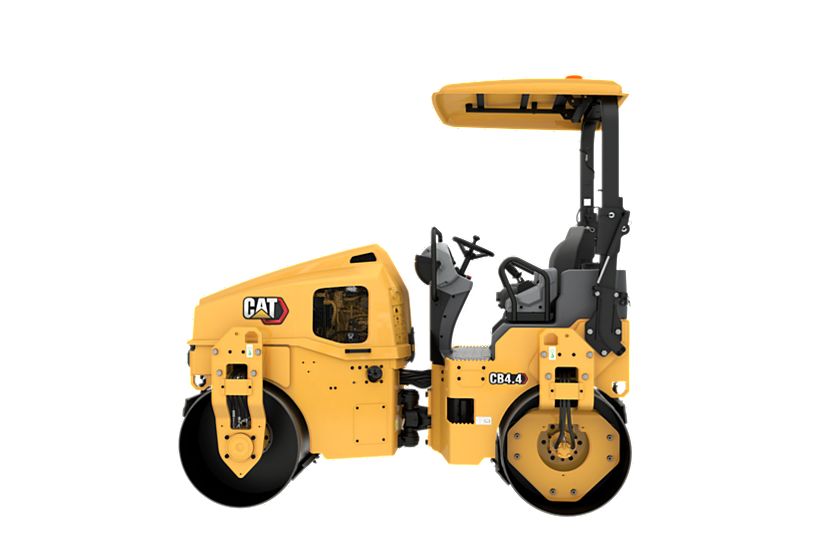

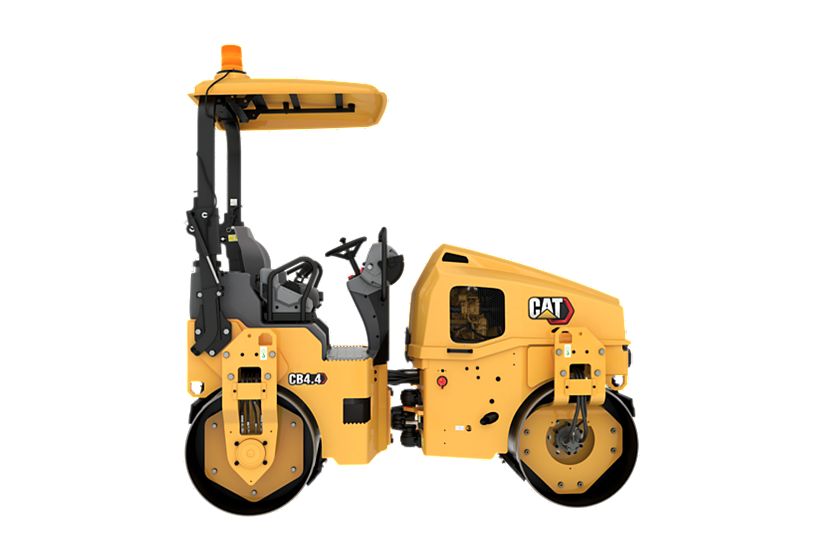

CB4.4 Utility Compactor
CB4.4 Utility Compactor
Utility Compactor Selection Chart
Utility Compactor Selection Chart

Documents

Details

Specifications

Spec Value
Standard Operating Weight with ROPS 8362 lb 3801 kg
Maximum Weight at Rear Drum 4380 lb 1991 kg
Maximum Weight at Front Drum 3982 lb 1810 kg
Maximum Operating Weight with ROPS 9885 lb 4493 kg
Static Linear Load 72.2 lb/in 12.93 kg/cm
Spec Value
Compaction Width 55.1 in 1400 mm
Overall Length 112.3 in 2853 mm
Overall Width 59.1 in 1500 mm
Drum Width 55.1 in 1400 mm
Drum Diameter 31.5 in 800 mm
Wheel Base 80.7 in 2050 mm
Height – ROPS 104.7 in 2660 mm
Spec Value
Gross Power 48.2 hp 36 kW
Engine Model C1.7T C1.7T
Net Power – ISO 9249 47.6 hp 35.5 kW
Spec Value
Standard Compaction Width 55.1 in 1400 mm
Drum Offset 2 in 50 mm
Curb Clearance 19.6 in 499 mm
Ground Clearance 11.2 in 284 mm
Travel Speed – Maximum 8.1 mile/h 13 km/h
Turning Radius – Inside Drum Edge 113.2 in 2876 mm
Turning Radius – Outside Drum Edge 168.3 in 4276 mm
Spec Value
Frequency 55/45 Hz (3300/2700 vpm) 55/45 Hz (3300/2700 vpm)
Nominal Amplitude – High 0.019 in 0.49 mm
Centrifugal Force – Maximum 7828 lb/ft 34.82 kN
Spec Value
Fuel Tank Capacity 21.43 gal (US) 81 l
Water Spray Tank Capacity 79 gal (US) 300 l

Standard Equipment

OPERATOR ENVIRONMENT

  • Adjustable Suspension Seat with Operator Presense Switch
  • ROPS Folding
  • Seat Belt – 75 mm (3 in) high visibility orange
  • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
  • 12-volt Power Outlet
  • Horn, Backup Alarm

COMPACTON SYSTEM

  • Folding Scrapers
  • Vibe Selection – front, rear, or both
  • Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

  • Auto Engine Off and Auto Warmup
  • Air Cleaner, Dual Element
  • Engine Belt Guard

TECHNOLOGY

  • Telematics

ELECTRICAL

  • LED Working Lights

OTHER

  • Vandal Protection – lockable hood, fuel fill, and controls cover
  • Machine Life and Tiedowns
  • Offsets Hitch

Optional Equipment

OPERATOR ENVIRONMENT

  • ROPS Fixed
  • Sun Canopy
  • Seat – Side Shift
  • Dual Propel Levers

COMPACTON SYSTEM

  • Fixed Scrapers
  • Cocoa Mats
  • Edge Cutter Ready
  • Water Sprayer Antifreeze Kit
  • Ballast Kit – 400 kg (880 lb)
  • Ballast Kit – 542 kg (1194.91 lb)

POWERTRAIN

  • Traction Control

TECHNOLOGY

  • Remote Flash / Troubleshoot
  • CMV – Compaction Measurement Value

ELECTRICAL

  • Battery Disconnect
  • LED Roading Lights
  • Rotating Amber Beacon

OTHER

  • Biodegradeable Hydraulic Oil
  • Bumpers
  • Single Point Lift
  • Custom Paint
