Cat

CB4.4 Utility Compactor

Standard Operating Weight with ROPS

7889 lb

3586 kg

Compaction Width

51.2 in

1300 mm

Gross Power

48.2 HP

36 kW

Overview

The CC4.0 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Media

Photos

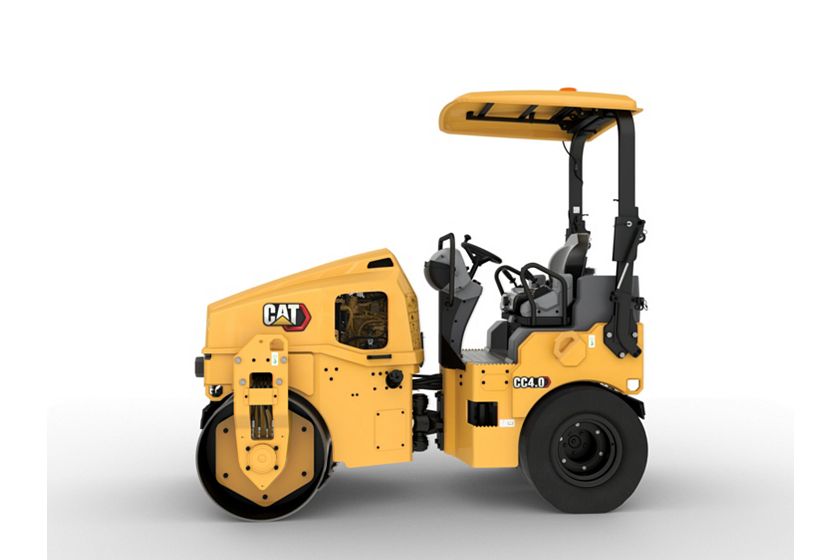

CC4.0 Utility Compactor

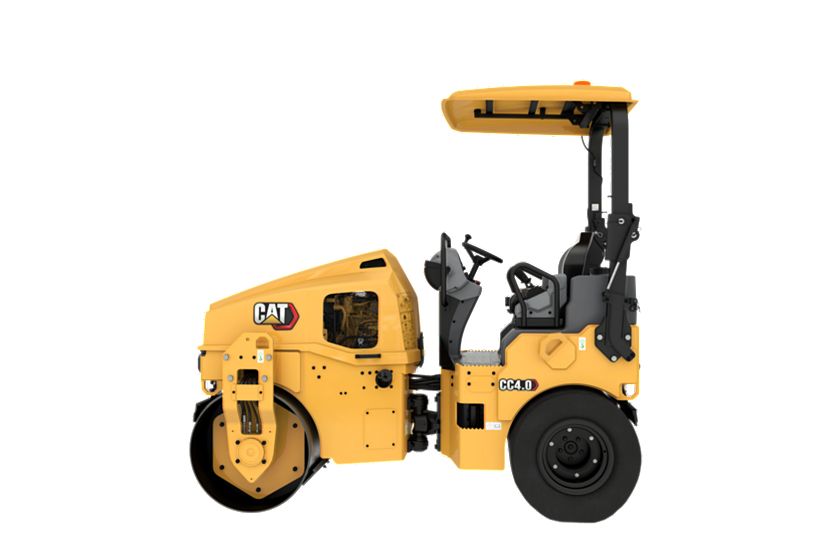

CC4.0 Utility Compactor

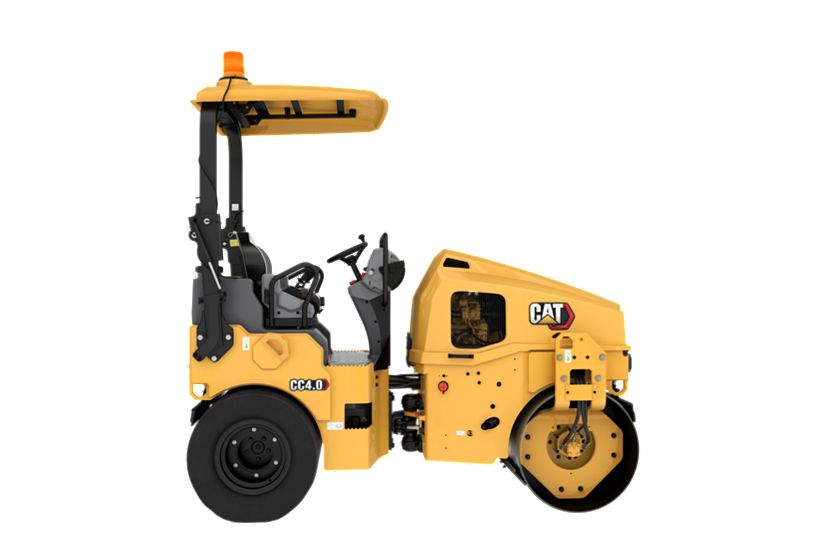

CC4.0 Utility Compactor
CC4.0 Utility Compactor
Utility Compactor Selection Chart
Utility Compactor Selection Chart

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any of the products.

Documents

Details

Specifications

Spec Value
Standard Operating Weight with ROPS 7889 lb 3586 kg
Maximum Weight at Front Drum 3918 lb 1781 kg
Maximum Weight at Rear Drum 3971 lb 1805 kg
Maximum Operating Weight with ROPS 3936 lb 8659 kg
Static Linear Load 76.6 lb/in 13.7 kg/cm
Spec Value
Compaction Width 51.2 in 1300 mm
Overall Length 112.3 in 2853 mm
Overall Width 55.1 in 1400 mm
Drum Width 51.2 in 1300 mm
Drum Diameter 31.5 in 800 mm
Wheel Base 80.7 in 2050 mm
Height – ROPS 104.7 in 2660 mm
Spec Value
Standard Compaction Width 51.2 in 1300 mm
Drum Offset 2 in 50 mm
Curb Clearance 19.6 in 499 mm
Ground Clearance 11.2 in 284 mm
Travel Speed – Maximum 7.5 mile/h 12 km/h
Turning Radius – Inside Drum Edge 115.2 in 2926 mm
Turning Radius – Outside Drum Edge 166.4 in 4226 mm
Static Linear Load 59.8 lb/in 13.9 kg/cm
Spec Value
Gross Power 48.2 HP 36 kW
Engine Model C1.7T C1.7T
Net Power – ISO 9249 47.6 HP 35.5 kW
Spec Value
Frequency 55/45 Hz (3300/2700 vpm) 55/45 Hz (3300/2700 vpm)
Frequency 3300 VPM 55 Hz
Nominal Amplitude – High 0.02 in 0.5 mm
Centrifugal Force – Maximum 7524 lb/ft 33.47 kN
Spec Value
Fuel Tank Capacity 21.43 gal (US) 81 l
Water Spray Tank Capacity 61 gal (US) 230 l
Tire Spray Tank Capacity 9.2 gal (US) 34.5 l

Standard Equipment

OPERATOR ENVIRONMENT

  • Adjustable Suspension Seat with Operator Presense Switch
  • ROPS Folding
  • Seat Belt – 75 mm (3 in) high visibility orange
  • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
  • 12-volt Power Outlet
  • Horn, Backup Alarm

COMPACTON SYSTEM

  • Folding Scrapers
  • Vibe Selection – front, rear, or both
  • Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

  • Auto Engine Off and Auto Warmup
  • Air Cleaner, Dual Element
  • Engine Belt Guard
  • Fuel Filter, Water Separator, Priming Pump, Water Indicator

TECHNOLOGY

  • Telematics

ELECTRICAL

  • LED Working Lights

OTHER

  • Vandal Protection – lockable hood, fuel fill, and controls cover
  • Machine Life and Tiedowns
  • Offset Hitch

Optional Equipment

OPERATOR ENVIRONMENT

  • ROPS Fixed
  • Sun Canopy
  • Seat – Side Shift
  • Dual Propel Levers

COMPACTON SYSTEM

  • Cocoa Mats
  • Edge Cutter Ready
  • Water Sprayer Antifreeze Kit
  • Ballast Kit – 200 kg (440 lb)

TECHNOLOGY

  • Remote Flash / Troubleshoot
  • CMV – Compaction Measurement Value

ELECTRICAL

  • Battery Disconnect
  • LED Roading Lights
  • Rotating Amber Beacon

OTHER

  • Biodegradeable Hydraulic Oil
  • Bumpers
  • Single Point Lift
  • Custom Paint
