Cat
CB1.7 Utility Compactor
Operating Weight
3538 lb
1605 kg
Standard Compaction Width
35 in
900 mm
Gross Power
24.7 hp
18.4 kW
Overview

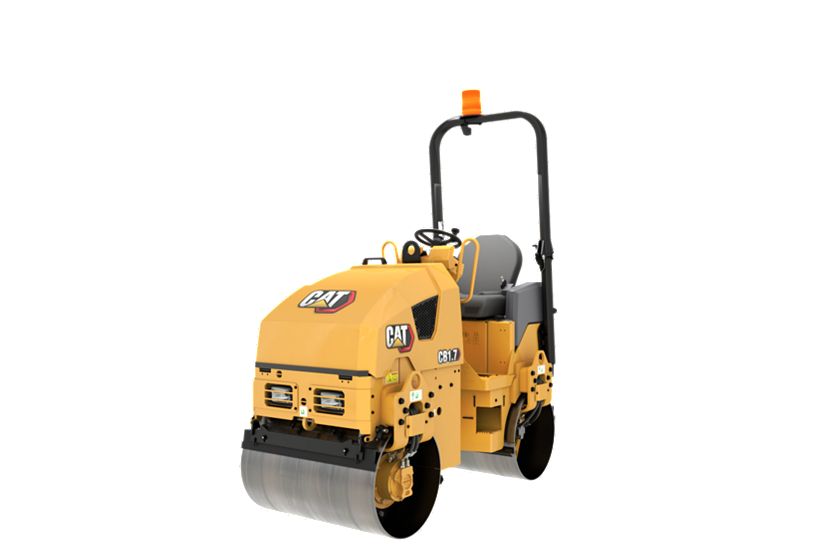

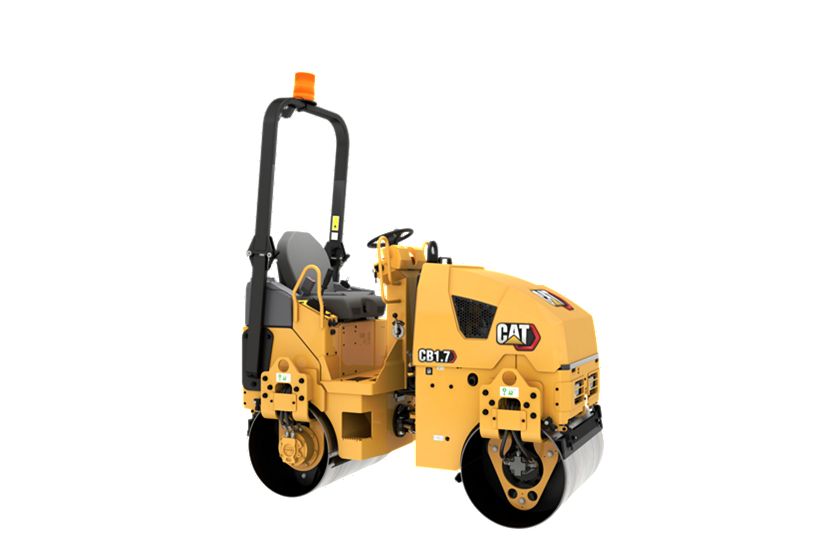

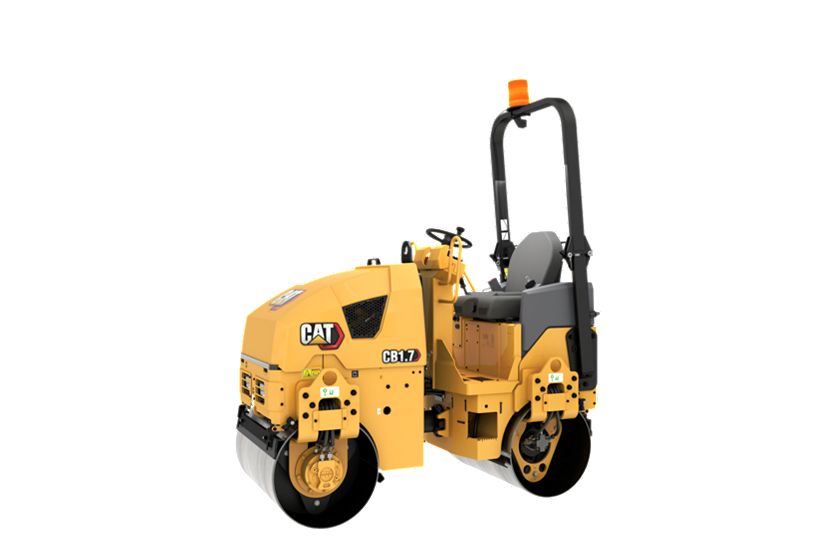

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.
Media
Photos
Videos
360° View
Interior
360° Interior View. Double click on the image to zoom in on any area of the product.
Features
Efficient Performance
Optimized Power
Reliable and Easy to Maintain
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Operating Weight | 3538 lb 1605 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Standard Compaction Width | 35 in 900 mm |
| Curb Clearance | 16 in 403 mm |
| Ground Clearance | 10 in 251 mm |
| Travel Speed – Maximum | 5.3 mile/h 8.6 km/h |
| Static Linear Load | 72 lb/in 9.4 kg/cm |
Engine
| Spec | Value |
|---|---|
| Gross Power | 24.7 hp 18.4 kW |
| Engine Model | Cat C1.1 Cat C1.1 |
Dimensions
| Spec | Value |
|---|---|
| Overall Length | 80 in 2040 mm |
| Overall Width | 40 in 1012 mm |
| Maximum Machine Height | 94.5 in 2400 mm |
| Drum Width | 35 in 900 mm |
| Drum Diameter | 22.5 in 575 mm |
Vibratory System
| Spec | Value |
|---|---|
| Frequency | 3420 V/m 57 Hz |
| Nominal Amplitude – High | 0.019 in 0.5 mm |
| Centrifugal Force per Drum – Maximum | 3057 lb 13.6 kN |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 7.9 gal (US) 30 l |
| Water Spray Tank Capacity | 38 gal (US) 145 l |
Standard Equipment
Operator Environment
- ROPS Folding
- Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
- Dual 12-volt Power Outlet
- Horn, Backup Alarm
Compaction System
- Folding Scrapers
- Vibe Selection – Front, Rear, or Both
- Pressurized, Triple-Filtration Spray System
Powertrain
- Air Cleaner, Dual Element
- Engine Belt Guard
Technology
- ProductLinkTM
Electrical
- Working Lights
Other
- Vandal Protection – Lockable Hood and Controls Cover
- Machine Life and Tiedowns
Optional Equipment
Operator Environment
- Adjustable Suspension Seat w/ Operator Presence Switch
- ROPS Fixed
Electrical
- Battery Disconnect
- Roading Lights
- Rotating Amber Beacon
- Light Guards
Other
- Single Point Lift
