Cat

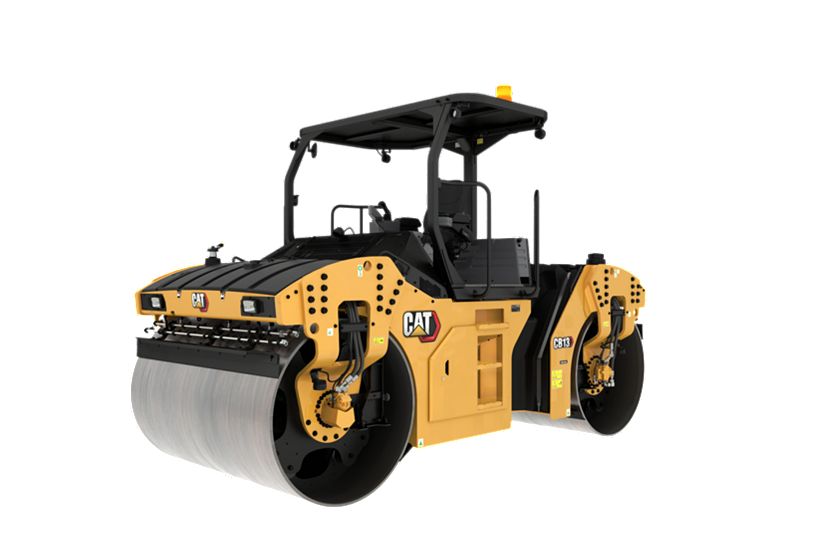

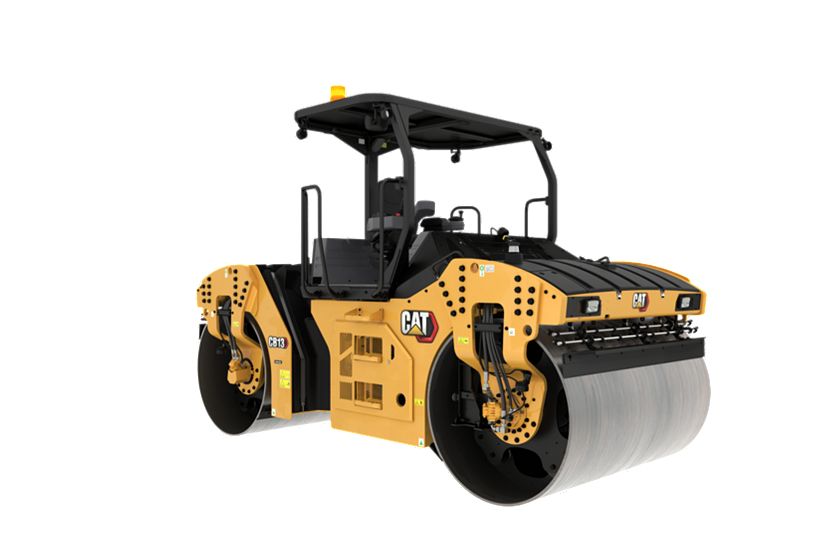

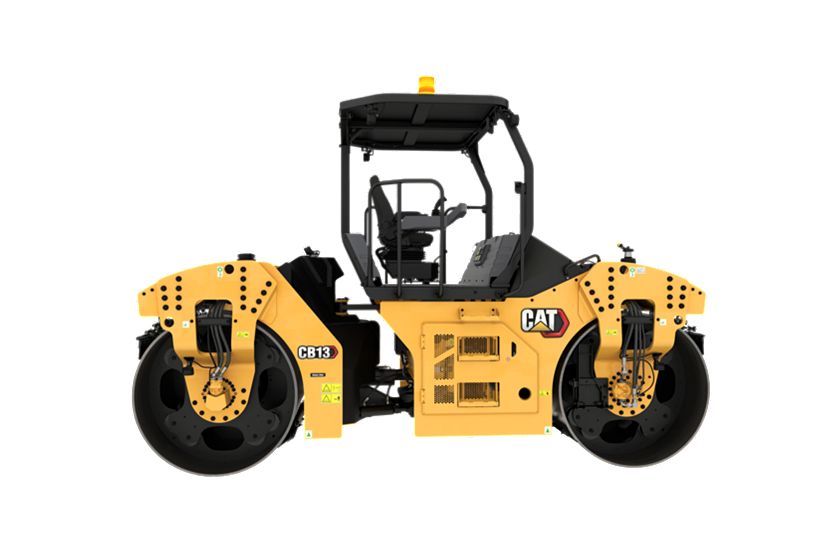

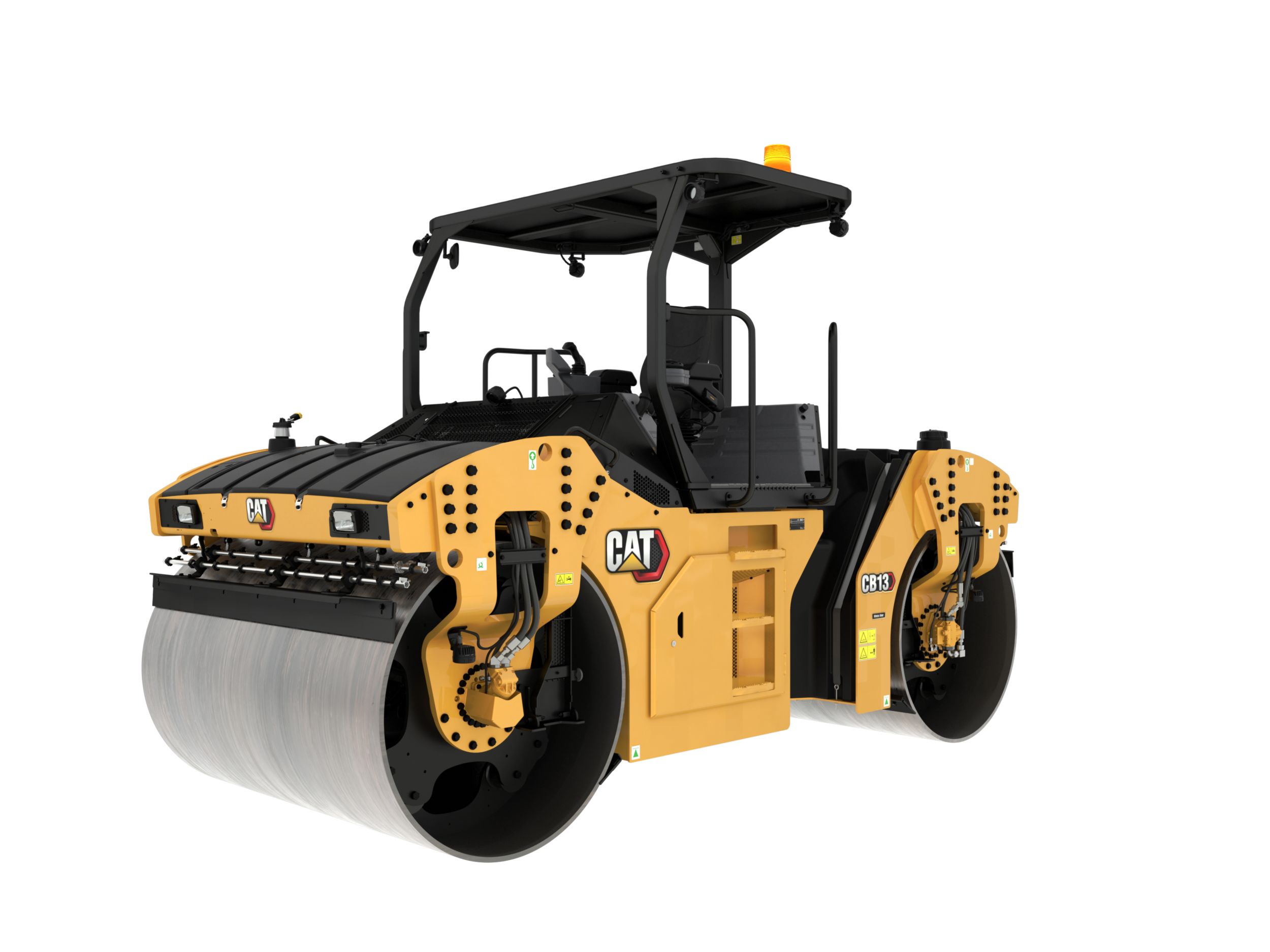

CB13 Tandem Vibratory Roller
Standard – Operating Weight
27557 lb
12500 kg
Standard Compaction Width
79 in
2000 mm
Static Linear Load
189 lb/in
34 kg/cm
Overview
The CB13 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration (option), and 360 degree seating (option) make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.
Media
Photos
Videos
360° View
Exterior
360º Exterior View. Double clickon the image to zoom in on any area of the product.
Interior
360º Interior view. Double click on the image to zoom in on any area of the product.
Features
Better Fuel Economy
Easy Vibratory System Set-up
Compaction Options Include Oscillation
Ensure Mat Coverage with Compaction Control
Prevent Build-Up, Keep the Drum Surfaces Wet
Boost Performance with Enhanced Visibility
Product Link™
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Standard – Operating Weight | 27557 lb 12500 kg |
| Maximum Operating Weight | 28991 lb 13150 kg |
| Static Linear Load | 189 lb/in 34 kg/cm |
Operating Specifications
| Spec | Value |
|---|---|
| Standard Compaction Width | 79 in 2000 mm |
| Drum Offset | 6 in 170 mm |
| Ground Clearance | 11.5 in 292 mm |
| Curb Clearance | 28 in 723 mm |
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C4.4 Cat C4.4 |
| Gross Power | 142 hp 106 kW |
Travel Speeds
| Spec | Value |
|---|---|
| Low | 4 mile/h 7 km/h |
| High | 8 mile/h 13 km/h |
Dimensions
| Spec | Value |
|---|---|
| Overall Length | 15.5 ft 4740 mm |
| Wheel Base | 11.25 ft 3450 mm |
| Height – With ROPS/FOPS | 10 ft 3068 mm |
| Overall Width | 92 in 2325 mm |
Vibratory System
| Spec | Value |
|---|---|
| Centrifugal Force per Drum – Maximum | 24728 lb 110 kN |
| Centrifugal Force per Drum – Minimum | 7800 lb 34.7 kN |
| Maximum Amplitude | 0.038 in 0.96 mm |
| Minimum Amplitude | 0.012 in 0.3 mm |
| Maximum Frequency | 3800 VPM 63.3 Hz |
| Minimum Frequency | 2520 VPM 42 Hz |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 66 gal (US) 250 l |
| Water Spray Tank Capacity | 264 gal (US) 1000 l |
Standard Equipment
Operating Environment
- 180 degree seat positioning with sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever with 4-button control
- Steering wheel – fixed position, left side
- Suspension seat – no heat
- 76 mm (3 in) high visibility seatbelt
- Vandalism protection
Technology
- Product Link™ PLE743
- Remote Flash
- Remote Troubleshooting
Powertrain
- Cat C4.4, 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Maintenance-free batteries
- Cat Electronic Technician (Cat ET)
- Remote start/charge receptacle
Service and Maintenance
- Maintenance-free Hitch
- 3 yr/3000 hr conventional vibratory system service interval
- 2 yr/2000 hr oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling
- Site gauges
Safety
- Backup Alarm
- Warning horn (front & rear)
- LED Working Lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
Optional Equipment
Operating Environment
- 360 degree seat positioning with sliding station
- Steering wheel – elevated position, left side
- Suspension seat w/ heat
- Seat headrest
Technology
- Infrared asphalt temperature sensors
- CMV accelerometer – front drum
- GNSS Mapping – temperature and passcount
- Machine to machine communication
- Product Link PLE783
Powertrain
- Offset hitch
Vibratory System
- Biodegradeable hydraulic oil
- Five amplitude vibratory system
- Two amplitude/two frequency vibratory system
- Versa Vibe� vibratory system
- Two amplitude/two frequency w/Oscillation vibratory system
- Versa Vibe w/Oscillation vibratory system
- Cocoa mats
- Mats – water distribution
- Freeze protection – water spray system
- Rear drum oscillation kit – field installed drum
Safety
- LED Working Lights with turn signals
- LED Roading Lights
- Mirror package
- Steps, rear drum water spray refill
