Cat

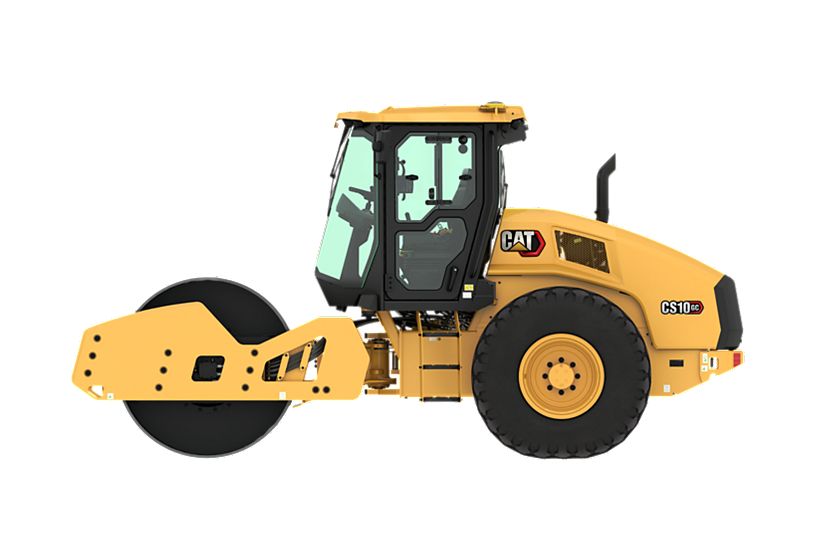

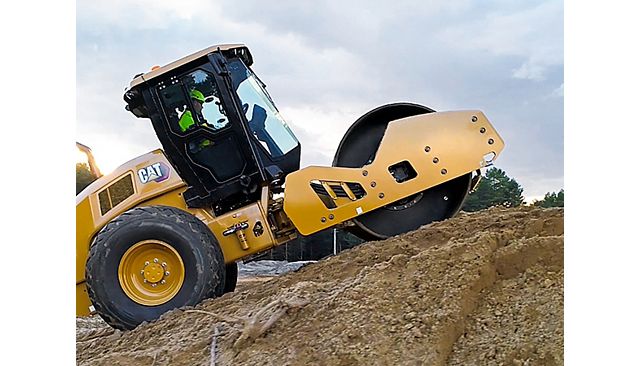

CS10 GC Vibratory Soil Compactor
Operating Weight – With Cab
23136 lb
10494 kg
Compaction Width
84 in
2134 mm
Gross Power
122.9 hp
91.7 kW
Overview

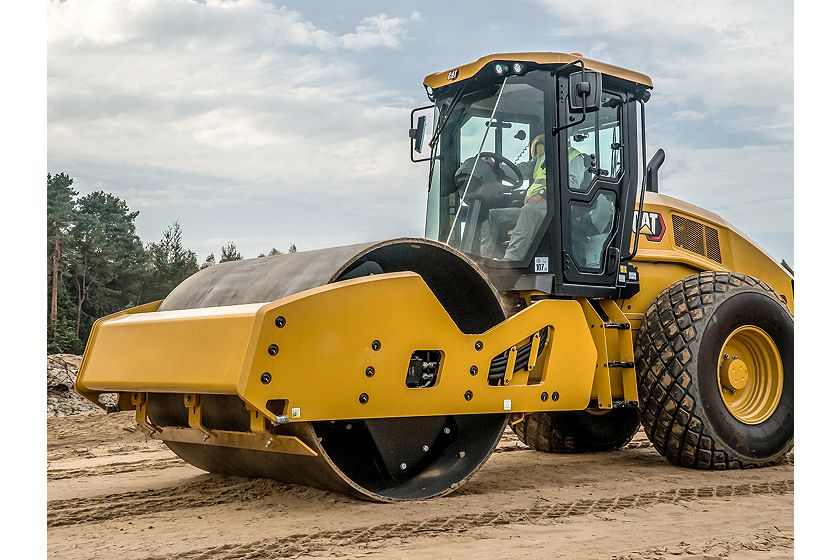

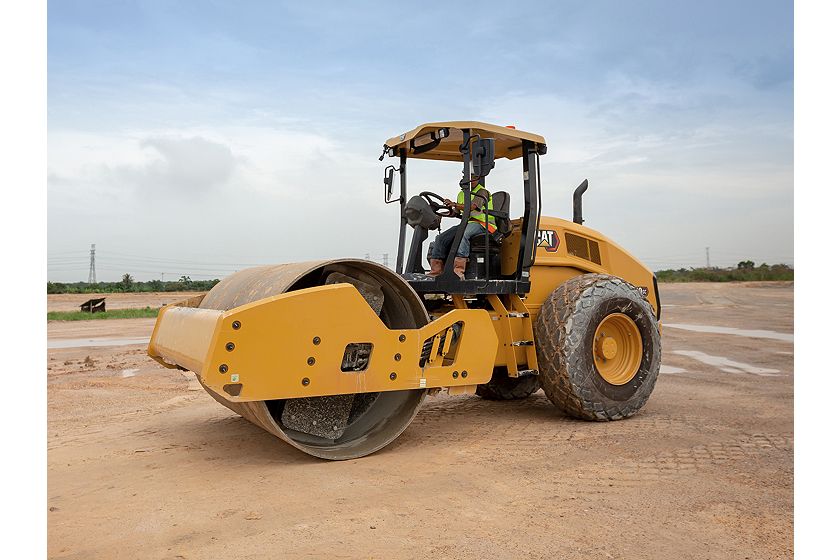

The Cat® CS10 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS10 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.
Media
Photos
Videos
Features

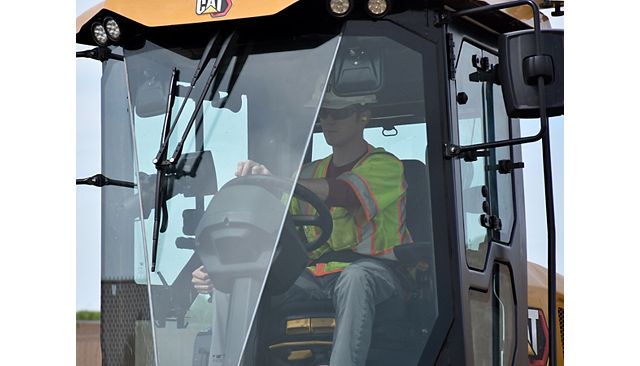

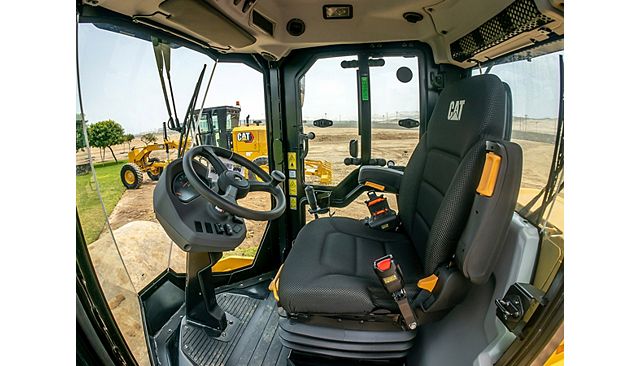

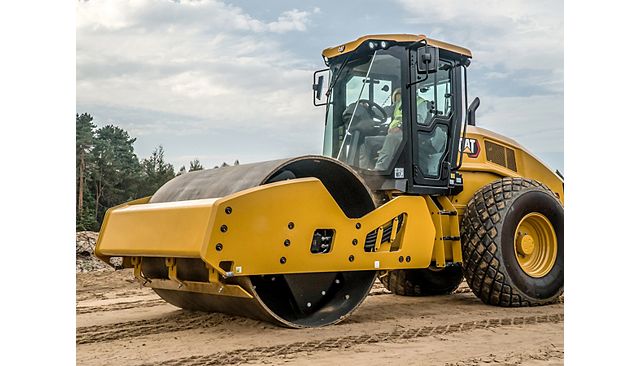

Comfortable and Ergonomic Operator Station
Safety Features

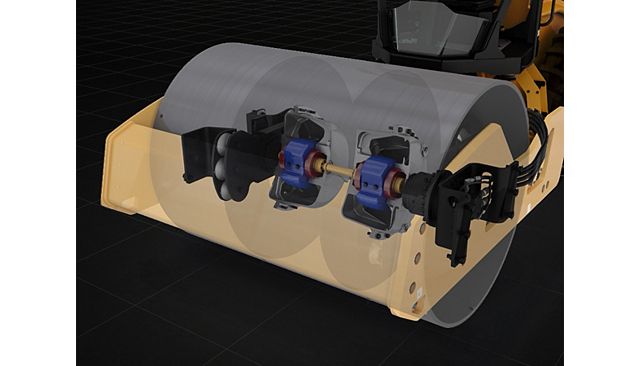

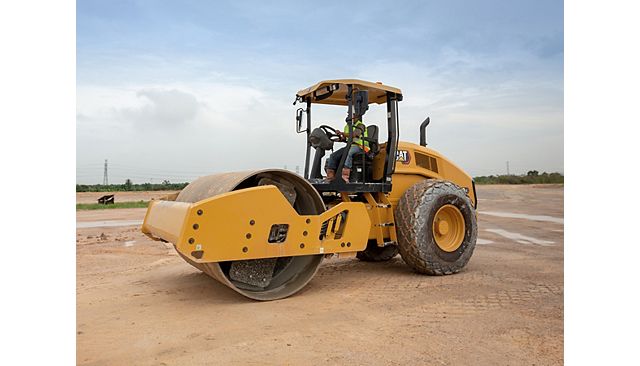

Excellent Compaction Performance
Enhance Quality and Productivity with Technology

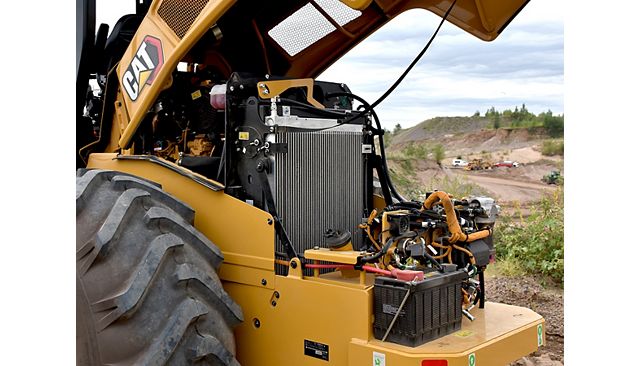

Virtually Maintenance Free
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Gross Power | 122.9 hp 91.7 kW |
| Engine Power – ISO 14396 | 121 hp 90 kW |
| Net Power – ISO 9249 | 112.2 hp 83.7 kW |
| Net Power – SAE J1349:2011 | 111.2 hp 82.9 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C3.6 Cat® C3.6 |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Stroke | 4.7 in 120 mm |
| Bore | 3.9 in 98 mm |
Weights
| Spec | Value |
|---|---|
| Operating Weight – With Cab | 23136 lb 10494 kg |
| Operating Weight – With ROPS/FOPS Canopy | 22796 lb 10340 kg |
| Weight – Drum with Cab | 12948 lb 5873 kg |
| Weight – Drum with ROPS/FOPS Canopy | 12853 lb 5830 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. |
Vibratory System
| Spec | Value |
|---|---|
| Nominal Amplitude – High | 0.079 in 2 mm |
| Nominal Amplitude – Low | 0.039 in 1 mm |
| Centrifugal Force – Maximum | 56200 lb 250 kN |
| Centrifugal Force – Minimum | 33500 lb 149 kN |
| Static Linear Load – With Cab | 154.1 lb/in 27.5 kg/cm |
| Static Linear Load – With ROPS/FOPS Canopy | 153 lb/in 27.3 kg/cm |
Dimensions
| Spec | Value |
|---|---|
| Compaction Width | 84 in 2134 mm |
| Overall Length | 18.7 ft 5.7 m |
| Overall Width | 7.5 ft 2.3 m |
| Maximum Height | 9.9 ft 3.03 m |
| Drum Diameter | 60.4 in 1535 mm |
| Wheel Base | 9.8 ft 3 m |
Operating Specifications
| Spec | Value |
|---|---|
| Ground Clearance | 20.4 in 518 mm |
| Curb Clearance | 19.4 in 492 mm |
| Turning Radius – Inside Drum Edge | 12.7 ft 3.9 m |
| Travel Speed – Maximum | 6.8 mile/h 11 km/h |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 56.3 gal (US) 213 l |
| DEF Tank | 5 gal (US) 19 l |
| Cooling System | 4.9 gal (US) 18.5 l |
| Engine Oil – With Filter | 3.1 gal (US) 11.6 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) 26 l |
| Axle and Final Drives | 2.6 gal (US) 10 l |
| Hydraulic Tank | 6.1 gal (US) 23 l |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 97% 97% |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Interior Rear View Mirror
- Vinyl Suspension Seat
- Adjustable Tilting Steering Column
- High Visibility 76 mm (3 in) Seat Belt
- 12-Volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Smooth Drum
- Pod-Style Eccentric Weight Housings
- Dual Amplitude, Dual Frequency
- Auto-vibe Function
- Rear Adjustable Steel Scraper
TECHNOLOGY SOLUTIONS
- VisionLink®
- Remote Flash
- Remote Troubleshoot
- Remote Disable
POWERTRAIN
- Cat® C3.6 Engine
- Single Propel Pump
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-Speed Hydrostatic Transmission
- Eco-Mode
- Limited Slip Differential
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 900 Cold-cranking Amps Battery Capacity
- Battery Disconnect Switch
OTHER
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- Scheduled Oil Sampling (S·O·S℠) Ports: Engine Oil, Hydraulic Oil, and Coolant
- Working Lights (2 Forward, 2 Rear)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control, Floor Mat, Exterior Rear View Mirrors
- Deluxe High-back Air-ride Seat (Cab)
- Sun/Debris Shields (Canopy)
- Roll-down Sun Screen (Cab)
- Interior Rear View Mirror (Cab)
- Exterior Rear View Mirrors (Canopy)
- Rear View Camera with Color Touchscreen Display
- Seat Belt Switch
- Sound Reduction Kit
VIBRATORY SYSTEM
- Removable Shell Kit – Oval or Square Pads
- MicroVibe™
- Dual Adjustable Steel Scrapers
- Dual Adjustable Polyurethane Scrapers
TECHNOLOGY SOLUTIONS
- Measure – Machine Drive Power (MDP)
- Measure – Compaction Meter Value (CMV)
- Machine Speed Sensor
POWERTRAIN
- Traction Control Basic
- Transmission Guard
OTHER
- High Ambient Hydraulic Oil (Factory Fill)
- Flotation Tread or Lug Tread Tires
- Upgraded Lighting Package (4 Forward, 4 Rear)
- Amber Rotating Beacon
- XT Weight Kit
