Cat

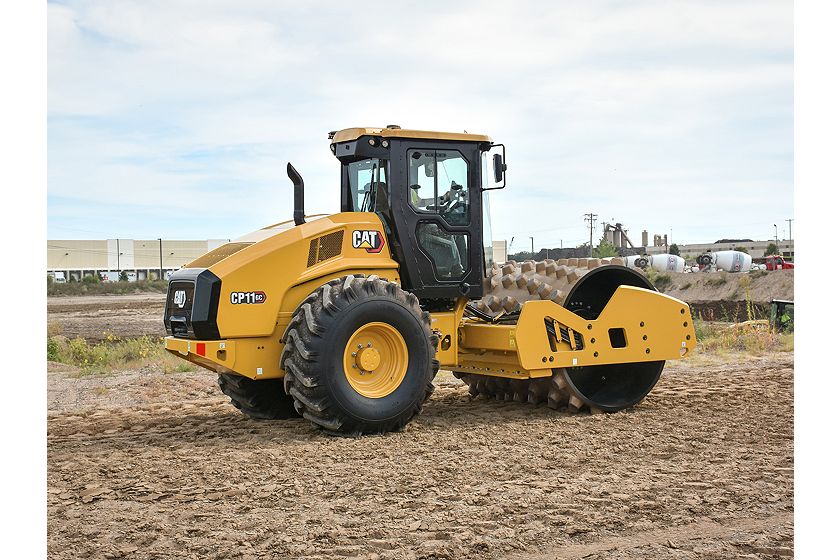

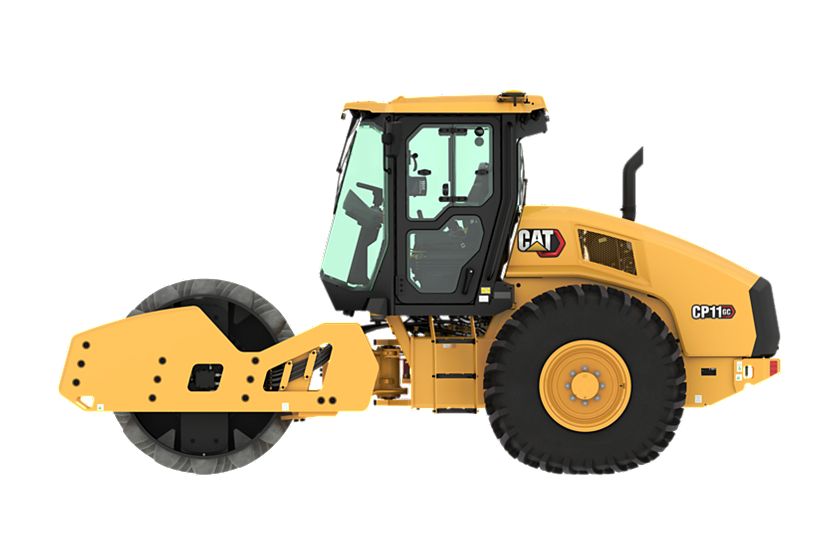

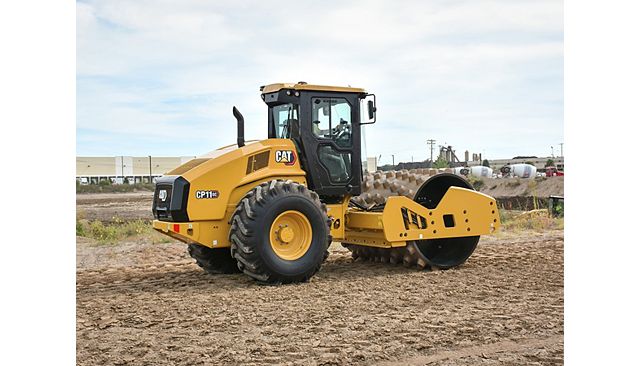

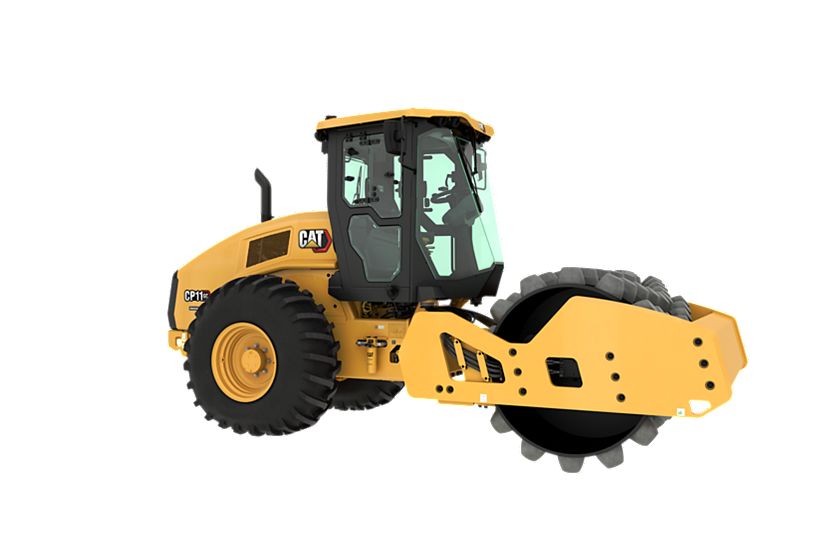

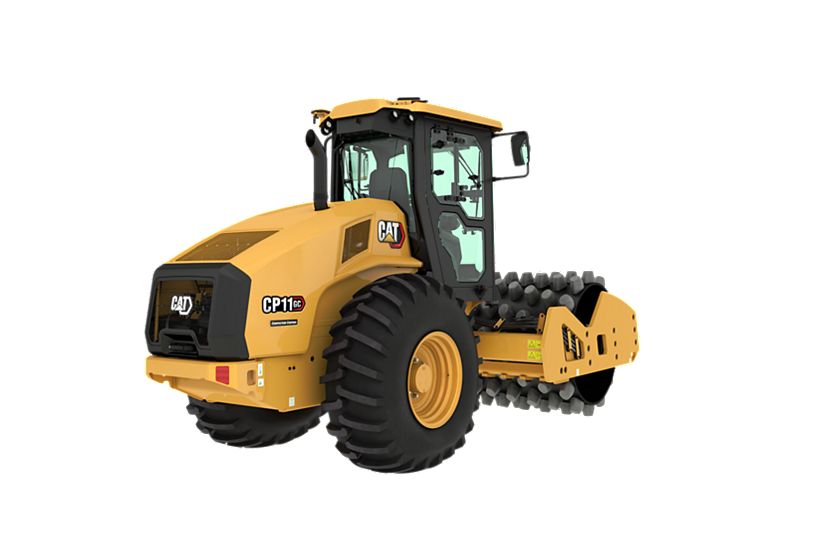

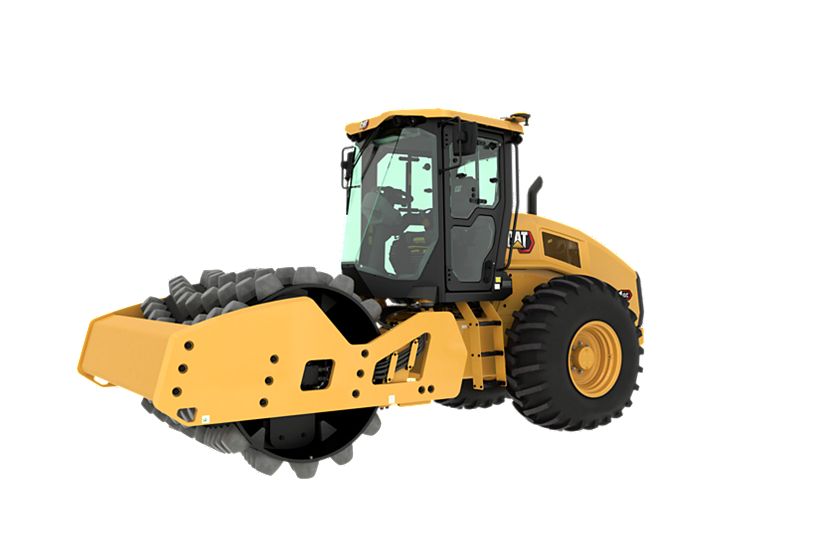

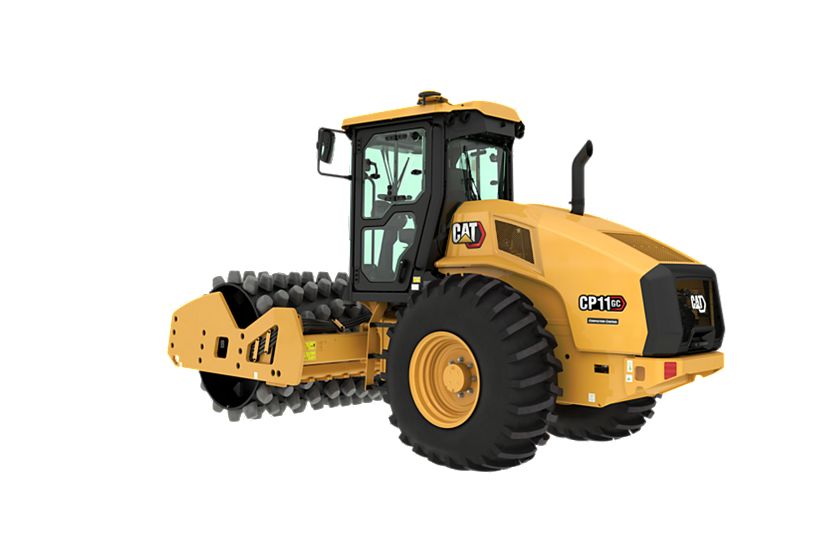

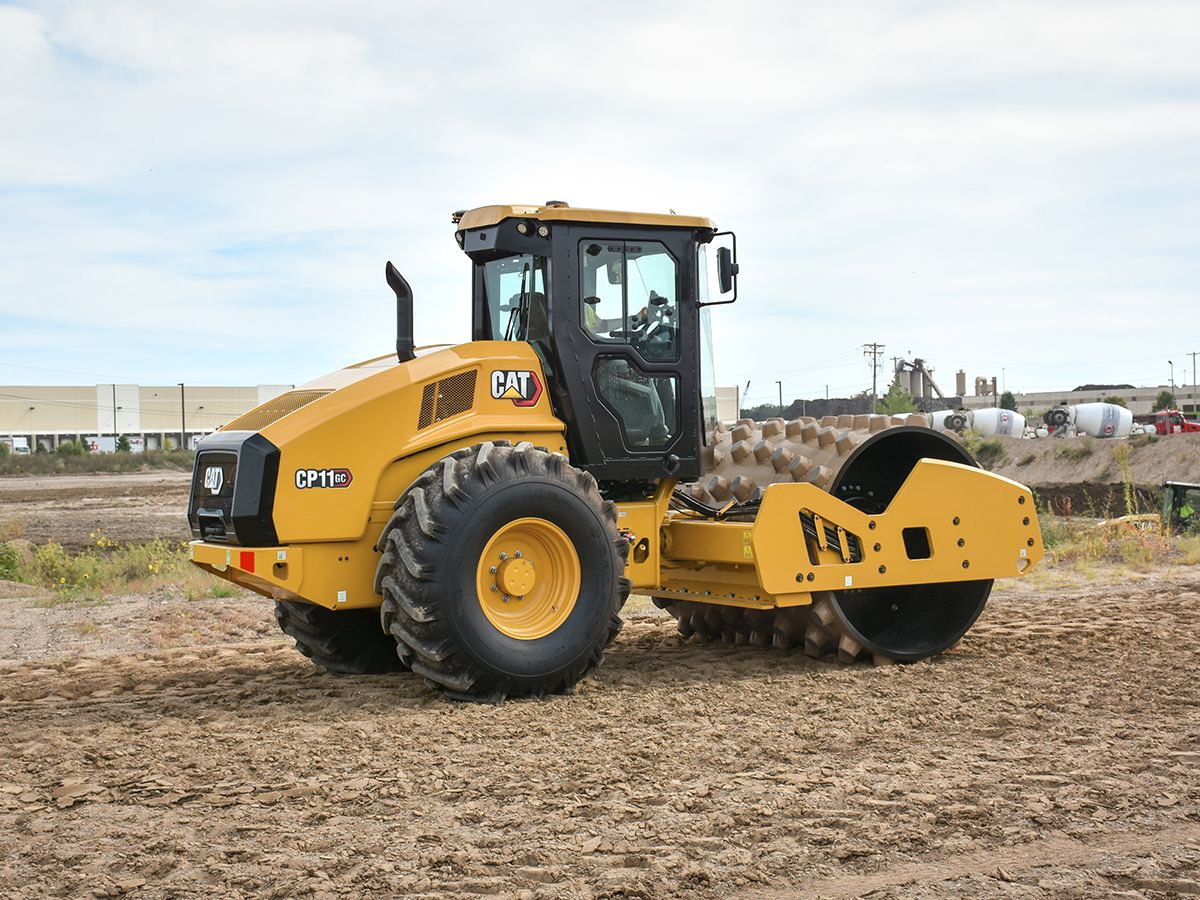

CP11 GC Vibratory Soil Compactor
Operating Weight – With Cab
25109 lb
11389 kg
Compaction Width
84 in
2134 mm
Gross Power
122.9 hp
91.7 kW
Overview
The Cat® CP11 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CP11 GC padfoot roller is ideally suited for cohesive and semi-cohesive soil applications.
Media
Photos
Videos
Features
Comfortable and Ergonomic Operator Station
Safety Features
Excellent Compaction Performance
Enhance Quality and Productivity with Technology
Virtually Maintenance Free
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Gross Power | 122.9 hp 91.7 kW |
| Engine Power – ISO 14396 | 121 hp 90 kW |
| Net Power – ISO 9249 | 112.2 hp 83.7 kW |
| Net Power – SAE J1349:2011 | 111.2 hp 82.9 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C3.6 Cat® C3.6 |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Stroke | 4.7 in 120 mm |
| Bore | 3.9 in 98 mm |
Weights
| Spec | Value |
|---|---|
| Operating Weight – With Cab | 25109 lb 11389 kg |
| Operating Weight – With ROPS/FOPS Canopy | 24769 lb 11235 kg |
| Weight – Drum with Cab | 14084 lb 6388 kg |
| Weight – Drum with ROPS/FOPS Canopy | 13988 lb 6345 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. |
Vibratory System
| Spec | Value |
|---|---|
| Nominal Amplitude – High | 0.071 in 1.8 mm |
| Nominal Amplitude – Low | 0.035 in 0.89 mm |
| Centrifugal Force – Maximum | 55932 lb 249 kN |
| Centrifugal Force – Minimum | 33249 lb 148 kN |
Dimensions
| Spec | Value |
|---|---|
| Compaction Width | 84 in 2134 mm |
| Overall Length | 18.7 ft 5.7 m |
| Overall Width | 7.5 ft 2.3 m |
| Maximum Height | 9.8 ft 3 m |
| Drum Diameter – Over Pads | 60.9 in 1549 mm |
| Wheel Base | 9.8 ft 3 m |
Operating Specifications
| Spec | Value |
|---|---|
| Ground Clearance | 20.3 in 516 mm |
| Curb Clearance | 19.5 in 496 mm |
| Turning Radius – Inside Drum Edge | 12.7 ft 3.9 m |
| Travel Speed – Maximum | 6.8 mile/h 11 km/h |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 56.3 gal (US) 213 l |
| DEF Tank | 5 gal (US) 19 l |
| Cooling System | 4.9 gal (US) 18.5 l |
| Engine Oil – With Filter | 3.1 gal (US) 11.6 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) 26 l |
| Axle and Final Drives | 2.6 gal (US) 10 l |
| Hydraulic Tank | 6.1 gal (US) 23 l |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 97% 97% |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Interior Rear View Mirror
- Vinyl Suspension Seat
- Adjustable Tilting Steering Column
- High Visibility 76 mm (3 in) Seat Belt
- 12-Volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Padfoot Drum – Oval or Square Pads
- Pod-Style Eccentric Weight Housings
- Dual Amplitude, Dual Frequency
- Auto-vibe Function
- Dual Adjustable Steel Scrapers
TECHNOLOGY SOLUTIONS
- VisionLink®
- Remote Flash
- Remote Troubleshoot
- Remote Disable
POWERTRAIN
- Cat® C3.6 Engine
- Single Propel Pump
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-Speed Hydrostatic Transmission
- Eco-Mode
- Limited Slip Differential
ELECTRICAL
- 12-Volt Electrical System
- 150-Amp Alternator
- 900 Cold-cranking Amps Battery Capacity
- Battery Disconnect Switch
OTHER
- Scheduled Oil Sampling S·O·S℠ Ports: Engine Oil, Hydraulic Oil, and Coolant
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- Lug Tread Tires
- Working Lights (2 Forward, 2 Rear)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control, Floor Mat, Exterior Rear View Mirrors
- Deluxe High-back Air-ride Seat (Cab)
- Sun/Debris Shields (Canopy)
- Roll-down Sun Screen (Cab)
- Interior Rear View Mirror (Cab)
- Exterior Rear View Mirrors (Canopy)
- Rear View Camera with Color Touchscreen Display
- Seat Belt Switch
- Sound Reduction Kit
TECHNOLOGY SOLUTIONS
- Measure – Machine Drive Power (MDP)
- Machine Speed Sensor
POWERTRAIN
- Transmission Guard
- Traction Control Basic
OTHER
- High Ambient Hydraulic Oil (Factory Fill)
- Upgraded Lighting Package (4 Forward, 4 Rear)
- Amber Rotating Beacon
