Cat

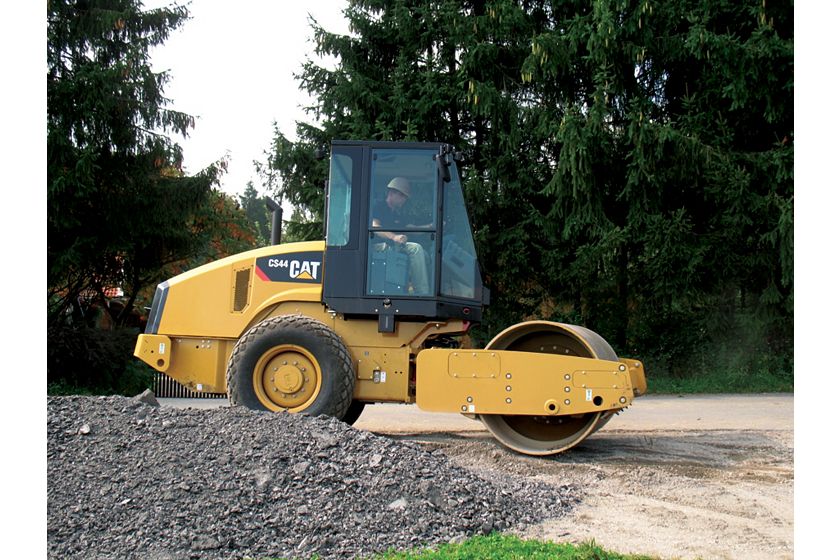

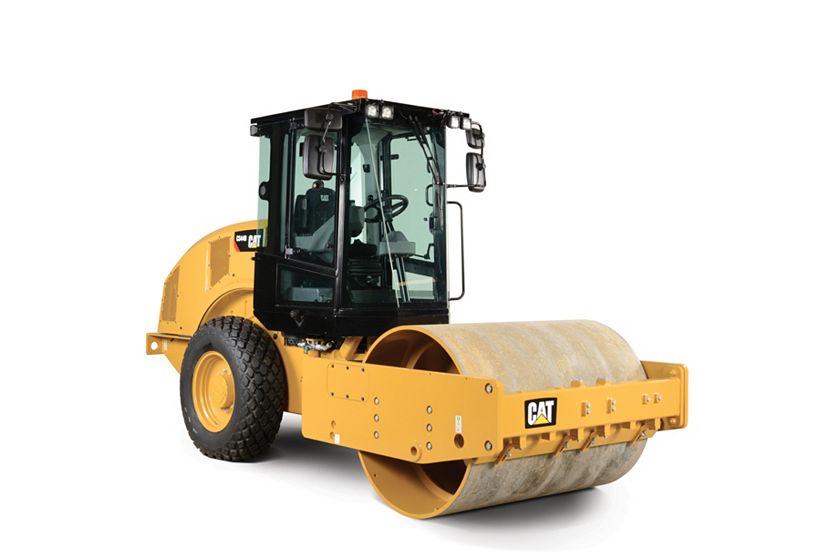

CS44B Vibratory Soil Compactor
Operating Weight – With Cab
15895 lb
7210 kg
Compaction Width
66 in
1676 mm
Gross Power
100.6 hp
75 kW
Overview
The CS44B provides exceptional performance on flat or sloped terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Media
Photos
Videos
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Operating Weight – With Cab | 15895 lb 7210 kg |
| Weight – Drum with ROPS/FOPS | 7460 lb 3384 kg |
| Weight – Drum with Cab | 7756 lb 3518 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Compaction Width | 66 in 1676 mm |
| Travel Speed – Maximum | 7 mile/h 11.4 km/h |
| Turning Radius – Inside Drum Edge | 10 ft 3.05 m |
| Static Linear Load – With Cab | 118 lb/in 21 kg/cm |
| Static Linear Load – With ROPS/FOPS | 113 lb/in 20.2 kg/cm |
| Ground Clearance | 16.2 in 411 mm |
Engine
| Spec | Value |
|---|---|
| Gross Power | 100.6 hp 75 kW |
| Engine Model | Cat C3.4B Cat C3.4B |
Dimensions
| Spec | Value |
|---|---|
| Overall Length – With Blade Option | 18.44 ft 5.62 m |
| Drum Diameter | 48.1 in 1221 mm |
| Height – With ROPS/FOPS or Cab | 9.35 ft 2.85 m |
| Overall Width – With Blade Option | 6.95 ft 2.12 m |
| Optional Blade Height | 22.6 in 574 mm |
| Wheel Base | 8.5 ft 2.6 m |
| Drum Width | 66 in 1676 mm |
| Overall Length | 16.7 ft 5.09 m |
| Overall Width | 5.91 ft 1.8 m |
Vibratory System
| Spec | Value |
|---|---|
| Centrifugal Force – Maximum | 29900 lb 133 kN |
| Vibratory Frequency – Standard | 1914 V/m 31.9 Hz |
| Centrifugal Force – Minimum | 15000 lb 67 kN |
| Nominal Amplitude – Low | 0.033 in 0.84 mm |
| Nominal Amplitude – High | 0.066 in 1.67 mm |
| Variable Frequency Option Range | 23.3-31.9 Hz (1400-1914 vpm) 23.3-31.9 Hz (1400-1914 vpm) |
Tires
| Spec | Value |
|---|---|
| Tires | 14.9 × 24 6-ply flotation 14.9 × 24 6-ply flotation |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 37 gal (US) 140 l |
Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Smooth Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Universal Bumper
POWER TRAIN
- Cat C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 60 Cold-cranking Amps Battery Capacity
OTHER
- Product Link™
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S•O•S℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
- Sun Visor
VIBRATORY SYSTEM
- Padfoot Shell Kit (oval or square pads available)
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Scraper Shell Kit Ready
- Recording Module for Vibration Frequency
POWER TRAIN
- Transmission Guard
- Bio-oil Factory Fill
TECHNOLOGY SOLUTIONS
- Measure – Compaction Meter Value (CMV)
- Map – SBAS GNSS Mapping
- Connect – Cloud and Machine Connectivity
OTHER
- Upgraded Halogen Light Package
- Rotating Beacon
