Caterpillar

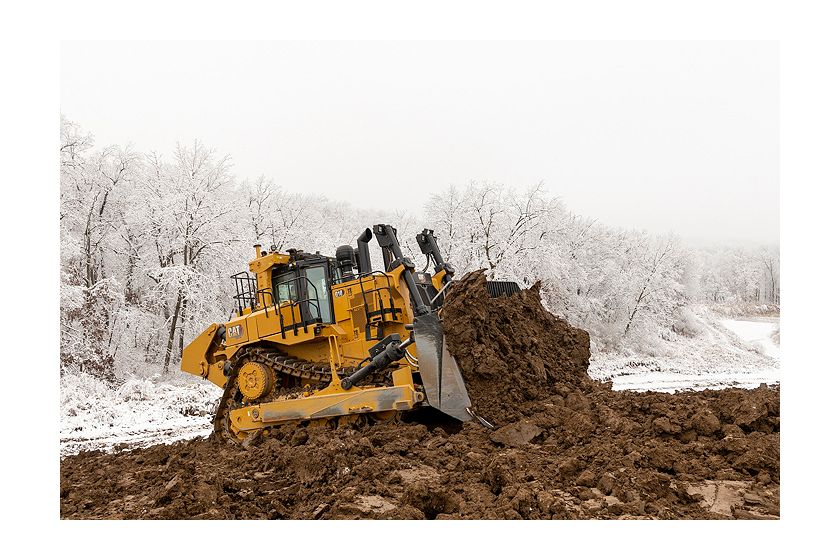

D10 Dozer
Engine Model
Cat® C27
Cat® C27
Engine Power – Net SAE J1349/ISO 9249** – Forward
602 hp
449 kW
Operating Weight
154888 lb
70256 kg
Overview
The Cat® D10 Dozer is innovative by design — developed by a team of experts who follow a design approach that incorporates feedback from the field with industry-leading technologies to deliver a dozer that continues to advance with every model. The new D10 is no exception. It’s more efficient, so it burns less fuel. It’s more serviceable, so you’ll experience less downtime. It’s more durable, so you’ll spend less over its lifetime. And it’s more productive — so you’ll spend less time putting more profitability to your bottom line.
Media

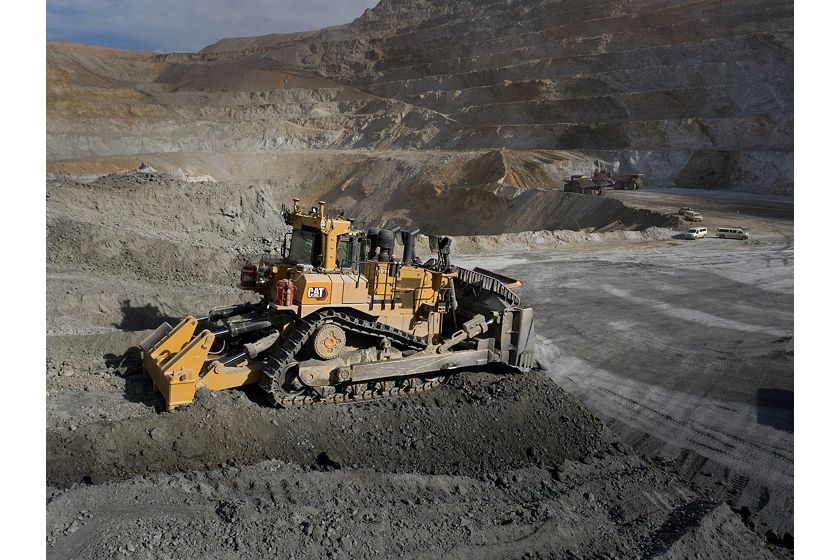

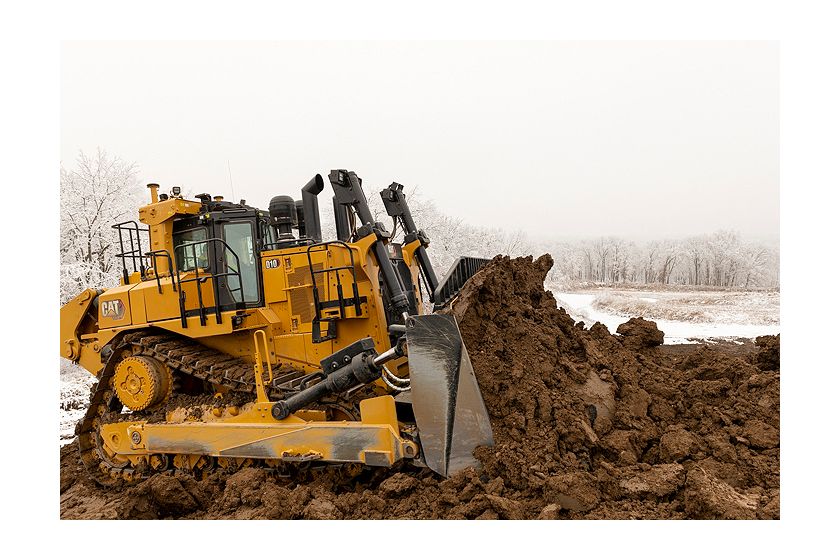

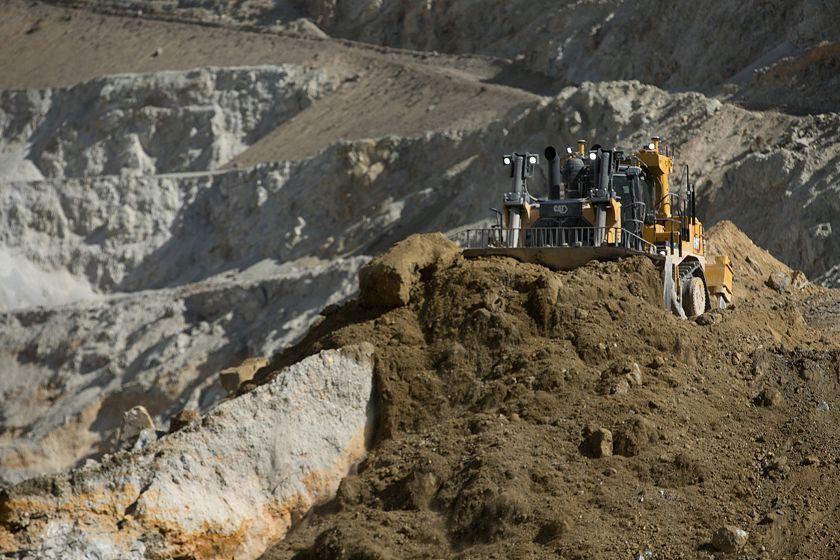

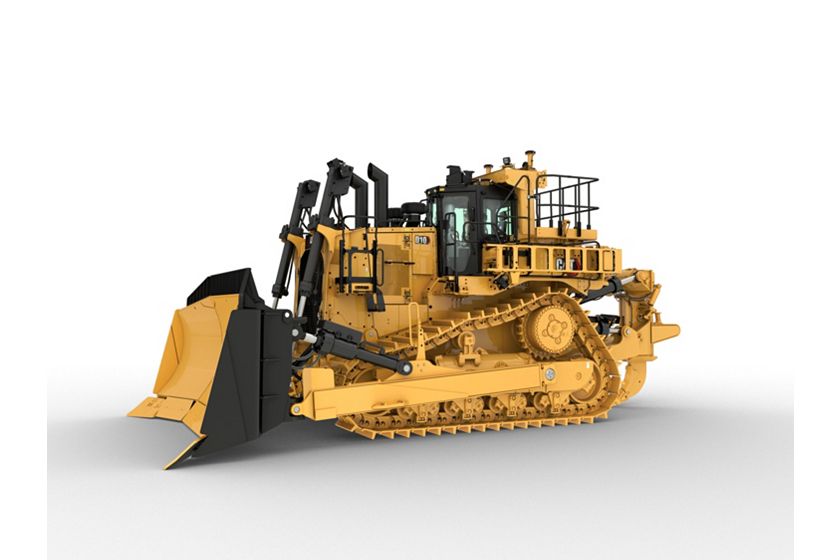

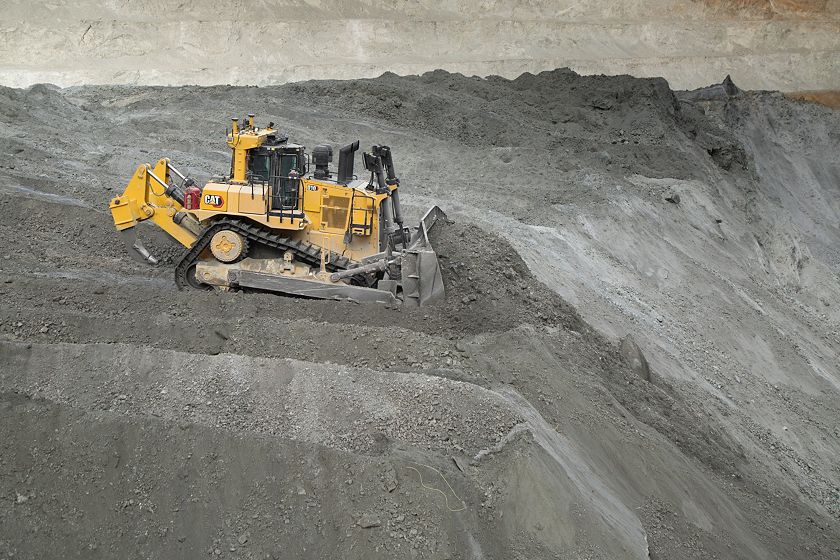

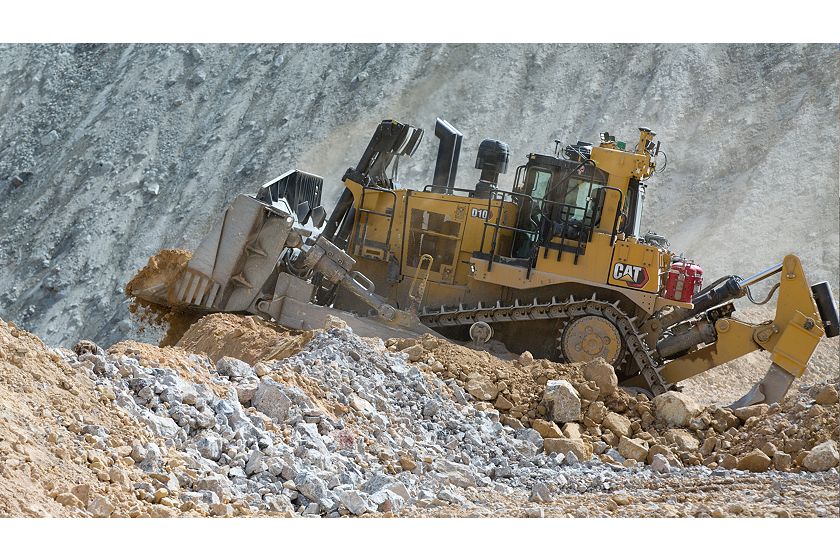

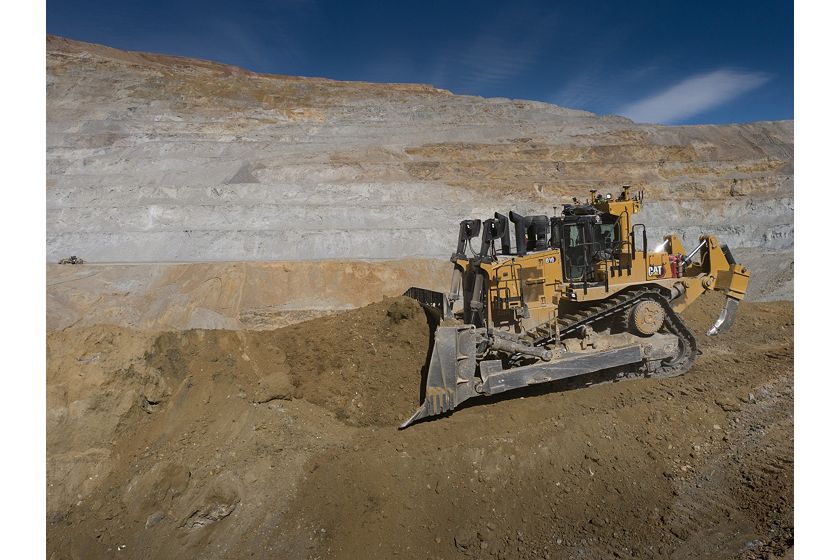

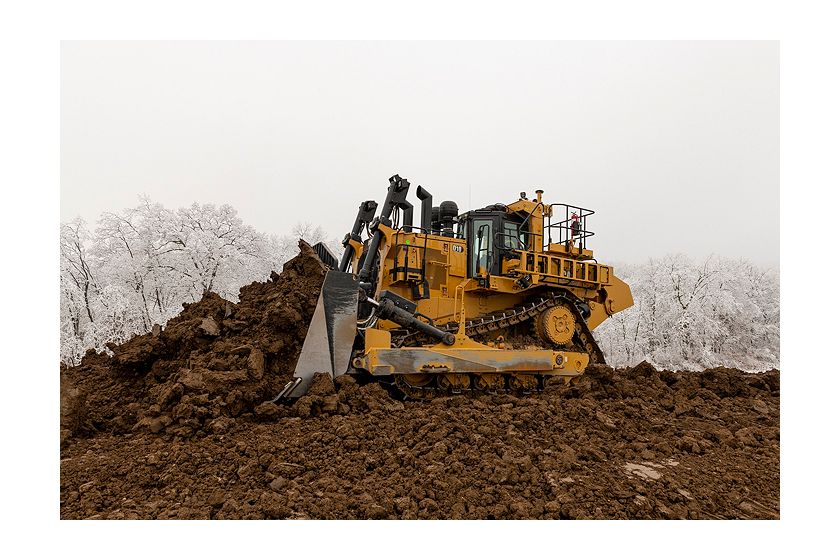

Photos
Videos
360° View
Exterior
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Engine - U.S. EPA Tier 4 Final/EU Stage V
Spec | Value |
---|---|
Engine Model | Cat® C27 Cat® C27 |
Engine Power – Net SAE J1349/ISO 9249** – Forward | 602 hp 449 kW |
Engine Power – Gross SAE J1995* – Forward | 631 hp 471 kW |
Engine Power – Gross SAE J1995* – Reverse | 766 hp 571 kW |
Engine Power – ISO 14396* – Forward | 620 hp 462 kW |
Engine Power – ISO 14396* – Reverse | 754 hp 563 kW |
Engine Power – Net SAE J1349/ISO 9249** – Reverse | 722 hp 538 kW |
Displacement | 1648 in³ 27 l |
Stroke | 6 in 152 mm |
Bore | 5.4 in 137 mm |
Emissions | U.S. EPA Tier 4 Final/EU Stage V U.S. EPA Tier 4 Final/EU Stage V |
Note (1) | *Excludes all fan losses. *Excludes all fan losses. |
Note (2) | All Engine ratings apply at 1,800 rpm. All Engine ratings apply at 1,800 rpm. |
Note (3) | Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft). Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft). |
Note (4) | Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft). Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft). |
Note (5) | **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature. **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature. |
Engine - U.S. EPA Tier 2 Equivalent
Spec | Value |
---|---|
Engine Model | Cat® C27 Cat® C27 |
Engine Power – Net SAE J1349/ISO 9249** – Forward | 603 hp 450 kW |
Engine Power – Net SAE J1349/ISO 9249** – Reverse | 722 hp 538 kW |
Engine Power – Gross SAE J1995* – Forward | 631 hp 471 kW |
Engine Power – Gross SAE J1995* – Reverse | 766 hp 571 kW |
Engine Power – ISO 14396* – Forward | 622 hp 464 kW |
Engine Power – ISO 14396* – Reverse | 756 hp 564 kW |
Displacement | 1648 in³ 27 l |
Bore | 5.4 in 137 mm |
Stroke | 6 in 152 mm |
Emissions | U.S. EPA Tier 2 Equivalent U.S. EPA Tier 2 Equivalent |
Note (1) | *Excludes all fan losses. *Excludes all fan losses. |
Note (2) | All Engine ratings apply at 1,800 rpm. All Engine ratings apply at 1,800 rpm. |
Note (3) | Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft). Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft). |
Note (4) | Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft). Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft). |
Note (5) | **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature. **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature. |
Fuel Tank Capacities
Spec | Value |
---|---|
Fuel Tank – Usable Volume | 323.3 gal (US) 1224 l |
Fuel Tank – Total Volume | 335.2 gal (US) 1269 l |
FLUID CAPACITIES
Spec | Value |
---|---|
Cooling System Refill – Tier 4 Final Engine | 46.2 gal (US) 175 l |
Engine Crankcase Sump | 27.2 gal (US) 103 l |
Power Train – Total Volume | 81.4 gal (US) 308 l |
Power Train – Refill Volume | 74.8 gal (US) 283 l |
Final Drives (each) | 12.2 gal (US) 46 l |
Track Roller Frames (each) | 16.9 gal (US) 64 l |
Pivot Shaft Oil | 9.5 gal (US) 36 l |
Hydraulic System Tank | 32.2 gal (US) 122 l |
Weights
Spec | Value |
---|---|
Operating Weight | 154888 lb 70256 kg |
Shipping Weight | 111739 lb 50684 kg |
Note (1) | D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator. D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator. |
Note (2) | D10 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm (24 in) ES shoes. D10 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm (24 in) ES shoes. |
Hydraulic Controls
Spec | Value |
---|---|
Pump Type | Variable displacement piston Variable displacement piston |
Pump Output – Implement | 112 gal/min 424 l/min |
Note (1) | Implement Pump output measured are 2,010 engine rpm and 7000 kPa (1,015 psi). Implement Pump output measured are 2,010 engine rpm and 7000 kPa (1,015 psi). |
Fan Pump | 21.7 gal/min 82 l/min |
Note (2) | Fan Pump output measured at 2,010 engine rpm and 26 000 kPa (3,771 psi). Fan Pump output measured at 2,010 engine rpm and 26 000 kPa (3,771 psi). |
Tilt Cylinder Flow – Rod End Flow | 112 gal/min 424 l/min |
Tilt Cylinder Flow – Head End Flow | 63.4 gal/min 240 l/min |
Lift Cylinder Relief Valve Setting | 4061.1 psi 28000 kPa |
Tilt Cylinder Relief Valve Setting | 3872.5 psi 26700 kPa |
Ripper – Lift – Relief Valve Setting | 4061.1 psi 28000 kPa |
Ripper – Pitch – Relief Valve Setting | 4061.1 psi 28000 kPa |
Tank Capacity | 32.2 gal (US) 122 l |
Cylinder Sizing – Blade Lift – Bore | 5.5 in 140 mm |
Cylinder Sizing – Blade Tilt – Bore | 8.3 in 210 mm |
Cylinder Sizing – Ripper Shank Lift – Bore | 8.3 in 209.6 mm |
Cylinder Sizing – Ripper Shank Angle – Bore | 7.1 in 180 mm |
Cylinder Sizing – Blade Lift – Stroke | 65.1 in 1653 mm |
Cylinder Sizing – Blade Tilt – Stroke | 9.5 in 241 mm |
Cylinder Sizing – Ripper Shank Lift – Stroke | 21.1 in 535 mm |
Cylinder Sizing – Ripper Shank Angle – Stroke | 26 in 660 mm |
Note (3) | Electro-hydraulic pilot valves assist operations of ripper and dozer controls. Electro-hydraulic pilot valves assist operations of ripper and dozer controls. |
Undercarriage
Spec | Value |
---|---|
Shoe Type | Extreme Service (ES) Extreme Service (ES) |
Width – Shoe | 24 in 610 mm |
Shoes/Side | 44 44 |
Grouser Height | 3.7 in 93 mm |
Pitch | 10.2 in 260 mm |
Ground Clearance | 28.5 in 725 mm |
Track Gauge | 100.4 in 2550 mm |
Length – Track on Ground | 152.8 in 3880 mm |
Ground Contact Area | 7347 in² 4.74 m² |
Track Rollers/Side | 8 8 |
Number of Carrier Rollers | 1 per side (optional) 1 per side (optional) |
Steering and Brakes
Spec | Value |
---|---|
Steering Type | Hydraulically Applied Multiple-Disc Steering Clutch Hydraulically Applied Multiple-Disc Steering Clutch |
Brake Type | Spring Applied Multiple- Disc Brake Spring Applied Multiple- Disc Brake |
Brake Diameter | 15.4 in 392 mm |
Brake Count | 10 10 |
Air Conditioning System
Spec | Value |
---|---|
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.600 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.600 metric tonnes. |
Standards
Spec | Value |
---|---|
ROPS | Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008. Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008. |
FOPS | Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II. Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II. |
Sound | Operator Sound Pressure Level (ISO 6396:2008): 78 db(A) Operator Sound Pressure Level (ISO 6396:2008): 78 db(A) |
Note | The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
Sound (1) | Exterior Sound Pressure Level (ISO 6395:2008): 116 db(A) Exterior Sound Pressure Level (ISO 6395:2008): 116 db(A) |
Note (1) | The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
Note (2) | The sound levels listed above include both measurement uncertainty and uncertainty due to production variation. The sound levels listed above include both measurement uncertainty and uncertainty due to production variation. |
Note (3) | The available sound suppression package can reduce the dynamic exterior sound power level of the machine by up to 4 db(A) and the dynamic operator sound pressure level by up to 2 db(A). The available sound suppression package can reduce the dynamic exterior sound power level of the machine by up to 4 db(A) and the dynamic operator sound pressure level by up to 2 db(A). |
Transmission
Spec | Value |
---|---|
1.0 Forward | 2.5 mile/h 4 km/h |
1.5 Forward | 3.4 mile/h 5.4 km/h |
2.0 Forward | 4.5 mile/h 7.2 km/h |
2.5 Forward | 6 mile/h 9.6 km/h |
3.0 Forward | 7.8 mile/h 12.5 km/h |
1.0 Reverse | 3.2 mile/h 5.2 km/h |
1.5 Reverse | 4.2 mile/h 6.7 km/h |
2.0 Reverse | 5.6 mile/h 9 km/h |
2.5 Reverse | 7.5 mile/h 12.1 km/h |
3.0 Reverse | 9.8 mile/h 15.7 km/h |
Transmission Clutch Diameter | 17 in 431.8 mm |
Type | Planetary powershift Planetary powershift |
Dimensions (Approximate)
Spec | Value |
---|---|
Ground Clearance* | 28.5 in 725 mm |
Track Gauge | 100.4 in 2550 mm |
Width – Without Trunnions – 610 mm/24 in ES | 130.4 in 3311 mm |
Width – Over Trunnions | 148 in 3759 mm |
Height – FOPS Cab* | 162.8 in 4134 mm |
Height – Top of Stack* | 171.5 in 4356 mm |
Height – ROPS/Canopy* | 173.5 in 4406 mm |
Note (1) | *Includes grouser height for total dimensions on hard surfaces. *Includes grouser height for total dimensions on hard surfaces. |
Length – Track on Ground | 152.8 in 3880 mm |
Overall Length – Basic Tractor | 209.6 in 5324 mm |
Length – With SU-Blade | 292 in 7416 mm |
Length – With U-Blade | 305.1 in 7750 mm |
Length – With Single-Shank Ripper | 278.8 in 7081 mm |
Length – With Multi-Shank Ripper | 285.1 in 7241 mm |
Overall Length – SU-Blade/SS Ripper | 360.6 in 9158 mm |
Blades
Spec | Value |
---|---|
10SU ABR – Capacity (SAE J1265) | 24.2 yd³ 18.5 m³ |
10SU ABR – Width (over end bits) | 194.5 in 4940 mm |
10SU ABR – Height | 83.5 in 2120 mm |
10SU ABR – Digging Depth – Blade Pitch: Full Racked Back (Carry) | 19.98 in 507.47 mm |
10SU ABR – Digging Depth – Blade Pitch: Nominal | 25.23 in 640.87 mm |
10SU ABR – Digging Depth – Blade Pitch: Full Pitched Forward (Spread) | 30.08 in³ 764.12 mm |
10SU ABR – Ground Clearance – Blade Pitch: Full Racked Back (Carry) | 66.14 in 1680 mm |
10SU ABR – Ground Clearance – Blade Pitch: Full Pitched Forward (Spread) | 53.86 in 1368 mm |
10SU ABR – Ground Clearance – Maximum Tilt LH | 56.3 in 1430 mm |
10SU ABR – Ground Clearance – Maximum Tilt RH | 56.3 in 1430 mm |
10U ABR – Capacity (SAE J1265) | 28.7 yd³ 22 m³ |
10U ABR – Width (over end bits) | 207.1 in 5260 mm |
10U ABR – Height | 83.5 in 2120 mm |
10U ABR – Digging Depth – Blade Pitch: Full Racked Back (Carry) | 19.98 in 507.5 mm |
10U ABR – Digging Depth – Blade Pitch: Nominal | 60 in 640.9 mm |
10U ABR – Digging Depth – Blade Pitch: Full Pitched Forward (Spread) | 30.1 in 764.1 mm |
10U ABR – Ground Clearance – Blade Pitch: Full Racked Back (Carry) | 66.1 in 1680 mm |
10U ABR – Ground Clearance – Blade Pitch: Full Pitched Forward (Spread) | 53.9 in 1368 mm |
10U ABR – Ground Clearance – Maximum Tilt LH | 60.8 in 1545 mm |
10U ABR – Ground Clearance – Maximum Tilt RH | 60.8 in 1545 mm |
10U ABR – Weights – Blade Weight* | 23585 lb 10698 kg |
10U ABR – Weights – Total Operating Weight** (with blade and SS ripper) | 154888 lb 70256 kg |
Note (1) | Maximum LH and RH tilt for 10SU ABR and 10U ABR blades: 17.31 degrees Maximum LH and RH tilt for 10SU ABR and 10U ABR blades: 17.31 degrees |
Note (2) | *Does not include hydraulic controls but includes blade cylinders, pusharms. *Does not include hydraulic controls but includes blade cylinders, pusharms. |
Note (3) | **D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator. **D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator. |
Ripper - Single Shank
Spec | Value |
---|---|
Maximum penetration force * (shank vertical) | 49233 lbf 219 kN |
Maximum penetration depth (standard tip) | 59.2 in 1504 mm |
Maximum Clearance Raised – Under Tip, Pinned in Bottom Hole | 36 in 912 mm |
Weight | 14209 lb 6445 kg |
Note | Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank. Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank. |
Ripper - Single Shank, Deep Ripping
Spec | Value |
---|---|
Maximum penetration force * (shank vertical) | 53055 lbf 236 kN |
Maximum penetration depth (standard tip) | 78.3 in 1988 mm |
Weight | 14548 lb 6599 kg |
Note | Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank. Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank. |
Standard Equipment
OPERATOR ENVIRONMENT
- Air Conditioner and Heater with Automatic Climate Control
- Seat — Cloth with Air Suspension
- Cab Glass — Single-Pane Tinted Safety
- Rollover Protection System (ROPS)/Falling Object Protection (FOPS), Sound-Suppressed Cab
- High-Definition Primary Touchscreen Display
- Cab Access – Blade Push Arm Steps and Grab Handle
- Visibility – Rearview Mirror
TECHNOLOGY
- VIMS
- Cat Product Link™ Elite (cellular)
- Automated Blade Assist (ABA)
POWER TRAIN
- Stator Clutch Torque Divider – Electronic Control
- Powershift Transmission – Three-Speed Electronic Shift
- High-Performance Single-Plane Cooling Package with Aluminum Radiator
- Cat C27 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
UNDERCARRIAGE
- Lifetime-Lubricated Rollers and Idlers
- Suspension-Type Undercarriage
- Track Shoe (ES): 610/710/785 mm (24, 28, 31 inch) Width
HYDRAULICS
- Electronically Controlled, Load-Sensing Dozer Lift and Tilt
- Electronically Enabled Blade – Quick Drop
- Electronically Controlled, Load-Sensing Ripper Lift and Pitch
- Dozer Blade – Dual Tilt, Guarded Lines
ELECTRICAL
- 24V Electric Start
- Batteries – 2× 200-Amp Hour, 12V
- Battery Isolation – Single Pole
- Lights – LED – 13 Positions
SERVICE AND MAINTENANCE
- Replaceable Bearings – Push Arm and Ripper
- Radiator Guard – Swing-Out Access Doors
- Ground-Level Fast Fuel Fill
- Ground-Level Electrical Service Station
- Diagnostic Connector
- Bottom Guards – Hinged with Release Catch
- Scheduled Oil Sampling (S·O·S) Fluid Sampling Ports
- Ecology Fluid Drains – All Compartments
Optional Equipment
OPERATOR ENVIRONMENT
- Cab Glass – Dual-Pane Laminated Impact Safety
- Visibility – Five Cameras: 360-Degree View and Ripper Camera
- Cab Glass – High-Pressure Safety (40 psi/275 kPa)
- MineStar™ Terrain Display
- Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
- Visibility – Dual Camera: Backup and Ripper
TECHNOLOGY
- Autocarry™
- Auto Ripper Control
- Cat Product Link Elite Dual Mode (cellular + satellite)
- Cat Grade with 3D Blade Control
- MineStar Terrain Ready
- MineStar Terrain with Blade Control
- MineStar Command Remote Control Ready
POWER TRAIN
- Hydraulic Cooling Fan – Automatic Reversing
UNDERCARRIAGE
- Abrasion Rollers and Idlers
- Cold Weather Rollers and Idlers
- Carrier Roller
- Track Links – Heavy Duty XL – Duralink
- Track Shoe – Anti-Packing Round Hole
- Sound-Suppression Undercarriage
- Track Shoes : 610/710/786 mm (24/28/31 in) Width (various configurations)
HYDRAULICS
- Ripper Pin Puller
ELECTRICAL
- Lights – LED – Premium Package
- Battery Isolation – Dual Pole
SERVICE AND MAINTENANCE
- Ripper Lubrication – Grouped – Ground-Level Fill
- Ground-Level – Fluid Fill and Drain Engine, Power Train, Hydraulic and Coolant
- Sound Reduction Sealed Bottom Guards
- Ripper Lubrication – Autolube with Ground-Level Fill
REAR ATTACHMENTS
- Counterweight – Rear, 3 Weighted Plates
- No Rear Attachment for customers who already have a rear attachment
- Ripper – Single Shank with Pin Puller and Retrieval Hitch
- Ripper – Single Shank with Pin Puller
- Ripper – Multi Shank (three shank)
- Counterweight – Rear, 4 Weighted Plates
- Ripper – Multi Shank Deep with Pin Puller
BLADES
- Semi-Universal (18.5 m3/24.2 yd3)
- Universal (22 m3/28.7 yd3)
OTHER
- Fire Suppression Ready
- Fire Suppression Installed
WORKTOOLS BLADES
- Cushion Dozer Blade
- Coal Universal (52 m3/68 yd3)
- Black Blade Paint
- Abrasion Liners and Guards
- Woodchip Universal (72.6 m3/95 yd3)
- Reclaimation Universal (24.5 m3/32 yd3)
- Coal Universal (46.1 m3/60.3 yd3)
