Cat

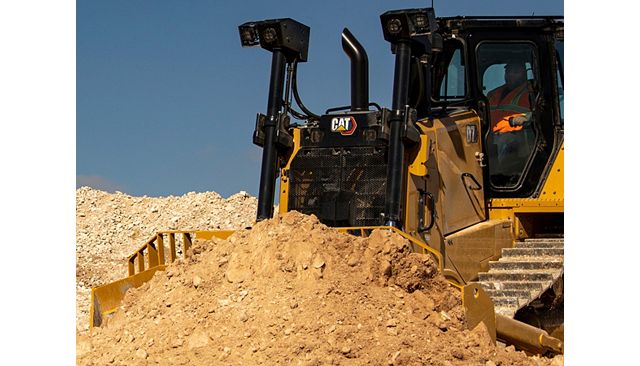

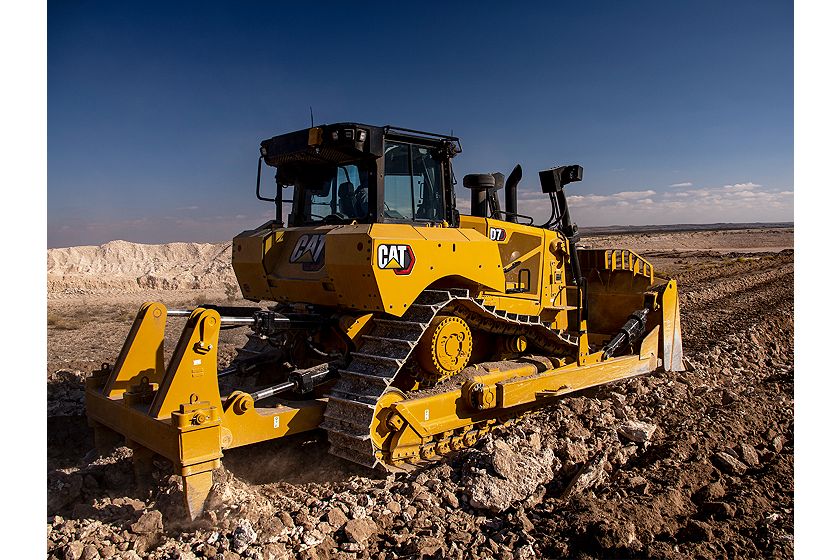

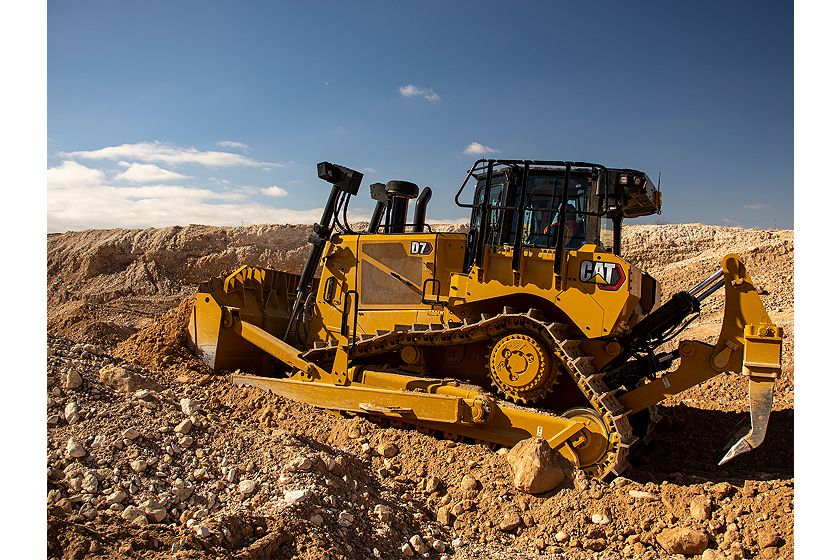

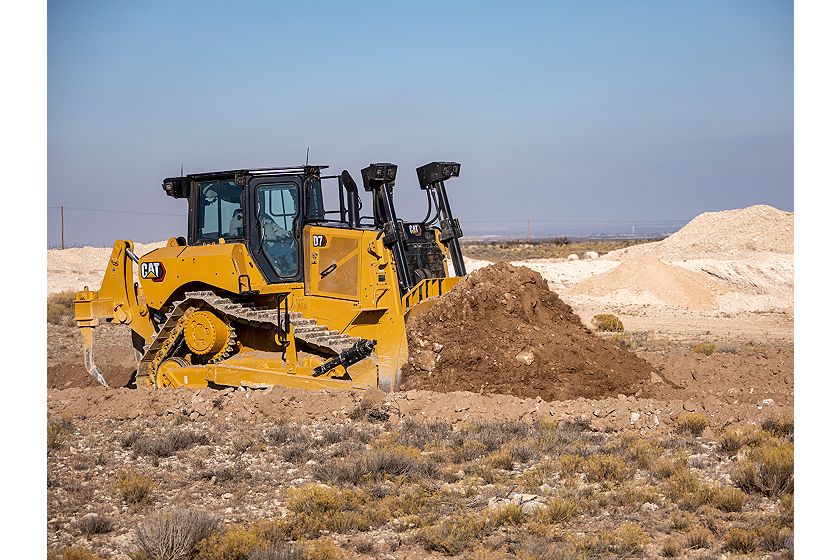

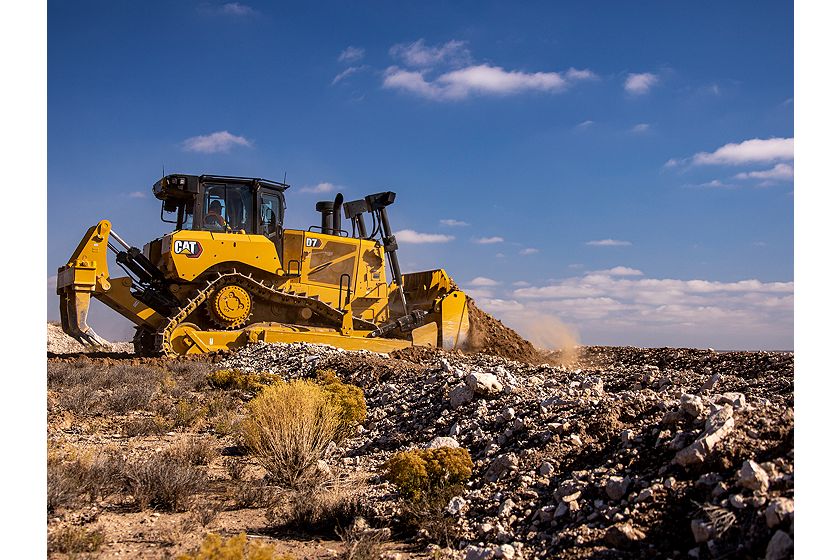

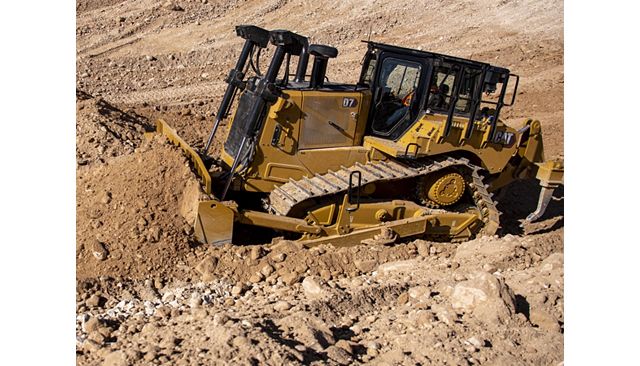

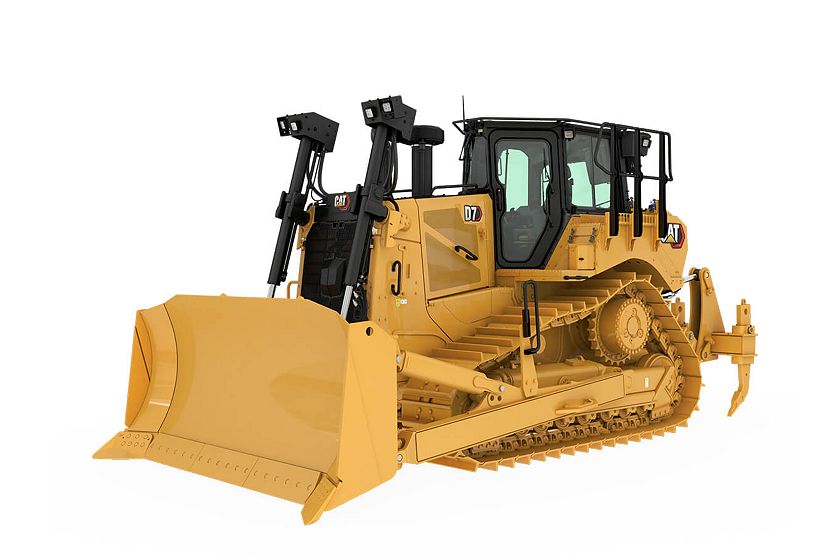

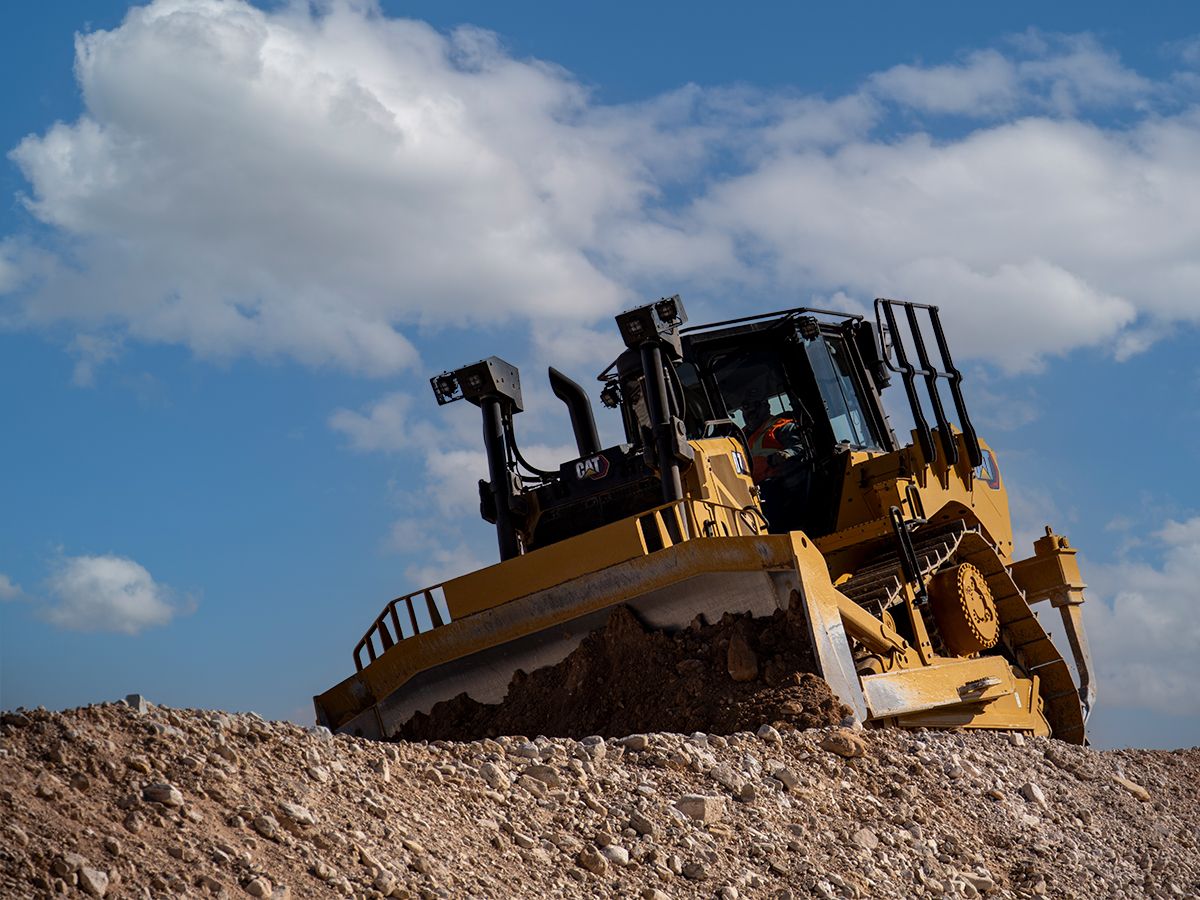

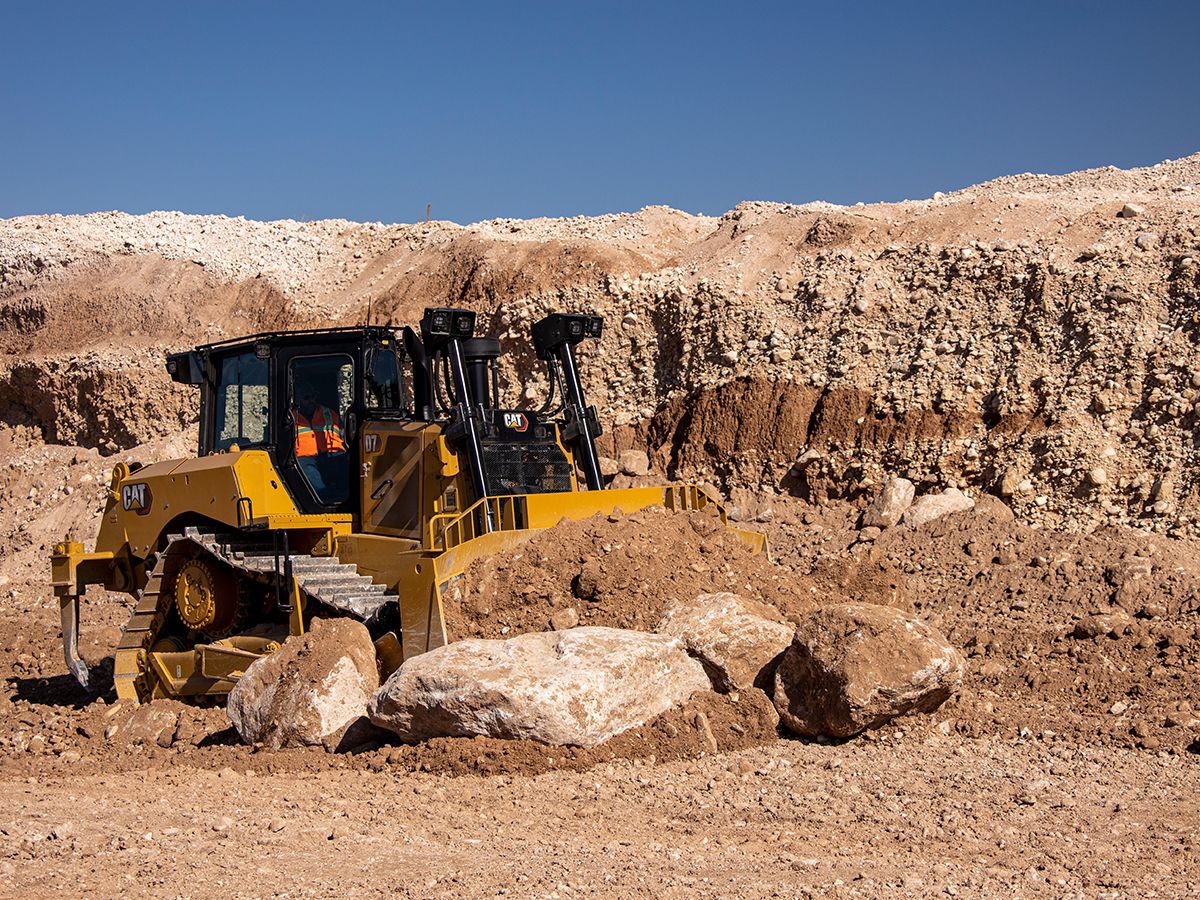

D7 Dozer
Engine Model
Cat C9.3B
Cat C9.3B
Power – Net
265 hp
197 kW
Operating Weight
65644 lb
29776 kg
Overview
The Cat® D7 dozer delivers more productivity and high drive undercarriage value. Fully automatic 4-speed transmission makes efficient operation easy. The broadest range of technology features in the industry help you make the most of your equipment investment.
Media
Photos
Videos
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any area of the product.
Interior
360° Interior View. Double click on the image to zoom in on any area of the product.
Features
OPERATOR HELPERS
TOP GRADES
PROVEN ADVANTAGE
COMFORT AND VISIBILITY
REMOTE CONTROL READY
BUILT-IN DURABILITY
BECAUSE UPTIME COUNTS
CONNECT TO GREATER EFFICIENCY
WASTE HANDLING PERFORMANCE
SUSTAINABILITY
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C9.3B Cat C9.3B |
| Power – Net | 265 hp 197 kW |
| Net Power – Rated – ISO 9249/SAE J1349 | 265 hp 197 kW |
| Net Power (Rated) – ISO 9249 (DIN) | 268 mhp 268 mhp |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014/Korea Stage V/China Nonroad Stage IV U.S. EPA Tier 4 Final/EU Stage V/Japan 2014/Korea Stage V/China Nonroad Stage IV |
| Note (1) | Net power at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 17A Machine Build Number 17A |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 65644 lb 29776 kg |
| Note (1) | Standard SU operating weight includes ripper with three shanks adding approximately 2993 kg/6596 lbs. LGP S operating weight with drawbar. Standard SU operating weight includes ripper with three shanks adding approximately 2993 kg/6596 lbs. LGP S operating weight with drawbar. |
Transmission
| Spec | Value |
|---|---|
| Powertrain | Fully Automatic 4-Speed Fully Automatic 4-Speed |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 123 gal (US) 465 l |
| DEF Tank | 12 gal (US) 44 l |
Standard SU
| Spec | Value |
|---|---|
| Operating Weight | 65644 lb 29776 kg |
| Ground Pressure | 10 psi 72 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | Semi-Universal (SU) Semi-Universal (SU) |
| Blade Capacity | 10 yd³ 7 m³ |
LGP S
| Spec | Value |
|---|---|
| Operating Weight | 63220 lb 28677 kg |
| Ground Pressure | 6 psi 43 kPa |
| Width of Standard Shoe | 36 in 915 mm |
| Blade | Straight (S) Straight (S) |
| Blade Capacity | 8 yd³ 6 m³ |

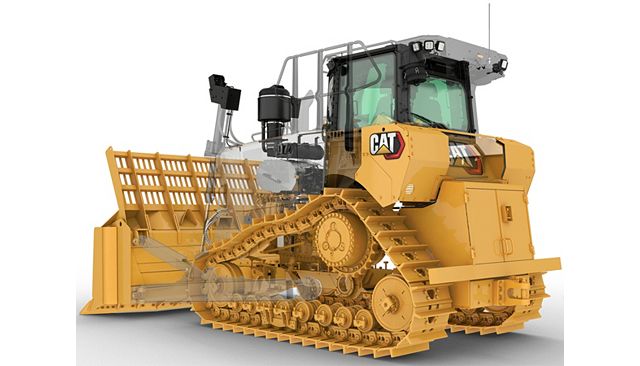

Waste Handler
| Spec | Value |
|---|---|
| Operating Weight | 62035 lb 28140 kg |
| Ground Pressure | 10 psi 68 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | Universal Landfill (U) Universal Landfill (U) |
| Blade Capacity | 22 yd³ 17 m³ |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 98% 98% |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
General
| Spec | Value |
|---|---|
| Note (2) | Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Power Train
- Cat C9.3B diesel engine
- Fully-automatic 4-speed transmission
- Double reduction 3-planet planetary final drives
- Electric fuel priming pump

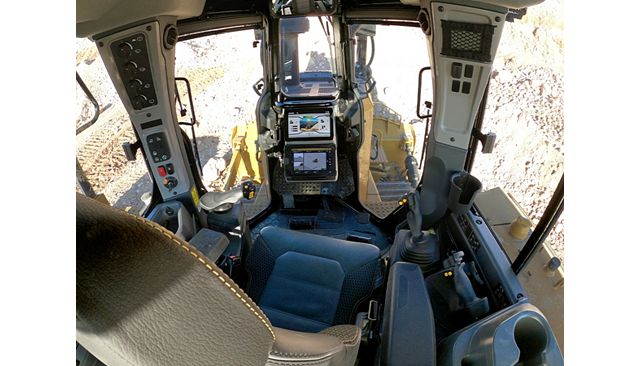

Operator Environment
- Fully redesigned cab, sound suppressed, with Integrated Roll Over Protective Structure (IROPS)
- Full-color 254 mm (10 in) liquid crystal touchscreen display
- Integrated rearview camera
- Cloth seat
- Adjustable operator controls/armrests
- Electrohydraulic implement and steering controls
- Cab mounted modular HVAC system
- Added storage areas
- Lights – 6 LED
Cat Technology
- Slope Indicate
- Product Link, Cellular
- Grade Control Ready Cab
- Remote Control Ready
- Remote Flash/Remote Troubleshoot
- Operator ID
- Machine Security – Passcode
- Compatibility with radios and base stations from Trimble, Topcon, and Leica
- Capability to install 3D grade systems from Trimble, Topcon, and Leica

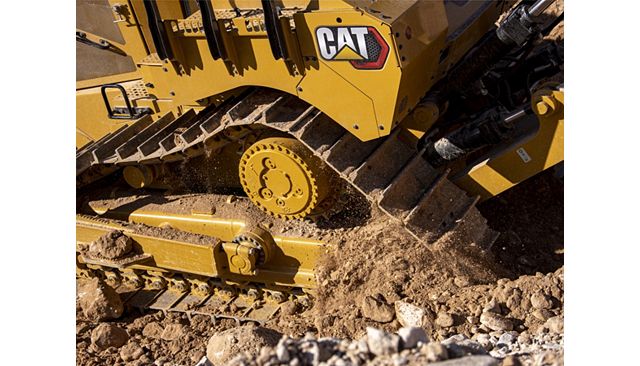

Undercarriage
- Heavy Duty (HDXL with DuraLink)
- Redesigned track roller frame
Hydraulics
- Independent steering and implement pump
- Load sensing hydraulics

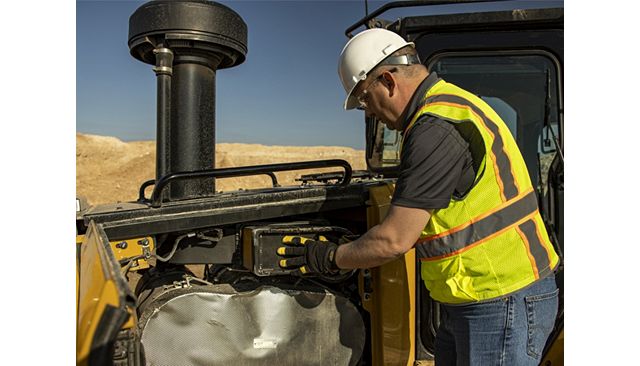

Service and Maintenance
- 30-minute cab removal
- Ecology drains
- Fast fuel fill ready
- Fire extinguisher mounting provision
- Ground level service center
- Hydraulic reversing fan
- Shovel holder
- Underhood work light
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Operator Environment
- Deluxe leather heated/ventilated seat
- Communication radio ready
- Premium lights – 12 LED
- Integrated warning lights
- Dual pane/polycarbonate window Special Application Cab
Cat Technology
- ARO with Assist Package: Includes Attachment Ready Option (ARO), Slope Assist, Steer Assist, Stable Blade, Blade Load Monitor, Traction Control, AutoCarry
- Grade 3D with Assist Package: Includes full-color 10-inch (254 mm) touchscreen grade display, Steer Assist 3D, Grade receivers and antennas, Grade Software Enabled Attachment (SEA), ARO with Assist package features
- Product Link, Dual Cellular/Satellite
- Grade Connectivity
- Machine Security – Bluetooth
- Cat Command for Dozing
Blades
- Angle blade
- Semi-Universal
- Straight blade
- Universal
- Waste/Landfill
- FirstCut cutting edges (SU blades)
Undercarriage
- Moderate Service or Extreme Service track shoes
- Waste or Cold Weather undercarriage
Service and Maintenance
- High Speed Oil Change
- Quick access cab floor
Attachments
- Counterweights
- Drawbar
- Multi-shank ripper
- Rear screen – hinged or fixed
- Side screens
- Striker bar box
- Sweeps
- Waste and Forestry Special Arrangements
