Caterpillar

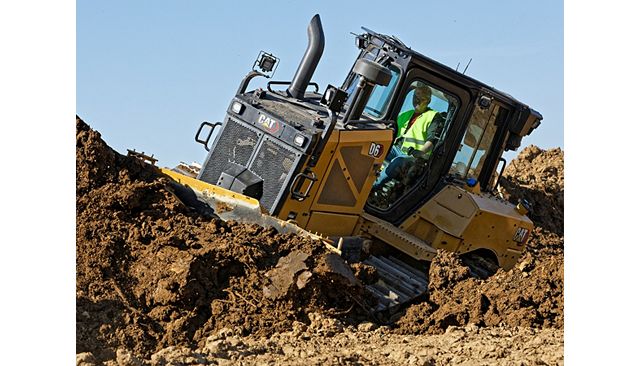

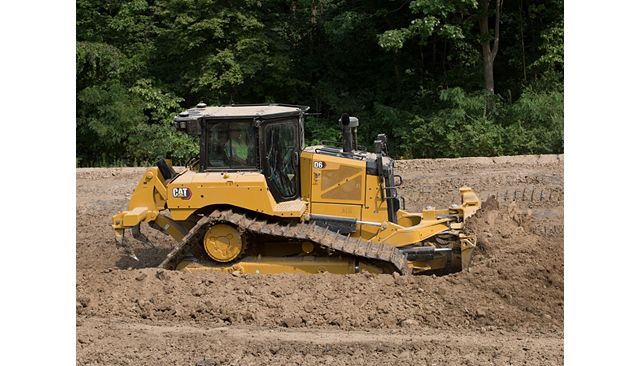

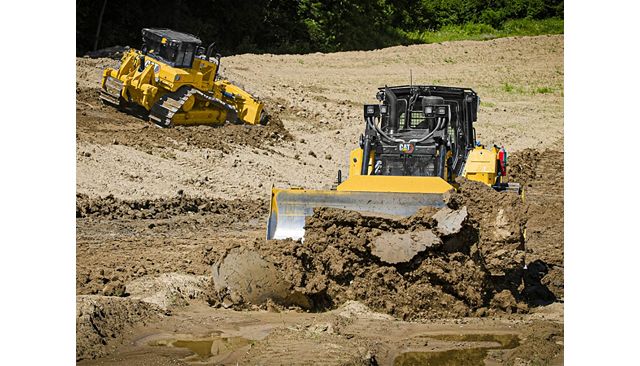

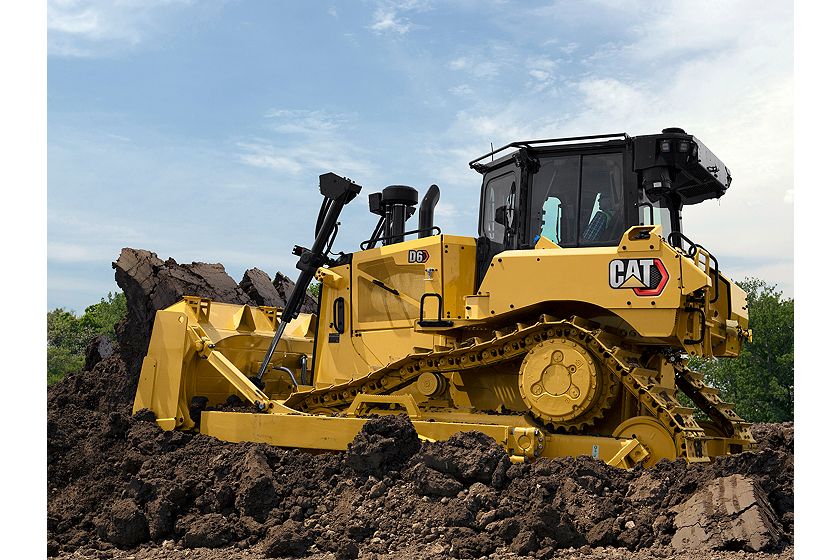

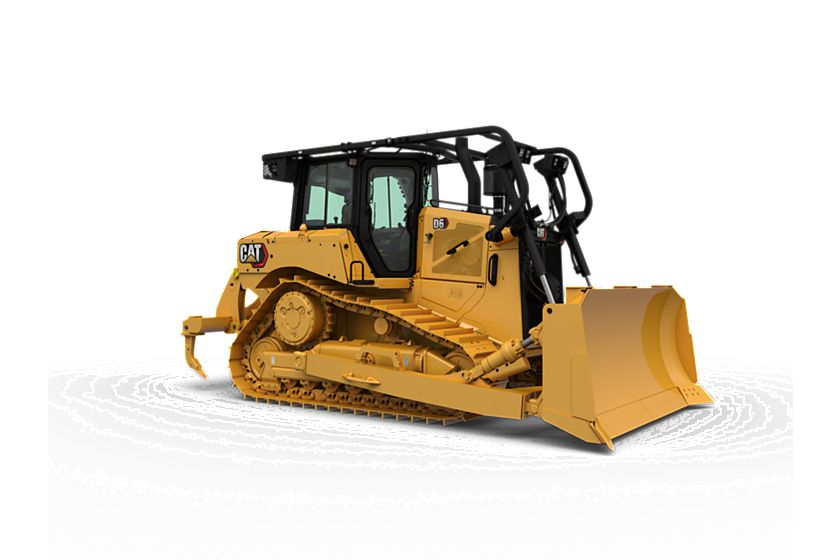

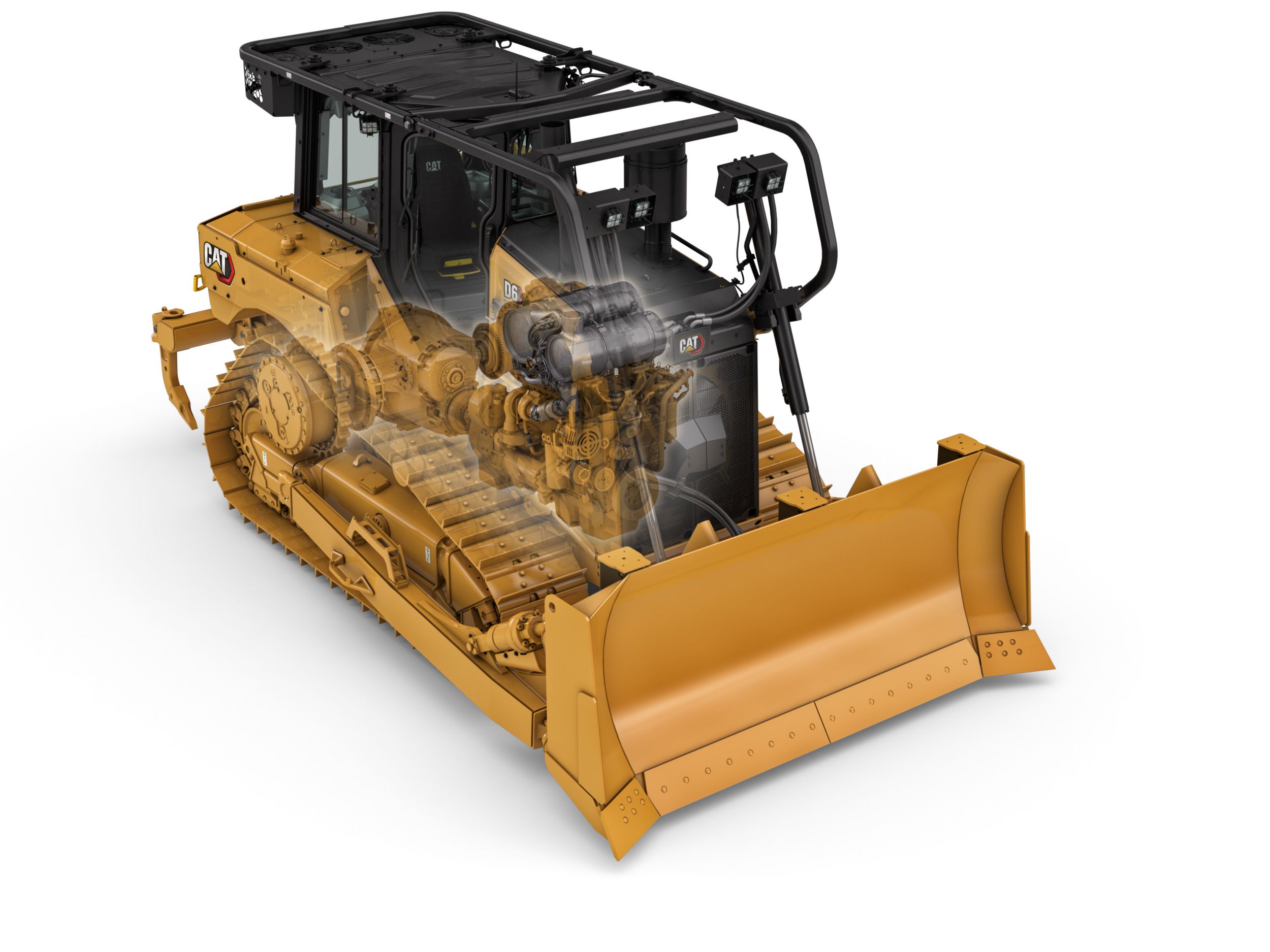

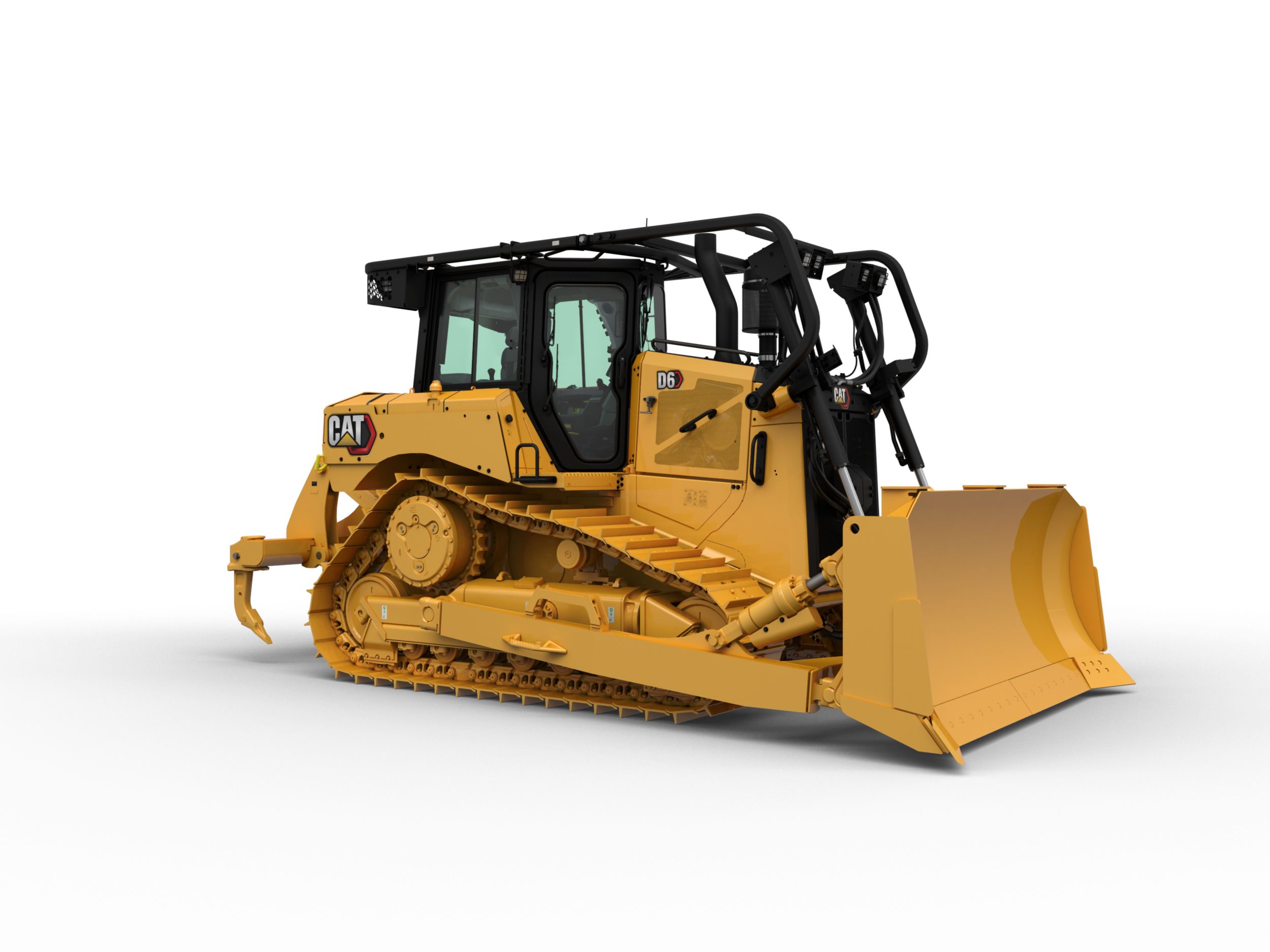

D6 Dozer
Engine Model
Cat C9.3B
Cat C9.3B
Power – Net
215 HP
161 kW
Operating Weight
50733 lb
23012 kg
Overview
Move material at a lower cost with a fully automatic transmission, outstanding fuel efficiency and reduced service/maintenance costs. The broadest range of technology features in the industry work together to help you make the most of your equipment investment.
Media
Photos
Videos
360° View
Exterior
360 Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360 Interior view. Double click on the image to zoom in on any area of the product.
Features
MOVE MORE WITH LESS FUEL
OPERATOR HELPERS
TOP GRADES
PROVEN ADVANTAGE
DESIGNED FOR OPERATORS
REMOTE CONTROL READY
LOWER MAINTENANCE COSTS
LONG TERM VALUE AND DURABILITY
BUILT-IN SAFETY FEATURES
WASTE HANDLING PERFORMANCE
SUSTAINABILITY
Details
Specifications

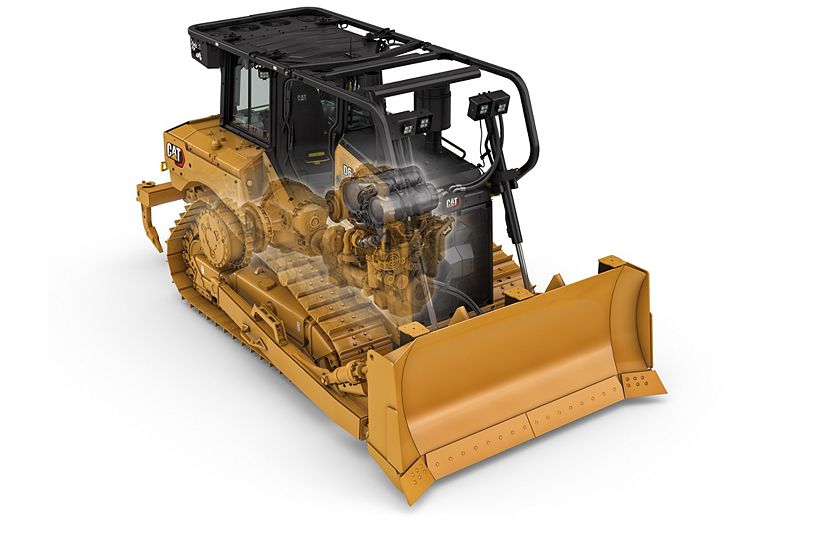

Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C9.3B Cat C9.3B |
| Power – Net | 215 HP 161 kW |
| Net Power – Rated – ISO 9249/SAE J1349 | 215 HP 161 kW |
| Net Power (Rated) – ISO 9249 (DIN) | 219 mhp 219 mhp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Note (1) | Rated horsepower at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Rated horsepower at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 20B Machine Build Number 20B |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 50733 lb 23012 kg |
Transmission
| Spec | Value |
|---|---|
| Power Train | Fully Automatic 4-Speed Powershift Fully Automatic 4-Speed Powershift |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 90 gal (US) 341 l |
| DEF Tank | 7.4 gal (US) 28 l |
D6 Push Arm
| Spec | Value |
|---|---|
| Operating Weight | 48788 lb 22130 kg |
| Ground Pressure | 7.9 psi 54 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | Semi-Universal (SU) Semi-Universal (SU) |
| Blade Capacity | 7.5 yd³ 5.7 m³ |
D6 LGP (30-in) Push Arm
| Spec | Value |
|---|---|
| Operating Weight | 50420 lb 22870 kg |
| Ground Pressure | 6.5 psi 45 kPa |
| Width of Standard Shoe | 30 in 760 mm |
| Blade | Semi-Universal (SU) Semi-Universal (SU) |
| Blade Capacity | 7.6 yd³ 5.8 m³ |
D6 LGP (36-in) Push Arm
| Spec | Value |
|---|---|
| Operating Weight | 52715 lb 23911 kg |
| Ground Pressure | 5.2 psi 36 kPa |
| Width of Standard Shoe | 36 in 915 mm |
| Blade | Straight Straight |
| Blade Capacity | 5 yd³ 3.8 m³ |
D6 VPAT
| Spec | Value |
|---|---|
| Operating Weight | 49108 lb 22275 kg |
| Ground Pressure | 7.1 psi 49 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 5.4 yd³ 4.1 m³ |
D6 LGP (30-in) VPAT
| Spec | Value |
|---|---|
| Operating Weight | 50733 lb 23012 kg |
| Ground Pressure | 5.9 psi 40 kPa |
| Width of Standard Shoe | 30 in 760 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 5.9 yd³ 4.5 m³ |
D6 LGP (36-in) VPAT
| Spec | Value |
|---|---|
| Operating Weight | 51912 lb 23547 kg |
| Ground Pressure | 5 psi 34 kPa |
| Width of Standard Shoe | 36 in 915 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 6.5 yd³ 4.9 m³ |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 98% 98% |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Power Train
- Fully-automatic 4-speed transmission
- Cat C9.3B diesel engine
- Double reduction planetary final drives
- Hydraulic reversing fan

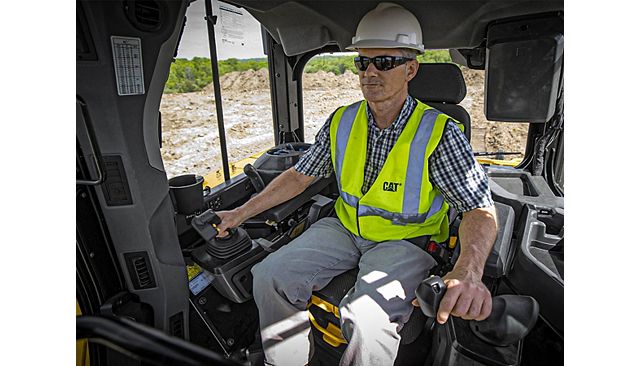

Operator Environment
- Fully redesigned cab, sound suppressed, with Integrated Roll Over Protective Structure (ROPS)
- Full-color 10-inch (254 mm) liquid crystal touch screen display
- Integrated rearview camera
- Adjustable operator controls/armrests
- Cab mounted modular Heating/Ventilation/Air Conditioning (HVAC) system
- Added storage areas
- Electrohydraulic implement and steering controls
- Cloth seat
- Lights – 6 LED
Cat Technology
- Slope Indicate
- Product Link, Cellular
- Grade Control Ready Cab
- Remote Control Ready
- Remote Flash/Remote Troubleshoot
- Operator ID
- Machine Security – Passcode
- Compatibility with radios and base stations from Trimble, Topcon, and Leica
- Capability to install 3D grade systems from Trimble, Topcon, and Leica
Undercarriage
- Redesigned track roller frame
Service and Maintenance
- Rear access ladder
- Shovel holder
- Ground level service center
- 30-minute cab removal
- Fire extinguisher mounting provision
- Ecology drains
- Underhood work light
Hydraulics
- Independent steering and implement pumps
- Load sensing hydraulics
Attachments
- Ripper-ready rear hydraulics
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Operator Environment
- Deluxe leather heated/ventilated seat
- Powered precleaner
- Premium lights – 12 LED
- Integrated warning lights
- Communication radio ready
Cat Technology
- ARO with Assist Package: Includes Attachment Ready Option (ARO), Slope Assist, Steer Assist, Stable Blade, Blade Load Monitor, Traction Control, AutoCarry
- Grade 3D with Assist Package: Includes full-color 10-inch (254 mm) touchscreen grade display, Steer Assist 3D, Grade receivers and antennas, Grade Software Enabled Attachment (SEA), ARO with Assist package features
- Product Link Dual Cellular/Satellite
- Grade Connectivity
- Machine Security – Bluetooth
- Cat Command for Dozing
Blades
- Semi-Universal
- Variable Pitch Angle Tilt (VPAT)
- Straight blade
- Angle blade
- Foldable VPAT – under 3 m (9.9 ft) transport width (Not available in all regions)

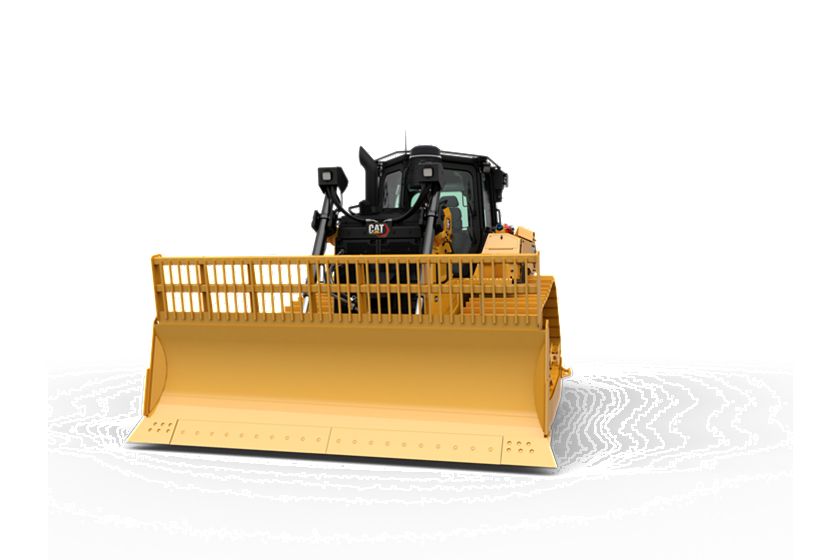

- Waste/Landfill
- FirstCut cutting edges (SU blades)
Undercarriage
- Heavy Duty (HDXL with DuraLink) or Cat Abrasion
- 10-Roller Fine Grading undercarriage
- Moderate Service or Extreme Service track shoes
Service and Maintenance
- Fast fuel fill
- Refilling fuel pump (EU only)
- High speed oil change
- Rear implement work light
Attachments
- High lift ripper with straight or curved shanks
- Winch
- Counterweights
- Ripper and winch-ready rear hydraulics
- Side and/or rear screens
- Sweeps
- Drawbar

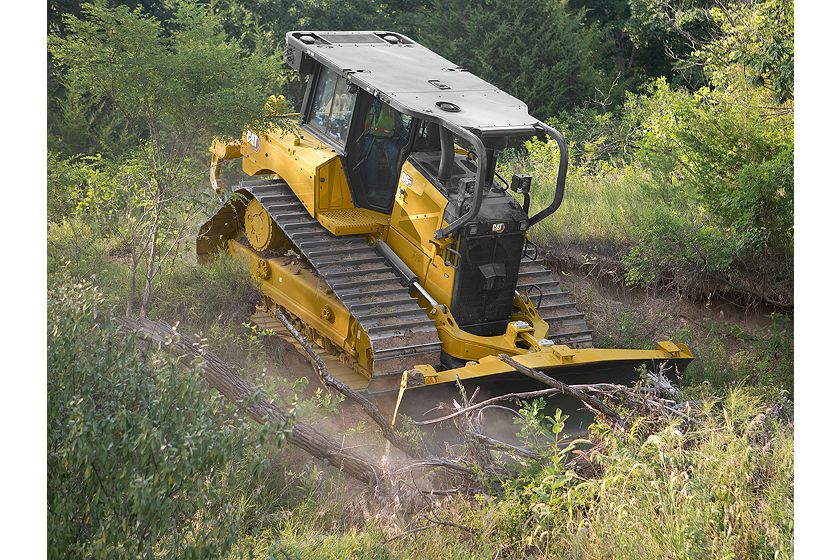

- Forestry and Waste Special Arrangements
