Cat

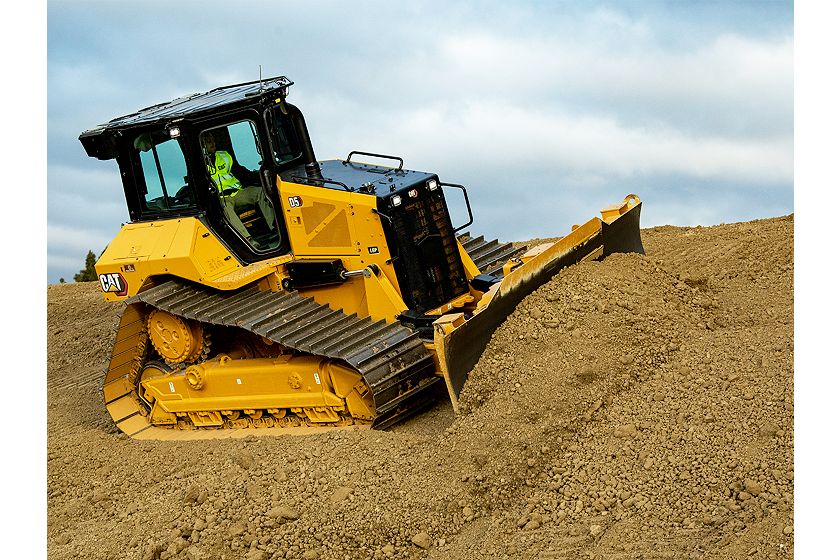

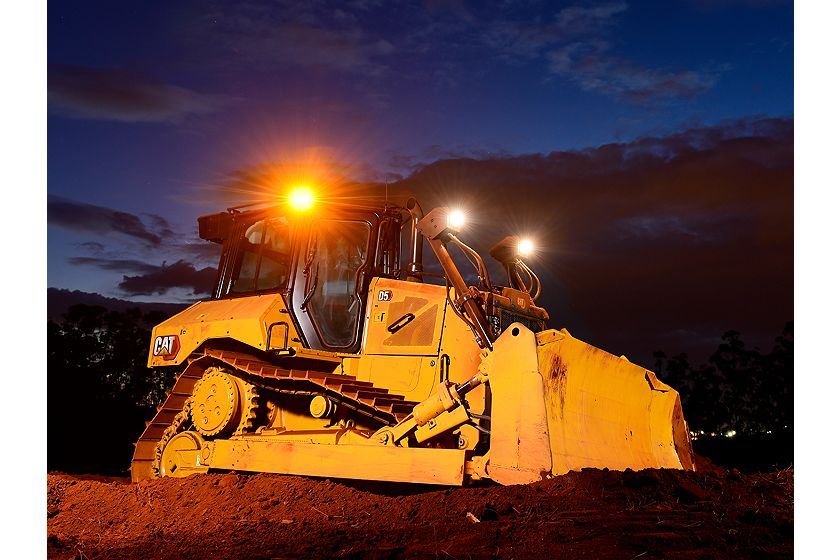

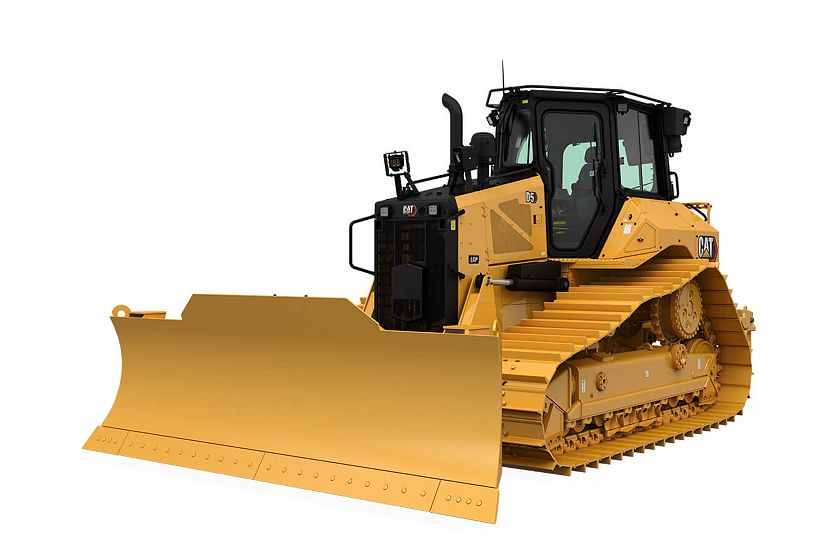

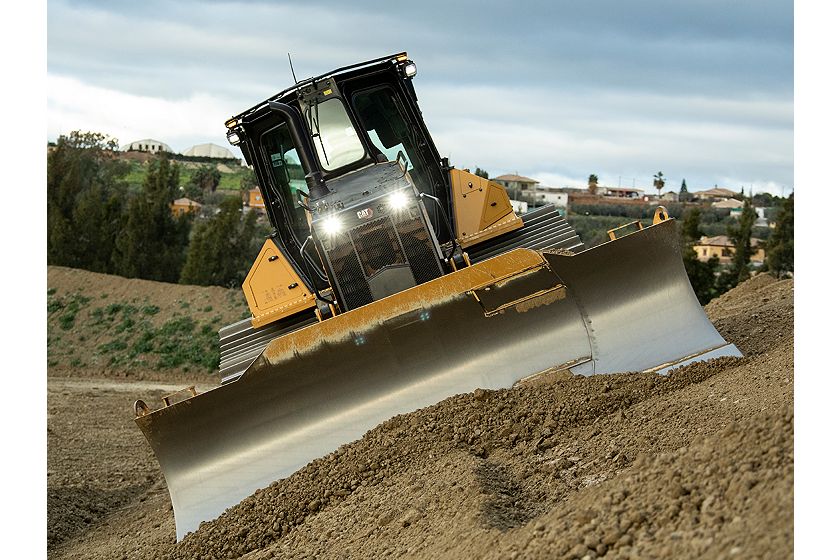

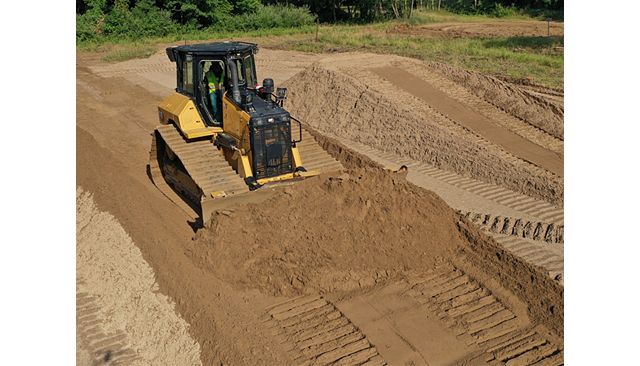

D5 Dozer
Engine Model
Cat C7.1
Cat C7.1
Power – Net
170 hp
127 kW
Operating Weight
42263 lb
19170 kg
Overview
The Cat D5 succeeds the renowned D6N with superior performance, a fully automatic transmission and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading.
Media
Photos
Videos
360° View

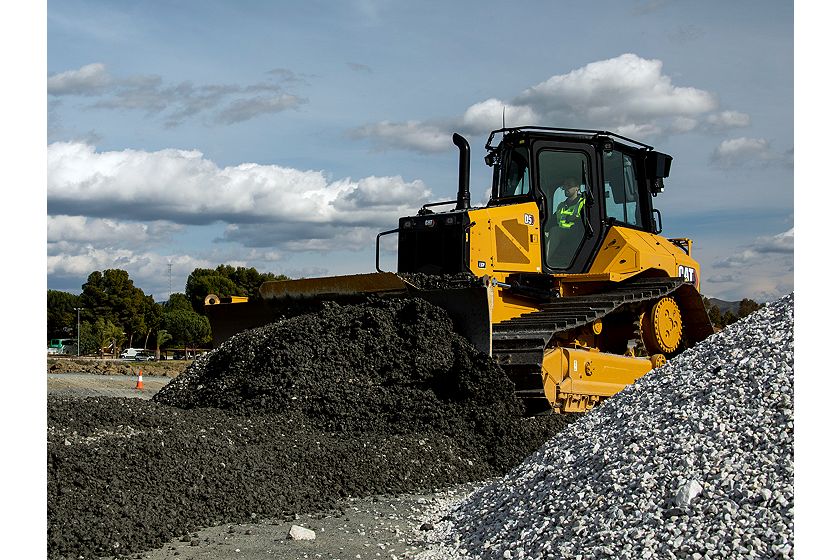

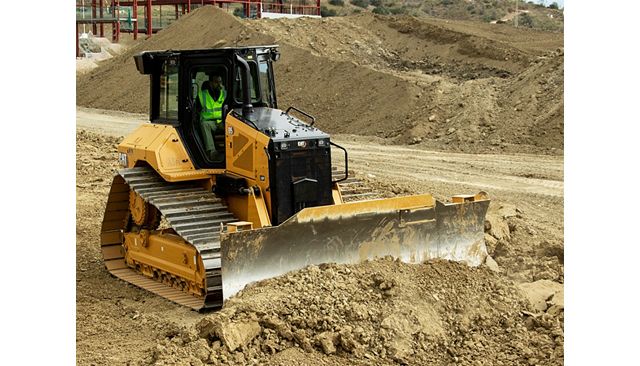

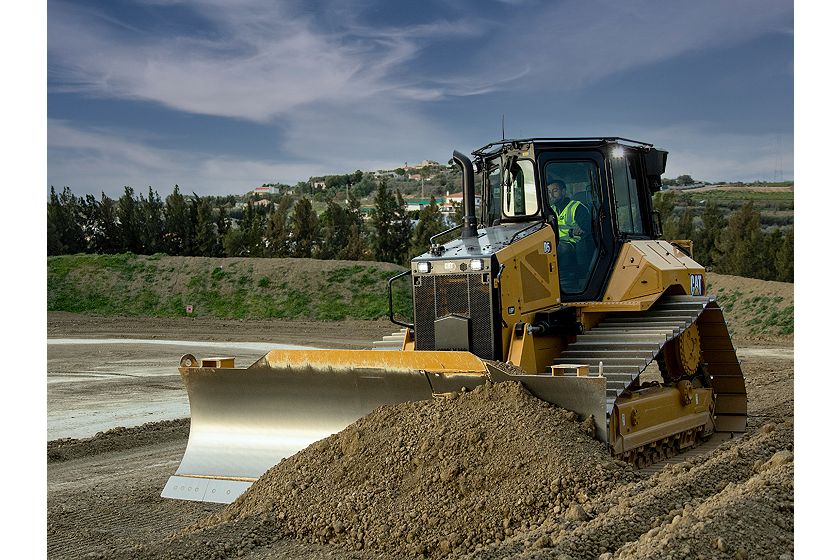

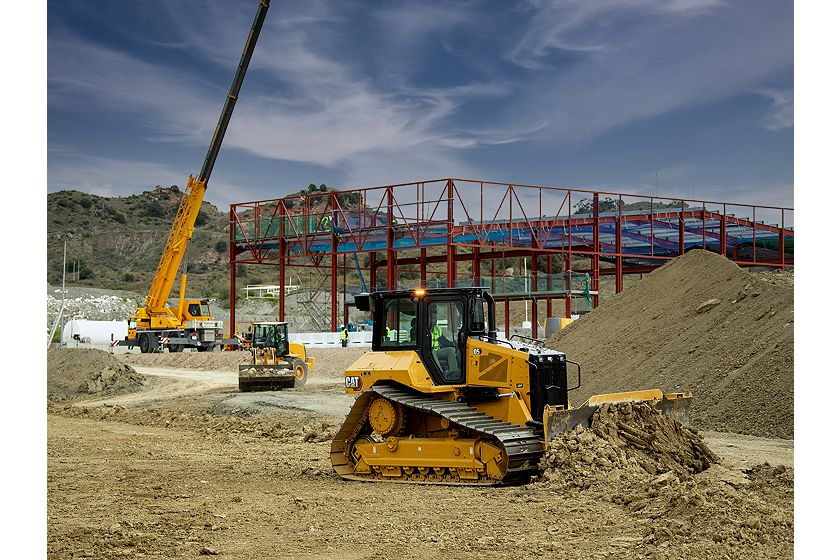

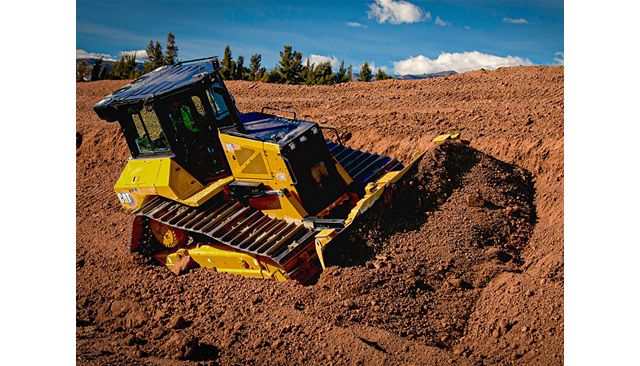

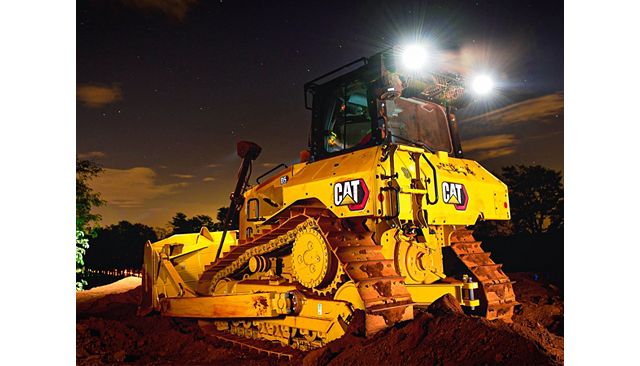

Exterior
D5 Dozer – Push Arm

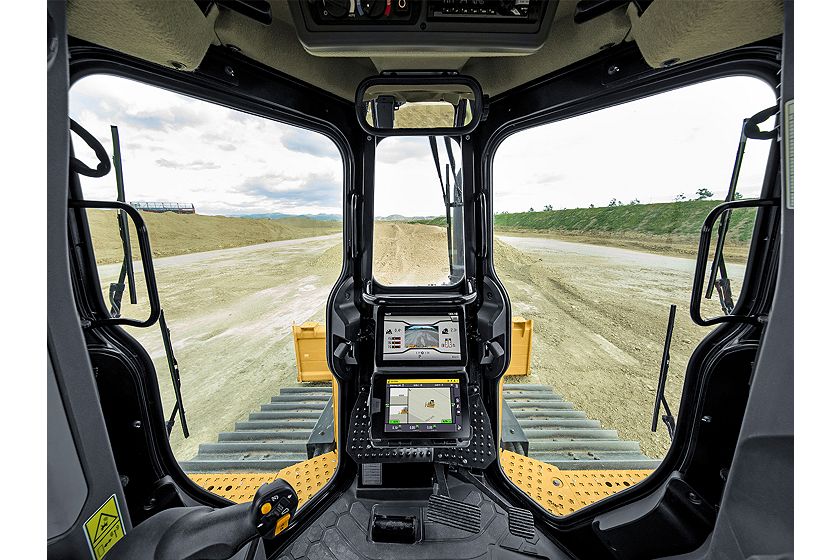

Interior
D5 Dozer – Push Arm
Features
OPERATOR HELPERS
TOP GRADES
PROVEN ADVANTAGE
DESIGNED FOR OPERATORS

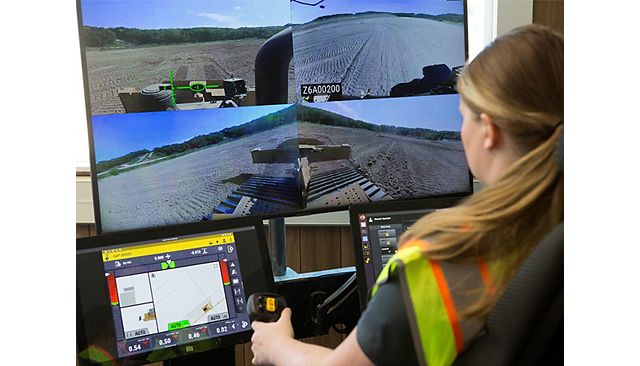

REMOTE CONTROL READY
LONG TERM VALUE AND DURABILITY
LOWER MAINTENANCE COSTS
BECAUSE UPTIME COUNTS
PURPOSE BUILT SPECIALTY MODELS
SUSTAINABILTY
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C7.1 Cat C7.1 |
| Power – Net | 170 hp 127 kW |
| Net Power – Rated – ISO 9249/SAE J1349 | 170 hp 127 kW |
| Net Power (Rated) – ISO 9249 (DIN) | 172 mhp 172 mhp |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V |
| Note (1) | Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel. |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 17B Machine Build Number 17B |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 42263 lb 19170 kg |
Transmission
| Spec | Value |
|---|---|
| Powertrain | Fully Automatic 3-Speed Fully Automatic 3-Speed |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 83.2 gal (US) 315 l |
| DEF Tank | 4.2 gal (US) 16 l |
VPAT
| Spec | Value |
|---|---|
| Operating Weight | 37875 lb 17180 kg |
| Ground Pressure | 6.9 psi 47.6 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 4.6 yd³ 3.5 m³ |
LGP VPAT
| Spec | Value |
|---|---|
| Operating Weight | 42263 lb 19170 kg |
| Ground Pressure | 4.7 psi 32.6 kPa |
| Width of Standard Shoe | 33 in 840 mm |
| Blade | LGP VPAT LGP VPAT |
| Blade Capacity | 5.5 yd³ 4 m³ |
Fine Grading VPAT
| Spec | Value |
|---|---|
| Operating Weight | 39198 lb 17780 kg |
| Ground Pressure | 6 psi 41.4 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 4.6 yd³ 3.5 m³ |

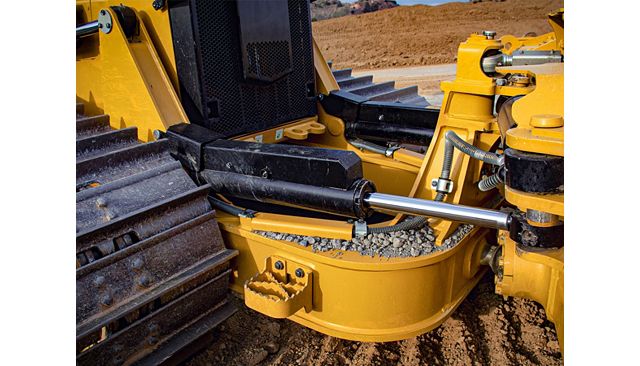

Push Arm
| Spec | Value |
|---|---|
| Operating Weight | 38228 lb 17340 kg |
| Ground Pressure | 7 psi 48.2 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | Semi-Universal (SU) Semi-Universal (SU) |
| Blade Capacity | 5.6 yd³ 4.3 m³ |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 97% 97% |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
General
| Spec | Value |
|---|---|
| Note (1) | Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Power Train
- Cat C7.1 diesel engine
- Fully-automatic 3-speed transmission
- Infinite ground speed adjustment

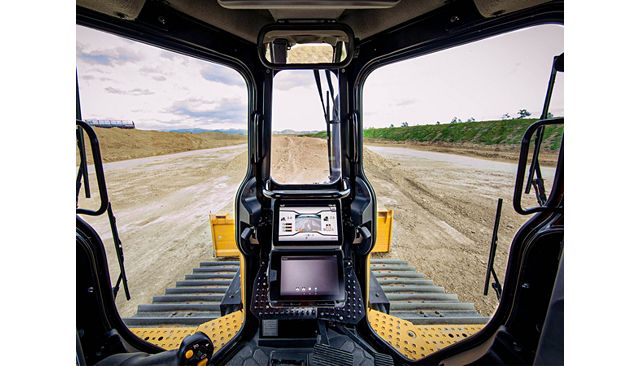

Operator Environment
- Fully redesigned cab, sound suppressed, with Integrated Roll Over Protective Structure (IROPS)
- Full-color 10-inch (254 mm) touchscreen display
- Integrated rearview camera
- Premium cab with adjustable operator controls/armrests
- Cab mounted modular HVAC system
- Added storage areas
- Electrohydraulic implement and steering controls
- Cloth seat
- Lights: 6 LED
Cat Technology
- Slope Indicate
- Product Link, Cellular
- Grade Control Ready Cab
- Remote Control Ready
- Remote Flash/Remote Troubleshoot
- Operator ID
- Machine Security – Passcode
- Compatibility with radios and base stations from Trimble, Topcon, and Leica
- Capability to install 3D grade systems from Trimble, Topcon, and Leica
Blades
- VPAT
- Semi-Universal
Undercarriage
- Heavy Duty (HDXL with DuraLink) or Cat Abrasion
- Redesigned track roller frame
- Moderate Service or Extreme Service track shoes

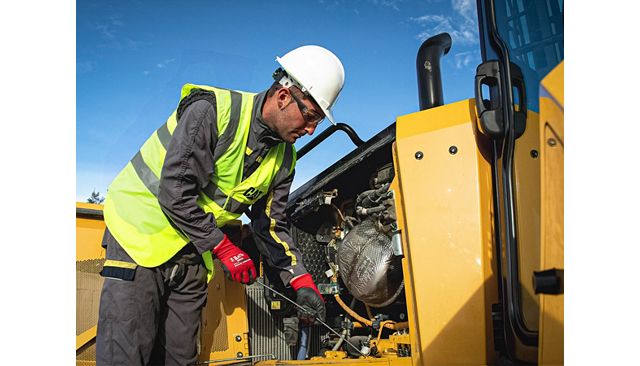

Service and Maintenance
- 30-minute cab removal
- Ecology drains
- Ground level service center
- Hydraulic fan
- Rear access ladder
- Shovel holder
Attachments
- Drawbar
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Operator Environment
- Deluxe leather heated/ventilated seat
- Premium lights: 12 LED
- Integrated warning lights
- Communication radio ready
Cat Technology
- ARO with Assist Package: Includes Attachment Ready Option (ARO), Slope Assist, Steer Assist, Stable Blade, Blade Load Monitor, Traction Control, AutoCarry
- Grade 3D with Assist Package: Includes full-color 10-inch (254 mm) touchscreen grade display, Steer Assist 3D, Grade receivers and antennas, Grade Software Enabled Attachment (SEA), ARO with Assist package features
- Product Link Dual Cellular/Satellite
- Grade Connectivity
- Machine Security – Bluetooth
- Cat Command for Dozing
Blades
- Foldable VPAT
- Waste/Landfill
Service and Maintenance
- Fast fuel pump
Hydraulics
- Independent steering and implement pumps
- Load sensing hydraulics
Attachments
- Ripper-ready rear hydraulics
- Winch-ready rear hydraulics
- Ripper with straight or curved shanks
- Winch
- Side screens
- Rear screen: hinged or fixed
- Sweeps
- Fine Grading arrangement
- Forestry and Waste special arrangements
- Fire Dozer configuration
Note
- Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
