Caterpillar

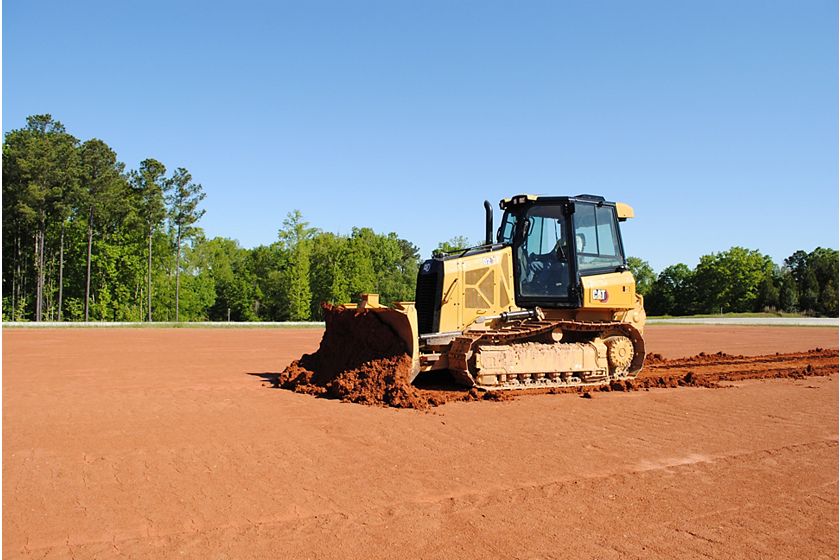

D2 Track-Type Tractor

Engine Model

Cat® C3.6

Cat® C3.6

Power – Net

92 HP

68.8 kW

Operating Weight

18382 lb

8338 kg

Operating Weight

18382 lb

8338 kg

Overview

The new Cat® D2 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.

Media

Photos

Videos

360° View

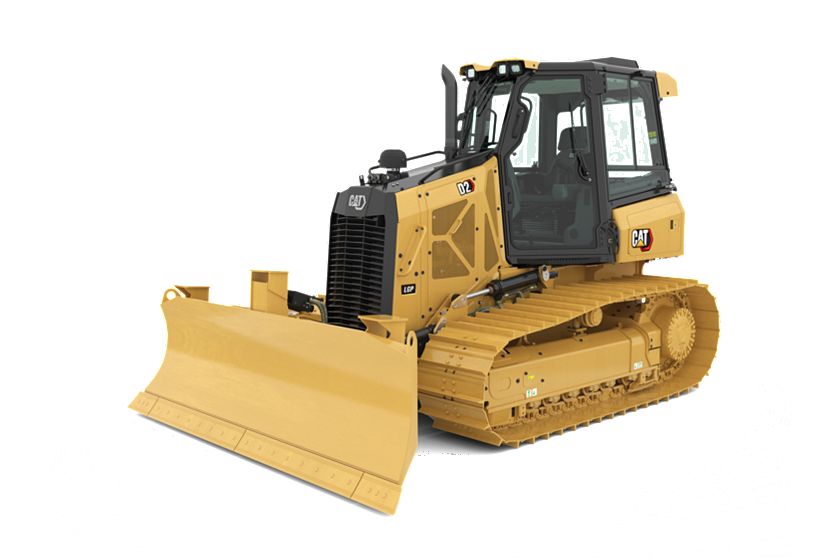

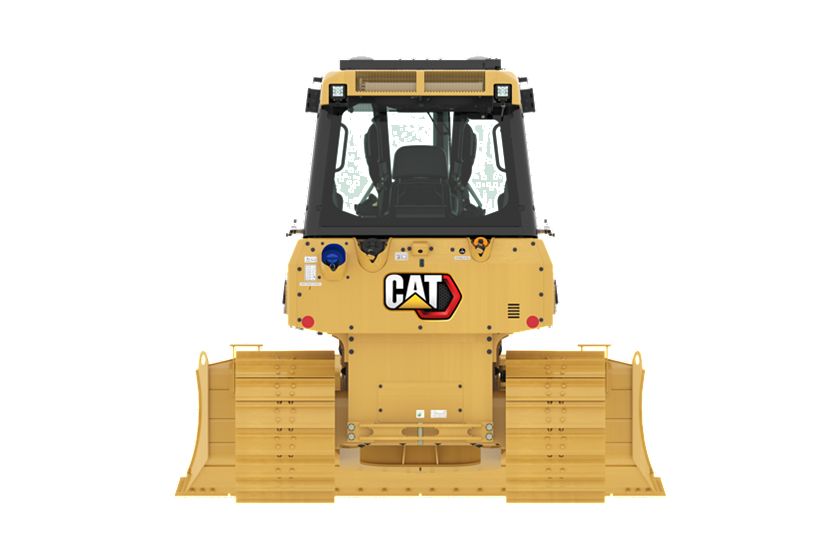

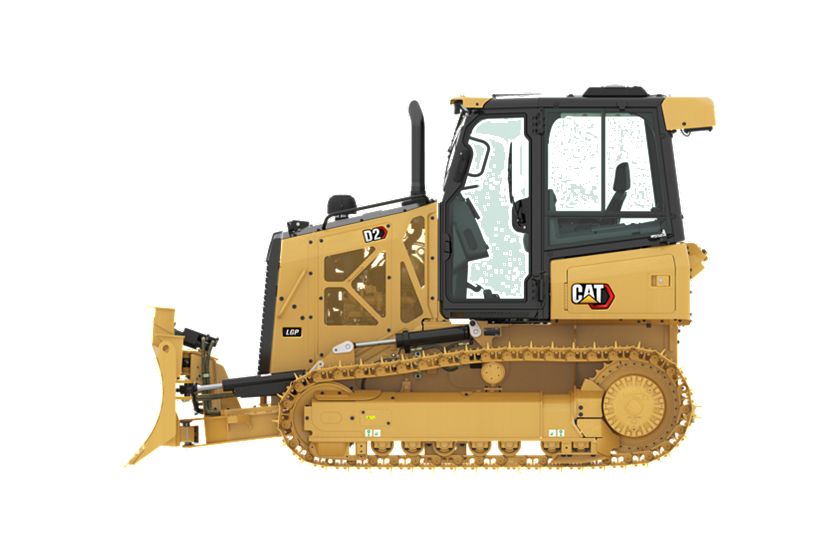

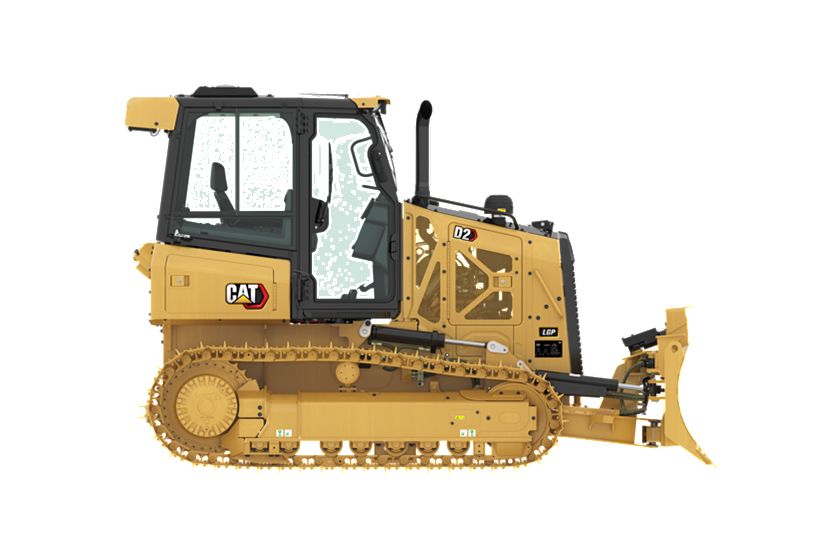

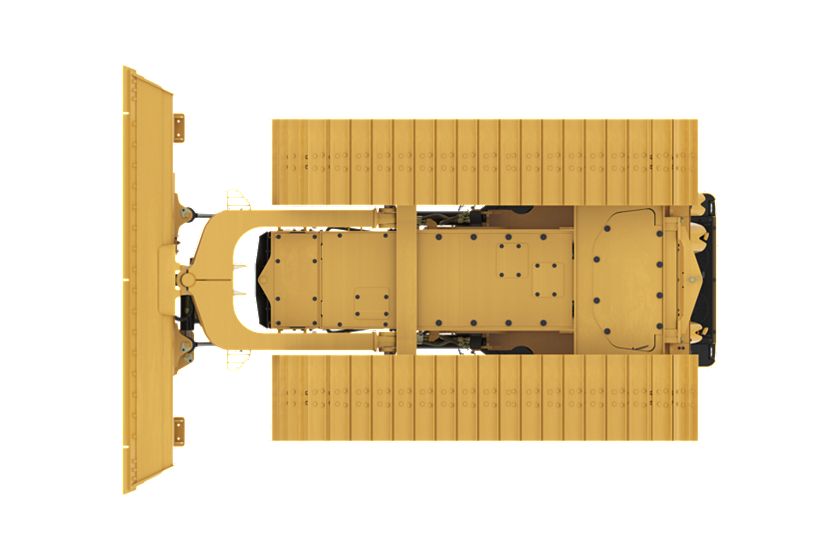

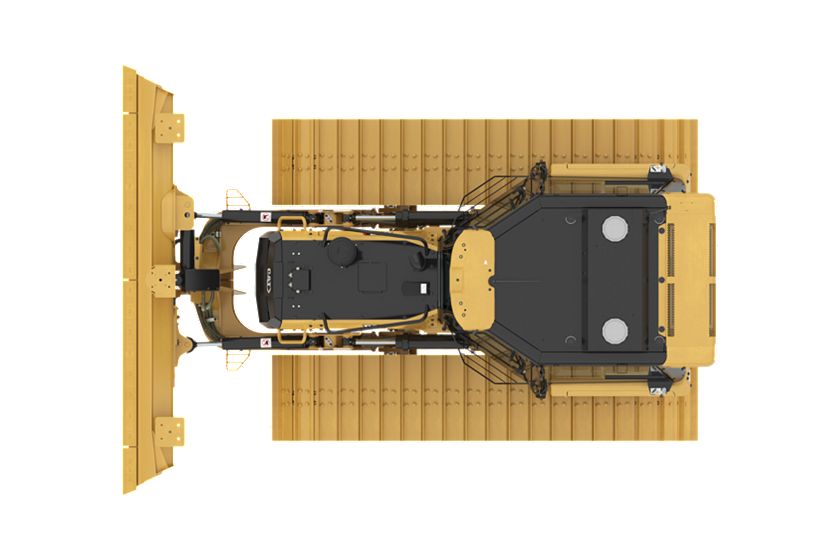

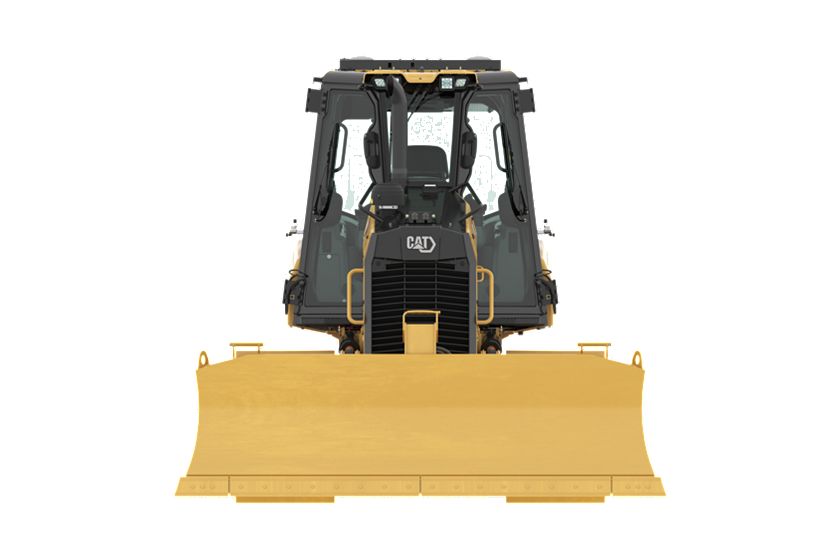

Exterior

Model shown represents features on all Cat® Small Dozers except where indicated.

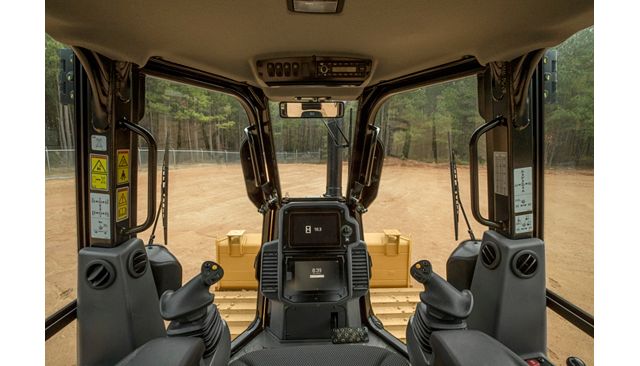

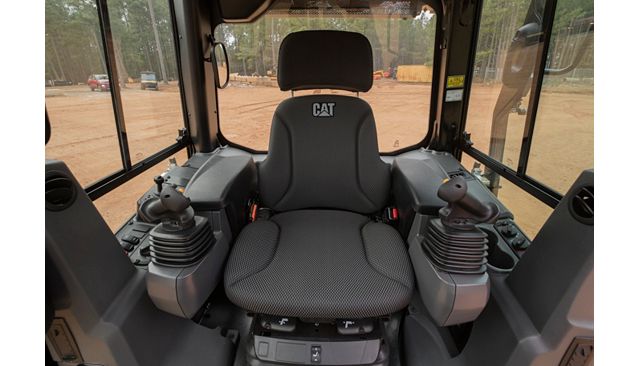

Interior

Model shown represents features on all Cat® Small Dozers except where indicated.

Features

Details

Specifications

Spec Value
Engine Model Cat® C3.6 Cat® C3.6
Power – Net 92 HP 68.8 kW
Displacement 220 in³ 3.6 l
Net Power – 2,200 rpm – SAE J1349 92 HP 68.8 kW
Net Power – 2,200 rpm – ISO 9249/EEC 80/1269 92 HP 68.8 kW
Note (1) Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2) All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.
Spec Value
Power Train  Hydrostatic Hydrostatic
Spec Value
Operating Weight 18382 lb 8338 kg
Operating Weight – LGP 19066 lb 8648 kg
Note (2) For machine with ripper, add 554 kg (1,222 lb). For machine with ripper, add 554 kg (1,222 lb).
Note (1) Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank. Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.
Spec Value
Operating Weight  18382 lb 8338 kg
Spec Value
FOPS ISO 3449:2005 Level II ISO 3449:2005 Level II
ROPS ISO 3471:2008 ISO 3471:2008
Spec Value
Drive Pumps 1 1
Maximum Travel Speed – Forward 5.6 mile/h 9 km/h
Relief Valve Settings 7033 psi 48500 kPa
Maximum Travel Speed – Reverse 6.2 mile/h 10 km/h
Track Motors 2 2
Spec Value
Length – Track on Ground – LGP 89 in 2248 mm
Track Gauge 61 in 1550 mm
Number of Rollers – Each Side 7 7
Track Gauge – LGP 68 in 1725 mm
Ground Pressure – LGP 4.3 psi 29.7 kPa
Shoe Width – Standard 18 in 460 mm
Shoe Width – LGP 25 in 635 mm
Number of Shoes – Each Side – Sealed and Lubricated Track (SALT) Undercarriage 43 43
Spec Value
Number of Shoes – Each Side – Abrasion Undercarriage  38 38
Ground Pressure  5.7 psi 39.5 kPa
Length of Track on Ground  89 in 2248 mm
Spec Value
Fuel Tank 51.5 gal (US) 195 l
Crankcase – With Filter 2.8 gal (US) 10.5 l
Final Drive – Each – LGP 2.6 gal (US) 10 l
Cooling System 5 gal (US) 19 l
Transmission – Hydraulic Tank 23.8 gal (US) 90 l
Diesel Exhaust Fluid (DEF) Tank 4.9 gal (US) 19 l
Spec Value
Final Drives – Each Side  2.6 gal (US) 10 l
Spec Value
Pump Output 17.2 gal/min 65 l/min
Relief Valve Settings 2988 psi 20600 kPa
Spec Value
Type Parallelogram Parallelogram
Number of Shanks 3 3
Height 6.5 in 165 mm
Weight 1222 lb 554 kg
Maximum Digging Depth 13.3 in 337.5 mm
Maximum Ground Clearance Under Tip 17.6 in 448 mm
Overall Width 67.3 in 1710 mm
Maximum Reach – Ground Line 30.2 in 766 mm
Spec Value
Weight 1345 lb 610 kg
Winch Drive Hydrostatic Hydrostatic
Control Hydraulic Hydraulic
Speed Variable Variable
Overall Width 29.2 in 741 mm
Winch Length 27.76 in 705 mm
Maximum Line Pull – Bare Drum 40000 lb 18144 kg
Throat Clearance 6.75 in 171.5 mm
Rope Diameter – Recommended 0.63 in 16 mm
Drum Capacity – Optional Cable 256 ft 78 m
Maximum Line Speed – Bare Drum 131 ft/min 40 m/min
Drum Capacity – Recommended Cable 371 ft 113 m
Rope Diameter – Optional 0.75 in 19 mm
Maximum Line Pull – Full Drum 25000 lb 11340 kg
Drum Diameter 10 in 254 mm
Maximum Line Speed – Full Drum 207 ft/min 63 m/min
Drum Width 10.8 in 274 mm
Spec Value
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Spec Value
BLADE: Digging Depth – LGP 23.2 in 590 mm
BLADE: Blade Width – Intermediate 115 in 2921 mm
Length – Basic Tractor – Without Blade – LGP 129.5 in 3290 mm
BLADE: Maximum Angle (either side) – Intermediate 25° 25°
BLADE: Blade Cutting Edge Angle, Adjustable – LGP 52° to 58° 52° to 58°
BLADE: Blade Lift Height – LGP 27.9 in 708 mm
BLADE: Maximum Tilt – Intermediate 17.7 in 448 mm
BLADE: Digging Depth – Intermediate 23.2 in 590 mm
BLADE: Blade Lift Height – Intermediate 29.3 in 743 mm
BLADE: Blade Width – LGP 124 in 3149 mm
Width – Tractor – Standard Shoes – No Blade – LGP 92.9 in 2360 mm
BLADE: Blade Width at Maximum Angle – LGP 113.1 in 2874 mm
Tractor Height – LGP 108.9 in 2765 mm
Track Gauge – LGP 67.9 in 1725 mm
Ground Clearance – LGP 13 in 332 mm
BLADE: Blade Height – LGP 35.8 in 910 mm
Overall Length – With Blade – LGP 168.2 in 4272 mm
BLADE: Blade Capacity (SAE) – LGP 2.42 yd³ 1.85 m³
BLADE: Blade Height – Intermediate 33.9 in 860 mm
BLADE: Blade Capacity (SAE) – Intermediate 1.96 yd³ 1.5 m³
BLADE: Blade Cutting Edge Angle, Adjustable – Intermediate 52° to 58° 52° to 58°
BLADE: Maximum Tilt – LGP 17.2 in 438 mm
BLADE: Blade Width at Maximum Angle – Intermediate 105.1 in 2669 mm
BLADE: Maximum Angle (either side) – LGP 25° 25°
Note Abrasion Undercarriage Abrasion Undercarriage
Spec Value
Width – Tractor – Standard Shoes – No Blade – Standard  79.1 in 2010 mm
BLADE: Maximum Angle (either side) – Standard  25° 25°
Ground Clearance – Standard  13 in 332 mm
Length – Basic Tractor – Without Blade – Standard  129.5 in 3290 mm
Overall Length – With Blade – Standard  168.5 in 4281 mm
BLADE: Blade Cutting Edge Angle, Adjustable – Standard  52° to 58° 52° to 58°
BLADE: Maximum Tilt – Standard  15.2 in 387 mm
Track Gauge – Standard  61 in 1550 mm
Tractor Height – Standard  108.9 in 2765 mm
BLADE: Digging Depth – Standard  22.5 in 573 mm
BLADE: Blade Width – Standard  109.5 in 2782 mm
BLADE: Blade Lift Height – Standard  29.3 in 743 mm
BLADE: Blade Capacity (SAE) – Standard  2.59 yd³ 1.98 m³
BLADE: Blade Width at Maximum Angle – Standard  100.1 in 2542 mm
BLADE: Blade Height – Standard  39.8 in 1010 mm

Standard Equipment

POWER TRAIN

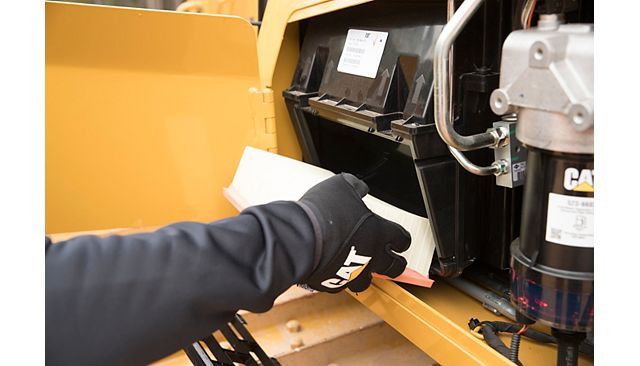

  • Air cleaner with precleaner, automatic dust ejection and underhood intake
  • Aluminum bar plate cooling system (radiator, power train)
  • Automatic traction control
  • Cat C3.6 diesel engine
  • Drive, auxiliary
  • Dual path, closed loop, hydrostatic transmission
  • Electric fuel pump
  • Fuel/water separator
  • Turbocharged aftercooled

ELECTRICAL

  • Alarm, backup
  • Alternator, 150 amp, heavy duty
  • Batteries, heavy duty, maintenance free, 1,000 CCA
  • Diagnostic connector
  • Four integrated front halogen lights, two rear halogen
  • Horn, electric
  • Starter, electric, 12 V, heavy duty

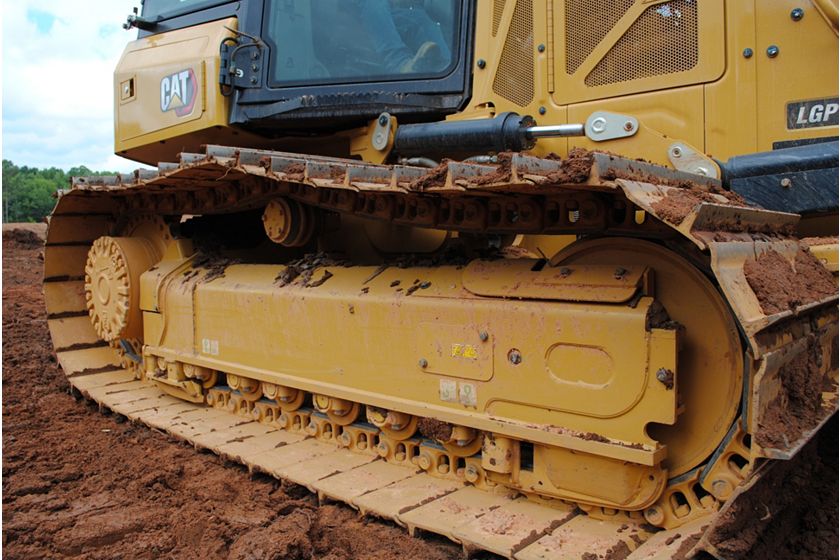

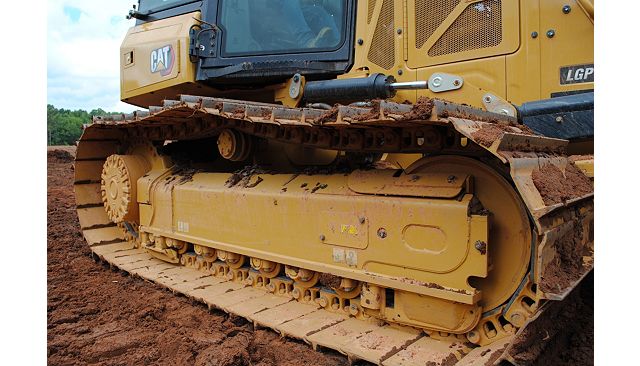

UNDERCARRIAGE

  • SALT undercarriage (43 section)
  • Carrier rollers
  • Guards, front/rear guiding
  • Seven roller track frame
  • Track adjusters, hydraulic
  • Track rollers, lifetime lubricated

HYDRAULIC

  • Hydraulic pump and oil
  • Single lever, three function control
  • Three valve hydraulics

CAT TECHNOLOGY

  • Cat Product Link PLE643/PLE743 Cellular
  • Slope Indicate
  • Stable blade

ATTACHMENTS

  • Rigid drawbar
  • Front pull device

OPERATOR ENVIRONMENT

  • Armrests, adjustable
  • Coat hook
  • Controls, seat mounted, fore/aft adjustment
  • Cup holders
  • Eco mode
  • Electronic Monitoring system with gauge:
    – Chassis slope indication
    – Diesel exhaust fluid (DEF)
    – Engine coolant temperature
    – Fuel level
    – Hydraulic oil temperature
  • Electronic security system
  • Engine air cleaner service indicator
  • Engine RPM and gear display
  • Floor mat, rubber, heavy duty
  • Foot pads, dash
  • Hour meter, electronic
  • Independent forward/reverse speed settings
  • Mirror, rearview, inside
  • Power port, 12 volt
  • ROPS/FOPS canopy
  • Seat, air suspended, cloth or vinyl
  • Seatbelt, hi-vis retractable 76 mm (3″)
  • Seatbelt buckling indicator/reminder
  • Single pedal combining decel and brake functions
  • Speed recall
  • Storage compartment
  • Throttle switch, rotary
  • Travel speed limiter, electronic

Optional Equipment

POWER TRAIN

  • Air cleaner with external precleaner
  • Installation, winch

ELECTRICAL

  • Four integrated front LED lights, two rear LED

UNDERCARRIAGE

  • Abrasion undercarriage (38 section)
  • Track Pairs
    – Track, 460 mm (18 in)
    – Track, 635 mm (25 in)

HYDRAULIC

  • Four valve for use with ripper
  • Four valve for use with winch

CAT TECHNOLOGY

  • Cat GRADE with Slope Assist
  • Cat GRADE with 3D
  • Cat Product Link PLE683/PLE783 Cellular/Satellite

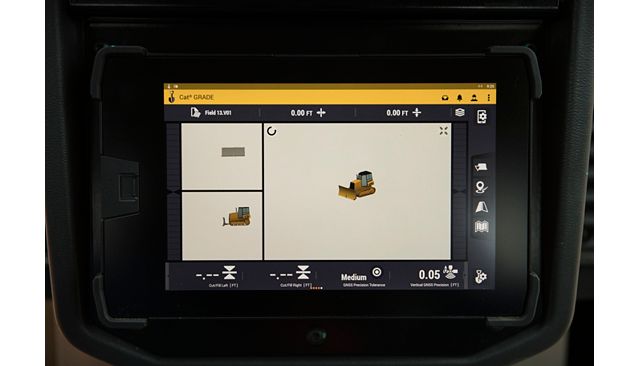

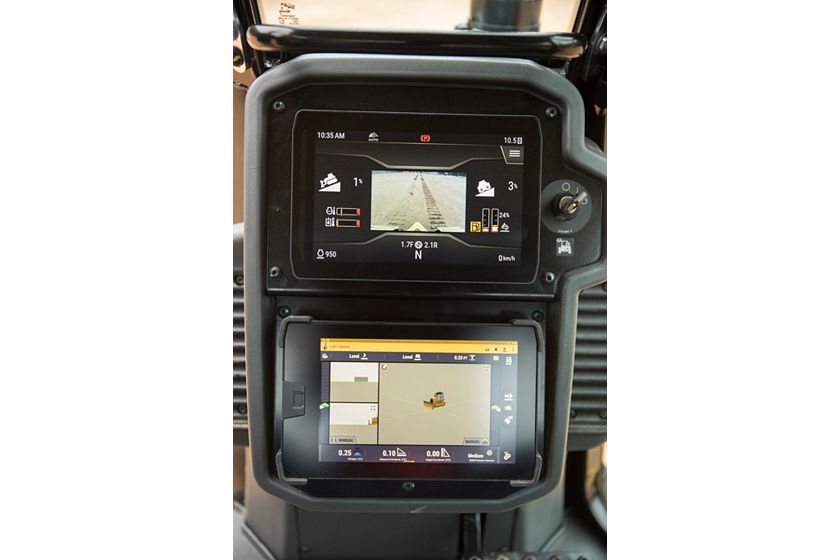

  • Full-color 10 in (254 mm) touchscreen grade display
  • Power Pitch

ATTACHMENTS

  • Drawbar, towing
  • Machine security system
  • Mounting, winch
  • Ripper, parallelogram, includes three shanks and teeth
  • Winch, hydraulic, high performance
  • Winch, hydraulic, retrieval

OPERATOR ENVIRONMENT

  • Cab, with air conditioning
  • Cab, polycarbonate windows and air conditioning
  • Radio, AM/FM Bluetooth®
  • Seat, air suspension, choice of:
    – Vinyl, heated seat with heated controls
    – Cloth, heated seat with heated controls
    – Cloth, heated and ventilated seat with heated controls
  • Sound suppression

OTHER

  • Heater, engine, coolant 120 V/240 V
  • Starting aid, ether
