Caterpillar
854 Wheel Dozer
Engine Model
Cat C32B
Cat C32B
Gross Power
907 hp
676 kW
Operating Weight
224647 lb
101898 kg
Overview
Engineered for demanding work in large dozing applications, the Cat® 854 Wheel Dozer is the largest in the Cat lineup and is an ideal match for large mining operations, power-generating utilities, the general contracting industry and wherever mobility, versatility and compaction are needed. Like all Cat Wheel Dozers, the 854 is designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance and simplified serviceability, the 854 will allow you to move more material efficiently and safely at a lower cost per ton.
Media

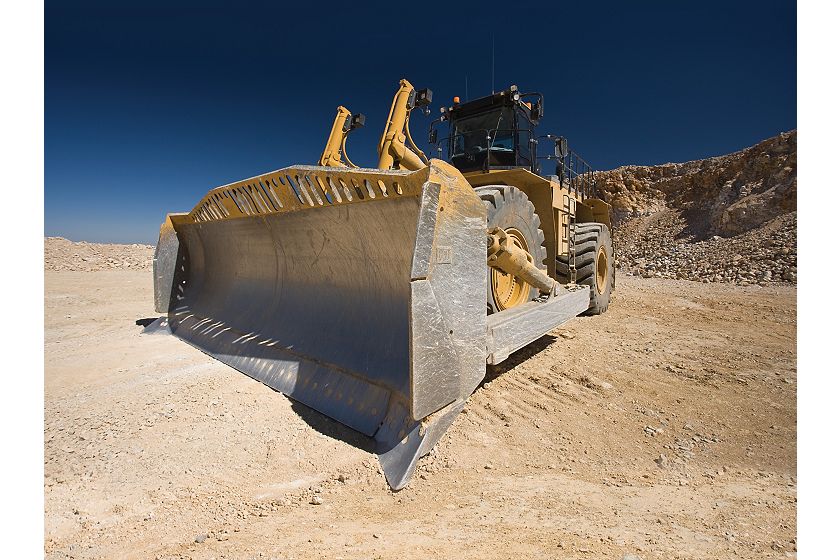

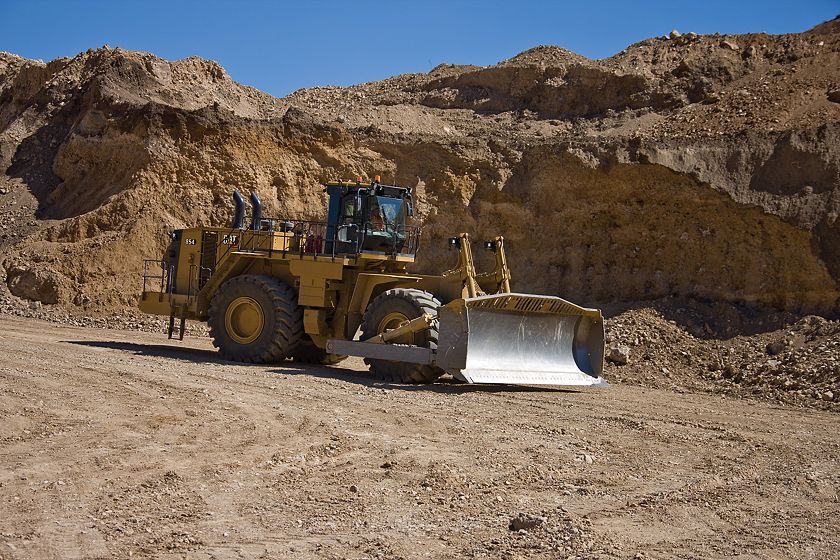

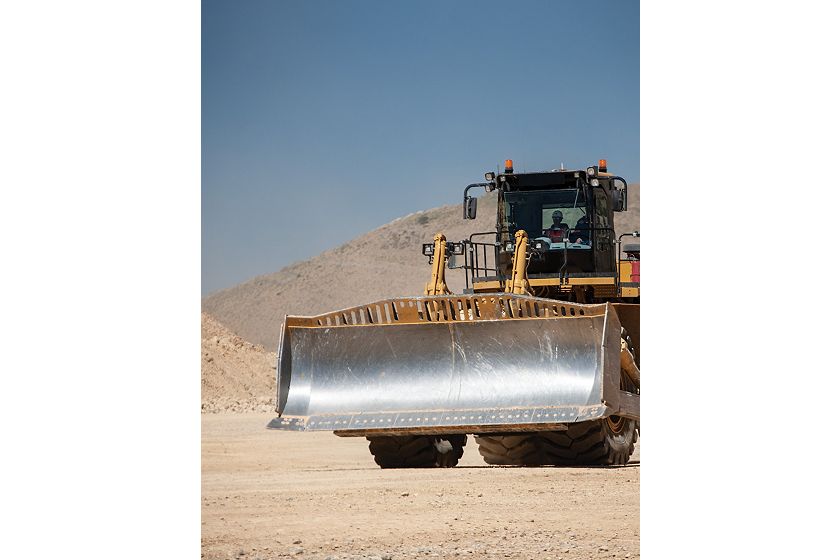

Photos
Videos
360° View

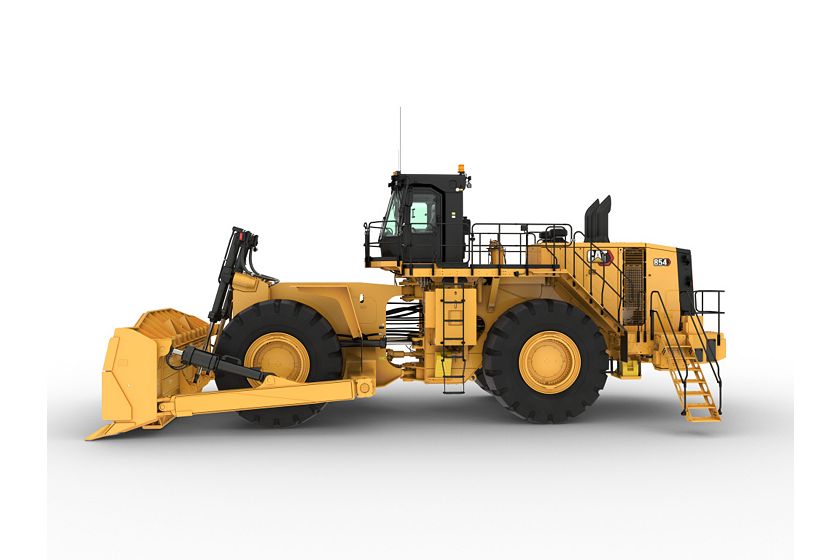

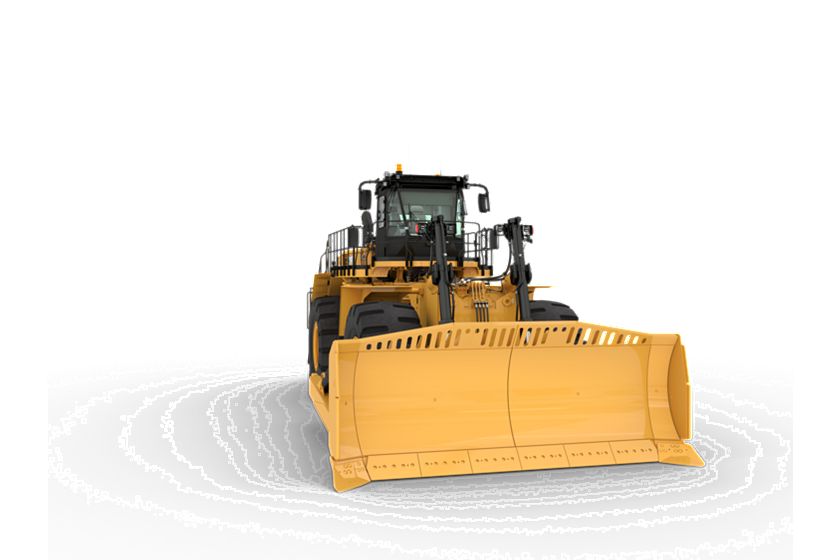

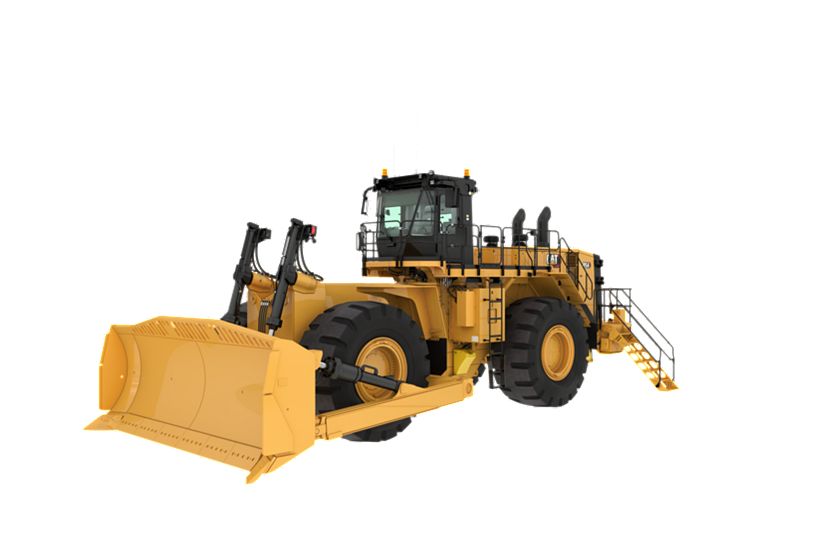

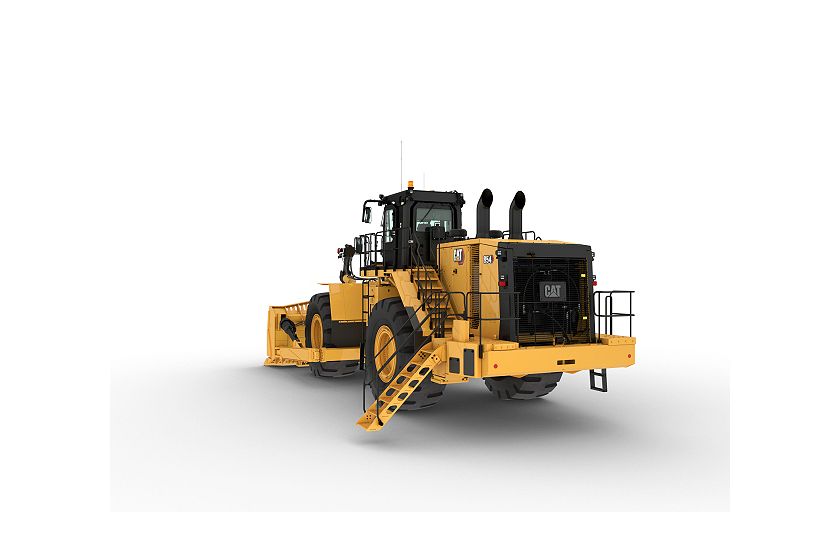

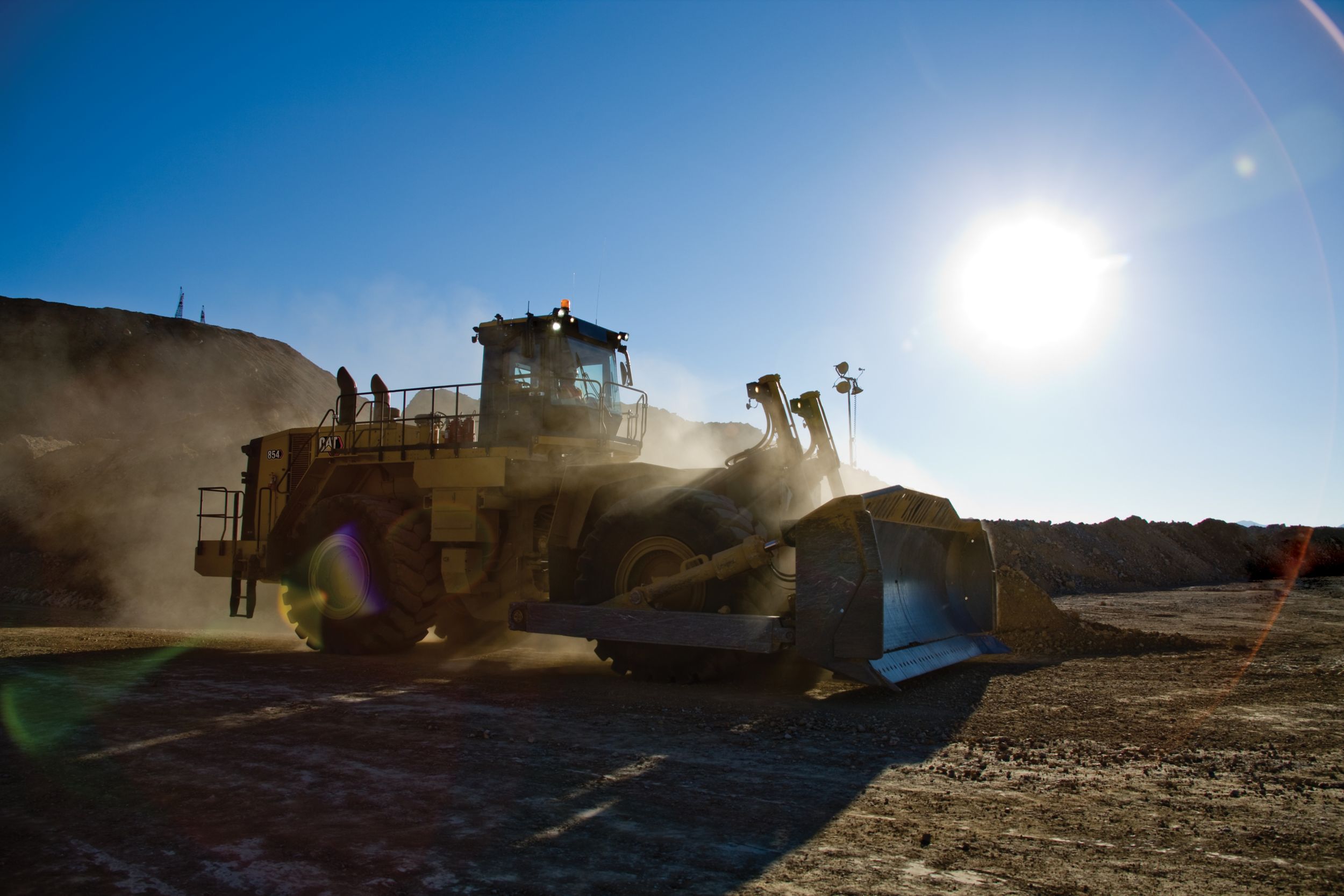

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.

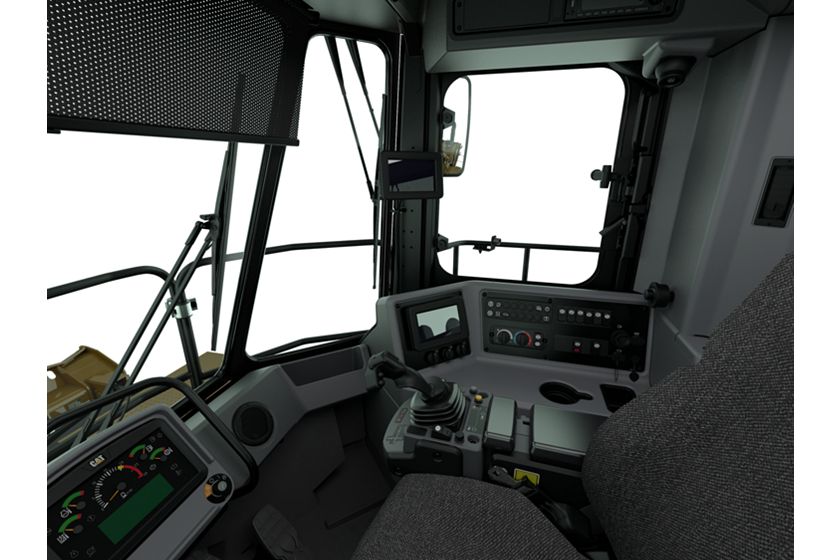

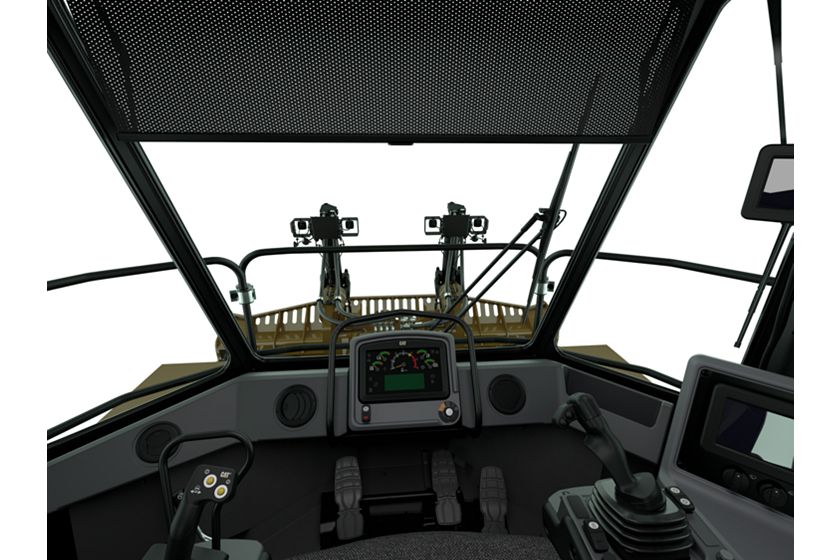

Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C32B Cat C32B |
| Gross Power | 907 hp 676 kW |
| Emissions (U.S. EPA Tier 4 Final): Gross Power – SAE J1995 | 900 hp 671 kW |
| Emissions (U.S. EPA Tier 4 Final): Net Power ISO – 9249 | 814 hp 607 kW |
| Emissions (Tier 2 Equivalent): Gross Power – SAE J1995 | 907 hp 676 kW |
| Emissions (Tier 2 Equivalent): Net Power ISO – 9249 | 823 hp 614 kW |
| Rated Speed | 1750 r/min 1750 r/min |
| Bore | 5.7 in 145 mm |
| Stroke | 6.4 in 162 mm |
| Displacement | 1958 in² 32.1 l |
| Peak Torque – 1,200 rpm | 3139 lb/ft 4242 N·m |
| Torque Rise | 30 % 30 % |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (2) | Net torque rise meets SAE J139. Net torque rise meets SAE J139. |
| Note (3) | No engine derating required up to 3050 m (10,000 ft) altitude. No engine derating required up to 3050 m (10,000 ft) altitude. |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 224647 lb 101898 kg |
Transmission
| Spec | Value |
|---|---|
| Transmission Type | Cat Planetary Power Shift Cat Planetary Power Shift |
| Converter Drive – Forward 1 | 4.4 mile/h 7.1 km/h |
| Converter Drive – Forward 2 | 7.7 mile/h 12.4 km/h |
| Converter Drive – Forward 3 | 13.2 mile/h 21.2 km/h |
| Converter Drive – Reverse 1 | 4.8 mile/h 7.7 km/h |
| Converter Drive – Reverse 2 | 8.4 mile/h 13.5 km/h |
| Converter Drive – Reverse 3 | 14.6 mile/h 23.5 km/h |
| Direct Drive – Forward 1 | Lock-up disabled Lock-up disabled |
| Direct Drive – Forward 2 | 8.1 mile/h 13 km/h |
| Direct Drive – Forward 3 | 14.2 mile/h 22.8 km/h |
| Direct Drive – Reverse 1 | 5 mile/h 8 km/h |
| Direct Drive – Reverse 2 | 8.9 mile/h 14.3 km/h |
| Direct Drive – Reverse 3 | 15.6 mile/h 25.1 km/h |
| Note | Travel speeds based on 45/65-45 L-5 46 ply tires. Travel speeds based on 45/65-45 L-5 46 ply tires. |
Hydraulic System - Lift/Tilt
| Spec | Value |
|---|---|
| Output at 1,850 rpm and 6900 kPa (1,000 psi) | 161 gal/min 610 l/min |
| Cylinders, Double Acting – Lift, Bore and Stroke | 177 mm × 1760 mm (0.58 ft × 5.8 ft) 177 mm × 1760 mm (0.58 ft × 5.8 ft) |
| Cylinder, Double Acting – Tilt and Tip, Bore and Stroke | 267 mm × 286 mm (0.88 ft × 0.94 ft) 267 mm × 286 mm (0.88 ft × 0.94 ft) |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank – Standard | 413 gal (US) 1562 l |
| Cooling System | 53 gal (US) 200 l |
| Crankcase | 32 gal (US) 120 l |
| Transmission | 45 gal (US) 169 l |
| Differential – Final Drives – Front | 98 gal (US) 369 l |
| Differential – Final Drives – Rear | 90 gal (US) 342 l |
| Hydraulic System – Steering and Engine Cooling Fan – Tank Only | 77 gal (US) 290 l |
| Note (1) | - All nonroad U.S. EPA Tier 4, European Union (EU) Stage IIIB and V, and Japan (MLIT) Step 4 diesel engines are required to use only Ultra Low Sulfer Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfer or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfer or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214. Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. For further fluid specifications and guidelines, visit: http://parts.cat.com/cda/files/3244668/7/SEBU6250-19.pdf - All nonroad U.S. EPA Tier 4, European Union (EU) Stage IIIB and V, and Japan (MLIT) Step 4 diesel engines are required to use only Ultra Low Sulfer Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfer or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfer or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214. Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. For further fluid specifications and guidelines, visit: http://parts.cat.com/cda/files/3244668/7/SEBU6250-19.pdf |
Axles
| Spec | Value |
|---|---|
| Front | Fixed Fixed |
| Rear | Trunnion Trunnion |
Brakes
| Spec | Value |
|---|---|
| Brakes | Meets ISO 3540:2011 Meets ISO 3540:2011 |
Blades
| Spec | Value |
|---|---|
| Blade Capacities | 30.5 to 44.8 m3 (40 to 58.6 yd3) 30.5 to 44.8 m3 (40 to 58.6 yd3) |
Dimensions (Approximate)
| Spec | Value |
|---|---|
| Height – Top of ROPS | 18.25 ft 5590 mm |
| Height – Top of Exhaust Pipe | 17.17 ft 5234 mm |
| Height – Top of Hood | 13 ft 3984 mm |
| Ground Clearance | 27 in 691 mm |
| Centerline of Front Axle to Hitch | 9.67 ft 2945 mm |
| Centerline of Rear Axle to Edge of Bumper | 13.75 ft 4195 mm |
| Wheel Base | 19.25 ft 5890 mm |
| Length – With Blade on Ground | 44 ft 13405 mm |
Hydraulic System - Steering
| Spec | Value |
|---|---|
| Steering System – Pump | Piston, variable displacement Piston, variable displacement |
| Minimum Turning Radius – Over Blade | 31 ft 9550 mm |
| Steering System – Circuit | Pilot, load sensing Pilot, load sensing |
| Total Steering Angle | 86 degrees 86 degrees |
| Relief Valve Setting | 5004 psi 34500 kPa |
Operating Specifications
| Spec | Value |
|---|---|
| Operating Weight | 224647 lb 101898 kg |
Sound Performance Levels
| Spec | Value |
|---|---|
| Sound Performance | • The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. • The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. • Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. • The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. • The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. • Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
Cab
| Spec | Value |
|---|---|
| ROPS/FOPS | ISO 3471:2008 and ISO 3449:2005 Level II Standards ISO 3471:2008 and ISO 3449:2005 Level II Standards |
Standard Equipment
ELECTRICAL AND LIGHTING
- Alternator, 150 amp
- Batteries, maintenance free (4 – 1,400 CCA)
- Battery disconnect and jump start receptacle, bumper
- Deutsch terminal connectors
- Electrical system, 24V
- Electronic transmission control
- Lighting system, halogen (front and rear) lighting, access stairway, engine compartment
- Starter lockout in bumper
- Starting and charging system, 24V
- Transmission lockout in bumper
POWERTRAIN
- Brakes, oil cooled, multi-disc, service/secondary
- Engine brake
- Engine, Cat C32B
- Fuel priming pump (electric)
- Ground level engine shutoff
- Axle oil coolers (front and rear)
- Pre-cleaner, engine air intake (above hood)
- Radiator, Aluminum Modular (AMR)
- Starting aid, (ether) automatic
- Throttle lock electronic
- Torque converter, impeller clutch with lock-up clutch (ICTC) and rimpull control system
- Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R)
OPERATOR ENVIRONMENT
- Advisor display, displays real time operating information, performs calibrations and customizes operator setting
- Air conditioner and heater with automatic temperature control
- Air pre-cleaner, powered
- Cab, sound-suppressed pressurized, separate external rollover protective structure (ROPS/FOPS)
- Cigar lighter and ashtray
- Coat hook
- Converter (12V, 10-15 amp) and power port
- Digital display on center console: gear, ground speed, machine hours
- Electro-hydraulic blade controls, joystick
- Heater and defroster
- Horn, electric
- Instrumentation, gauges: engine coolant temperature, fuel level, hydraulic oil temperature, powertrain oil temperature, tachometer
- Instrumentation, warning indicators: action alert system – three categories, automatic transmission model enable status, brake malfunction, bucket float status, delayed engine shutdown status, engine idle shutdown status, engine malfunction, fuel economy mode enable status, hydraulic lockout, lockup clutch enable status, low fuel level, parking brake status, rimpull control enable status, seat belt warning, secondary steering (if equipped), throttle lock status, transmission gear
- Light, cab, dome
- Lunchbox and beverage holders
- Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion
- Radio, AM/FM with Bluetooth®, USB Port, 3.5 mm (0.14 in) auxiliary (AUX) input
- Tinted glass
- Wet-arm wipers/washers (front, rear, and corner) – intermittent front wiper
SAFETY
- Alarm, back-up
- Camera, rear vision
- Emergency platform egress
- Implement lock out switch
- LED warning strobe
- Mirrors, rearview (externally mounted)
- Seat belt, retractable, 76 mm (3 in) wide
- Separate external protective structure (ROPS/FOPS)
- Stairway, left and right rear access
- Steering and transmission lock lever, cab
- Steering, secondary
- Seat, trainer with lap belt,
- 76 mm (3 in) wide
- Toe kicks
SERVICE
- Automatic Lubrication System greases the hitch, steering, and axle trunnion bearings
- Axle ecology drains
- Battery disconnect and jump start receptacle, bumper
- Case drain filters
- Coupling, Cat O-ring face seals
- Engine, crankcase, 500 hour interval with CH4
- Front walkway around cab
- Guards, crankcase and power train
- Ground-level fast fill fuel system
- Ground-level service center with Electronic Technician (ET) port, fast fill fluid ports, ecology drains
- Grouped/Labeled lube points
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Oil sampling valves
- Starter and Transmission lockouts in bumper
- Sight gauges for steering, implement and transmission oil
- Vital Information Management System (VIMS™) 3G with graphical information display: external data port, customizable operator profiles
COOLING
- Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])
COLD WEATHER
- Heated Seat
EFFICIENCY
- Economy mode with on-demand throttle
- Positive Flow Control implement system
- Impeller Clutch Torque Converter (ICTC) with lock-up clutch
- Load-sensing steering
- Soft detent controls
- Engine idle management features: auto idle kickdown, delayed engine shutdown, engine idle shutdown
TRAMMING
- Front Fenders
Optional Equipment
ELECTRICAL AND LIGHTING
- Lights, HID
- Lights, LED
- Product Link (Cellular)
- Product Link (Satellite)
POWERTRAIN
- Driveline parking brake
- No spin rear axle
- Pre-cleaner, raised
OPERATOR ENVIRONMENT
- Radio, Sirius XM/AM/FM radio with Bluetooth technology, USB Port, 3.5 mm (0.14 in) AUX input
- Rubber mounted cab glass
- Window sun screen
SAFETY
- Egress, powered rear access
- Object detection (radar)
- Wheel Chocks
SERVICE
- High pressure hydraulic oil screen
- Product Link™
- Tire pressure monitoring
BLADES
- Semi-U, 30.5 m3 (40 yd3) HD Semi-U, 30.5 m3 (40 yd3) Coal, 44.8 m3 (58.6 yd3)
- Paint, black blade rear
COOLING
- High ambient cooling system (recommended for ambient temperatures up to 50° C [122° F] for EPA Tier 4 Final emissions certified machines and 55 C [131 F] for EPA Tier 2 equivalent machines)
COLD WEATHER
- Antifreeze, –50° C (–58° F)
- 120V or 240V coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])
- Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])
- –40° C (–40° F) Hydraulic Oil, Arctic
- Heater Mirrors
MACHINE CONTROL AND GUIDANCE
- Cat Terrain ready
TIRES AND RIMS
- Tires 45/65R45
- Tires 45/65-45
- Rims only
TRAMMING
- Fender extensions, roading, front and rear
SOUND SUPPRESSION
- Sound-suppression package
