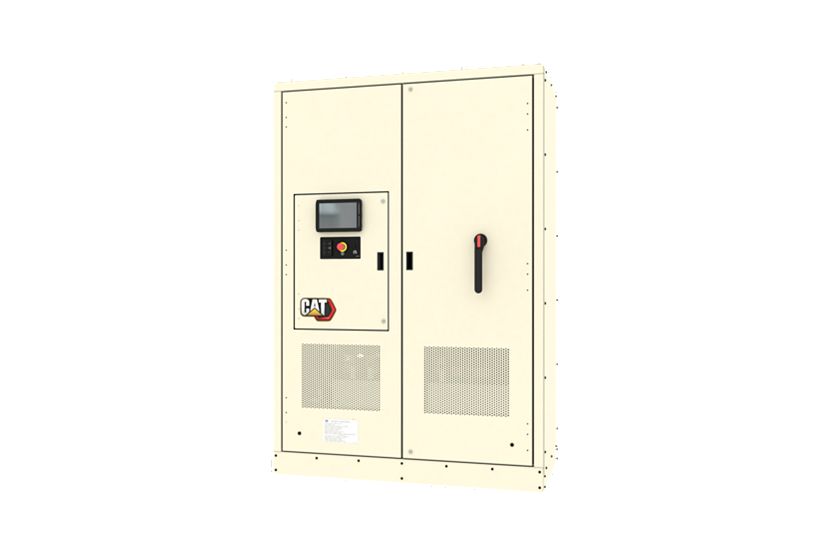

Cat® BDP1000 Bi-Directional Power Inverter
Application
Energy Storage System
Energy Storage System
Module Type
Integral part of Power Grid Stabilization and Energy Time Shift modules
Integral part of Power Grid Stabilization and Energy Time Shift modules
Rated Power
1000 kVA (1000kW 1PF)
1000 kVA (1000kW 1PF)
Overview
The Cat® BDP1000 is a high performance inverter that provides reliable control of the Energy Storage System (ESS). Integrated controls provide complete control of the charge and discharge of the ESS.
Media
Photos
360° View
Exterior
360 Exterior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Technical Summary
| Spec | Value |
|---|---|
| Application | Energy Storage System Energy Storage System |
| Module Type | Integral part of Power Grid Stabilization and Energy Time Shift modules Integral part of Power Grid Stabilization and Energy Time Shift modules |
| Rated Power | 1000 kVA (1000kW 1PF) 1000 kVA (1000kW 1PF) |
Standard Equipment
Panel
- 10′ high-resolution color LCD touchscreen
Isolation Switch
- Contactor and Manual Isolation Switch with Lockout Feature
Protection
- Electrically Operated Breaker with LSI Trip Unit
Related Products
Control Panels

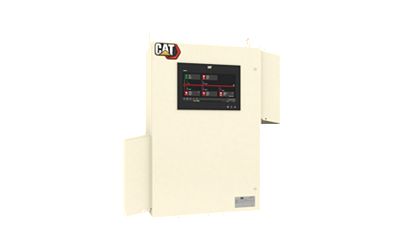

Cat® Microgrid Master Controller-Small (MMC-S)
