Caterpillar
XES60 (60 Hz)
Nominal Power
24 kW (30 kVA)
24 kW (30 kVA)
Energy Storage
56.8 kWh
56.8 kWh
Enclosure Rating
IP55
IP55
Overview
Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.
Media

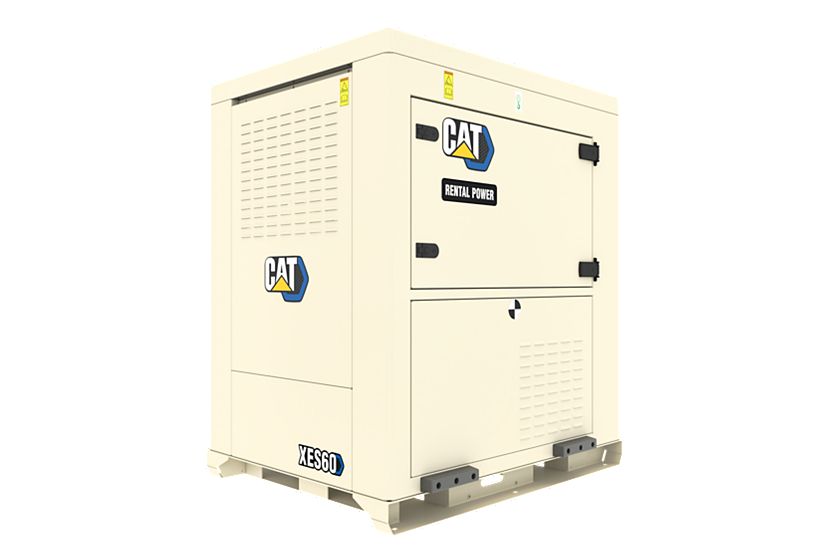

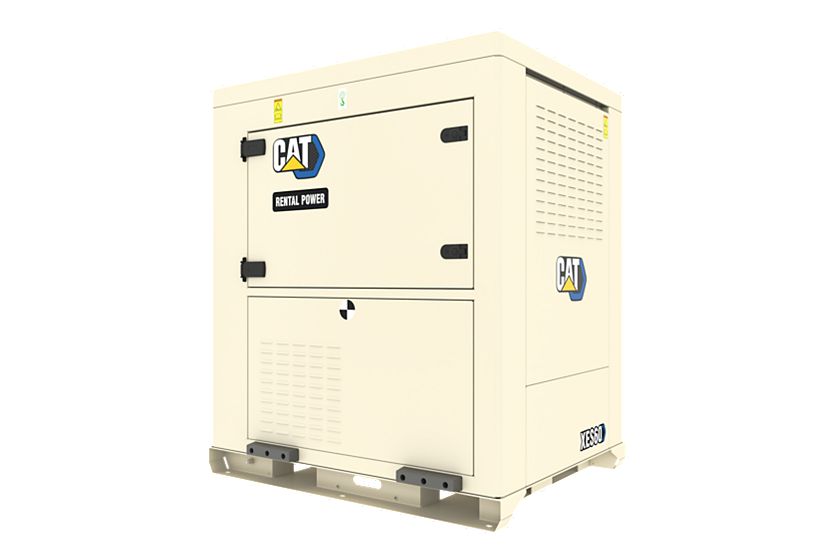

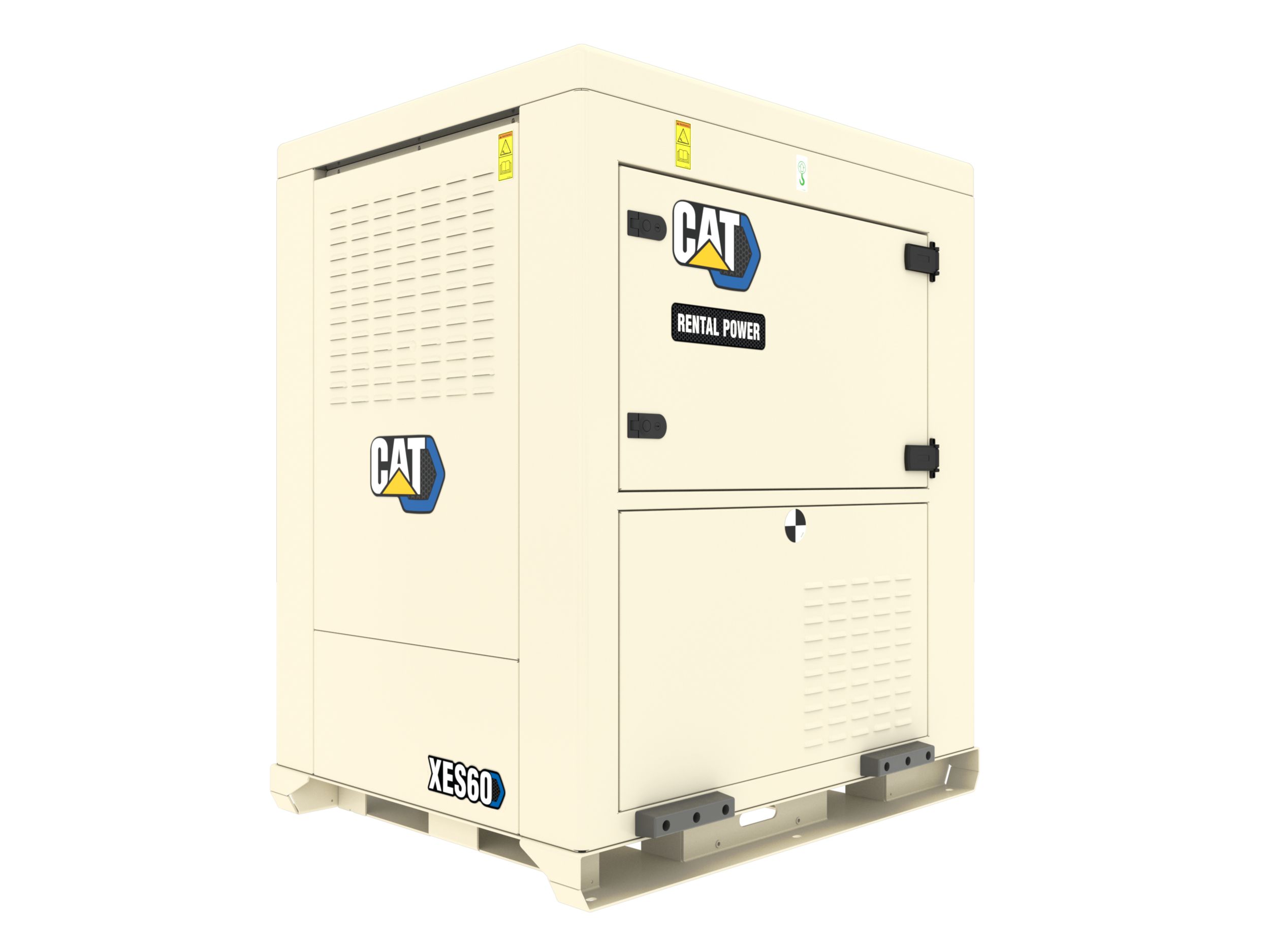

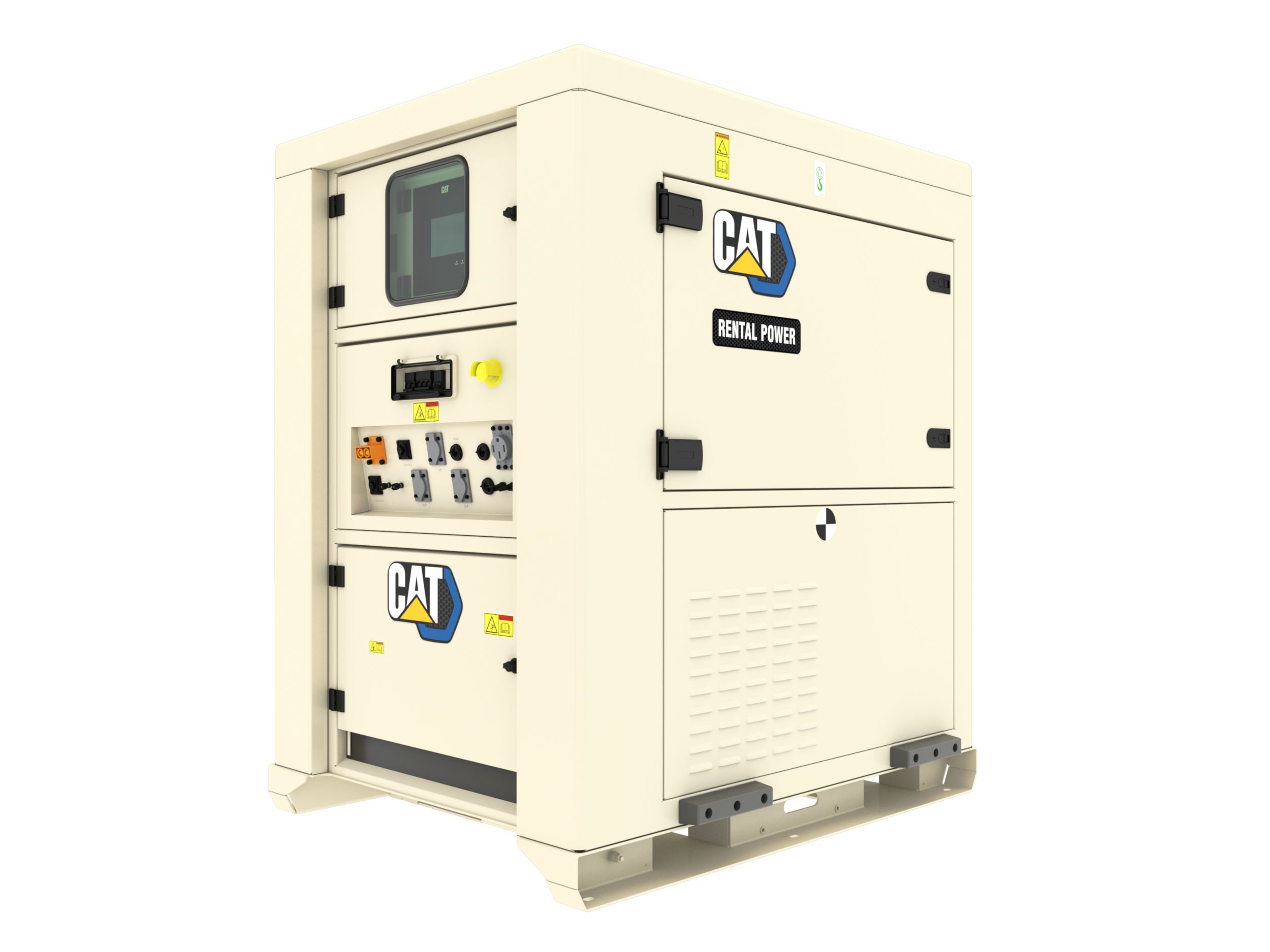

Photos
360° View
Exterior
360 Exterior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Technical Summary
| Spec | Value |
|---|---|
| Nominal Power | 24 kW (30 kVA) 24 kW (30 kVA) |
| Energy Storage | 56.8 kWh 56.8 kWh |
| Application | Energy Storage Energy Storage |
Environmental Parameters
| Spec | Value |
|---|---|
| Enclosure Rating | IP55 IP55 |
| Operating Temperature | 0° to 50°C (32° to 122°F) 0° to 50°C (32° to 122°F) |
| Storage Temperature | -10° to 50°C (14°to 122°F) -10° to 50°C (14°to 122°F) |
Standard Equipment
XES60 (60 Hz) Energy Storage System
- 56.8 kWh Li Ion Batteries
- 24 kW (30 kVA) 208/120 V 60 Hz Inverter
- Energy Management System with Color HMI Touchscreen
- Camlock & busbar connectors
- NEMA receptacles
- Maintenance charge input
- Remote monitoring hardware
- Variable speed forced air cooling
- Weather-proof enclosure
- Lifting Eye
- Fork Pockets
