Caterpillar

XES60 (50 Hz)

Nominal Power

36 kW (45 kVA)

36 kW (45 kVA)

Energy Storage

56.8 kWh

56.8 kWh

Enclosure Rating

IP55

IP55

Overview

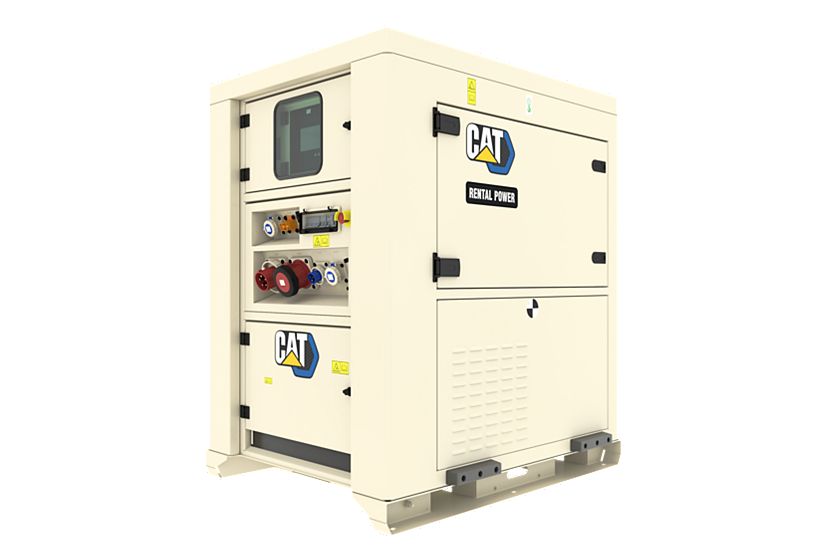

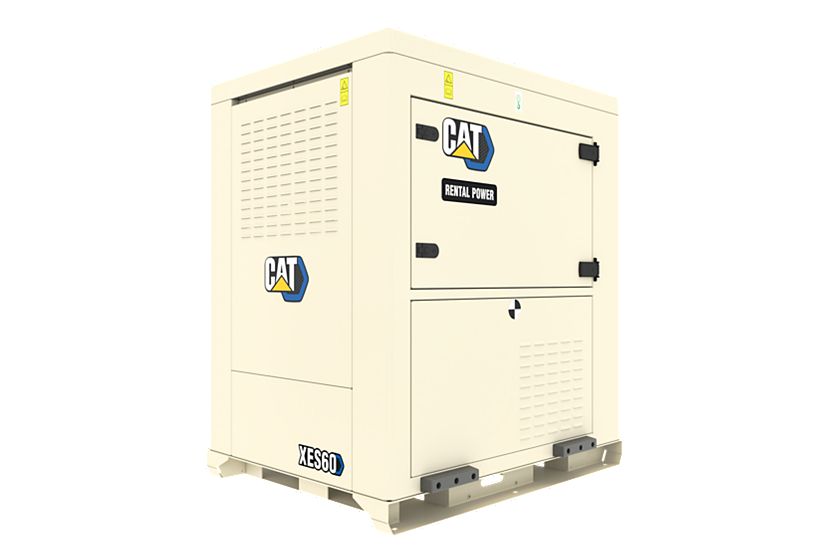

Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.

Media

Photos

360° View

Exterior

360 Exterior view. Double click on the image to zoom in on any area of the product.

Features

Details

Specifications

Spec Value
Nominal Power 36 kW (45 kVA) 36 kW (45 kVA)
Energy Storage 56.8 kWh 56.8 kWh
Application Energy Storage Energy Storage
Spec Value
Enclosure Rating IP55 IP55
Operating Temperature 0° to 50°C (32°to 122°F) 0° to 50°C (32°to 122°F)
Storage Temperature -10° to 50°C (14°to 122°F) -10° to 50°C (14°to 122°F)

Standard Equipment

XES60 (50 Hz) Energy Storage System

  • 56.8 kWh Li Ion Batteries
  • 36 kW (45 kVA) 400/230 V 50 Hz Iinverter
  • Energy Management System with Color HMI Touchscreen
  • Busbar connectors
  • CEE Form Receptacles
  • Maintenance charge input
  • Remote monitoring hardware
  • Variable speed forced air cooling
  • Weather-proof enclosure
  • Fork Pockets
  • Lifting Eye
