Caterpillar

XES120 (50 Hz)

Nominal Power

72 kW (90 kVA)

72 kW (90 kVA)

Energy Storage

127.9 kWh

127.9 kWh

Enclosure Rating

IP55

IP55

Overview

Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.

Media

Photos

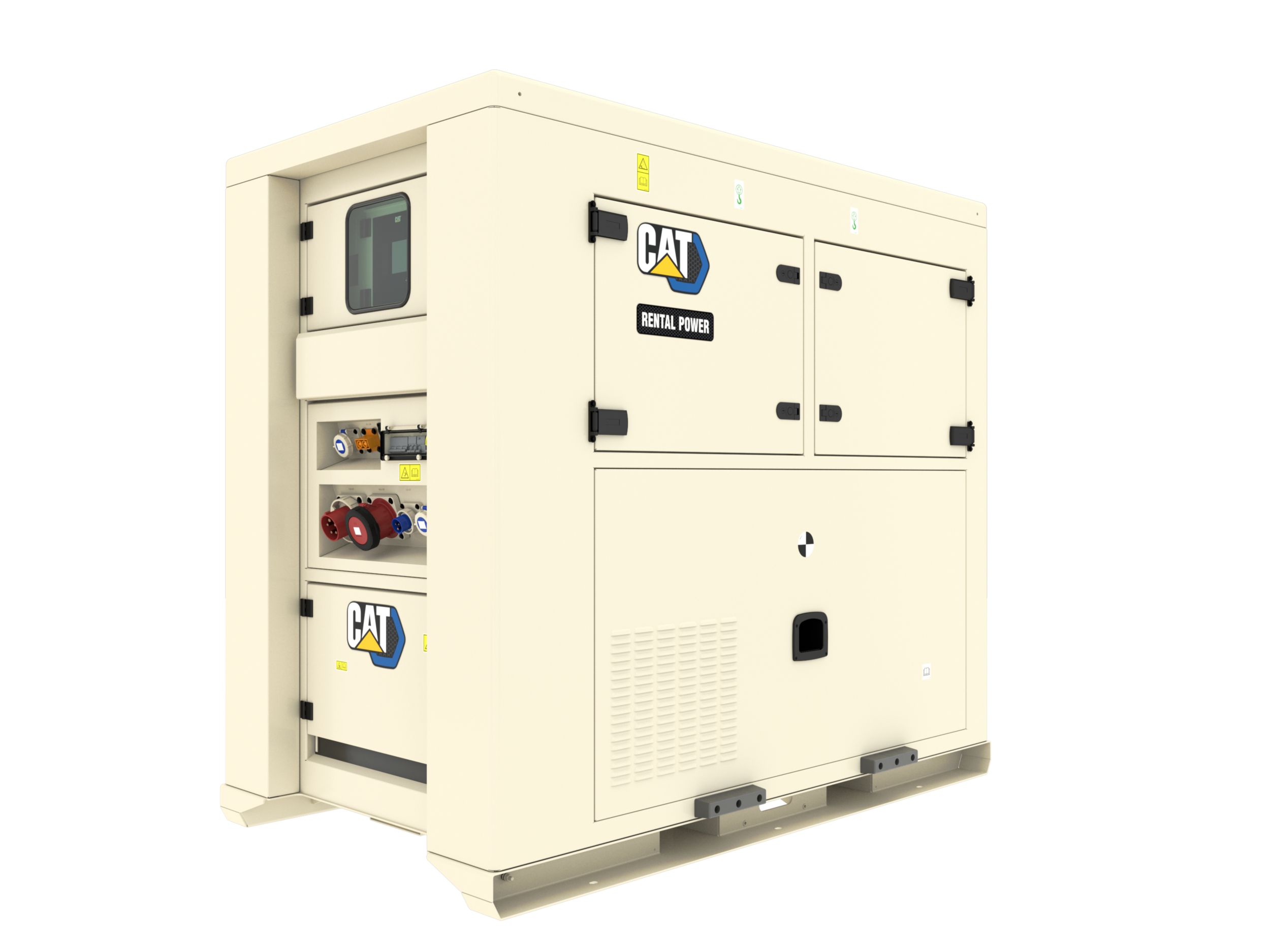

XES120 90k 50 Hz, Rear Right View
XES120 90k 50 Hz, Rear Right View
XES120 90k 50 Hz, Rear Left View
XES120 90k 50 Hz, Rear Left View
XES120 90k 50 Hz, Front Right View
XES120 90k 50 Hz, Front Right View
XES120 90k 50 Hz, Front Left View
XES120 90k 50 Hz, Front Left View

360° View

Exterior

360 Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Energy Control Module

Ease of use

Weather-proof Enclosure

Asset Monitoring

Details

Specifications

Spec Value
Nominal Power 72 kW (90 kVA) 72 kW (90 kVA)
Energy Storage 127.9 kWh 127.9 kWh
Application Energy Storage Energy Storage
Spec Value
Enclosure Rating IP55 IP55
Operating Temperature 0° to 50°C (32°to 122°F) 0° to 50°C (32°to 122°F)
Storage Temperature -10° to 50°C (14°to 122°F) -10° to 50°C (14°to 122°F)

Standard Equipment

XES120 (50 Hz) Energy Storage System

  • 120 kWh Li Ion batteries
  • 72 kW (90 kVA) 400/230 V 50 Hz Inverter
  • Energy Management System with Color HMI Touchscreen
  • Busbar connectors
  • CEE-Form Receptacles
  • Maintence charge input
  • Remote monitoring hardware
  • Variable speed forced air cooling
  • Weather-proof enclosure
  • Lifting Eye
  • Fork Pockets
