C2.2 Generator Set

Maximum Rating

22.0 kVA

22.0 kVA

Minimum Rating

13.0 kVA

13.0 kVA

Emissions/Fuel Strategy

R96/EUIIIa Equivalent

R96/EUIIIa Equivalent

Overview

Producing reliable power from 13.0 to 22.0 kVA at 50 Hz, our C2.2 diesel generator sets designed to ISO 8528-5 transient response requirements. All C2.2 generator sets are R96/EUIIIa equivalent emissions compliant.

Media

Photos

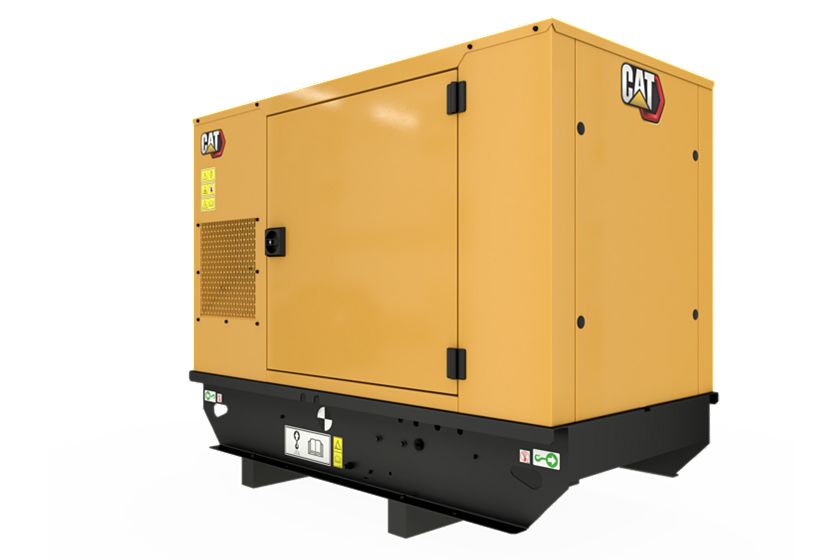

Enclosure
Enclosure

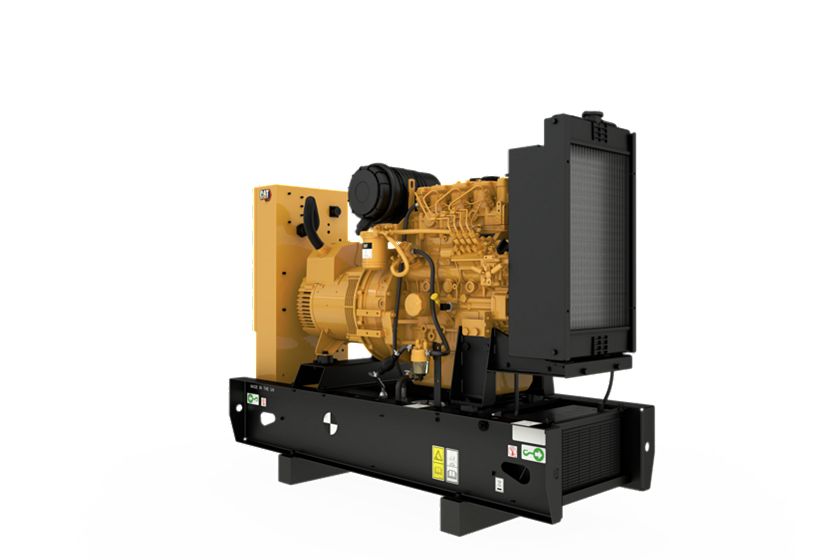

C2.2 Generator Set Rear Right
C2.2 Generator Set Rear Right
C2.2 Generator Set Rear Left
C2.2 Generator Set Rear Left

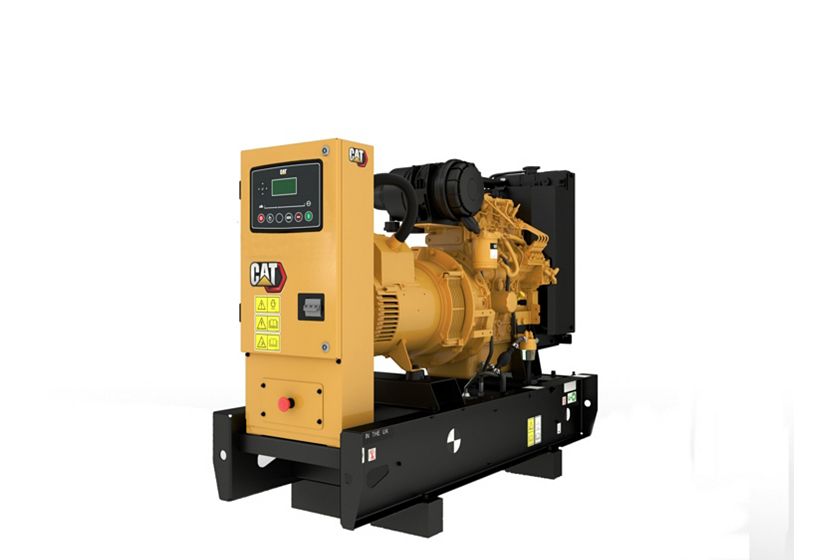

C2.2 Generator Set Front Right
C2.2 Generator Set Front Right
C2.2 Generator Set Front Left
C2.2 Generator Set Front Left
Enclosure
Enclosure

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

M-Frame Alternator

GCCP 1.3 Control Panel

Cooling System

Certifications

One Safe Source

World Wide Product Support

Details

Specifications

Spec Value
Maximum Rating 22.0 kVA 22.0 kVA
Minimum Rating 13.0 kVA 13.0 kVA
Emissions/Fuel Strategy R96/EUIIIa Equivalent R96/EUIIIa Equivalent
Voltage 110 to 415 Volts 110 to 415 Volts
Frequency 50 Hz 50 Hz
Speed 1500 rpm 1500 rpm
Duty Cycle Standby, Prime Standby, Prime
Spec Value
Engine Model Cat® C2.2, In-line 4, 4-cycle diesel Cat® C2.2, In-line 4, 4-cycle diesel
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 135.2 in³ 2.2 l
Compression Ratio 22.5:1 22.5:1
Aspiration Naturally Aspirated Naturally Aspirated
Fuel System Indirect Injection Indirect Injection
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 59.1 in 1500 mm
Width – Maximum 24.4 in 620 mm
Height – Maximum 43.9 in 1115 mm

Standard Equipment

Control Panel

  • GCCP 1.3

Air Inlet System

  • Air cleaner; light duty with disposable element

Cooling System

  • Radiator and cooling fan with guards
  • Caterpillar extended life coolant
  • Coolant drain line with valve
  • Fan drive, battery charging alternator drive

Fuel System

  • Standard open set fuel tank/base supplied
  • Base, formed steel with single wall integral 8-hour fuel tank

Exhaust System

  • Stub pipe, gaskets, raincap & SAE exhaust flange for customer use – shipped loose

Generators and Generator Attachments

  • Voltage regulator (single phase sensing)
  • Segregated low voltage (AC/DC) wiring panel
  • Tower panel, IP22, bottom cable entry
  • IP23 Protection
  • Circuit breaker, IEC, 3 pole, mounted in tower panel
  • 12 Leads

Governing System

  • Mechanical governing system

Lube System

  • Oil drain line with valve
  • Lubricating oil

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • includes lifting provisions and termination points for coolant

Starting / Charging System

  • 12 Volt battery with rack and cables

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Alternator Options

  • Coastal insulation protection

Certificates

  • European upgrade to STD set for CE certificate
  • Global certification for CIS

Circuit breakers

  • Padlockable breaker device
  • 4 Pole Circuit breaker

Control Panel Options

  • Emergency stop with key
  • Volt free contacts for common alarm
  • Volt free contacts for genset running
  • GCCP 1.3
  • Battery charger

Cooling System

  • Coolant heater

Enclosures

  • Sound attenuated enclosure (GALV)
  • Single point lift for enclosure

Fuel System

  • Low fuel level alarm

Mounting Options

  • Industrial silencer removal
  • Silencer installation kit
  • Battery removal

Special Test and Inspection

  • PGS Test report @ 1.0 power factor

General

  • Packing case – compact set
  • Packing case – canopied set
  • Radiator stone guard
