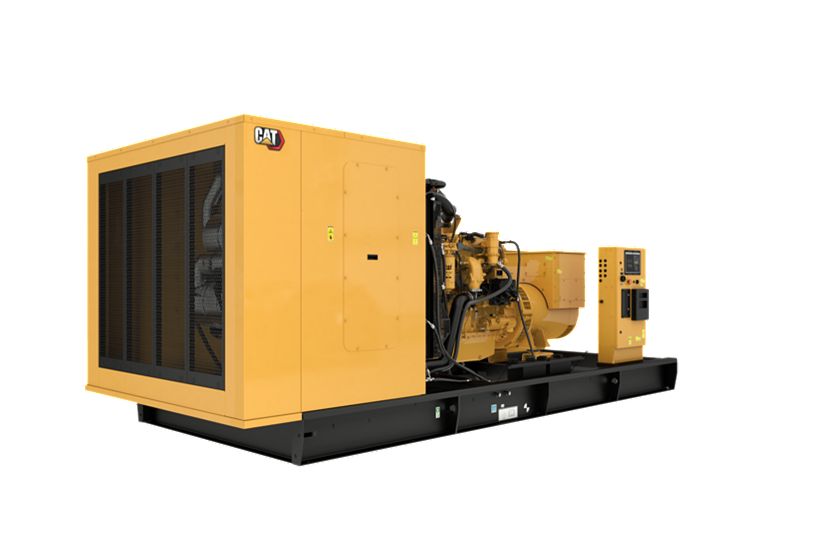

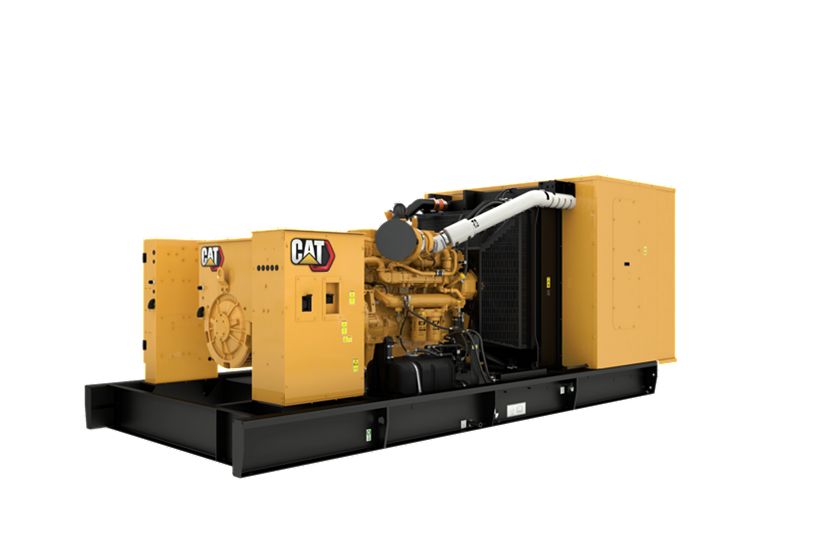

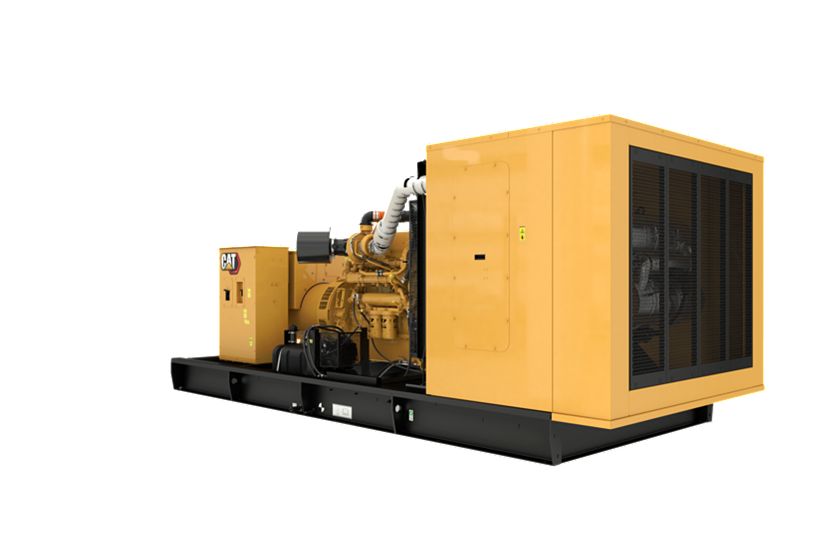

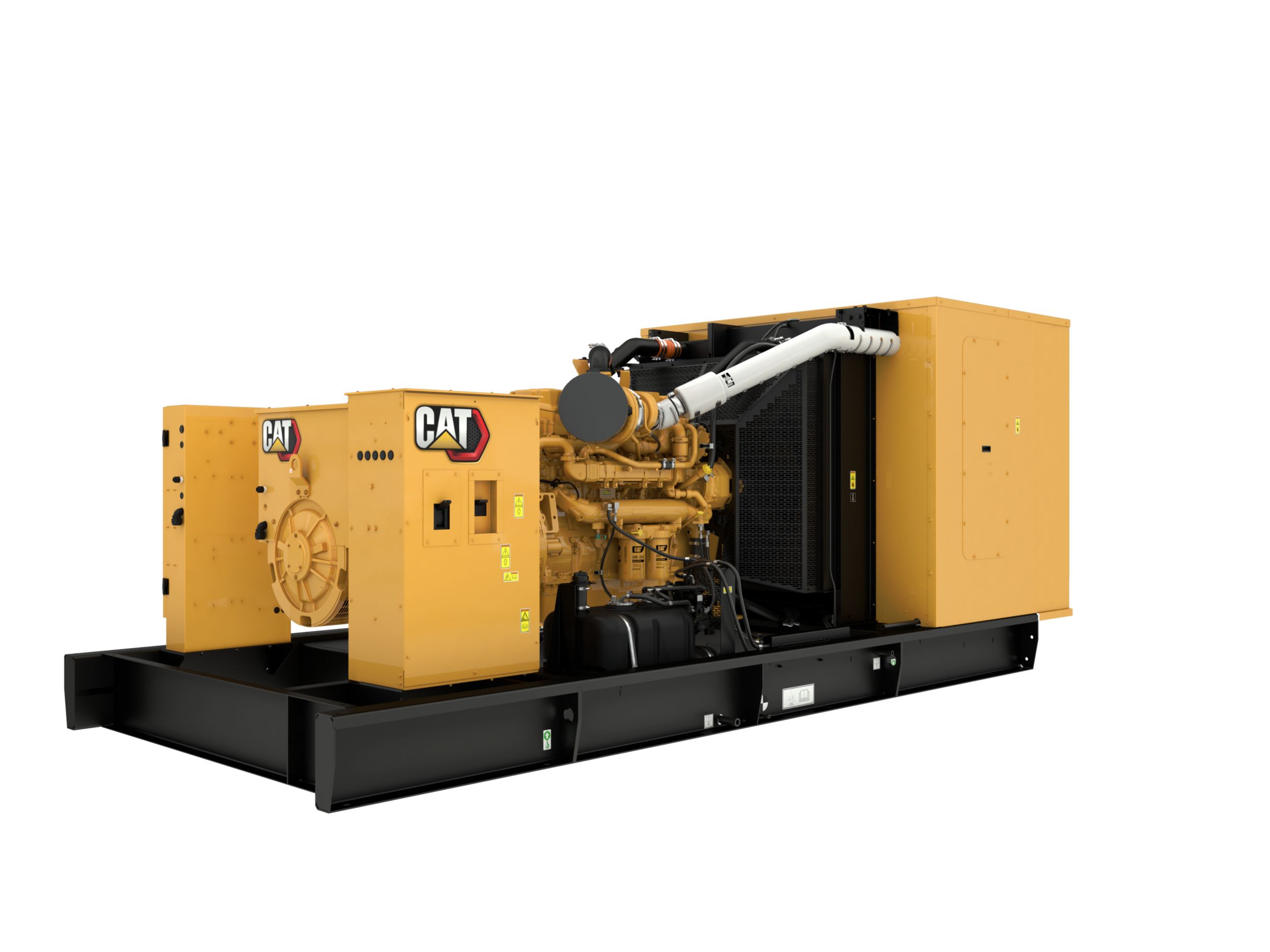

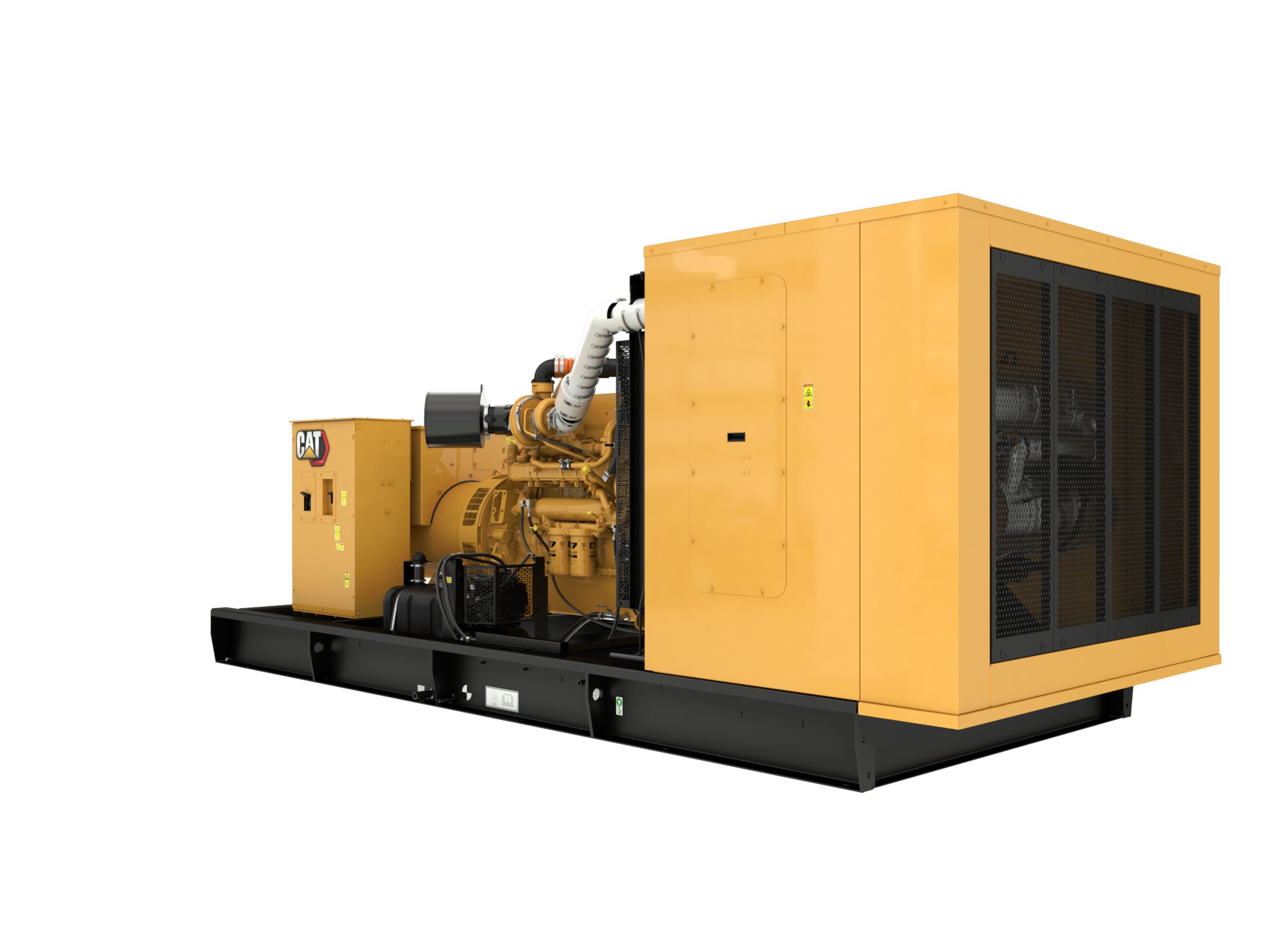

Standard Equipment

Air Inlet

• Air cleaner

Exhaust System

• Exhaust manifold – dry

Cooling

• Package mounted radiator

Fuel System

• Fuel cooler
• Engine fuel transfer pump
• Primary fuel filter w/integral water separator and secondary filter
• Fuel priming pump
• Flexible fuel lines

Exhaust

• Exhaust flange outlet

Fuel

• Primary fuel filter with integral water separator
• Fuel priming pump
• Secondary fuel filters

Generator

• Matched to the performance and output characteristics of Cat engines
• IP23 Protection
• Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time

Power Termination

• Busbar

Lube System

• Oil filter and dipstick
• Lubricating oil
• Oil drain lines with valve; piped to edge of base
• Fumes disposal, piped to front of radiator
• Oil cooler

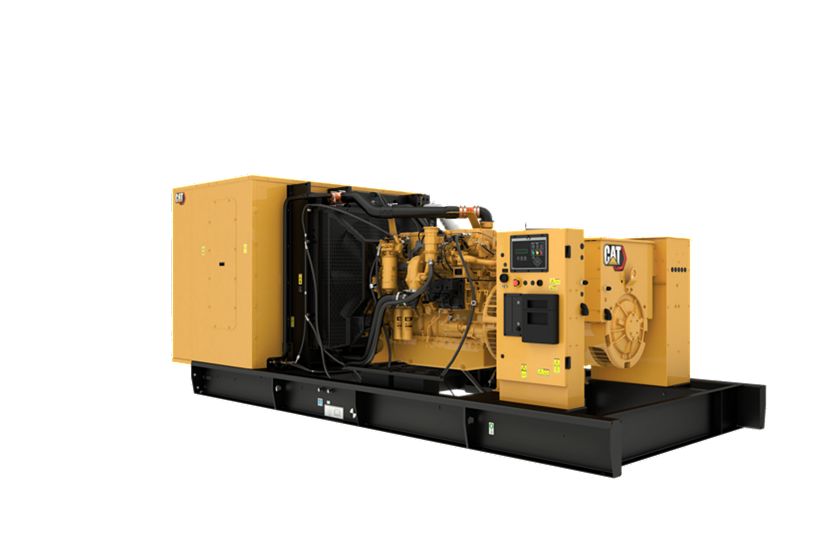

Control Panel

• GCCP Genset Controller

Mounting

• Rubber vibration isolators

Protection System

• Safety shutoffs for: Higher water temperature – Overspeed – Low oil pressure

Cooling System

• Thermostats and housing, full open temperature 92 deg C (198 deg F)
• Coolant level sensor
• Coolant level sight gauge
• Fan and belt guards
• Jacket water pump, gear driven, centrifugal
• Coolant drain line with valve; terminated on edge of base
• Caterpillar extended life coolant

Starting/Charging

• 24V, 45 Amp Charging alternator
• 24 Volt electric starting motor
• 24 volt starting motor
• Batteries

General

• Paint – Caterpillar yellow except rails and radiators gloss black
• Paint, Caterpillar yellow
• Operation and maintenance manual pack and OMM storage compartment
• Parts book
• Vibration damper

Control System

• Local annunciator
• Programmable Input / Output: 2 programmable digital inputs – 2 programmable relay outputs (Form A) – 2 programmable relay outputs (Form C)
• Suitable for use as service equipment label
• Separation plate
• Control panel mounting location
• Breaker box mounting location
• Optional external analog input
• Remote annunciators
• GCCP 1.2
• Communications: Customer data link (RS485 Modbus RTu) – Serial annunciator module data link for local and remote annunciator IVR – Integrated Voltage Regulation (Digital) – EM10 Excitation Module
• Controls include: Run/auto/ stop/control – Speed adjust – Voltage adjust – Engine cycle crank – Emergency stop pushbutton
• Digital indication for: rpm – DC volts – operating hours – Oil pressure (psi, kPa or bar) – Coolant temperature (C or F) – Volts (L-L & L-N), frequency (Hz) – Amps (per phase & average) – Power factor (per phase & average) – kW (per phase & average) – kVA (per phase & average) – kVAr (per phase and average) – kW-hr (total) – kVAr-hr (total)
• Programmable protective relaying functions: Generator phase sequence – Over/under voltage (27/59) – Over/under frequency (81 o/u) – Overcurrent (50/51)
• Warning/shutdown with common LED indication of shutdowns for: Low oil pressure – high coolant temperature – Overspeed – Emergency stop – Failure to start (overcrank) – Low coolant temperature – Low coolant level
• Control panel options: Dust proof control panel – volt free contact – Device server – Ground fault relay

Governing System

• Cat electronic governor (ADEM A4)

Generator and Attachments

• Segregated low voltage (AC/DC) wiring panel
• Brushless, self-excited 2/3 pitch, random wound.
• Insulation Class H and temperature rise
• AREP generator
• CIP – generators
• IP23 Protection
• Power center, IP22 bottom cable entry

Air Inlet System

• Single element air filter
• Air cleaner – Heavy duty
• Air cleaner – Single element

Extended Service Coverage

• Silver, Gold and Platinum coverage

Circuit breakers

• 3 Pole 100% rated
