Cat
C32 (50 Hz) India Market Only
Maximum Rating
1250 kVA
1250 kVA
Minimum Rating
1010 kVA
1010 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview

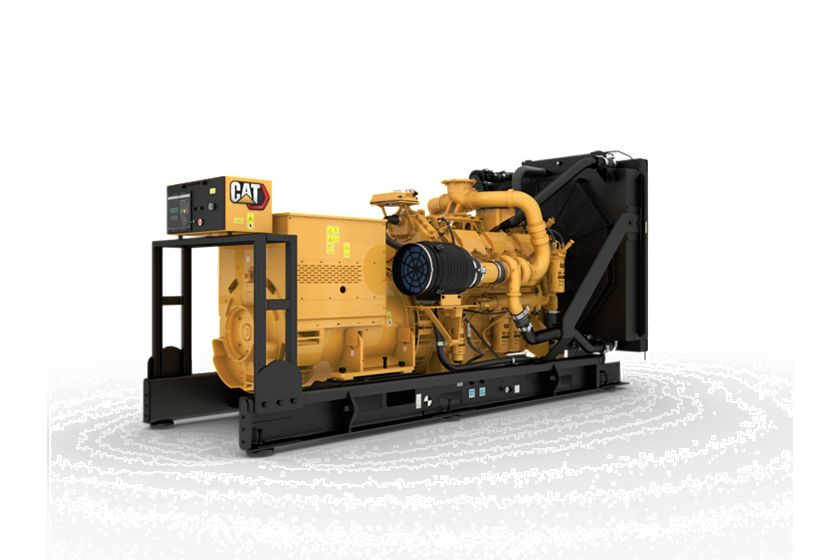

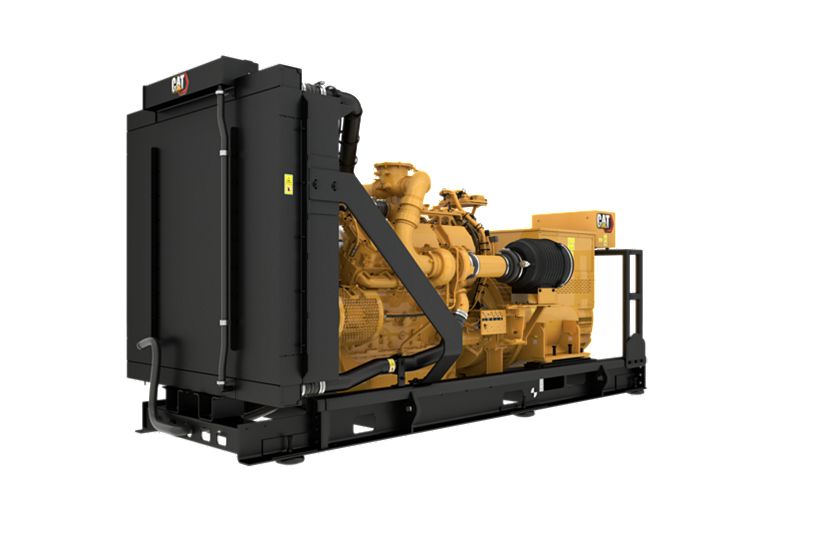

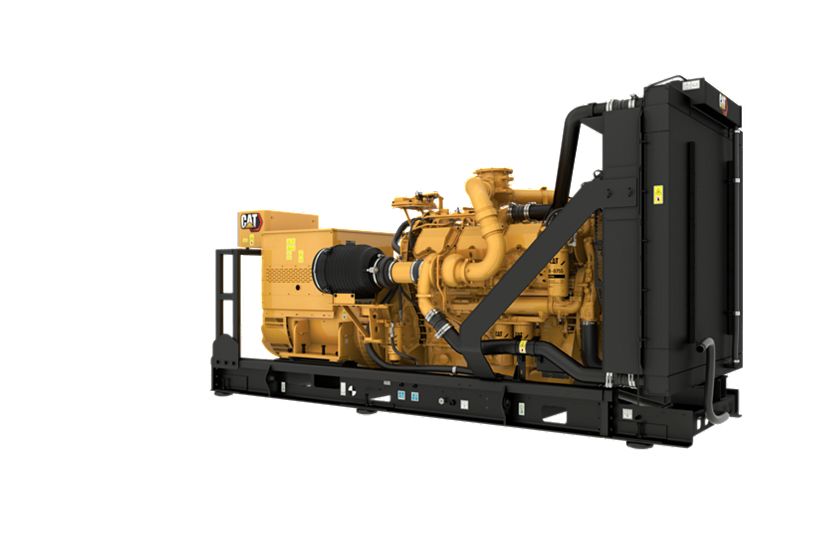

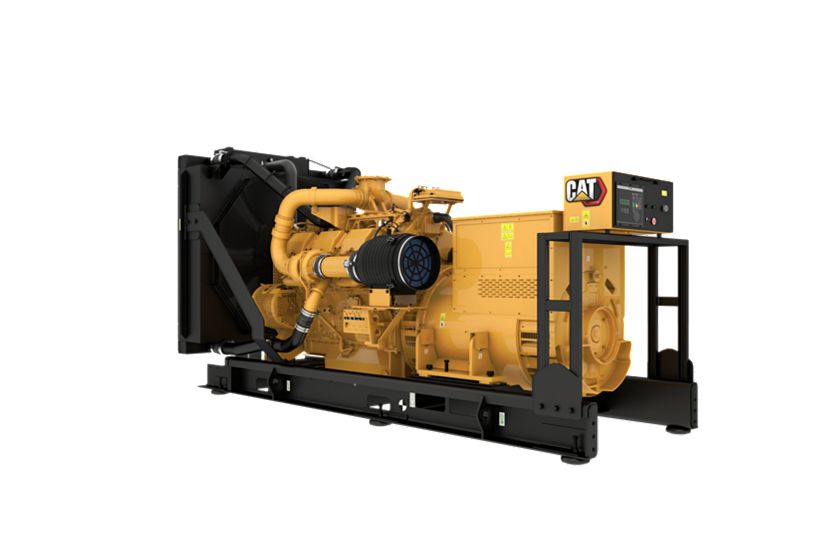

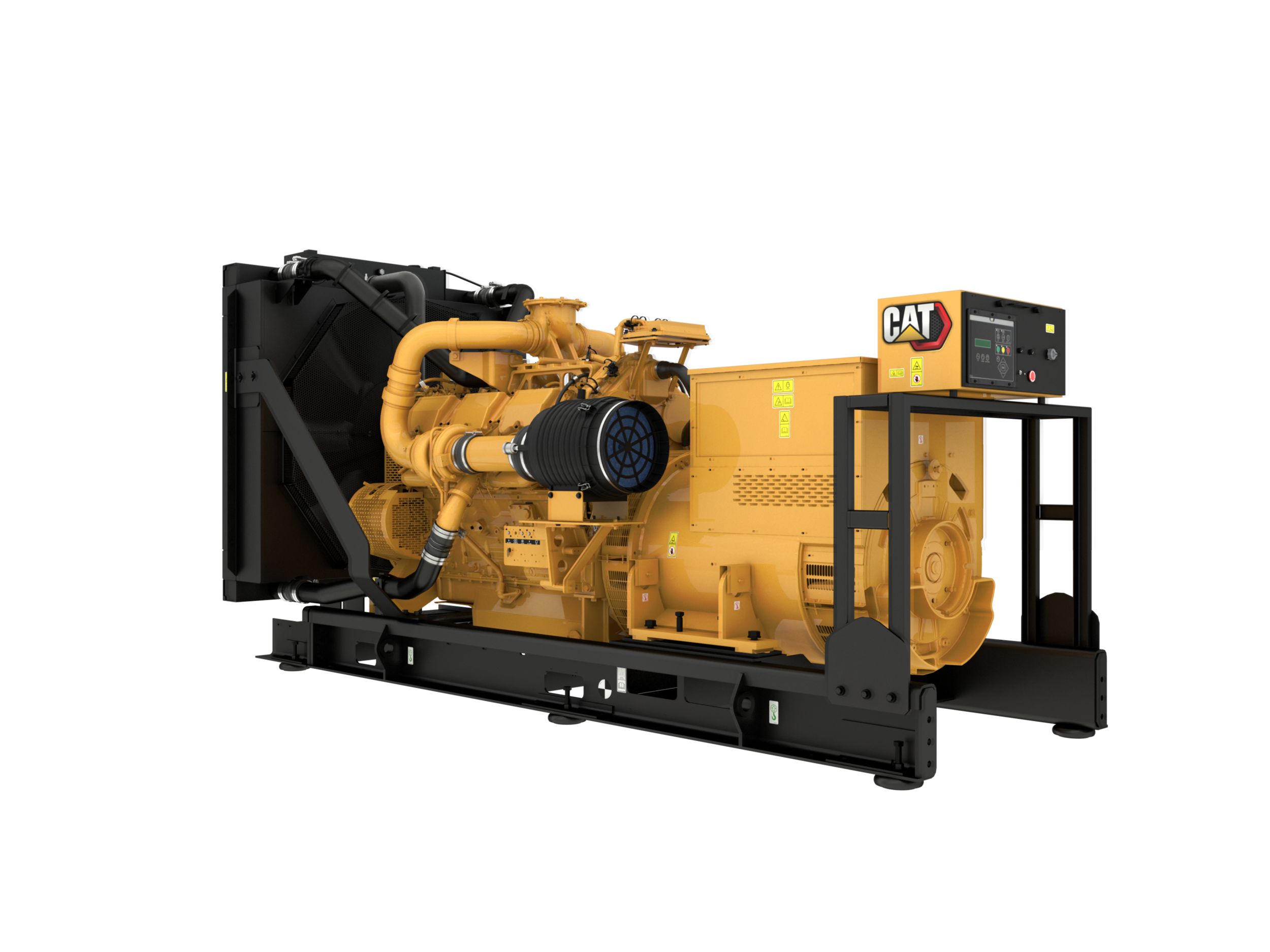

Producing reliable power from 1010 kVA to 1250 kVA at 50 Hz, our C32 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer a low fuel consumption system.
Media
Photos
Documents
Features
Cat Diesel Engine
SR5 Alternator
GCCP1.3 Control Panel
Cooling System
Certifications
One Safe Source
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 1250 kVA 1250 kVA |
| Minimum Rating | 1010 kVA 1010 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | 415 Vots 415 Vots |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.71 in 145 mm |
| Stroke | 6.38 in 162 mm |
| Displacement | 1958.86 in³ 32.1 l |
| Compression Ratio | 15.0:1 15.0:1 |
| Aspiration | TA TA |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
Standard Equipment
Cooling System
- Radiator or heat exchanger
Control Panel
- EMCP 4.2
Optional Equipment
Generator
- Anti-condensation heater
- Oversize and premium generators
- Winding and bearing temperature detectors
Control Panels
- EMCP 4.3, EMCP 4.4
- Digital I/O module
- Load share module
- Generator temperature monitoring and protection
- Remote monitoring software
Starting/Charging
- Jacket water heater
General
- Circuit breaker panel, based on regional and product configuration
- Heavy duty air cleaner, based on regional and product configuration
- Option for remote mounting of UIP, based on regional and product configuration
