Cat Generator Set Package
Main content
Cat
3512B (50 Hz) India Market Only
Maximum Rating
1500 kVA
1500 kVA
Minimum Rating
1500 kVA
1500 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview

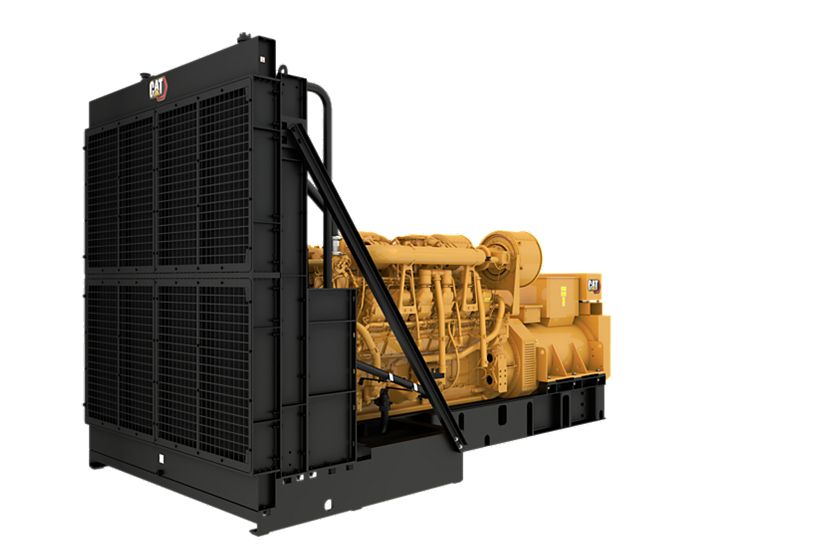

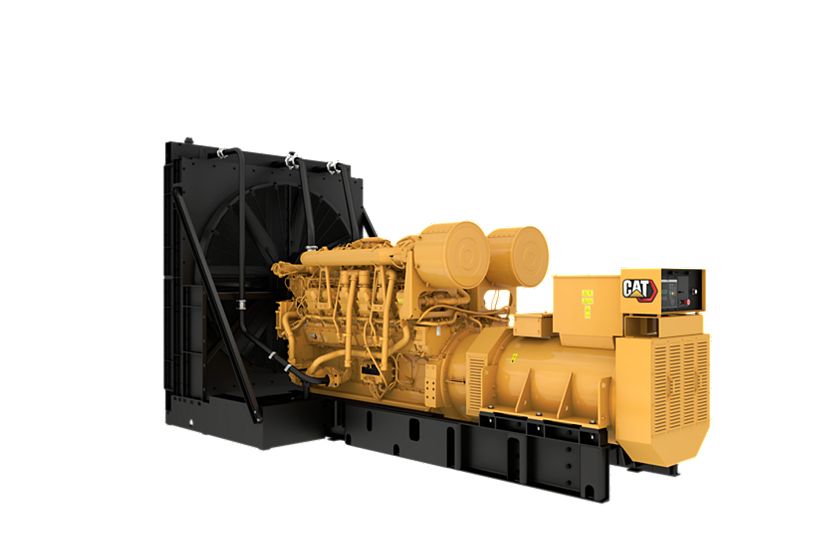

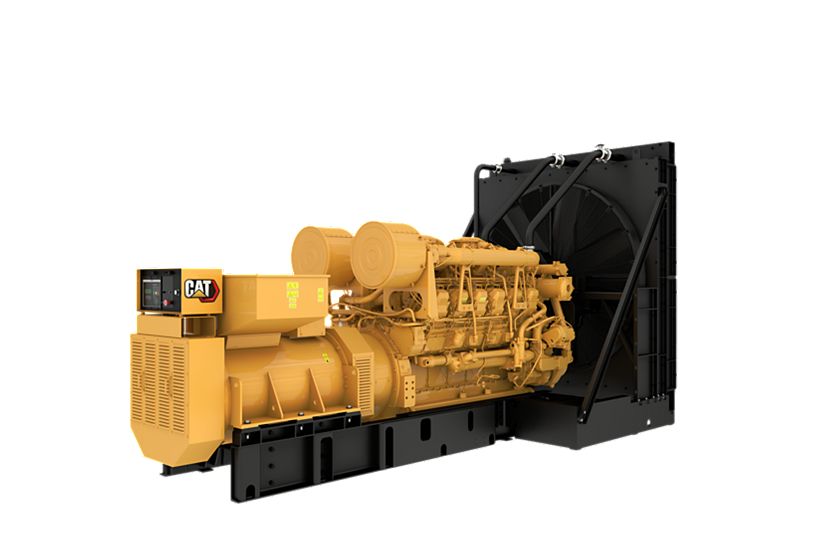

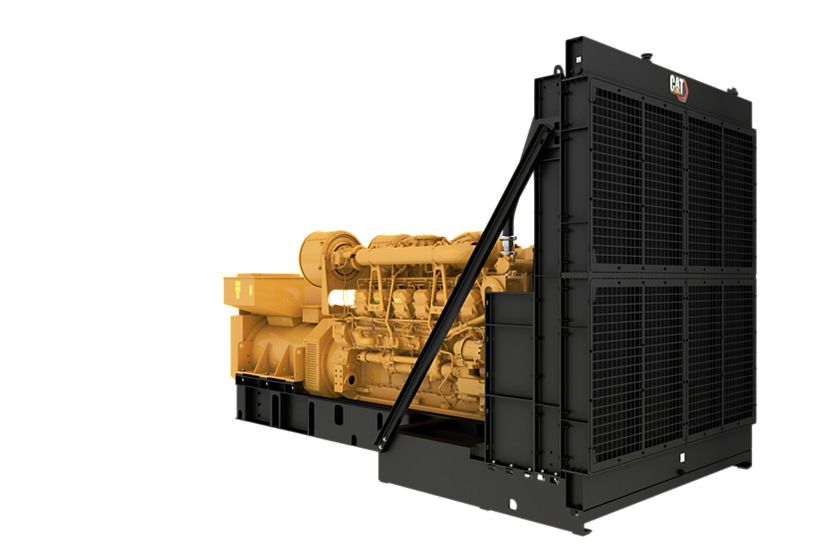

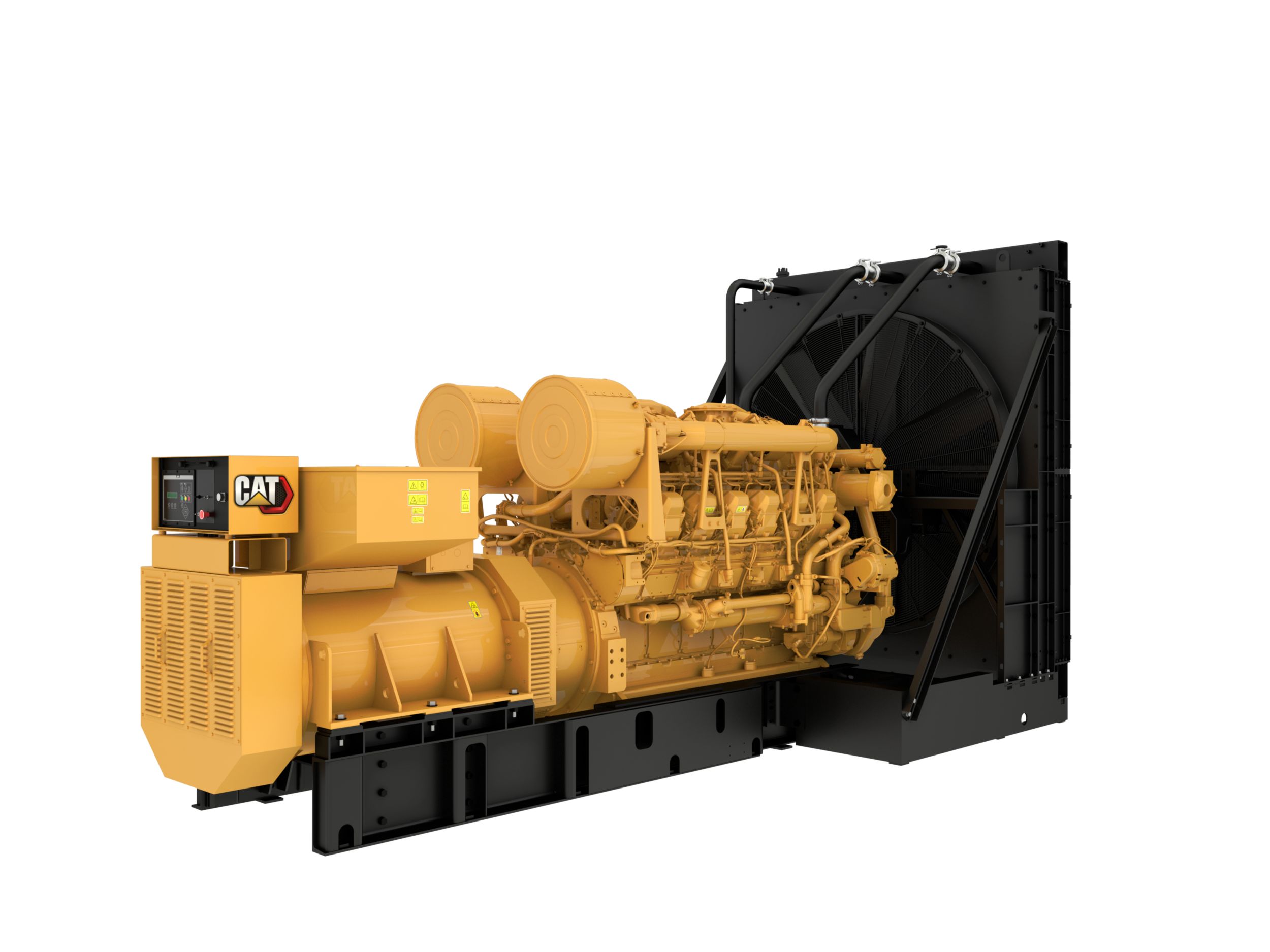

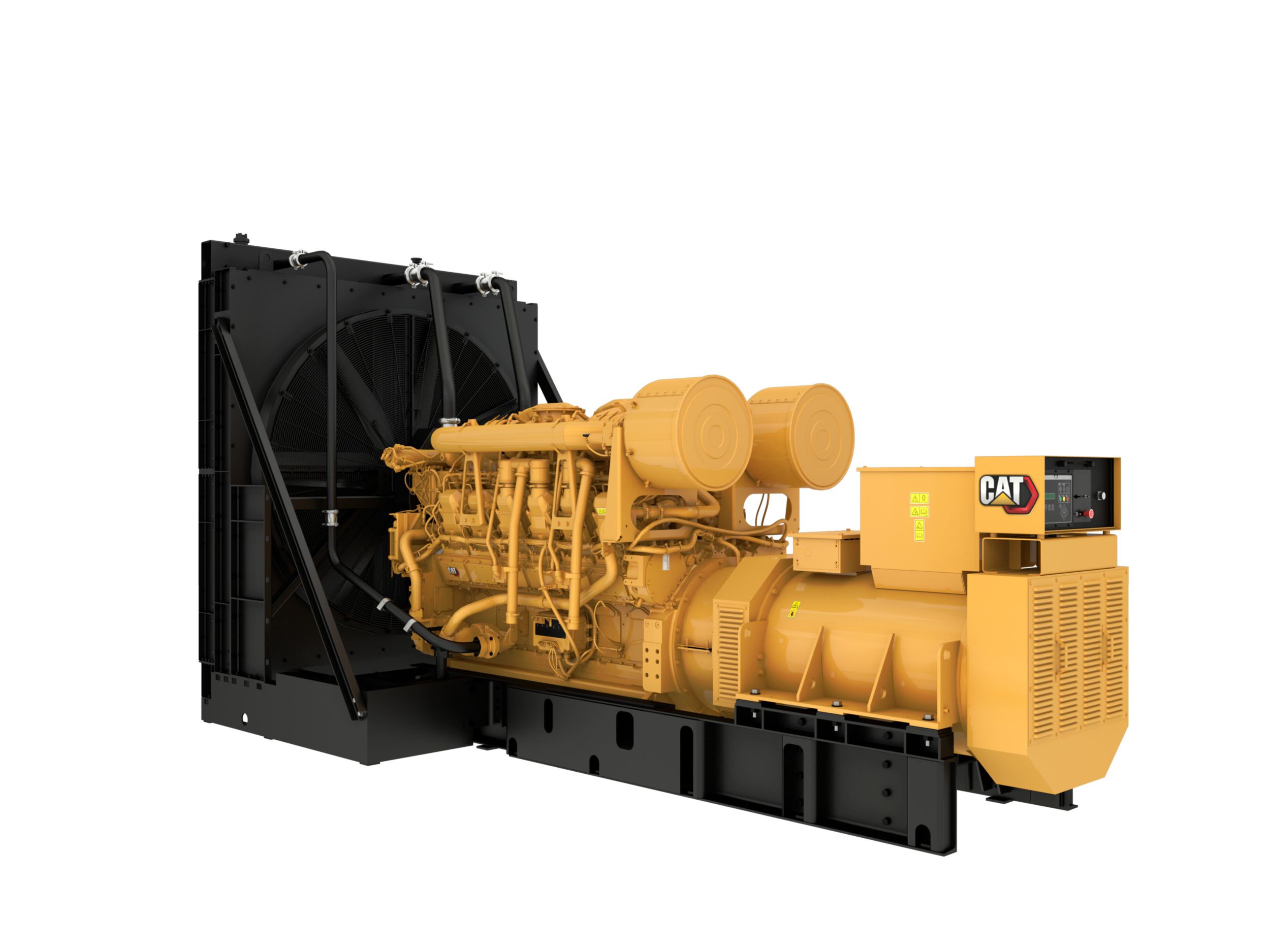

Producing reliable power from 1500 kVA 50 Hz, our 3512 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer a low fuel consumption system.
Media
Photos
360° View
Exterior
Features
Design Criteria
Cat Diesel Engine
Cat Diesel Engine
SR5 Alternator
EMCP 4 Control Panel
Cooling System
One Safe Source
World Wide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 1500 kVA 1500 kVA |
| Minimum Rating | 1500 kVA 1500 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | Low (415 Volts), Medium and High Voltage Low (415 Volts), Medium and High Voltage |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | 3512B TA, V-12, 4-Stroke Water-Cooled Diesel 3512B TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 6.69 in 170 mm |
| Stroke | 7.48 in 190 mm |
| Displacement | 3161.03 in³ 51.8 l |
| Compression Ratio | 14.0:1 14.0:1 |
| Aspiration | TA TA |
| Fuel System | Electronic Unit Injection Electronic Unit Injection |
| Governor Type | ADEM™ A3 ADEM™ A3 |
Standard Equipment
Cooling System
- Radiator or heat exchanger
Control Panel
- EMCP 4.2
General
- Paint – Caterpillar yellow except rails and radiators gloss black
