Cat

C2.2 Generator Set

Maximum Rating

20.0 ekW

20.0 ekW

Minimum Rating

15.5 ekW

15.5 ekW

Emissions/Fuel Strategy

R96/EUIIIa Equivalent

R96/EUIIIa Equivalent

Overview

Producing reliable power from 15.5 to 20.0 ekW at 60 Hz, our C2.2 diesel generator sets designed to ISO 8528-5 transient response requirements. All C2.2 generator sets are R96/EUIIIa equivalent emissions compliant.

Media

Photos

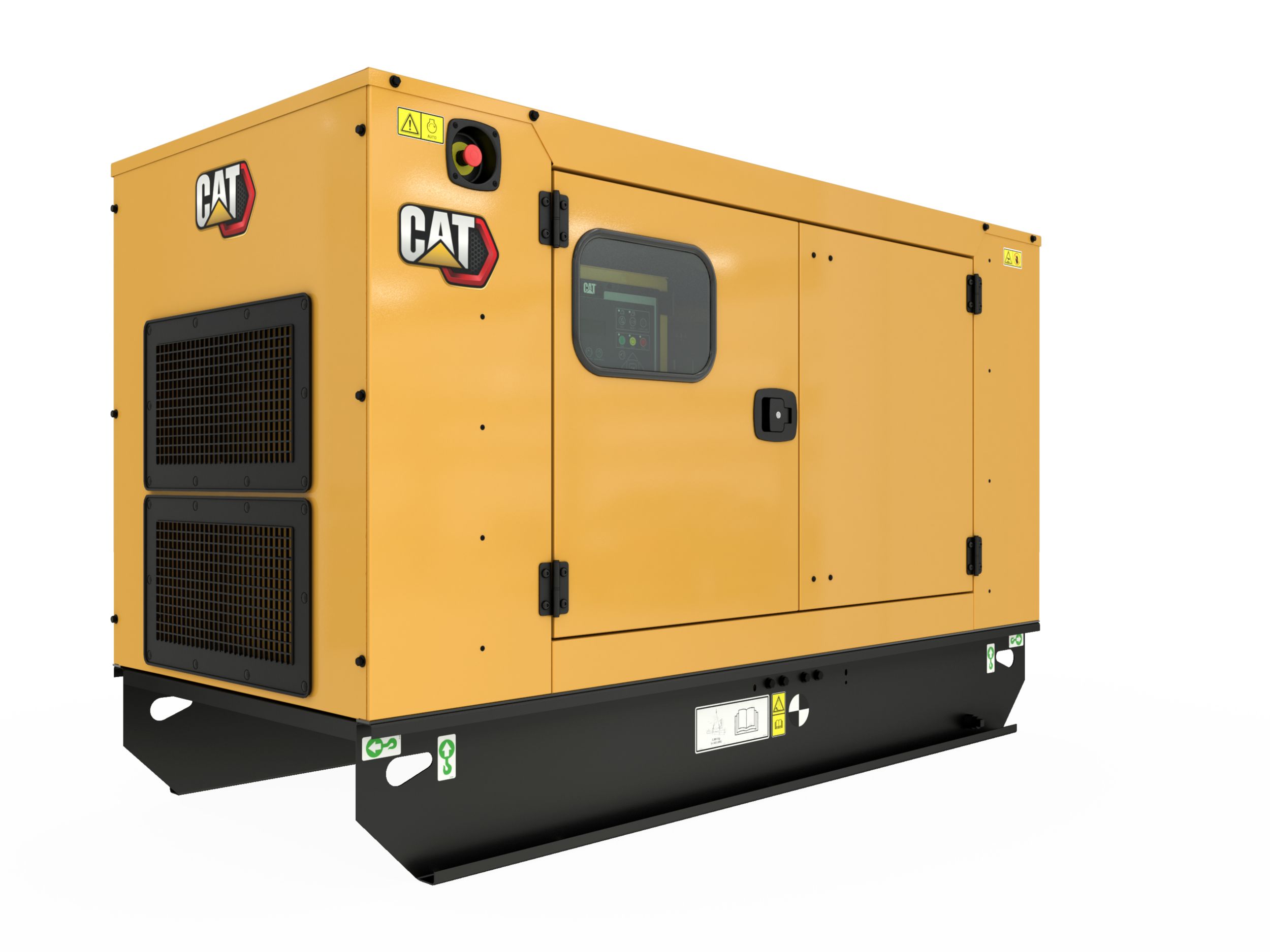

Enclosure
Enclosure
C2.2 Generator Set Rear Left
C2.2 Generator Set Rear Left
C2.2 Generator Set Rear Right
C2.2 Generator Set Rear Right
C2.2 Generator Set Left Right
C2.2 Generator Set Left Right
C2.2 Generator Set Front Left
C2.2 Generator Set Front Left
Encosure
Encosure

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

M-Frame Alternator

GCCP 1.3 Control Panel

Cooling System

Certifications

One Safe Source

World Wide Product Support

Details

Specifications

Spec Value
Maximum Rating 20.0 ekW 20.0 ekW
Minimum Rating 15.5 ekW 15.5 ekW
Emissions/Fuel Strategy R96/EUIIIa Equivalent R96/EUIIIa Equivalent
Voltage 110 to 415 Volts 110 to 415 Volts
Frequency 60 Hz 60 Hz
Speed 1800 rpm 1800 rpm
Duty Cycle Standby, Prime Standby, Prime
Spec Value
Engine Model Cat® C2.2, In-line 4, 4-cycle diesel Cat® C2.2, In-line 4, 4-cycle diesel
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 135.2 in³ 2.2 l
Compression Ratio 22.5:1 22.5:1
Aspiration Naturally Aspirated Naturally Aspirated
Fuel System Indirect Injection Indirect Injection
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 59.1 in 1500 mm
Width – Maximum 24.4 in 620 mm
Height – Maximum 43.9 in 1115 mm

Standard Equipment

Air Inlet System

  • Air cleaner; light duty with disposable element

Control Panel

  • GCCP 1.3

Cooling System

  • Radiator and cooling fan with guards
  • Fan drive, battery charging alternator drive
  • Caterpillar extended life coolant
  • Coolant drain line with valve

Exhaust System

  • Stub pipe, gaskets, raincap & SAE exhaust flange for customer use – shipped loose

Fuel System

  • Standard open set fuel tank/base supplied
  • Base, formed steel with single wall integral 8-hour fuel tank

Generators and Generator Attachments

  • IP23 Protection
  • Circuit breaker, IEC, 3 pole, mounted in tower panel
  • 12 Leads
  • Segregated low voltage (AC/DC) wiring panel
  • Voltage regulator (single phase sensing)
  • Tower panel, IP22, bottom cable entry

Governing System

  • Mechanical governing system

Lube System

  • Oil drain line with valve
  • Lubricating oil

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • Includes lifting provisions and termination points for coolant

Starting / Charging System

  • 12 Volt battery with rack and cables

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Alternator Options

  • Coastal insulation protection

Certificates

  • Global certification for CIS
  • European upgrade to STD set for CE certificate

Circuit breakers

  • 4 Pole Circuit breaker
  • Padlockable breaker device

Control Panel Options

  • Volt free contacts for common alarm
  • Battery charger
  • Volt free contacts for genset running
  • Emergency stop with key
  • GCCP 1.3

Cooling System

  • Coolant heater

Enclosures

  • Single point lift for enclosure
  • Sound attenuated enclosure (GALV)

Fuel System

  • Skidbase for enclosures
  • Skidbase for open sets
  • 1000 Hr extended service interval
  • DEFRA bunded fuel tank
  • Fuel transfer control
  • Base feet
  • Low fuel level alarm

Mounting Options

  • Silencer installation kit
  • Industrial silencer removal
  • Battery removal

Special Test and Inspection

  • PGS Test report @ 1.0 power factor

General

  • Packing case – compact set
  • Radiator stone guard
  • Packing case – canopied set
