Cat

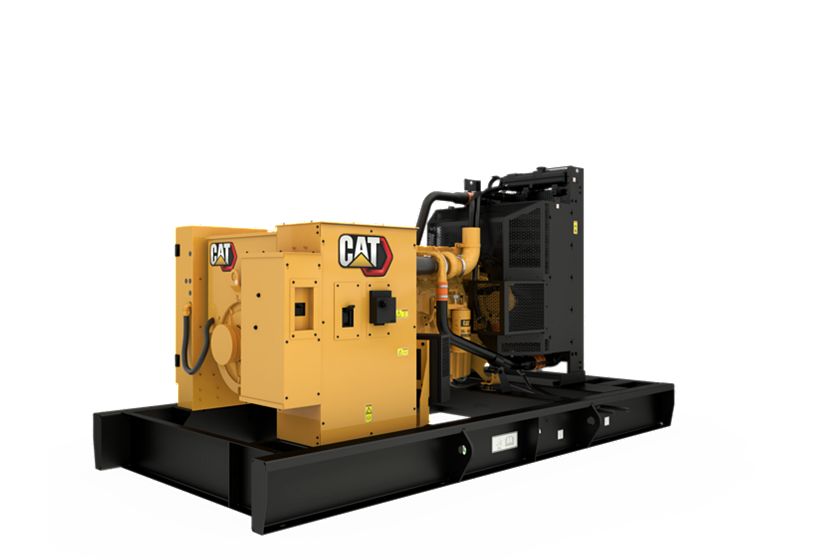

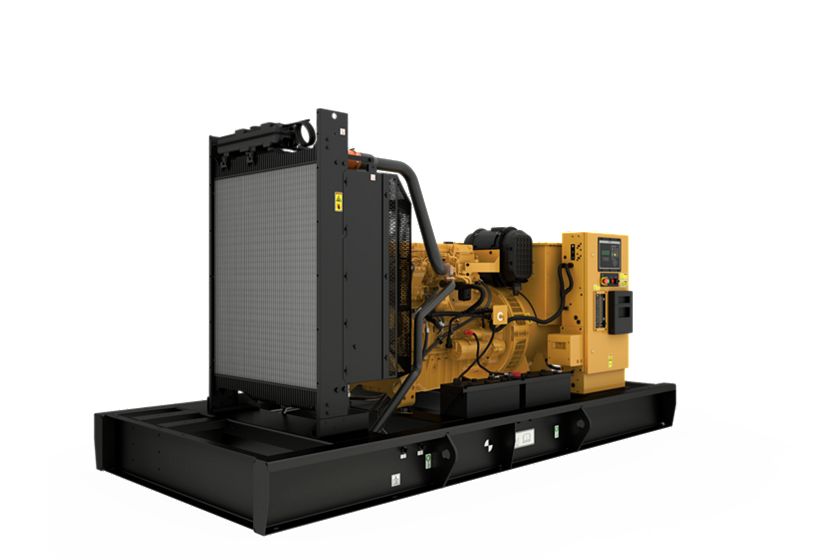

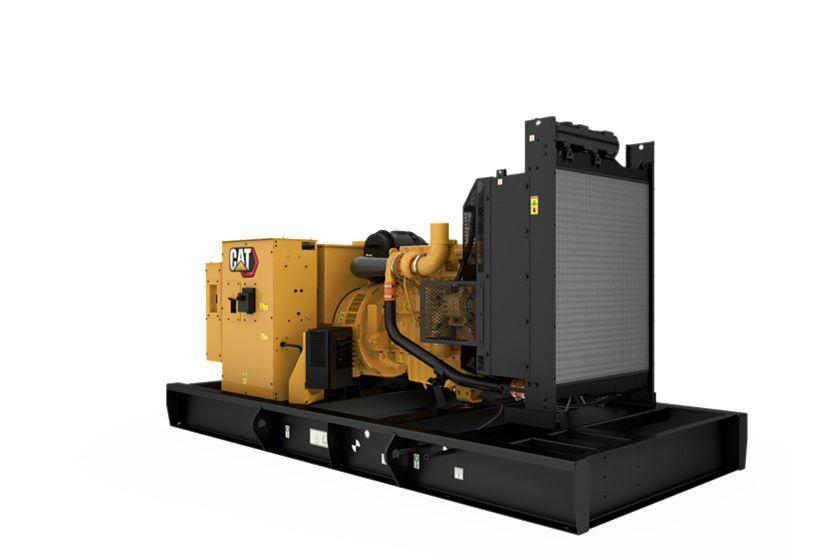

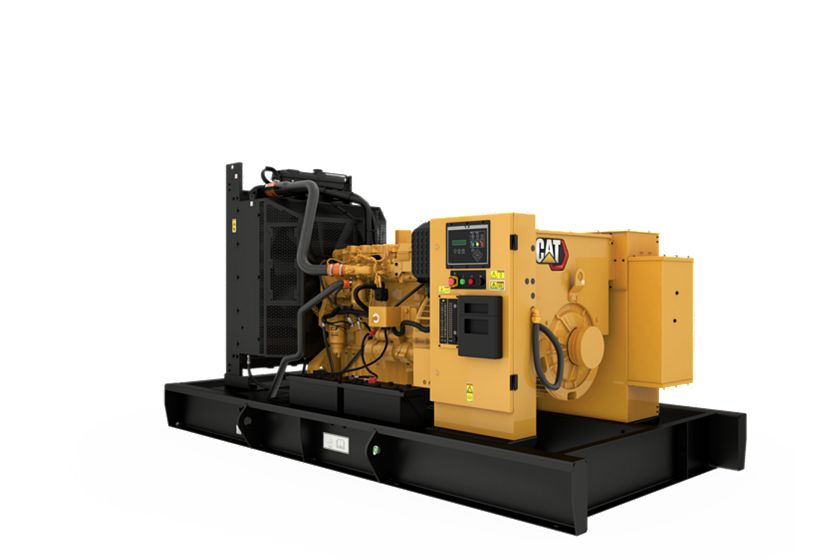

C9 Generator Set
Maximum Rating
300 ekW
300 ekW
Minimum Rating
180 ekW
180 ekW
Emissions/Fuel Strategy
Low Fuel, Tier 3
Low Fuel, Tier 3
Overview
Producing reliable power from 180 to 300 ekW at 60 Hz, our C9 diesel generator sets designed to ISO 8528-5 transient response requirements. All C9 generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
Media
Photos
360° View
Exterior
Features
Cat Diesel Engine
SR5 Alternator
GCCP 1.3 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 300 ekW 300 ekW |
| Minimum Rating | 180 ekW 180 ekW |
| Emissions/Fuel Strategy | Low Fuel, Tier 3 Low Fuel, Tier 3 |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 4.41 in 112 mm |
| Stroke | 5.87 in 149 mm |
| Displacement | 537.01 in³ 8.8 l |
| Compression Ratio | 16.1:1 16.1:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | Hydraulic electronic unit injection Hydraulic electronic unit injection |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 157 in 3988 mm |
| Width – Maximum | 47.5 in 1207 mm |
| Height – Maximum | 73.5 in 1867 mm |
Standard Equipment
Air Inlet System
- Turbocharger
- Air cleaner, light duty with disposable paper filter
- Aftercooler core
Exhaust System
- Exhaust manifold – dry
- Stainless steel exhaust flex, gaskets, rain cap & SAE exhaust flange for customer use – shipped loose
Control Panels
- GCCP 1.3
Cooling System
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
- Coolant drain line with valve
- Radiator and cooling fan with guard
Fuel System
- Standard open set fuel tank/base supplied
- Fuel cooler
- Primary fuel filter w/integral water separator and secondary filter
- Base, formed steel with single wall integral 8-hour fuel tank
- Fuel priming pump
Generators and Generator Attachments
- Mandatory option circuit breaker, IEC, 3 pole mounted in power centre
- IP23 Protection
- 12 Leads
- Segregated low voltage (AC/DC) wiring panel
- Insulation Class H and temperature rise
- Power centre, IP22
- Brushless, self-excited 2/3 pitch, random wound
- Voltage regulator (single phase sensing)
Governing System
- Cat electronic governor (ADEM A4)
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator re-paint, Caterpillar yellow
Lube System
- Oil cooler
- Oil drain valves
- Fumes disposal, piped to front of radiator
- Lubricating oil
- Oil filter and dipstick
- Oil drain lines with valve; piped to edge of base
Optional Equipment
Certifications
- European Certificate for Conformance
- Global Certification for CIS
Air inlet system
- Single element air cleaner
Circuit breakers
- 4 Pole (IEC-100% rated) Circuit breaker upgrades: 400, 630, 800 and 100 amps
Control Panels
- Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; overload shutdown via breaker ; Low fuel level shutdown ; Low fuel level alarm ; Fuel level sensor
- Control panel Options: GCCP 1.4 ; Volt free contacts ; Local alarm horn ; Oil temperature displays
Cooling System
- Radiator duct flange
- Low coolant temperature alarm

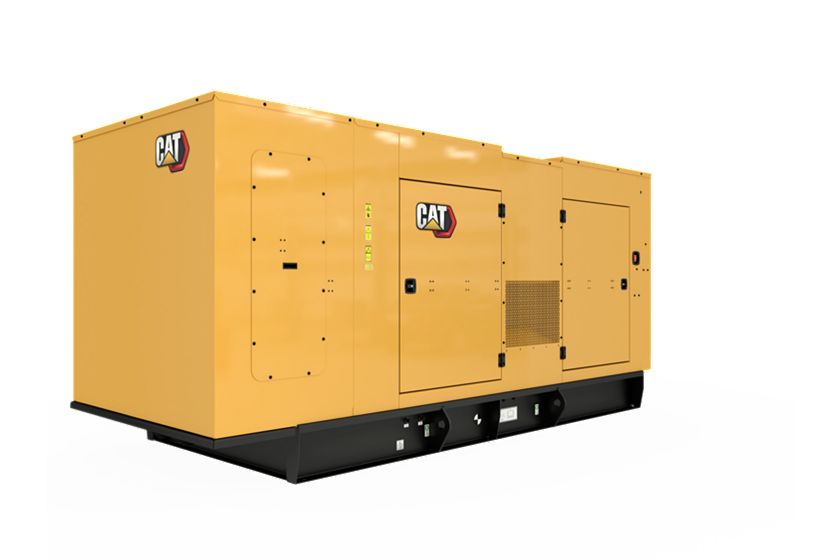

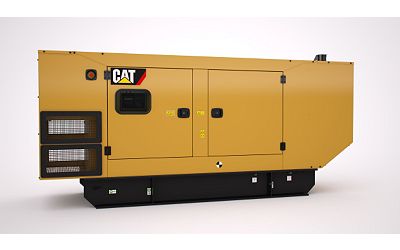

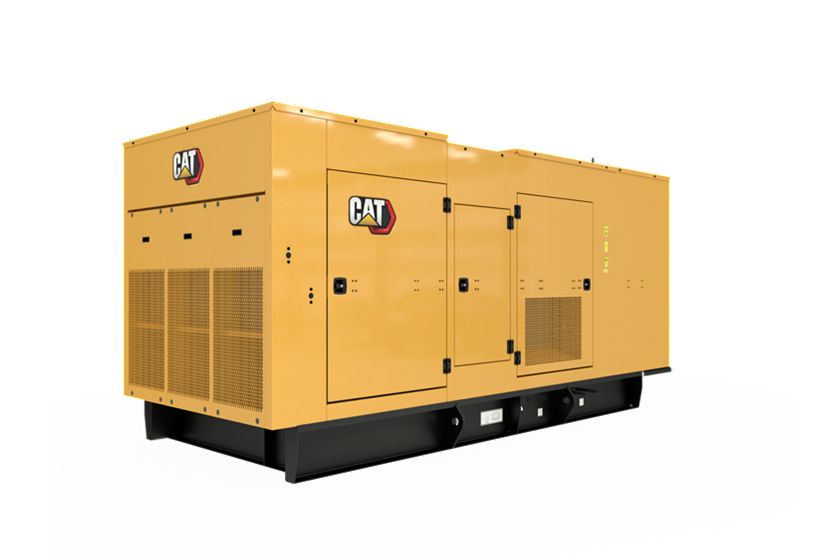

Enclosures
- High ambient sound attenuated enclosure
- Sound attenuated enclosure
Exhaust System
- 5 – 6 inch flange adaptor
- 6 inch flange
- Mufflers – End in/end out; 10 dBA or 25 dBA attenuation
- 5 and 6 inch elbow kits
Fuel System
- Integral dual wall fuel tank base
Generators and Attachments
- Permanent magnet excitation (PMG) generator
- Oversize, AREP, CIP generators
Mounting System
- Narrow skid base
Starting / Charging System
- Jacket water heater
- 5 Amp single Battery charger
- Battery disconnet switch
