Cat

C18 Generator Set

Maximum Rating

600 ekW

600 ekW

Minimum Rating

500 ekW

500 ekW

Emissions/Fuel Strategy

Low Fuel Consumption

Low Fuel Consumption

Overview

The C18 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 500 to 600 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C18 generator sets range from low fuel consumption systems to EPA Stationary Emergency (Tier 2) certified.

Media

Photos

C18 Rear Right
C18 Rear Right
C18 Rear Left
C18 Rear Left
C18 Front Right
C18 Front Right
C18 Front Left
C18 Front Left

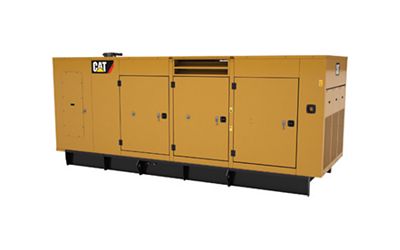

Enclosure
Enclosure
Enclosure
Enclosure

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

A-Frame Alternator

GCCP 1.3 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Maximum Rating 600 ekW 600 ekW
Minimum Rating 500 ekW 500 ekW
Emissions/Fuel Strategy Low Fuel Consumption Low Fuel Consumption
Voltage 220 to 380 Volts 220 to 380 Volts
Frequency 60 Hz 60 Hz
Speed 1800 rpm 1800 rpm
Duty Cycle Standby, Prime Standby, Prime
Spec Value
Engine Model C18 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C18 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Bore 5.71 in 145 mm
Stroke 7.2 in 183 mm
Displacement 1106.4 in³ 18.1 l
Compression Ratio 14.5:1 14.5:1
Aspiration Air to Air Aftercooled Air to Air Aftercooled
Fuel System Electronic unit injection Electronic unit injection
Governor Type Adem™A4 Adem™A4
Spec Value
Length – Maximum 218.5 in 5550 mm
Width – Maximum 80.9 in 2056 mm
Height – Maximum 107.8 in 107.8 mm

Standard Equipment

Air Inlet

  • Air cleaner

Cooling

  • Package mounted radiator

Exhaust

  • Exhaust flange outlet

Fuel

  • Fuel priming pump
  • Secondary fuel filters
  • Primary fuel filter with integral water separator

Generator

  • IP23 Protection
  • Matched to the performance and output characteristics of Cat engines
  • Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time

Power Termination

  • Busbar

Control Panel

  • GCCP 1.3

Mounting

  • Rubber vibration isolators

Starting/Charging

  • 24 volt starting motor
  • Batteries

General

  • Paint – Caterpillar yellow except rails and radiators gloss black

Optional Equipment

Exhaust

  • Industrial, residential, critical mufflers

Generator

  • Anti-condensation heater
  • Oversize and premium generators
  • Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)

Power Termination

  • Circuit breakers, UL listed
  • Circuit breakers, IEC compliant

Control Panels

  • Remote monitoring software
  • Local & remote annunciator modules
  • Digital I/O module
  • GCCP 1.4
  • Load share module

Starting/Charging

  • Oversize batteries
  • Battery chargers
  • Heavy duty starting system
  • Jacket water heater
  • Charging alternator

General

  • Narrow, wide or skid base
  • CSA Certification
  • UL 2200 package
  • EU Certificate of Conformance (CE)
  • Enclosures: Sound attenuated, weather protective
  • Single or dual wall integral fuel tanks
  • Integral & sub-base UL listed dual wall fuel tanks
  • Automatic transfer switches (ATS)
  • Sound attenuated, weather protective or high ambient weather protective enclosure
  • The following options are based on regional and product configuration:
  • Single or dual wall sub-base fuel tanks
  • EEC Declaration of Conformity
  • Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
