Cat Generator Set Package
Main content
Cat
C15 (50 Hz) China Non Road
Maximum Rating
550 kVA
550 kVA
Minimum Rating
365 kVA
365 kVA
Emissions/Fuel Strategy
Low Fuel, Tier 2 or 3
Low Fuel, Tier 2 or 3
Overview
The C15 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 365 to 550 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards Emissions / Fuel Strategy.
Media
Photos
360° View
Exterior

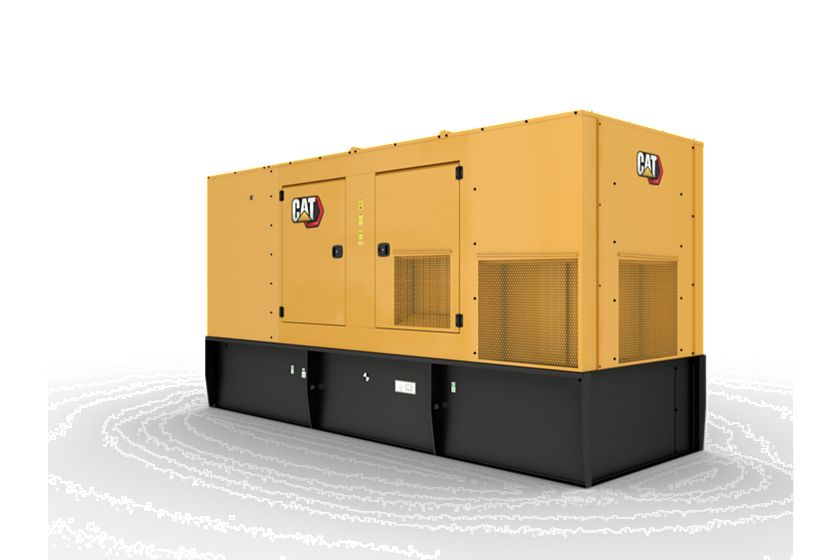

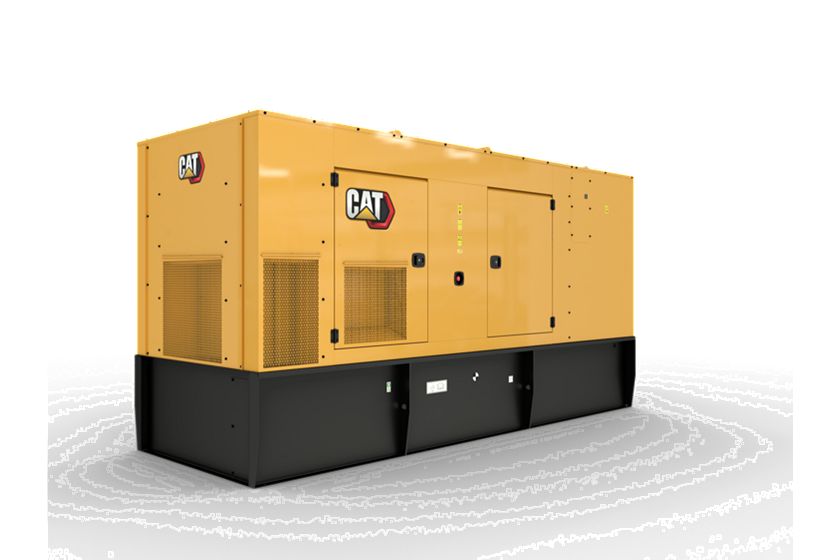

Enclosure
Features

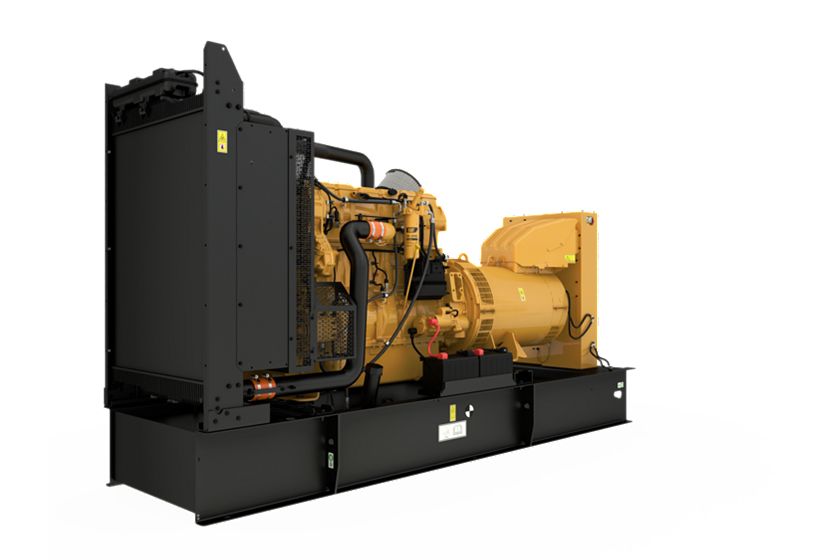

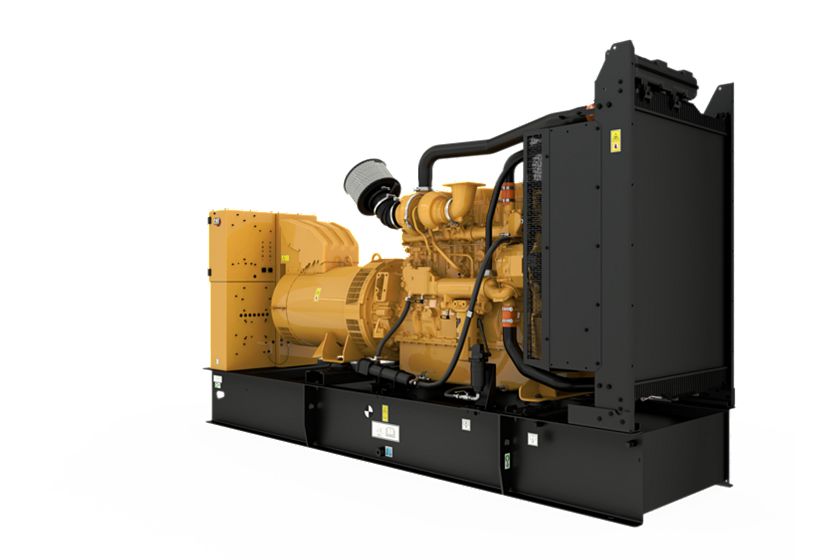

Cat Diesel Engine
A-Frame Alternator
GCCP1.3 Control Panel
Cooling System
One Safe Source
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 550 kVA 550 kVA |
| Minimum Rating | 365 kVA 365 kVA |
| Emissions/Fuel Strategy | Low Fuel, Tier 2 or 3 Low Fuel, Tier 2 or 3 |
| Voltage | 208 to 600 Volts 208 to 600 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 5.4 in 137.2 mm |
| Stroke | 6.75 in 171.4 mm |
| Displacement | 927.56 in³ 15.2 l |
| Compression Ratio | 16.1:1 16.1:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 222.7 in 5656 mm |
| Width – Maximum | 90 in 2286 mm |
| Height – Maximum | 93.2 in 2367 mm |
Standard Equipment
Air System
- Aftercooler core
- Turbocharger
- Air cleaner – Non canister disposable paper filter
Air Inlet
- Air cleaner
Control Panel
- GCCP 1.3
- GCCP 1.3
Cooling
- Package mounted radiator
Cooling System
- Radiator and cooling fan with guard
- Coolant drain line with valve
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
Fuel
- Secondary fuel filters
- Fuel priming pump
- Primary fuel filter with integral water separator
Exhaust
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use – shipped loose
- Exhaust flange outlet
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Generator
- IP23 Protection
- Matched to the performance and output characteristics of Cat engines
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Generator and Attachments
- IP23 Protection
- A Frame generator – IP21 Protection
- Segregated low voltage (AC/DC) wiring panel
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Optional LC Frame generator – IP23 Protection
- Power center, IP22
- Integrated voltage regulator (IVR)
Power Termination
- Busbar
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil drain valves
Mounting
- Rubber vibration isolators
Mounting System
- Rubber vibration isolators
Starting/Charging
- 24 Volt battery with rack and cables
- Batteries
- 24 volt starting motor
General
- Engine and alternator pre paint, Caterpillar yellow
- Paint – Caterpillar yellow except rails and radiators gloss black
Optional Equipment
Air Inlet System
- Single element air cleaner
- Dual element air cleaner
Exhaust
- Industrial, residential, critical mufflers
Certifications
- EU Certificate of Conformance (CE)
- Global certification for CIS
Generator
- Oversize and premium generators
- Anti-condensation heater
- Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)
Power Termination
- Circuit breakers, UL listed
- Circuit breakers, IEC compliant
Circuit breakers
- 4 Pole (IEC-100% rated) Circuit breakers – Motorised
- 3 Pole (IEC-100% rated) Circuit breakers – Motorised
- Auxiliary contacts, circuit breaker
- 4 Pole (IEC-100% rated) Circuit breakers – Package mounted
- Padlockable circuit breaker device
- Power terminal strip
- Shunt trip for IEC circuit breaker
- 3 Pole (IEC-100% rated) Circuit breakers – Package mounted
Control Panels
- Protective devices: Earth fault relay ; Earth leakage Ground fault relay ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
- Remote annunciator module
- Oil temperature displays
- GCCP 1.4
- Local annunciator
- Local alarm horn
- Volt free contacts
Starting/Charging
- Jacket water heater
- Heavy duty starting system
- Battery chargers
- Oversize batteries
- Charging alternator
Cooling System
- Radiator duct flange
- Stone guards
- Low coolant temperature alarm
Enclosures
- Sound attenuated enclosures
- High ambient sound attenuated enclosures
Exhaust System
- End in/end out mufflers – 10, 25 and 35 dBA attenuation
- Manifold and turbocharger guards
- Flexible exhaust fittings
- 6 and 8 inch flange GP
- 6 and 8 inch elbow kit
- Engine mounted muffler
Fuel System
- Dual wall fuel tank base
- Manual fuel transfer pump
- Fuel transfer system controls
General
- UL 2200 package
- Automatic transfer switches (ATS)
- Narrow, wide or skid base
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- Single or dual wall sub-base fuel tanks
- EU Certificate of Conformance (CE)
- EEC Declaration of Conformity
- The following options are based on regional and product configuration:
- Single or dual wall integral fuel tanks
- CSA Certification
- Sound attenuated, weather protective or high ambient weather protective enclosure
- Integral & sub-base UL listed dual wall fuel tanks
Generator and Attachments
- Oversize A Frame generator
- LC frame generator
- Oversize LC frame generator
- CIP A Frame generator
- LC frame CIP generator
- Permanent magnet excitation (PMG) generator
- Space heaters
- Ingress protection
Lube System
- Manual sump pump
Mounting System
- Narrow skid base – replaces standard fuel tank base
Special Test / Reports
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
Starting / Charging System
- 5 Amp single Battery charger
- Battery disconnect switch
