Cat
C13 (50 Hz) China Non Road
Maximum Rating
450 kVA
450 kVA
Minimum Rating
350 kVA
350 kVA
Emissions/Fuel Strategy
Low Fuel, R96/EUIIIa
Low Fuel, R96/EUIIIa
Overview
The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 350 to 450 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption, EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards.
Media
Photos
360° View

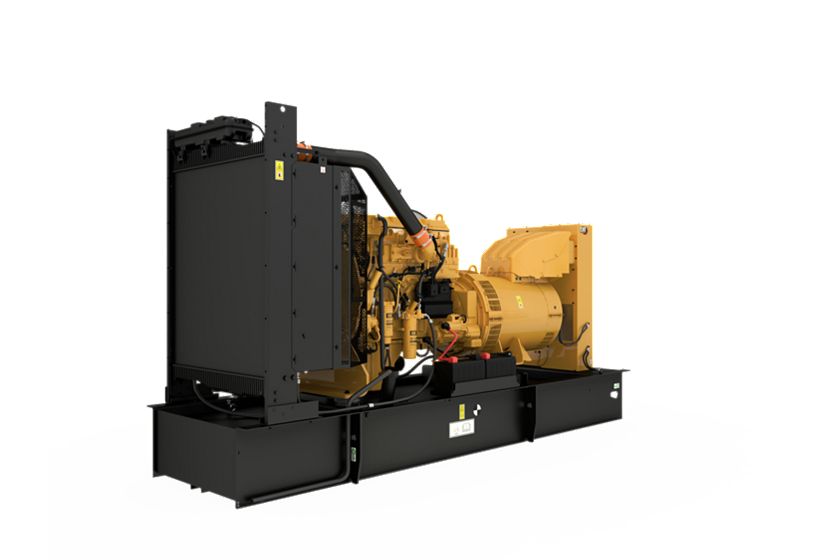

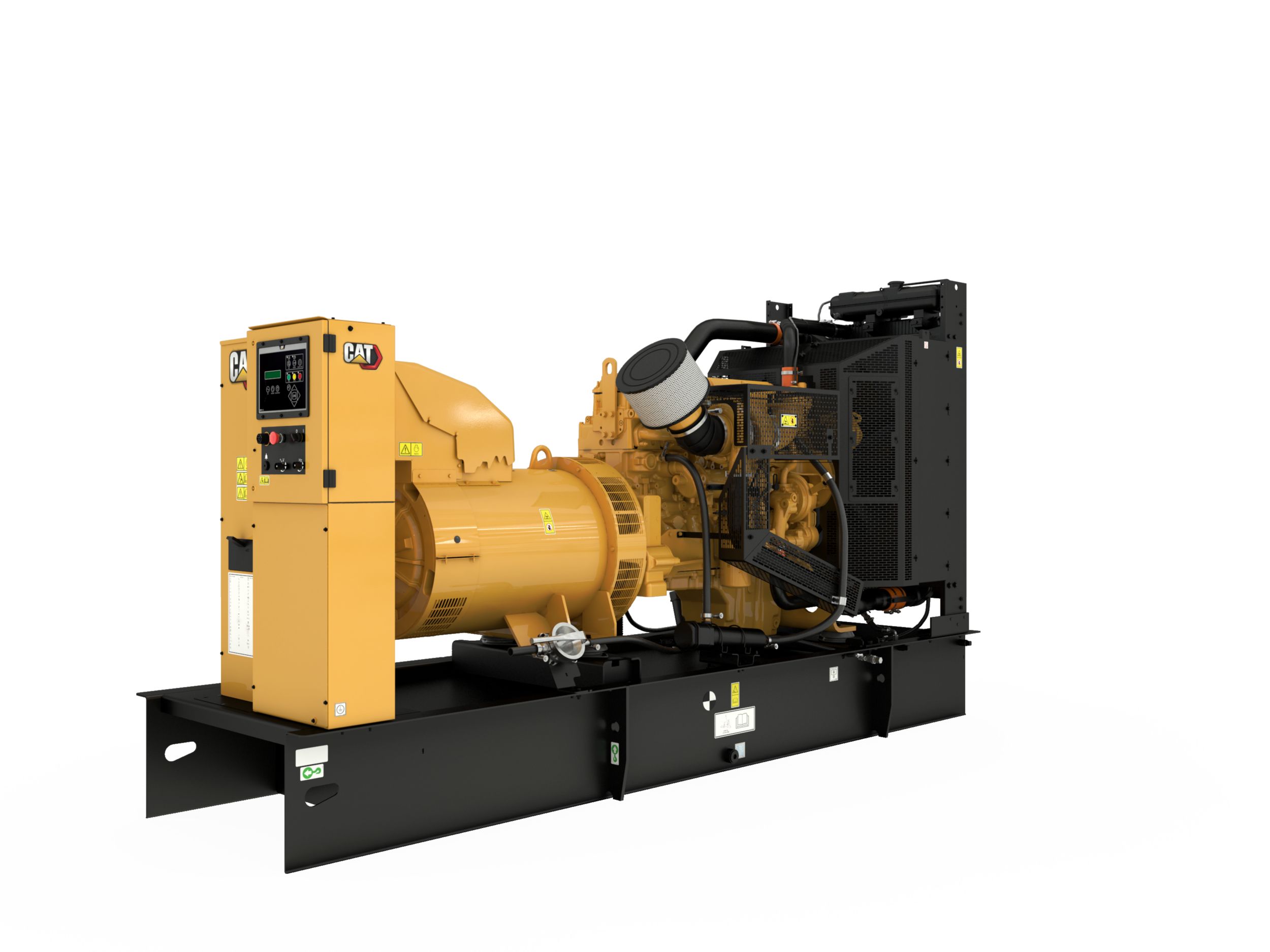

Exterior

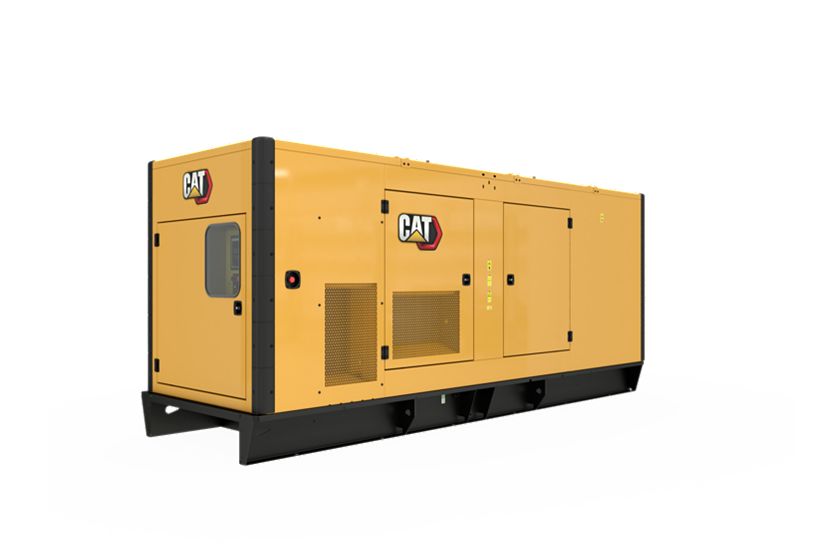

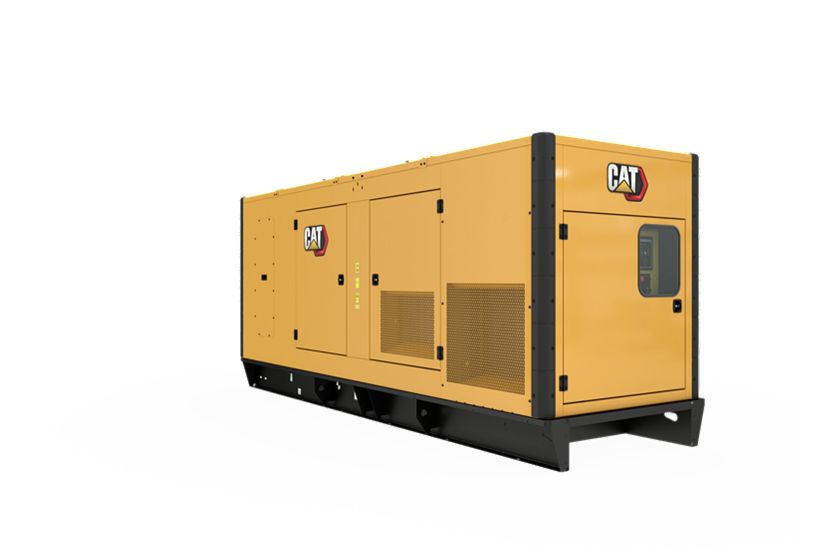

Enclosure
Features
Cat Diesel Engine
A-Frame Alternator
GCCP 1.3 Control Panel
Cooling System
One Safe Source
World Wide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 450 kVA 450 kVA |
| Minimum Rating | 350 kVA 350 kVA |
| Emissions/Fuel Strategy | Low Fuel, R96/EUIIIa Low Fuel, R96/EUIIIa |
| Voltage | 380 to 415 Volts 380 to 415 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 5.12 in 130 mm |
| Stroke | 6.18 in 157 mm |
| Displacement | 762.8 in³ 12.5 l |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 186.7 in 4743 mm |
| Width – Maximum | 79.3 in 2014 mm |
| Height – Maximum | 84 in 2133 mm |
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable paper filter
- Turbocharger
- Aftercooler core
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guard
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use – shipped loose
Fuel System
- Primary fuel filter w/integral water separator and secondary filter
- Flexible fuel lines
- Fuel priming pump
- Engine fuel transfer pump
- Fuel coolers with single wall integral 8-hour fuel tank
Generator and Attachments
- Integrated voltage regulator (IVR)
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- A Frame generator – IP21 Protection
- Power center, IP22
- Optional LC Frame generator – IP23 Protection
- Segregated low voltage (AC/DC) wiring panel
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil drain valves
Packaged Generator Set
- Service indicator
- Disposable air filter
- Coolant level sight gauge
- Low coolant level sensor
- Coolant drain line with valve
- Radiator package mounted
Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines.
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
European Certificates
- Global Certification for CIS
- EU Certificate of Conformance (CE)
Air Inlet System
- Single element air cleaner
- Dual element air cleaner
Circuit breakers
- Padlockable circuit breaker device
- 3 Pole (IEC-100% rated) Circuit breakers – Motorised
- 3 Pole (IEC-100% rated) Circuit breaker
- 4 Pole (IEC-100% rated) Circuit breaker
- Circuit breaker (IEC) Auxiliary contacts
- Shunt trip for IEC circuit breaker
- 4 Pole (IEC-100% rated) Circuit breaker – Motorised
Control Panels
- Local alarm modules: Local annunciator
- Volt free contacts
- GCCP 1.4
- Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
- Remote annunciator module
Cooling System
- Radiator duct flange
- Low coolant temperature alarm
- Stone guards
Enclosures
- High ambient sound attenuated enclosures
- Sound attenuated enclosures
Exhaust System
- 10, 25 and 35 dBA attenuation
- Mufflers – End in/end out
- 6 and 8 inch flange GP
- Flexible 8 inch exhaust fittings
- 6 and 8 inch elbow kit
Fuel System
- Fuel transfer system controls
- Integral dual wall fuel tank base
- Manual fuel transfer pump
Generator and Attachments
- Space heaters
- LC frame generator
- LC frame oversize generator
- LC CIP generator
- A Frame oversize generator
- A Frame CIP generator
- Permanent magnet excitation (PMG) generator
- Ingress protection
Lube System
- Manual sump pump
Mounting System
- Narrow skid base
Starting / Charging System
- 5 Amp single Battery charger
- Jacket water heater
- Battery disconnect switch
