C13 Generator Set
Maximum Rating
400 ekW
400 ekW
Minimum Rating
320 ekW
320 ekW
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview
The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 320 to 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption Emissions / Fuel Strategy.
Media
Photos
360° View
Exterior

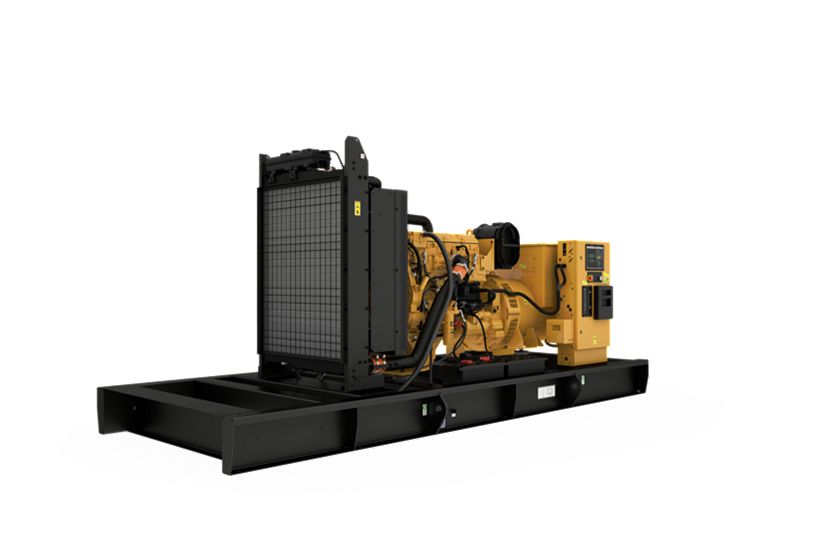

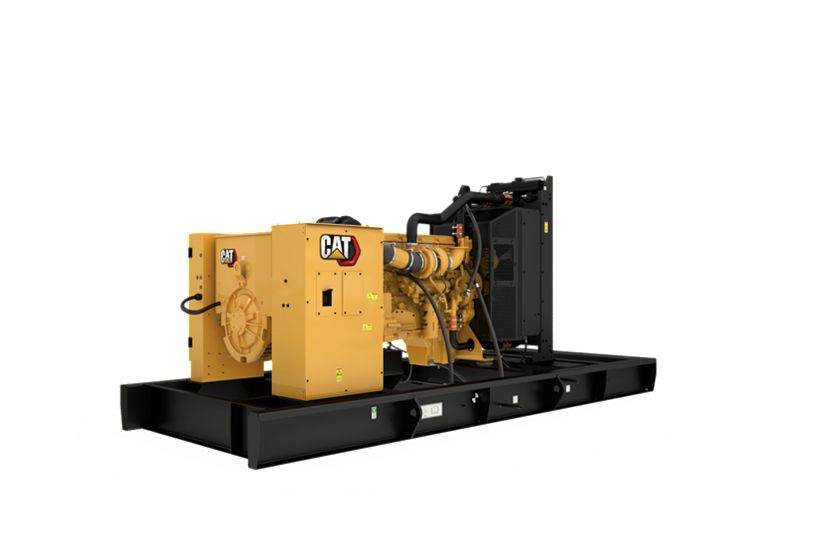

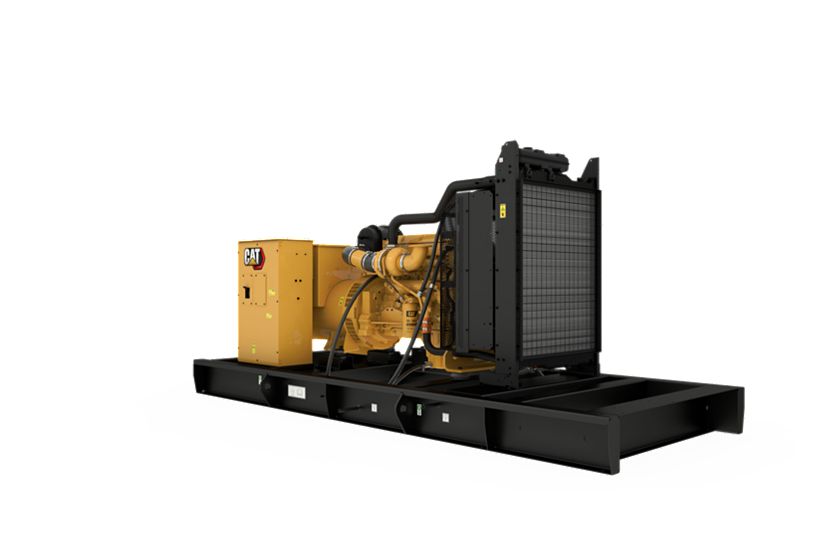

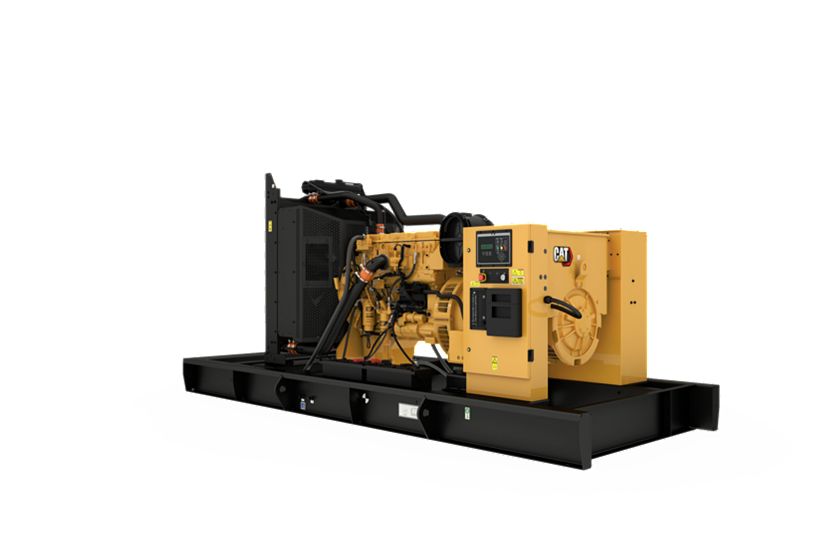

Open set
Features
Cat Diesel Engine
A-Frame Alternator
GCCP1.3 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 400 ekW 400 ekW |
| Minimum Rating | 320 ekW 320 ekW |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | 380 to 415 Volts 380 to 415 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 5.12 in 130 mm |
| Stroke | 6.18 in 157 mm |
| Displacement | 762.8 in³ 12.5 l |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 186.7 in 4743 mm |
| Width – Maximum | 79.3 in 2014 mm |
| Height – Maximum | 84 in 2133 mm |
Standard Equipment
Air Inlet System
- Aftercooler core
- Air cleaner; light duty with disposable paper filter
- Turbocharger
Control Panel
- GCCP 1.3
Cooling System
- Caterpillar extended life coolant
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Radiator and cooling fan with guard
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use – shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Generator and Attachments
- Segregated low voltage (AC/DC) wiring panel
- Power center, IP22
- Integrated voltage regulator (IVR)
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- A Frame generator – IP21 Protection
- Optional LC Frame generator – IP23 Protection
Governing System
- Cat electronic governor (ADEM A4)
Packaged Generator Set
- Service indicator
- Radiator package mounted
- Low coolant level sensor
- Coolant drain line with valve
- Coolant level sight gauge
- Disposable air filter
Lube System
- Lubricating oil
- Oil drain valves
- Oil cooler
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
European Certificates
- EU Certificate of Conformance (CE)
- Global Certification for CIS
Air Inlet System
- Single element air cleaner
- Dual element air cleaner
Circuit breakers
- 4 Pole (IEC-100% rated) Circuit breaker
- Circuit breaker (IEC) Auxiliary contacts
- 4 Pole (IEC-100% rated) Circuit breaker – Motorised
- Padlockable circuit breaker device
- Power terminal strip
- Shunt trip for IEC circuit breaker
- 3 Pole (IEC-100% rated) Circuit breaker
- 3 Pole (IEC-100% rated) Circuit breakers – Motorised
Control Panels
- GCCP 1.4
- Local alarm modules: Local annunciator
- Volt free contacts
- Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
- Remote annunciator module
Cooling System
- Stone guards
- Radiator duct flange
- Low coolant temperature alarm
Enclosures
- Sound attenuated enclosures
- High ambient sound attenuated enclosures
Exhaust System
- 6 and 8 inch elbow kit
- Flexible 8 inch exhaust fittings
- 6 and 8 inch flange GP
- Mufflers – End in/end out
- 10, 25 and 35 dBA attenuation
Fuel System
- Manual fuel transfer pump
- Integral dual wall fuel tank base
- Fuel transfer system controls
Generator and Attachments
- Permanent magnet excitation (PMG) generator
- LC frame generator
- LC CIP generator
- A Frame CIP generator
- A Frame oversize generator
- Ingress protection
- Space heaters
Lube System
- Manual sump pump
Mounting System
- Narrow skid base
starting / Charging System
- 5 Amp single Battery charger
- Jacket water heater
- Battery disconnect switch
