Cat

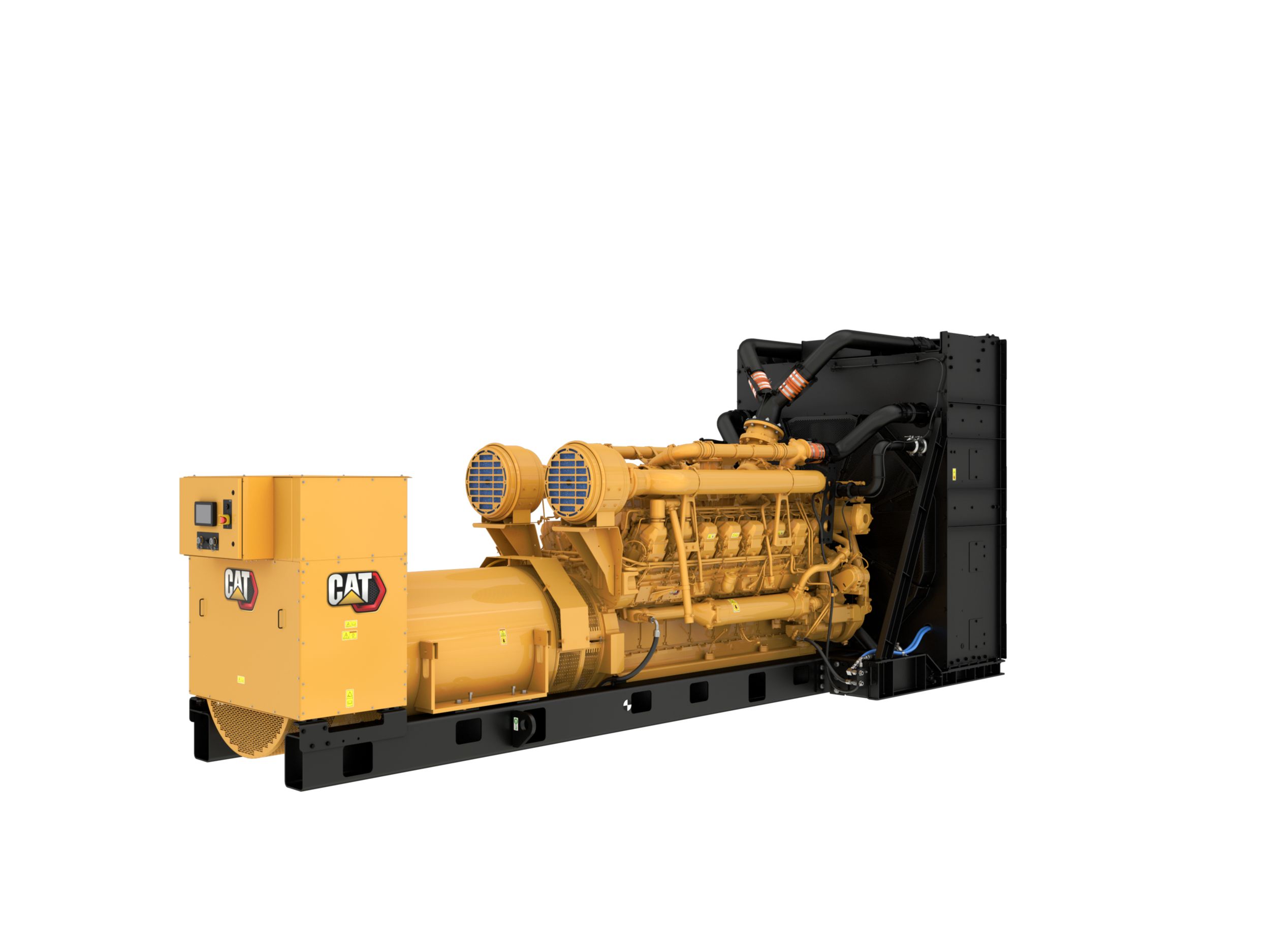

3516C Generator Set
Standby Rating
2750 kVA
2750 kVA
Prime Power Rating
2500 kVA
2500 kVA
Emissions/Fuel Strategy
Low Fuel, Low Emissions
Low Fuel, Low Emissions
Overview
Producing reliable power from 2500 to 2750 kVA at 50 Hz, our 3516C diesel generator sets are made to meet your mission critical, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set offers both low fuel consumption and low emission systems.
Media
Photos
Videos
360° View
Exterior
360 Exterior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
SR5 Alternator
Cat ECS Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Standby Rating | 2750 kVA 2750 kVA |
| Prime Power Rating | 2500 kVA 2500 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions Low Fuel, Low Emissions |
| Voltage | 380 to 11000 volts 380 to 11000 volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime Standby, Mission Critical, Prime |
| Maximum Rating | 2750 kVA 2750 kVA |
| Minimum Rating | 2500 kVA 2500 kVA |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | 3516C, ATAAC, V-16,4-Stroke Water-Cooled Diesel 3516C, ATAAC, V-16,4-Stroke Water-Cooled Diesel |
| Bore | 6.69 in 170 mm |
| Stroke | 8.46 in 215 mm |
| Displacement | 4764.73 in 78 l |
| Compression Ratio | 14.7:1 14.7:1 |
| Aspiration | TA TA |
| Fuel System | Electronic unit injection Electronic unit injection |
| Governor Type | Adem™3 Adem™3 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 297.4 in 7554 mm |
| Width – Maximum | 108.9 in 2767 mm |
| Height – Maximum | 118.3 in 3004 mm |
| Dry Weight – Genset (maximum) | 39090 lb 17731 kg |
Standard Equipment
Air Inlet
- Air cleaner
Cooling
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Fuel
- Fuel priming pump
- Secondary fuel filters
- Primary fuel filter with integral water separator
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS 100
General
- Paint – Caterpillar yellow except rails and radiators gloss black
Optional Equipment
Exhaust
- Exhaust mufflers
Generator
- Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)
- Anti-condensation heater
- Oversize and premium generators
Power Termination
- Circuit breakers, IEC compliant
- Circuit breakers, UL listed
Control Panels
- EMCP 4.4
- Digital I/O module
- Load share module
- Generator temperature monitoring & protection
- Remote monitoring software
Mounting
- Spring type vibration isolators
- Rubber anti-vibration mounts
- IBC isolators
Starting/Charging
- Jacket water heater
- Charging alternator
- Oversize batteries
- Battery chargers
- Heavy duty starting system
- Air starting motor with control and silencer
General
- UL 2200 package
- EU Certificate of Conformance (CE)
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- EEC Declaration of Conformity
- Integral & sub-base UL listed dual wall fuel tanks
- The following options are based on regional and product configuration:
- Automatic transfer switches (ATS)
- Enclosures: Sound attenuated, weather protective
- CSA Certification
- Integral & sub-base fuel tanks
