Cat
D400 GC (60 Hz) Generator Set
Maximum Rating
400 ekW
400 ekW
Minimum Rating
400 ekW
400 ekW
Emissions/Fuel Strategy
EPA Stationary Emergency
EPA Stationary Emergency
Overview
The D400 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D400 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
Media
Photos
360° View

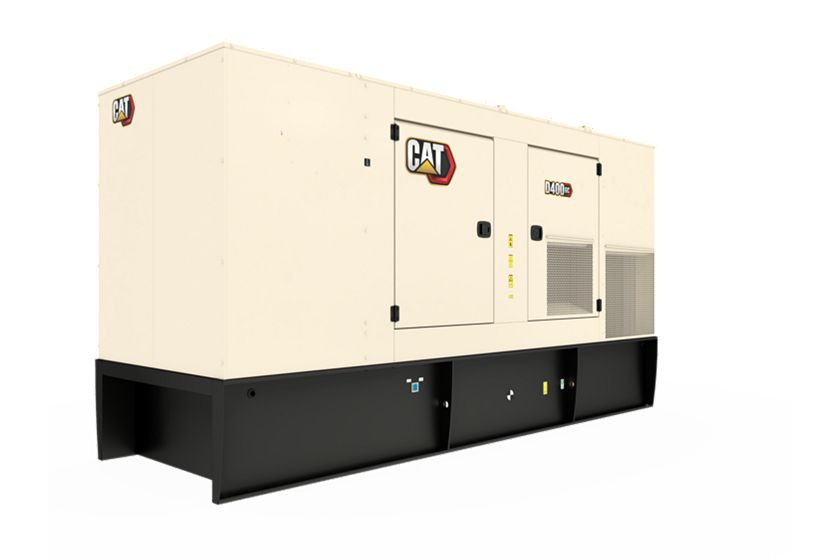

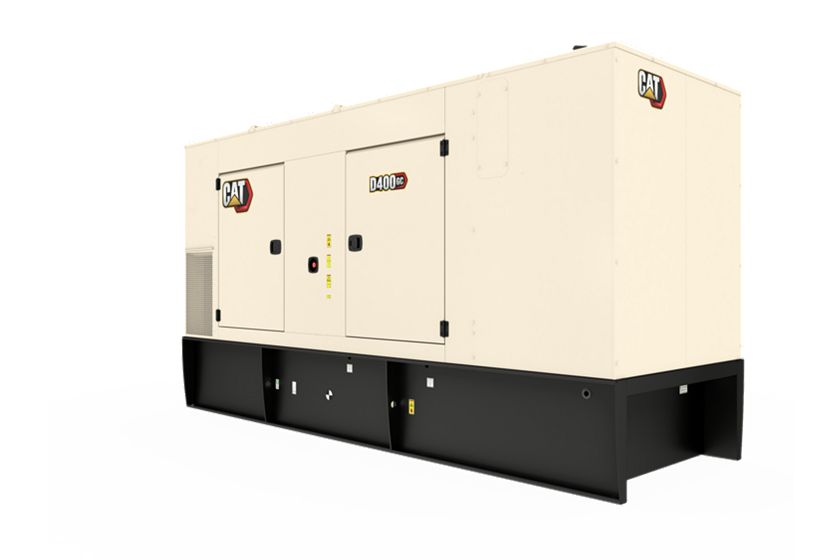

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.

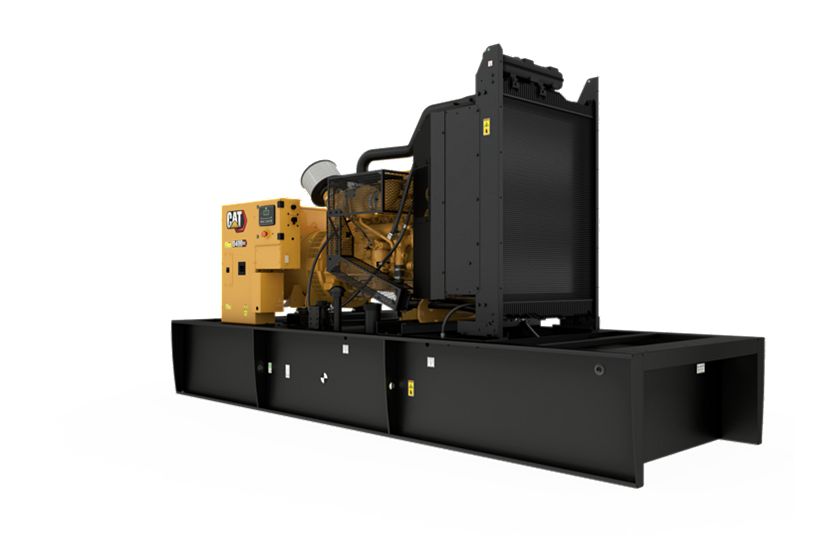

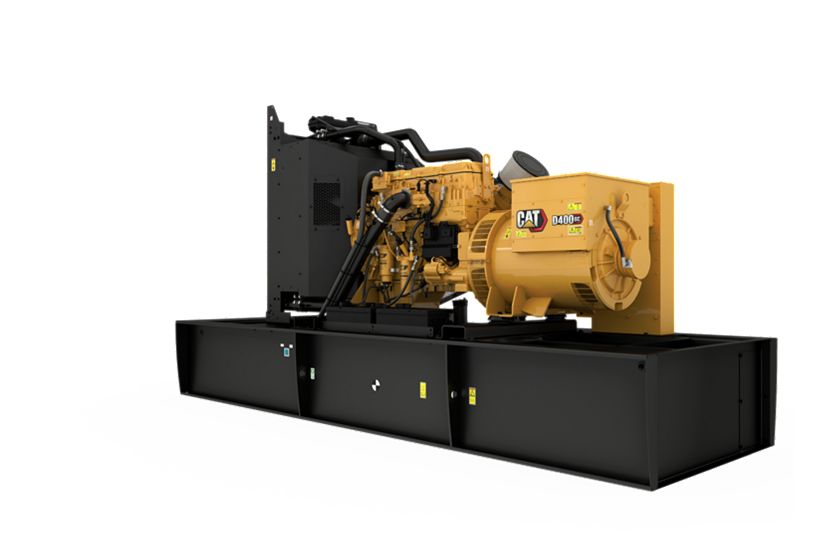

Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 400 ekW 400 ekW |
| Minimum Rating | 400 ekW 400 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency EPA Stationary Emergency |
| Voltage | 480 to 600 Volts 480 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C13 In-line 6, 4-cycle diesel Cat® C13 In-line 6, 4-cycle diesel |
| Bore | 5.1 in 130 mm |
| Stroke | 6.2 in 157 mm |
| Displacement | 763 in³ 12.5 B |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | ADEM™A4 ADEM™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 182.8 in 4625 mm |
| Width – Maximum | 64.2 in 1630 mm |
| Height – Minimum | 80.3 in 2039 mm |
| Height – Maximum | 96.7 in 2456 mm |
| Dry Weight – Genset (minimum) | 7330.4 lb 3325 kg |
| Dry Weight – Genset (maximum) | 4107 lb 9054.4 kg |
Standard Equipment
Air Inlet System
- Air cleaner – Non canister, disposable
- Aftercooler core
- Turbocharger
Control Panel
- GCCP 1.2
Cooling System
- Blower fan and fan drive with guards
- Coolant drain valve
- Radiator sight gauge
- Radiator, package mounted
- Jacket water pump, gear driven, centrifugal
- Thermostats and housing
Exhaust System
- Exhaust manifold – dry
Fuel System
- Primary fuel filter w/integral water separator and secondary filter, spin on
- Engine fuel transfer pump
- Fuel cooler
- Fuel priming pump
- Integral tank base, 24 hours, UL142
Generator Set
- All protective devices and control functions simulated and checked
- Complete system designed & built at ISO 9001:2000 certified facilities
- Factory tested to design specifications at full load conditions
Generators and Generator Attachments
- Insulation system, Class H
- IP23 Protection
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- 6 Leads
- Terminal box, IP22 RHS facing, bottom cable entry
- Easy access to AVR and terminals
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
- Voltage regulator (single phase sensing)
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Fumes disposal to front of radiator
- Lubricating oil, CK-4 (10W-30)
- Oil cooler
- Shallow oil pan
- Oil filler and dipstick
- Oil filter, spin on
- Oil drain with valve
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Protection
- Safety shutoff – Low oil pressure
- Safety shutoff – High water temperature
- Safety shutoff – Overspeed
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Lifting eyes
- Vibration damper
- Parts book
Optional Equipment
Air Inlet System
- Air cleaner (Non canister disposable)
Bases, Mounting & Fuel Tanks
- Audio & visual fuel alarm (@90% fuel level)
- Integral tank base, 24 hours, UL142
- 5 Gallon Spill Containment
- Fuel tank pill pipe & lockable cap
- Overfill prevention valve
- Wide Base – Skid
Circuit breaker
- 1200A LSI
- 1200A LS/I
- 600A LS/I
- 400A LS/I
- 800A LS/I
- 600A LSI
- Auxiliary contacts
- 800A LSI
- 400A LSI
Control System
- Twist release, Red button emergency stop
- Ground fault relay
- Volt free contacts
- Audible alarm Gp
- 16 -light NFPA 99/110 Annunciator
- 20A GFCI (Ground Fault Circuit Interrupter)
- 100A Load center
- Product link remote monitoring hardware
Enclosures
- AC & DC Source lights
- E-Stop
- Sound attenuated Level 2 enclosure (White)
Exhaust System
- 8″ Muffler – 25 dBA attenuation
- Manifold and turbocharger guards
- Flexible exhaust connection
Generator
- Space heater
- Permanent magnet excitation (PMG) generator
Circuit breakers
- 4 Pole (IEC-100% rated) Circuit breaker – Motorised
- Circuit breaker (IEC) Auxiliary contacts
- Shunt trip for IEC circuit breaker
Starting System
- Oversize battery set, 1400 CCA, 200 amp/hr
- Standard battery set: 1000 CCA, 90 amp/hr.
- Jacket water heater
- Battery charger (UL Certified)
General
- Generator test report
- Extended Service Coverage
- UL2200 Certification
- CSA Certification
starting / Charging System
- Jacket water heater
- Battery disconnect switch
