Cat
D80 GC Generator Set
Maximum Rating
80 ekW
80 ekW
Minimum Rating
80 ekW
80 ekW
Emissions/Fuel Strategy
U.S. EPA Cert., Tier 3
U.S. EPA Cert., Tier 3
Overview
Producing reliable power of 80 ekW at 60 Hz, our D80 GC diesel generator sets are designed to meet ISO 8528-5 transient response requirements. All D80 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.
Media

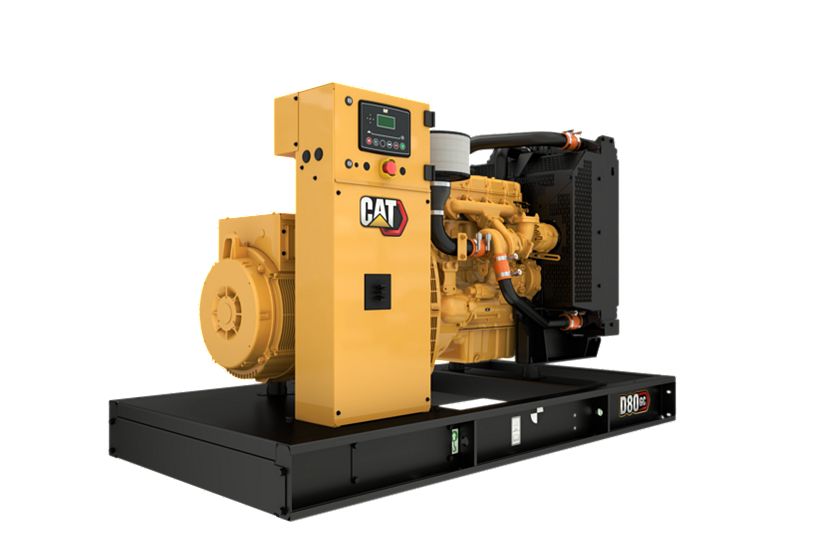

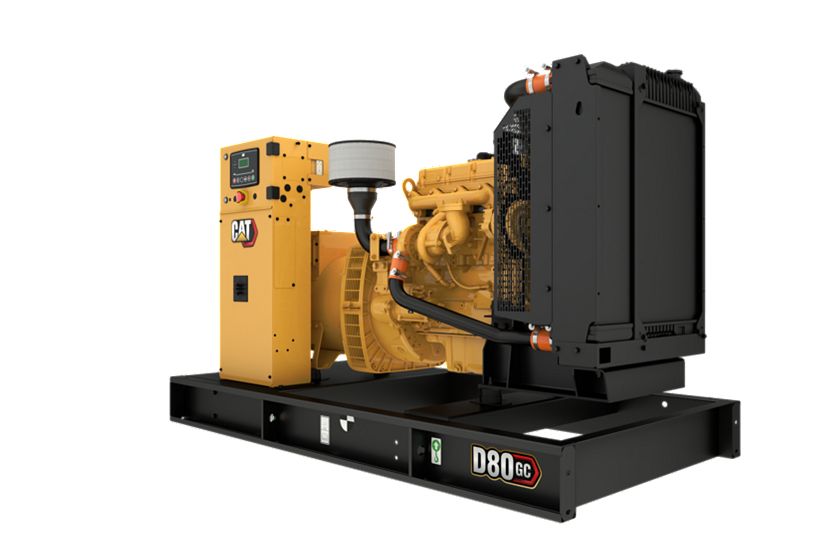

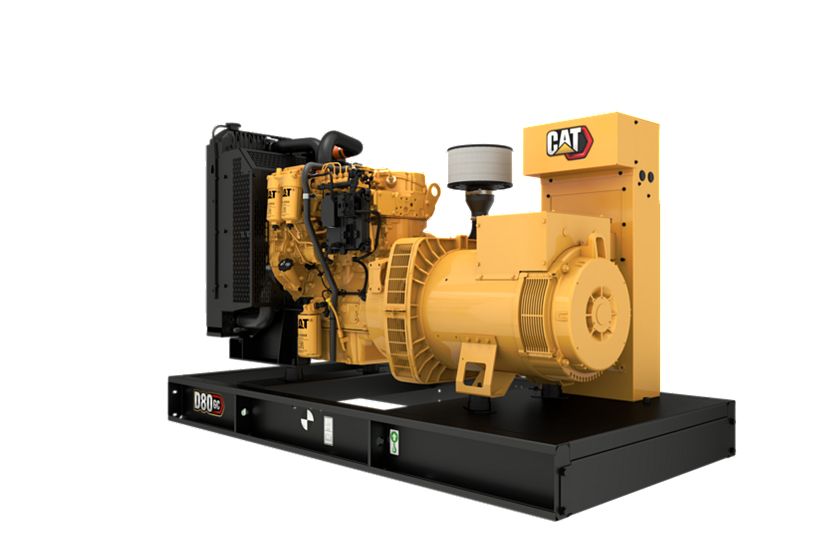

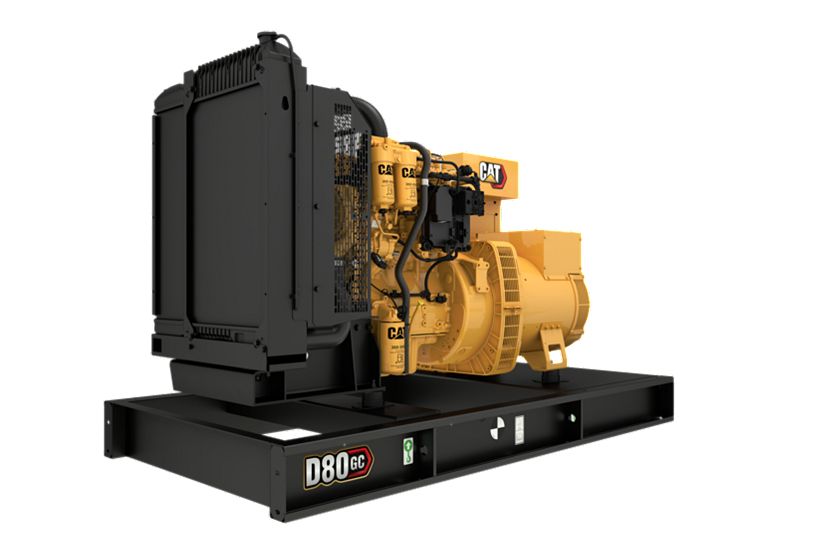

Photos
360° View

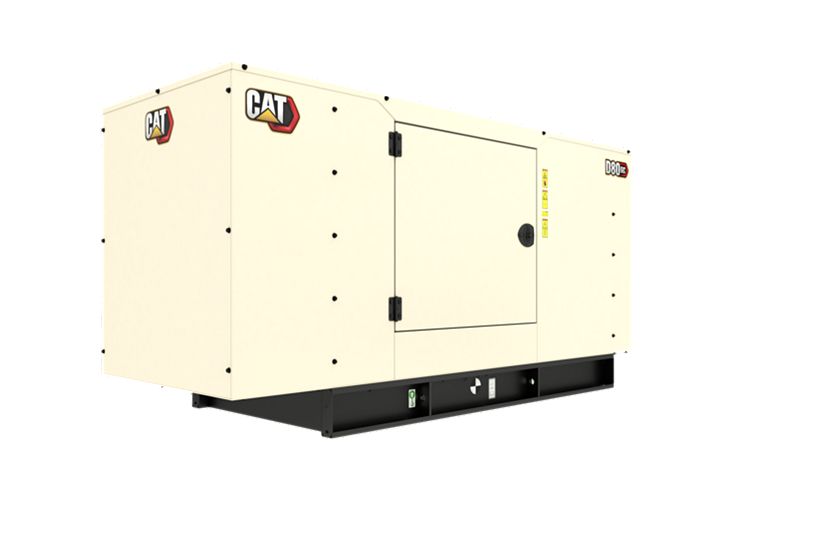

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 80 ekW 80 ekW |
| Minimum Rating | 80 ekW 80 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts 208 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C4.4, In-line 4, 4-cycle diesel C4.4, In-line 4, 4-cycle diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 269 in³ 4.4 l |
| Compression Ratio | 16.7:1 16.7:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Common Rail Common Rail |
| Governor Type | Mechanical, ADEM™A4 Mechanical, ADEM™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 82.6 in 2097 mm |
| Width – Maximum | 43.3 in 1100 mm |
| Height – Maximum | 52.9 in 1343 mm |
| Dry Weight – Genset (maximum) | 950 lb 2095 kg |
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable element
- Air cleaner
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Coolant drain line with valve
Control Panel
- GCCP 1.2 Control panel
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use – shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank
Generator
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- Voltage regulator (single phase sensing)
- IP23 Protection
- Segregated low voltage (AC/DC) wiring panel
- 12 Leads
- Tower panel, IP22, bottom cable entry
Governing System
- Mechanical and electrical governing system – model dependent
Lube System
- Lubricating oil
- Oil drain line with valve
Mounting System
- Includes lifting provision and drag points
- Termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
Starting/Charging System
- Batteries
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Alternator System
- 3 Phase sensing
- Anti-condensation heater
- R Frame auxilliary winding
- Permanent magnet excitation (PMG)
Circuit breakers
- Circuit breaker upgrades – 4 Pole circuit reaker to 250A, 400A and 630 A
Cooling System
- Low coolant level shutdown
- Coolant heater
- Low coolant temperature alarm
Control Panel Options
- Earth fault (2 wire only)
- Overload shutdown via breaker
- Earth leakage (2 wire only)
- Volt free contacts
- Panel mounted audible alarm
- Battery charger
- GCCP 1.2 Control panel
- Control panel heater
- Voltage adjust potentiometer
- Emergency stop with key
- Speed adjust potentiometer
Enclosures
- Sound attenuated Level 2 enclosure
Fuel System
- High fuel level alarm
- Open set narrow tankbase
- Low fuel level alarm
- Bunded fuel tank
- Low fuel level shutdown
- Compact skidbase for open set
- Skidbase for CALG enclosure sets
Global Certifications
- Certification for CIS
Mounting Options
- Battery removal
- Industrial silencer
- Electronic governor
- External single point lift – enclosure
- Silencer installation kit
Special Packing/Inspectons for Shipment
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
General - Accessories / Miscellaneous
- Stone guards/rad trans flange
- Packing case – canopied set
- Packing case – compact set
