Cat

DE88 GC Generator Set (60 Hz)

Standby Rating

80 ekW

80 ekW

Frequency

60 Hz

60 Hz

Emissions/Fuel Strategy

Low BSFC

Low BSFC

Overview

The Cat® C4.4 diesel generator sets have been developed for standby applications, delivering reliable power from 80 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements.

Media

Photos

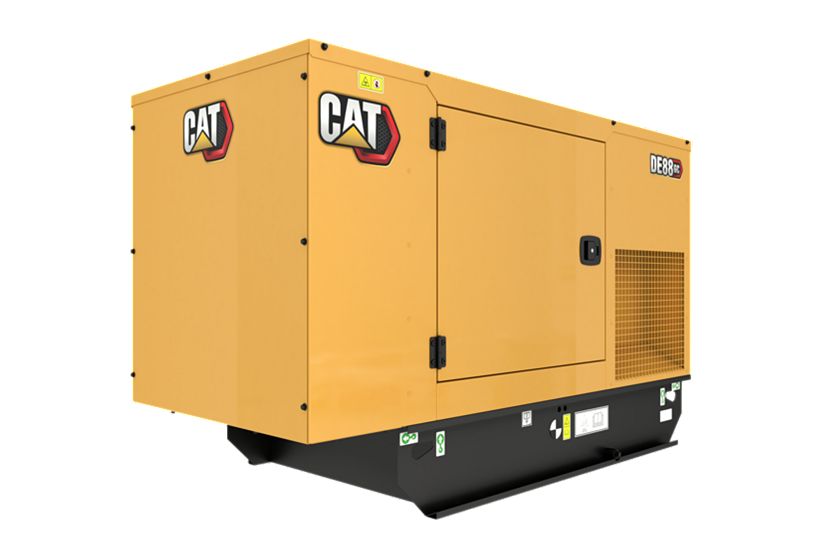

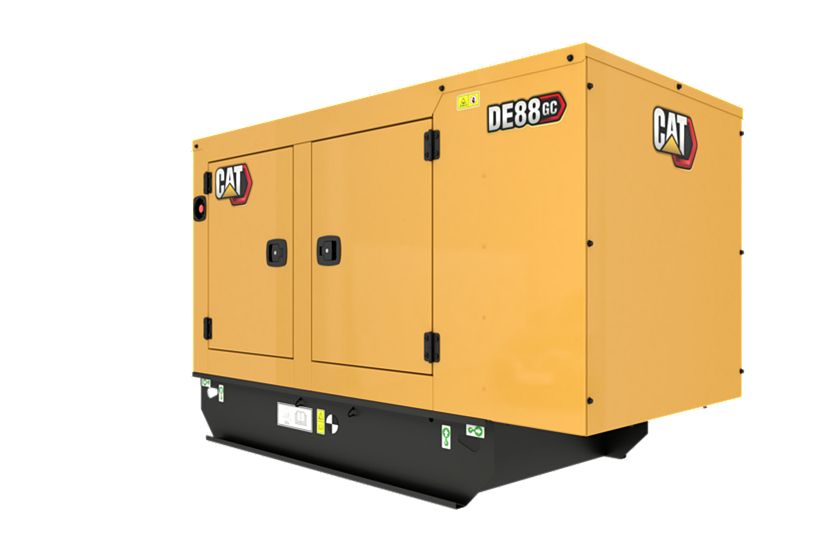

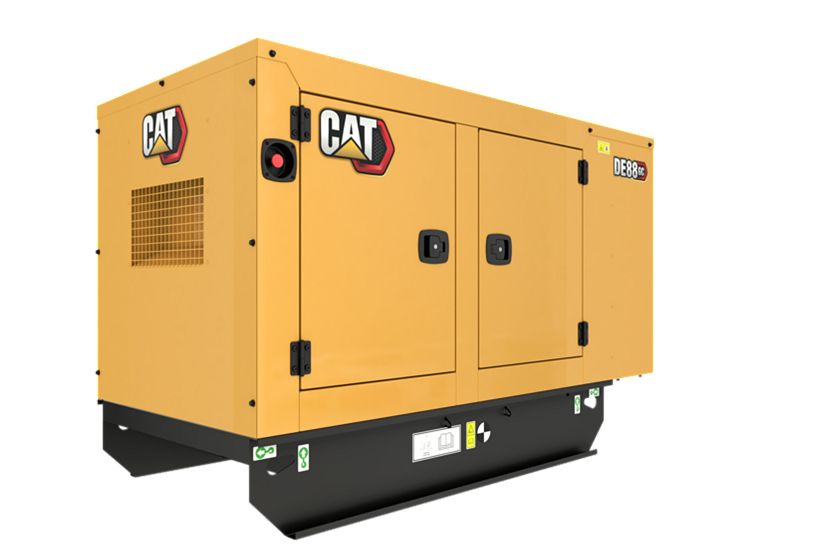

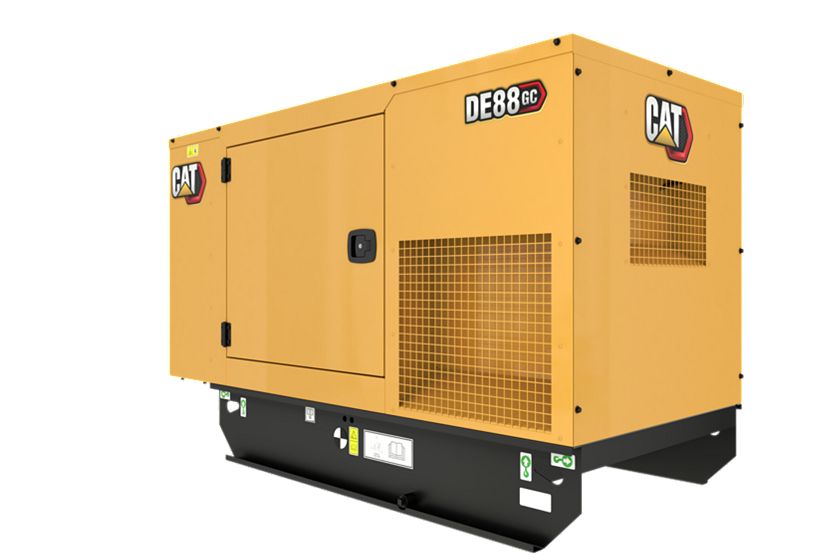

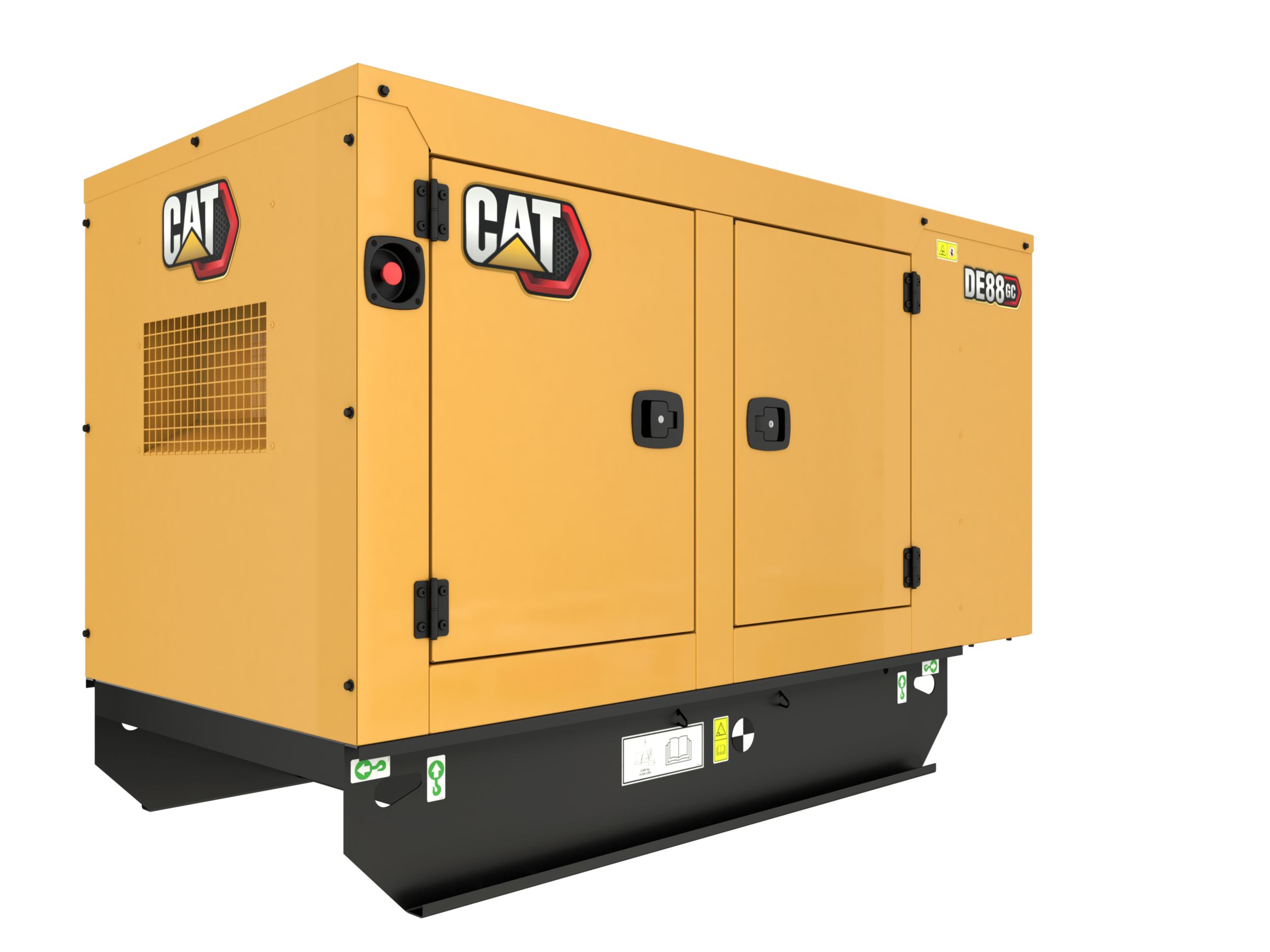

DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC

360° View

Exterior

Documents

Features

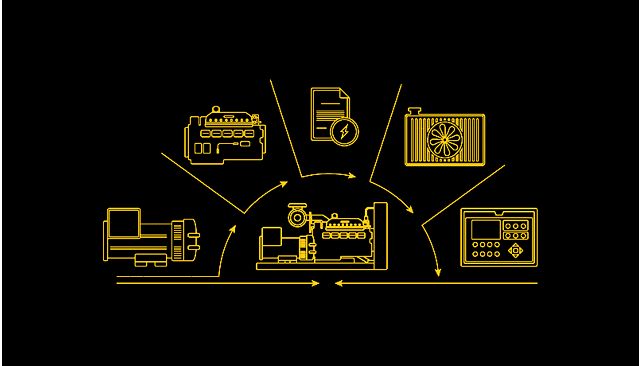

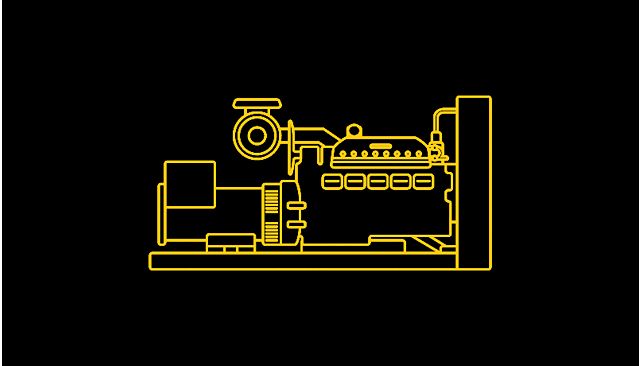

Cat Generator Set Package

Cat Diesel Engine

A-Frame Alternator

GCCP 1.1 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Standby Rating 80 ekW 80 ekW
Frequency 60 Hz 60 Hz
Emissions/Fuel Strategy Low BSFC Low BSFC
Voltage 220 to 480 Volts 220 to 480 Volts
Speed 1800 rpm 1800 rpm
Duty Cycle Standby Standby
Spec Value
Engine Model C4.4, In-line 4, 4-cycle diesel C4.4, In-line 4, 4-cycle diesel
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in 4.4 l
Compression Ratio 17.25:1 17.25:1
Aspiration Turbocharged Turbocharged
Fuel System Inline Inline
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 89.6 in 2275 mm
Width – Maximum 43.3 in 1099 mm
Height – Maximum 57.7 in 1465 mm
Dry Weight – Genset (maximum) 1245 lb 2745 kg

Standard Equipment

Engine

  • C4.4, Inline 4 cylinder, 4 stroke diesel

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Genset Control

  • GCCP 1.1

Enclosure

  • Cat GC enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Auxiliary Supply Voltage

  • 120V

Certification

  • Australia, CIS, Gulf Certification
  • Certificate of Conformance

Alternator Requirements

  • Space heater

Fuel Storage

  • Low fuel level shutdown
  • Single wall tank with containment
  • Dual wall 8 hour fuel tank
  • Low fuel level alarm
  • High fuel level alarm

Genset Control

  • Volt free contacts for genset running
  • Earth fault
  • Panel mounted audible alarm
  • USB to RS485 Communications device
  • Emergency stop with key
  • Earth leakage
  • Battery charger
  • Volt free contacts for common alarm
  • Coolant heater
  • Standby Pack (Smart Jacket water heater, Battery charger)
  • Battery
  • Low coolant level shutdown

Circuit breaker

  • 3 Pole Circuit breaker 160A
  • 3 Pole Circuit breaker 125A
  • 3 Pole Circuit breaker 200A
  • 3 Pole Circuit breaker 400A
  • 4 Pole Circuit breaker 160A
  • 4 Pole Circuit breaker 125A
  • 3 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 200A
  • Circuit breaker padlock
  • 4 Pole Circuit breaker 400A
  • Neutral earth link
  • Overload via alarm switch on breaker

Testing & Packaging

  • PGS Test report @ 1.0 power factor
  • PGS Test report @ 0.8PF

Package

  • Open Set
