Cat
D60 GC Generator Set
Maximum Rating
60 ekW
60 ekW
Minimum Rating
60 ekW
60 ekW
Emissions/Fuel Strategy
U.S. EPA Cert., Tier 3
U.S. EPA Cert., Tier 3
Overview
Producing reliable power of 60 ekW at 60 Hz, our D60 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D60 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.
Media

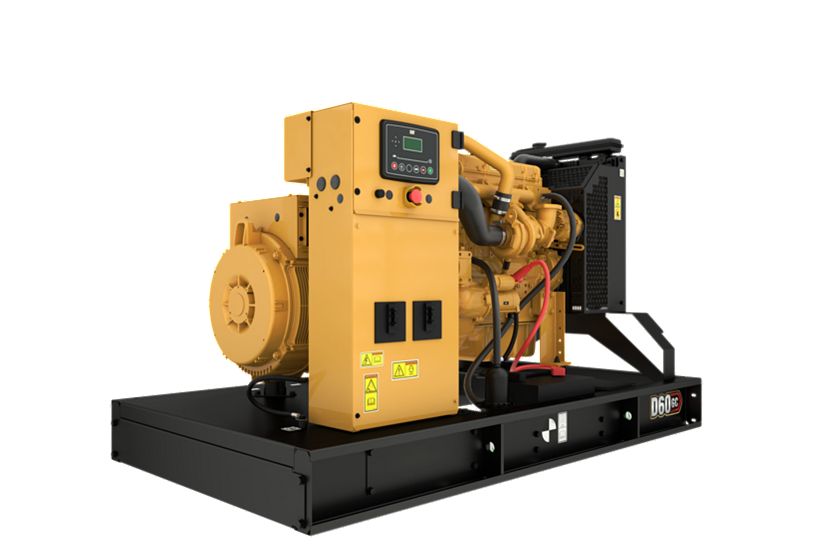

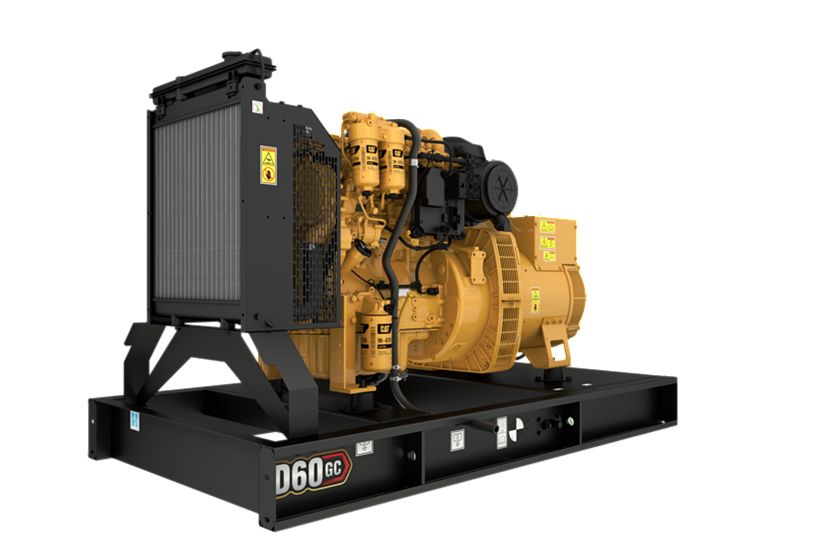

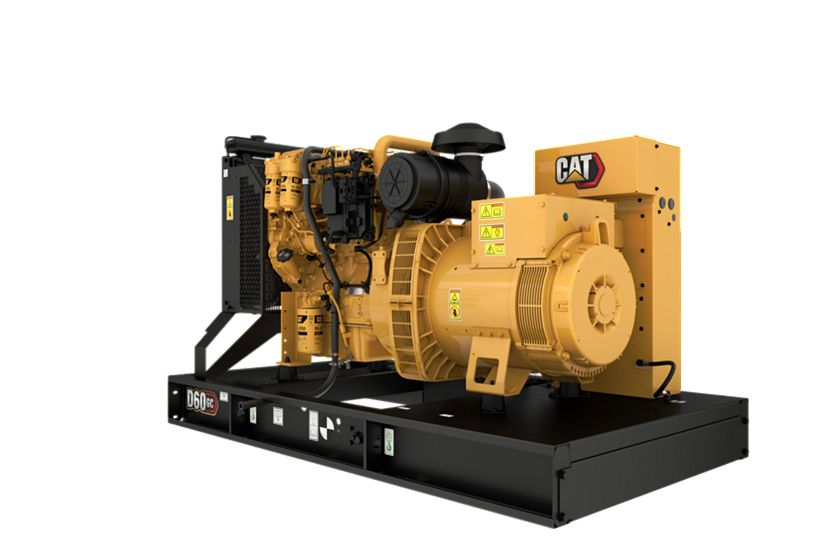

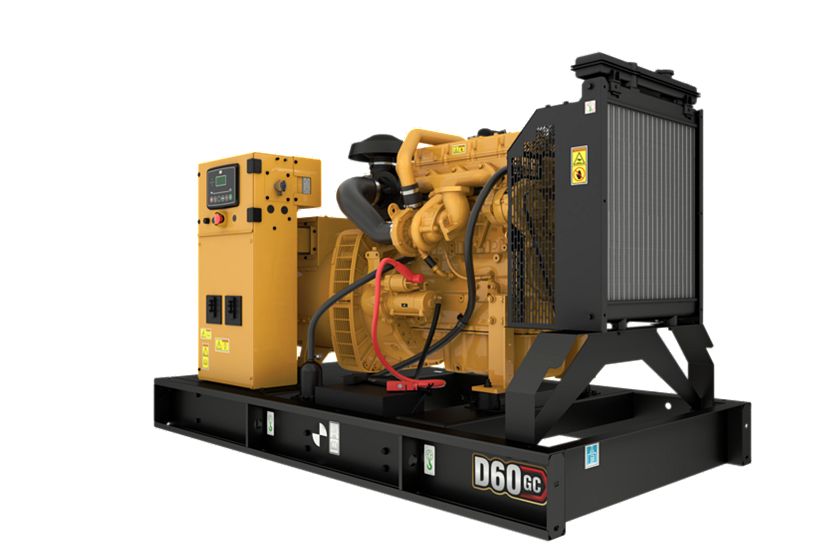

Photos
360° View

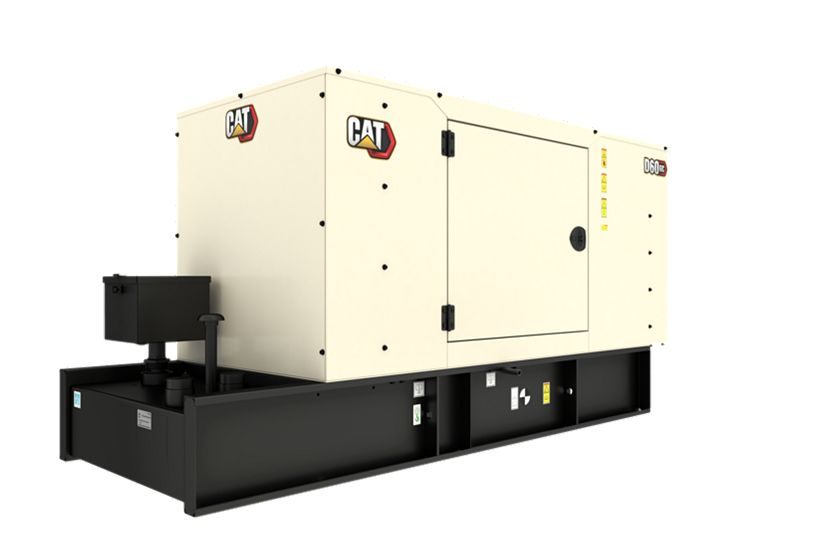

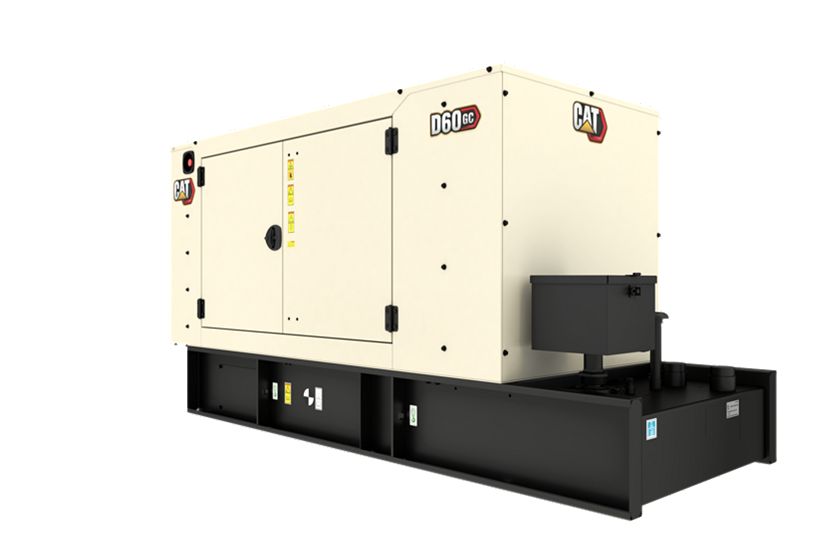

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 60 ekW 60 ekW |
| Minimum Rating | 60 ekW 60 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts 208 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C4.4, In-line 4, 4-cycle diesel C4.4, In-line 4, 4-cycle diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 269 in 4.4 l |
| Compression Ratio | 16.7:1 16.7:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Electronic (adjustable) Electronic (adjustable) |
| Governor Type | Mechanical, ADEM™A4 Mechanical, ADEM™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 77.2 in 1962 mm |
| Width – Maximum | 43.3 in 1100 mm |
| Height – Maximum | 48 in 1220 mm |
| Dry Weight – Genset (maximum) | 2054 lb 932 kg |
Standard Equipment
Certificates
- IBC seismic and wind Certifications
Air Inlet System
- Air cleaner
- Cartridge type air filter
Circuit breakers
- Breakers (100% UL rated)
- 3-Pole 100% rated
- Second circuit breaker box
- Power terminal strip
Charging System
- NFPA battery charger UL10A 120VAC
Control Panel
- GCCP 1.2 Control panel
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use – shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank
Control Panels
- WSS1 Low coolant level shut down
- FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
- NFPA110 bundle includes:
- WCA1 Low coolant temperature alarm
- A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
- PBC10NU NFPA battery charger
- Oil temperature gauge and sender
- PAA1 Panel mounted audible alarm
- Ground fault relay
- Remote E-stop button
- Remote annunciator module
- Audible alarm
- Volt free contacts genset run and common alarm
- Discrete I/O module
- Overload shutdown via breaker
- Low coolant temperature alarm
- Protective devices:
- Fuel level reading
- Low coolant level shutdown
Cooling System
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Radiator and cooling fan with guards
- Radiator stone guard
Generator
- 12 Leads
Governing System
- Mechanical and electrical governing system – model dependent
Lube System
- Oil drain line with valve
- Lubricating oil
General
- Engine and alternator pre-paint, Caterpillar yellow
Starting/Charging System
- Batteries
- 24V battery with rack and cables
Optional Equipment
Certificates
- IBC seismic and wind Certifications
Alternator System
- R Frame auxilliary winding
Air Inlet System
- Cartridge type air filter
Charging System
- NFPA battery charger UL10A 120VAC
Circuit breakers
- Breakers (100% UL rated)
- 3-Pole 100% rated
- Second circuit breaker box
- Power terminal strip
Control Panels
- NFPA110 bundle includes: FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected – WSS1 Low coolant level shut down – WCA1 Low coolant temperature alarm – PAA1 Panel mounted audible alarm – PBC10NU NFPA battery charger – A Coolant heater ,remote annunciator or 0.8 power factor test may be required depending on the application
- Ground fault relay
- Remote E-stop button
- Volt free contacts genset run and common alarm
- Oil temperature gauge and sender
- Audible alarm
- Remote annunciator module
- Protective devices: Low coolant temperature alarm – Low coolant level shutdown – Fuel level reading – Overload shutdown via breaker
- Discrete I/O module
Cooling System
- Radiator transition flange
Enclosures
- Sound attenuated enclosure, Level 1
- External emergency stop
- Sound attenuated Level 2 Enclosure (White)
- Panel viewing window
Exhaust System
- 10, 25 and 35 dBA silencer systems
- Overhead silencer mounting kit
Fuel System
- Emergency vent pipe
- Tank riser
- 5 Gallon spill containment
- 209 and 394 gallon sub-base fuel tanks
- 5 Gallon fill containment
Heating Elements
- Battery heater
- Jacket water heater
- Coolant heater
- Anti-condensation heater
- Wiring for canopy space heater
- Lube oil sump heater
Generators
- Permanent magnet excitation (PMG) generator
- Cat Alternator
Mounting System
- Seismic vibration isolators
Tests
- 4 Hour factory test
- Generator test report
- PGS Test report @ 0.8 power factor
- PGS Test report @ 1.0 power factor
